Hardwired Power Watchdog Surge Protector with Bluetooth and Emergency Shut Down - 30 Amp

Hardwired Power Watchdog Surge Protector with Bluetooth and Emergency Shut Down - 30 Amp

lowest price pledge
Retail:$294.57
Our Price: $198.22
You Save: $96.35
RV Surge Protectors
This item qualifies for Free Shipping
Shipping Weight: 4 lbs
Quantity:
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Need help with installation?
Locate installers near me
Surge protector protects your electronics from power spikes. Smart circuit analyzer automatically shuts off power to your RV if voltage is outside the safe range (104 volts - 132 volts). Hardwired installation in RV protects unit from the elements. Lowest Prices for the best rv surge protectors from Hughes Autoformers. Hardwired Power Watchdog Surge Protector with Bluetooth and Emergency Shut Down - 30 Amp part number HU77FR can be ordered online at etrailer.com or call 800-298-1624 for expert service.
  • All Info
  • Reviews (214)
  • Q & A (1)
  • Videos (1)
  • Photos
  • Why etrailer?

Hughes Autoformers RV Surge Protectors

  • 30 Amp
  • Surge Protector
  • Hughes Autoformers
  • Perrmanent
  • Bluetooth
  • Emergency Shut Down
  • 2400 Joules

Surge protector protects your electronics from power spikes. Smart circuit analyzer automatically shuts off power to your RV if voltage is outside the safe range (104 volts - 132 volts). Hardwired installation in RV protects unit from the elements.


Features:

  • Surge protector protects your RV from power spikes
    • Offers 2,400 joules of surge protection
  • Smart circuit analyzer shuts down power to your RV if voltage drops below 104 or raises above 132
    • Sends alert to your phone
    • Turns back on after power has been in a safe range for 90 seconds
  • LED lights indicate if your unit is receiving power
    • Unit checks for open ground, open neutral, reverse polarity, open circuit, and miss-wired connections
    • White light means the park power pedestal is proving steady power
    • Red light means the park power pedestal is not providing steady power
    • Label on the side explains error codes
  • Plug-n-play surge protector is ready after a 4-second delay
    • Audible click tells you the surge protector is on
  • Free smartphone app uses Bluetooth to send visual and audible alerts
    • Sends push notifications when voltage is outside the acceptable range
    • Monitors volts, amps, and watts
    • Lets you set custom alert thresholds
    • Shows your kW/h usage
    • Available for iOS and Android devices
  • Easy setup - scan QR code label to pair surge protector with your phone
  • Hardwired installation inside your RV
    • Makes it easy to hook up to a park power pedestal - no extra steps required
    • Protects the unit from the elements


Specs:

  • Dimensions: 5-1/2" long x 4" wide x 10-9/16" tall
  • Amps: 30 amps
  • 3-Year limited warranty


PWD30-EPO-H Power Watchdog Surge Protector with Bluetooth and Emergency Shut-Off - 30 Amp - Hardwired

Item # HU77FR

Installation Details HU77FR Installation instructionsAlternate Instructions HU77FR Installation instructions



Video of Hardwired Power Watchdog Surge Protector with Bluetooth and Emergency Shut Down - 30 Amp

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Review of Hughes Autoformers RV Surge Protectors - 30 Amp Hardwired RV Surge Protector - HU77FR

Hi there. I'm Michael with etrailer.com. Today, we're going to take a quick look at this Power Watchdog, hardwired 30 AMP surge protector with Bluetooth and emergency shutoff. This is going to hardwire into your RV's power system. It's going to protect your RV from power spikes from your shore power hookup. This will offer 2,400 joules of surge protection.

So if the voltage drops below 104 or rises above 132 the smart circuit analyzer is going to shut down the power to your RV so that you're not going to have to worry about any damaging currents coming through. This will turn back on the power after it is, had a safe range for 90 seconds. So it's going to do a good job of protecting all of your electronics in your RV. This does have a hardwired design, so now just going to have to install it once and then you'll be able to hook up your system like normal. Once you get to your campsite, we'll just plug into the sharp power or shore power and it will automatically start working.

It's got about a four second delay but then you'll hear an audible click to let you know that it's on this dog face here, will light up to let you know if everything's going right. So it will wind up white, if the park power pedestal is providing a nice steady source of power. If this lights up red or that means it's not providing steady power there should be an error code that will light up here on this little digital display here that will give you an error code. That lines up with the error code list here on the side. This is gonna check for open ground, open neutral, open circuit, reverse polarity and miswired connections.

So if any of those come up they'll know what's wrong. You'll be able to correct it or what the camp site managers know. This also has the Bluetooth connection capability So very simple to download that free app onto your iOS or Android device. You'll scan the a QR code here to get it connected. And then you'll be able to connect your phone to monitor your volts, amps, and watts as well as your kilowatt hour usage.

And then it will also send you notifications. If there is any problems, if the voltage is outside the acceptable range we'll also let you customize the alerts for or threshold. So if anything is more than you want, if you find out you're using a lot more power than you intended to or something along those lines, you can set up those alerts. They're very easy to get all that set up so that you can monitor and just open up the app and see how much you're using from time to time and then make sure that everything is coming in clean and at the right amount of power. This is gonna store right into your compartment, so it's not going to have to worry about weather or anything like that. It's going to be nice and protected. It's not going to take any extra steps to get it hooked up when you, once you get to the camp site. So it's going to be very easy to use. As far as our dimensions go, this is right about, I mean it's call it six inches wide from our outer points here. It's right about six inches. Then our thickness right about four inches. And then our height, I'm going to say right at 10 inches, sorry, 10 and a half inches tall. So make sure that that's going to fit for your compartment. You're also going to need room for your wiring. Obviously that's not gonna come out at a perfectly straight or 90 degree angle. You'll probably need a little bit of a loop on either side. So to make sure that you've got enough room wherever it is going to put this to store it so that you can get it all wired up properly but should be a really nice, easy project for you. This does have a a unit inside of it that is going to help with that surge. If you we're to get a really big surge and you we're to blow that card, you can take this box apart just simple screws there, open it up and you can replace that card rather than having to replace the whole unit. So, nice little option there. If you we're to ever encounter a really large surge that would blow that card, it is replaceable for you. So overall, this is a really nice option. There is a portable option. That's very similar. It's just got your connection so that you can just plug it into your wiring from your RV and then plug it into the shore power. If you want something like that. If you might, maybe if you're moving from RV to RV but this is a nice hardwired option so that you can just put it in one time and forget about it and just plug it into your shore power like normal. So if you are looking for a 30 amp option this is going to be the right pick for you. We also have 50 amp options available and as well as a lot of other RV supplies. So if this isn't what you're looking for I'm sure we have another option for you. So it's going to complete our look for today. Again, I'm Michael with etrailer.com. Thanks for watching..


Customer Reviews

Hardwired Power Watchdog Surge Protector with Bluetooth and Emergency Shut Down - 30 Amp - HU77FR

Average Customer Rating:  4.9 out of 5 stars   (214 Customer Reviews)

Surge protector protects your electronics from power spikes. Smart circuit analyzer automatically shuts off power to your RV if voltage is outside the safe range (104 volts - 132 volts). Hardwired installation in RV protects unit from the elements.

- HU77FR
by:

I really like this unit. All the other reviews are correct: Yes its huge, yes the bulldog logo is super bright. I installed it in an enclosed area on my trailer (Coachman Apex Nano 194BHS) in the water heater compartment (above/away from any possible water leaks), so the size and brightness are not an issue for me. The Bluetooth range is really good (maybe too good, it reaches halfway thru the house when parked outside). The app is also pretty cool, because you can use it like a Kill-a-Watt by going around the camper turning things on/off (pro-tip: use the circuit breakers for most accurate readings). Really appreciate not worrying about this expensive gear getting stolen, or forgetting it during setup, etc. Protected from day 1.



- HU77FR
by:

Fast shipping! Easy install on my keystone passport. So far so good. I like this surge protector because it is hard wired inside the rv and eliminates theft of the unit.



- HU77FR
by:

promp service thanks



- HU77FR
by:



- HU27FR
by:

Review from a similar Power Watchdog Surge in RV Surge Protectors

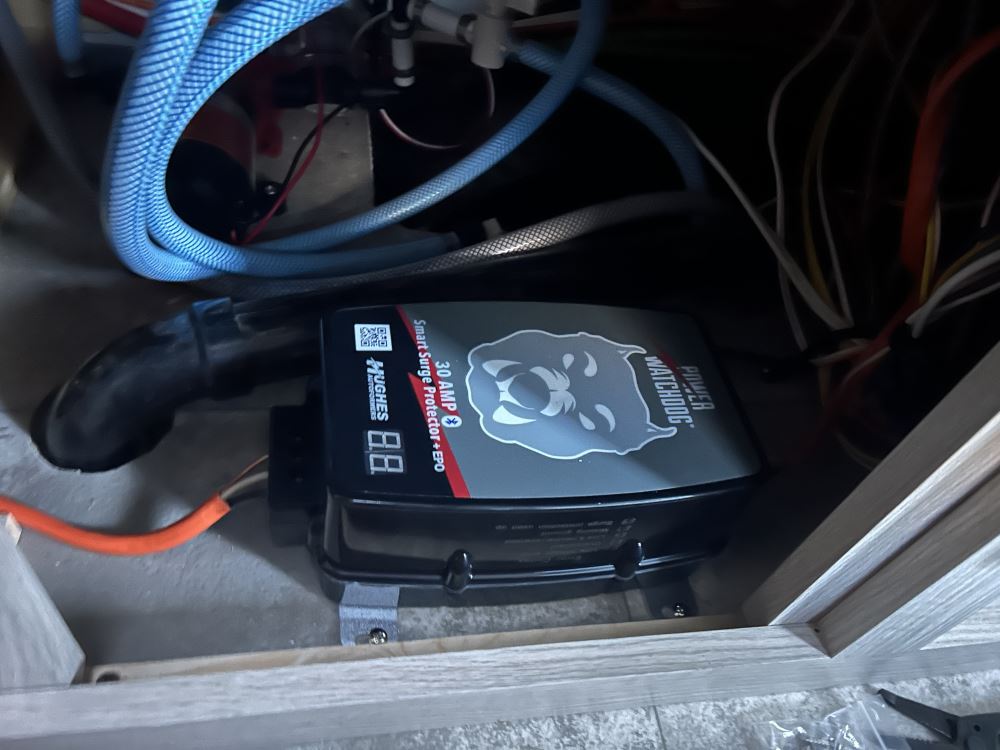

Excellent packaging. All necessary parts included. Easy installation (depending on your situation). Electrical connections couldn’t be easier. I recommend a no-ox type grease to prevent corrosion from moisture and dissimilar metals. Unit worked perfectly. WiFi to phone works great and is very convenient. Mine is mounted in the basement of a 5th wheel so can’t see it readily. Highly recommend the quality device.
