Lift the diverter pin of this hybrid RV tub faucet so you can rinse off with the included shower head after a long day at the campsite. You can angle the shower head downward for your child and angle upward for you and your spouse.
Features:
Specs:
To install, use the inlet shanks to drop the new faucet and deck plate in place of your existing faucet. Hand-tighten the included hardware against the back of the wall, and connect the hot and cold water lines. Then assemble the shower head and install it onto your shower supply line. You'll need to keep some tub and tile caulk (not included) on hand to help prevent any leaking.
California residents: click here
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

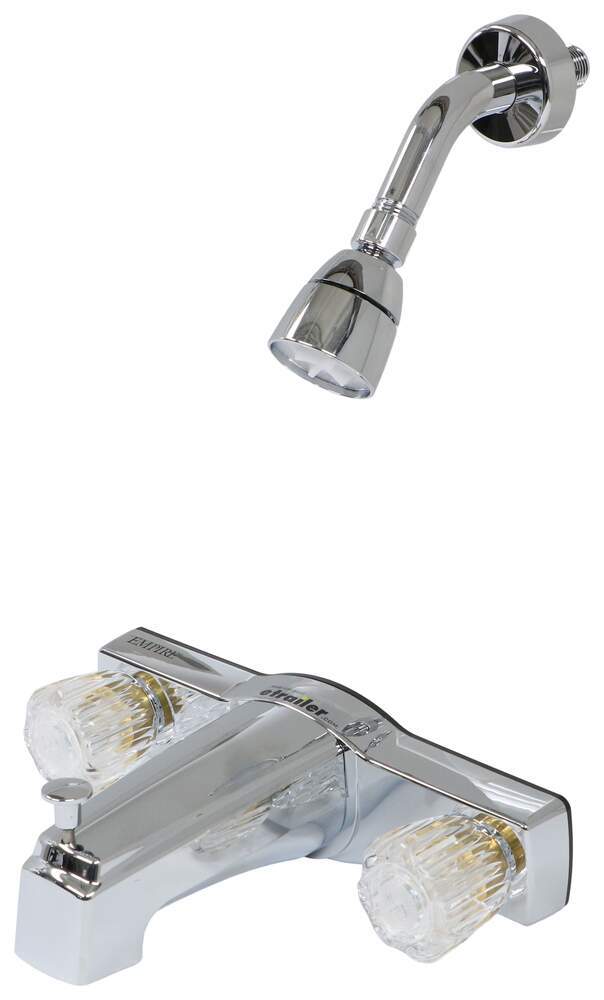

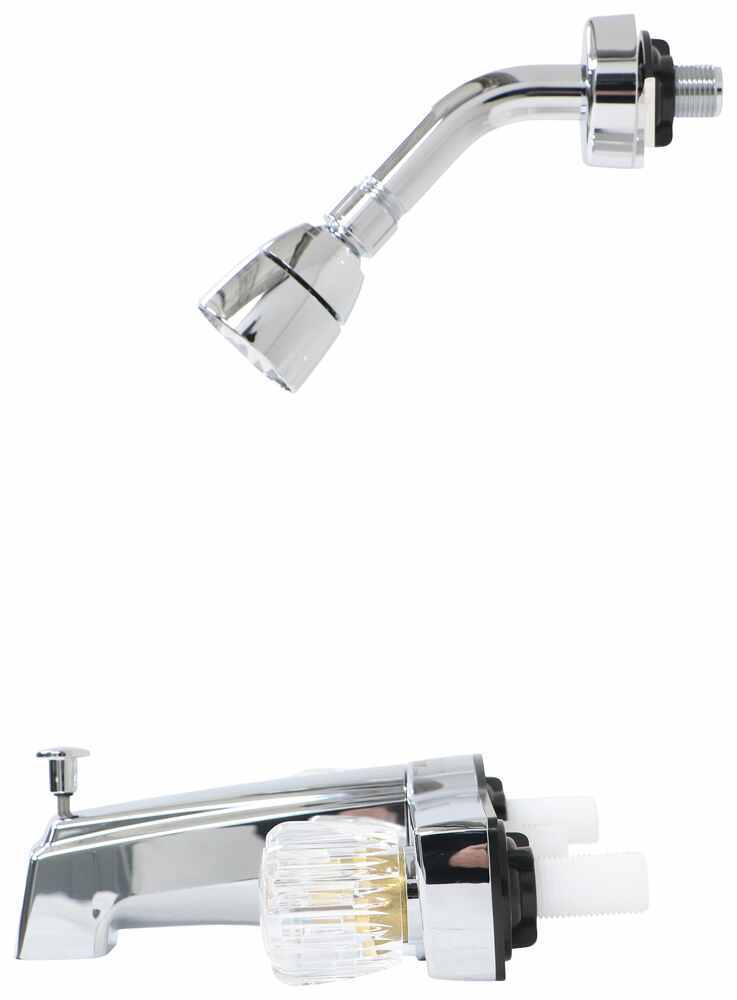

Hi everybody, Andy here with etrailer.com And today we're taking a look at this Empire Faucets dual knob, RV tub and shower diverter faucet with shower head kit in chrome. And with this, you can update your bathroom in your RV, your camper, or your mobile home with this clear acrylic dual knob tub and shower diverter in this nice Chrome finish that's gonna match most bathroom decor. Now, it features brass stems and bonnet with a single casted plastic waterway. And, of course, the shower activates by lifting the diverter pin on this spout and the shower head, and the arm, and the flange are included in this kit and it's oven ABS plastic and corrosion resistant brass construction in this Chrome finish. And this Chrome finish is attractive and it'll probably go with just about any decor. Just be aware that it does easily pick up smudges and fingerprints, so you might find yourself wiping that down from time to time, just to maintain that shiny Chrome finish.

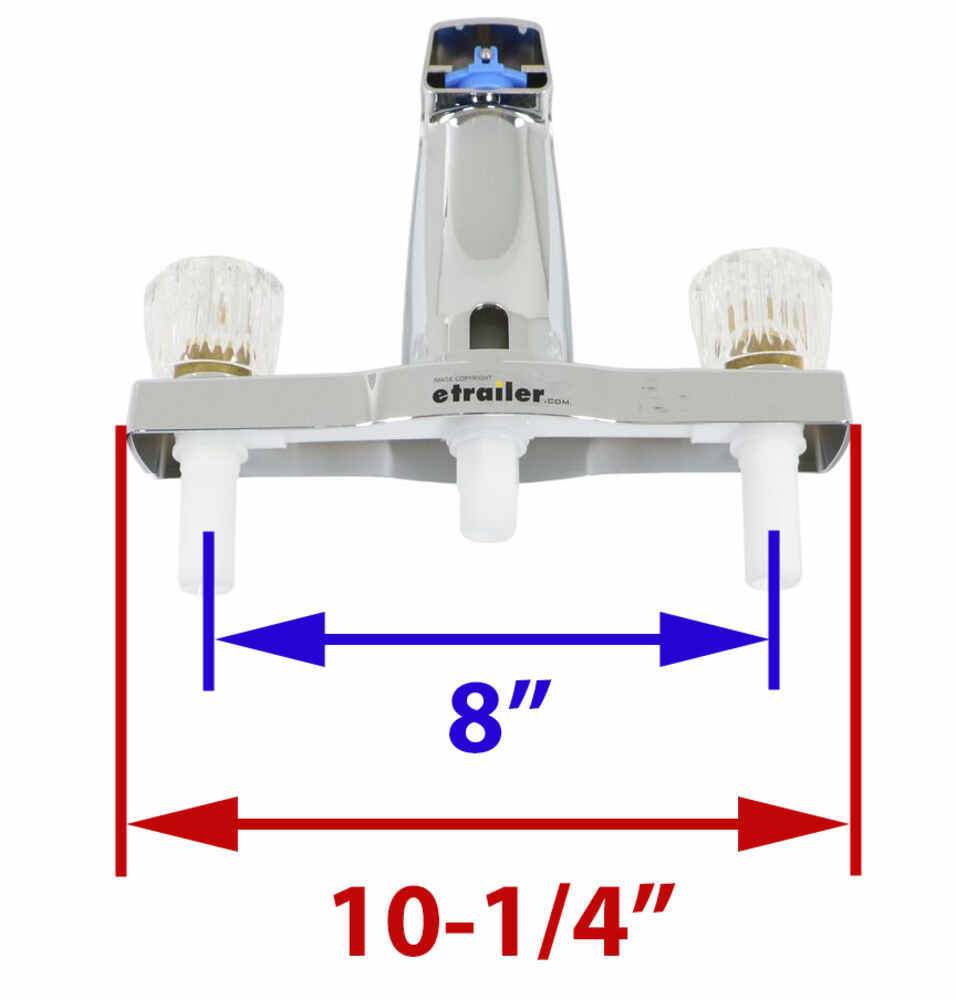

Now, this is an easy wall mount, three hole installation. The deck plate and mounting hardware are included. This is ADA compliant. And just some measurements of the base here, the length of the base is going to be 10 and a quarter inches long by three inches tall. And then the depth of this base, including these handles, are gonna be almost three inches.

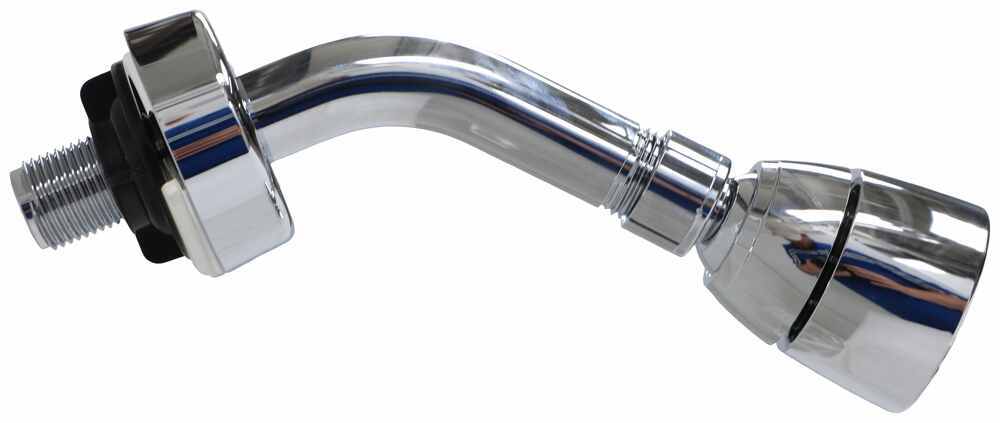

They're gonna sitting right about two and seven eighths inches deep. And then the tub filler spout, measuring from the wall that this will be mounted on, is gonna run the length of six and three quarters inches. And then the shower head is adjustable, as you can see here, and the diameter of the shower head- it's single function, by the way - is one and seven eighths inches. And the plate is removable for easy cleaning. And the distance from the wall that this shower head is gonna be mounted on, to the end, it's gonna be sitting right at six and a quarter inches.
The maximum flow rate is 2.5 gallons per minute. And the distance between the inlet shanks are going to be eight inches in between. This does have a limited lifetime warranty. And again, this features, this kit features the brass stems and bonnet. If you're looking for an all plastic kit, we do have that available.
Item number "EM33FR" on our website. Or, if you're looking for the brass shower valve in a kit very similar to this, you can find that on our website item number "EM87FR." Well, that's going to conclude our look at this kit today. Again, my name is Andy. Thank you for joining me..
All great with Facuet’s
Great customer service,excellent produc t!
Much better quality than able to find anywhere else.
We retired and live in a 1980 double wide in Florida. The shower valve went out and we searched Heaven and Hell for a replacement of the correct size so we would not need to modify or re-pipe. But no luck, nothing would fit the water supply lines. Found etrailer by chance on a Google search, by lucky chance. Immediately found what we needed. Fast processing and shipping. We had our valve in three days from order to receipt. EXCELLENT service. The valve fits PERFECTLY! Thank you etrailer. You are a life saver.
works as it should. thanks
Metal body and brass piping components make this a major improvement over original equipment (plastic body and piping) in my modular home.
