ThermaHeat RV Holding Tank or Step Heater Pad w/ Thermostat - 18-1/4" Long x 12" Wide

ThermaHeat RV Holding Tank or Step Heater Pad w/ Thermostat - 18-1/4" Long x 12" Wide

Item # 277-000164

lowest price pledge

Retail:$46.36

Our Price: $29.78

You Save: 36%
RV Fresh Water

Orders above $50 qualify for Free Shipping

Shipping Weight: 0.69 lbs

Select Ground or Free Shipping for delivery before Christmas
Quantity:
In Stock
Patrick Industries RV Fresh Water - 277-000164
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Patrick Industries RV Fresh Water - 277-000164
Patrick Industries Holding Tank Pad RV Fresh Water - 277-000164
Patrick Industries Heating Elements and Pads - 277-000164
ThermaHeat RV Holding Tank or Step Heater Pad w/ Thermostat - 18-1/4" Long x 12" Wide Holding Tank Pad 277-000164
RV Fresh Water 277-000164 - Holding Tank Pad - Patrick Industries
Patrick Industries RV Fresh Water - 277-000164
277-000164 - Holding Tank Pad Patrick Industries Heating Elements and Pads
RV Fresh Water 277-000164 - Holding Tank Pad - Patrick Industries

Videos


  • Heating Elements and Pads
  • Holding Tank Pad
  • LaSalle Bristol
Full-contact, weatherproof heating pad helps prevent your RV holding tank or step from freezing. Built-in thermostat automatically turns the heating pad on and off depending on the temperature of the tank or step. Easy, peel-and-stick installation. Lowest Prices for the best rv fresh water from LaSalle Bristol. ThermaHeat RV Holding Tank or Step Heater Pad w/ Thermostat - 18-1/4" Long x 12" Wide part number 277-000164 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (20)
  • Q & A (52)
  • Videos (1)
  • Photos
  • Why etrailer?

LaSalle Bristol RV Fresh Water - 277-000164

Full-contact, weatherproof heating pad helps prevent your RV holding tank or step from freezing. Built-in thermostat automatically turns the heating pad on and off depending on the temperature of the tank or step. Easy, peel-and-stick installation.


Features:

  • Full-contact heater pad keeps your exposed RV holding tank or step warm during freezing temperatures
    • Works with tanks with a 29- to 40-gallon capacity
    • Can also thaw out a tank system or a step if it's already frozen
  • Built-in thermostat automatically operates the heater pad
    • Turns on when the tank or step temperature reaches 45 degrees F
    • Turns off when the tank or step temperature reaches 67 degrees F
  • Flexible, weatherproof carbon fiber material bends to fit the contours of a surface
  • Easy, peel-and-stick installation onto the bottom of your tank or step
  • 2-Wire design with 16-gauge wires
    • White wire is for ground
    • Red wire is for power
  • Compatible with DC power when in transit
    • Runs through a converter while connected to a power source when your RV is parked
  • Cold room tested down to -32 degrees F
  • QAI certified


Specs:

  • Pad dimensions: 18-1/4" long x 12" wide
  • Pad thickness: 3 mm
  • Length of wires: 36"
  • Input voltage: 13.5V DC
  • Power draw: 4.8 amps
  • Wattage: 65 watts
  • 1-Year warranty


The Therma Heat RV tank and step heating pad meets the following certification standards:

  • Safety for Electric Heating Appliances, UL499
  • Safety for Heating Elements (CSA) C22.2 No. 72-m1984 (R2004)
  • Flammability tests (UL) 746C, 15 and CSA 0.17,9,2
  • Dieletric Voltage Withstand Test (UL) - 1000 volts/1 minute
  • Thermal Aging Test (UL)

Note: This heater pad should be installed on non-conductive surfaces only.


Why ThermaHeat?

When the outside temperature is cold enough, the exposed freshwater holding tank or step on your RV will freeze. For tanks, this stops the flow of water from reaching your sink, shower, or other freshwater source. Furthermore, the frozen water could potentially cause cracks or other irreparable damage to your tank or pipes, which would mean you would have to replace them. And a frozen step can be extremely slippery as you try to enter or exit your RV or camper.


The full-contact ThermaHeat heater pad will prevent this by keeping your holding tank or step warm during freezing temperatures. It has a built-in thermostat that automatically operates the pad. When the temperature of the tank or step drops to 45 degrees F, the pad will turn on. When the temperature rises to 67 degrees F, the pad will turn off. It can also completely thaw out a tank or a step if it's already frozen, assuming that none of the components have been damaged. The heater pad does all the work for you, preventing you from having to go out in the cold and thaw it out by hand with a heat gun or hair dryer, which can melt the side of your tank or step if not used properly.


Installation and Wiring

ThermaHeat Peel-and-Stock Installation

This heater pad has easy, peel-and-stick installation onto the bottom of your tank or step. The flexible carbon fiber material is designed to fit the contours of any surface. The pad is meant for use on fresh water tanks, but can be installed onto gray water or black water tanks. Please note, however, that adding a heat source to a gray water or black water tank may create excess gasses and odors.


ThermaHeat 2-Wire Design

The pad has a red wire for ground, and a white wire for power. This 2-wire design is compatible with DC power while your RV is in transit. It can also run through a converter while connected to a power source when your RV is parked.


Additionally, you are able to install this pad with other ThermaHeat heater pads (sold separately). In order to do this, they must be connected and run parallel. You would daisy-chain the red wires together and connect them to the battery of your RV or camper and then daisy-chain the white wires together and ground them. In order to turn the pads on and off, you will need to install a switch (sold separately) between the battery and the pads.



210SLT1218RTBX Therma Heat Heating Pad with Thermostat for Motor Home Water Tanks and Steps - 18-1/4" Long x 12" Wide

Alternate part number: 85851 and ST-T1218

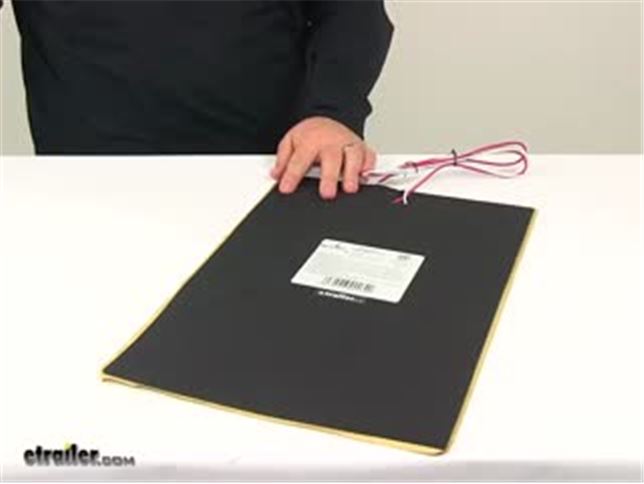

Video of ThermaHeat RV Holding Tank or Step Heater Pad w/ Thermostat - 18-1/4" Long x 12" Wide


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Therma Heat RV Fresh Water 277-000164 Review

Speaker 1: Today we're taking a look at the holding tank heater pad for RVs. Now this is a full contact, peel and stick, carbon fiber heater pad for 29 to 40 gallon RV tanks. It's designed to keep the water in your freshwater tank from freezing, and it is capable of even thawing out a frozen system. Installation instructions are located directly on the pad, right here on the sticker. And it is thermostat-controlled with a built-in thermostat. So it has auto-on feature at 45 degrees Fahrenheit and auto-off at 67 degrees Fahrenheit.The thermostat in the pad reads the tank's surface temperature and not the outside temperature to determine when to turn off and when to turn on.

It has been cold-room tested down to negative 32 degrees Fahrenheit. It runs off of DC power, while the RV is in transit, and through a converter when connected to a power source.It has a two-wire design, so your white wire is ground, red wire is power. These are 16-gauge wires. Now, if two or more pads are used, they must be connected and parallel. I also want to let you know that a switch can be used to turn off and on the heating pad, as long as the switch can handle the amperage load of the heating pads.

Switches are sold separately and available at etro.com 00:01:18.When it comes to the size of the pad, we're only looking at a thickness of three millimeters going this direction. The pad measures about 12 inches, and then going this direction, it measures about 18 inches long. When it comes to the voltage, we're looking at 13.5 volts, electric currant is 4.8 amps, and your lead wires have a length of around 36 inches.That's going to do it for today's look at the holding tank heater pad for RVs.


Customer Reviews

ThermaHeat RV Holding Tank or Step Heater Pad w/ Thermostat - 18-1/4" Long x 12" Wide - 277-000164

Average Customer Rating:  4.4 out of 5 stars   (20 Customer Reviews)

Full-contact, weatherproof heating pad helps prevent your RV holding tank or step from freezing. Built-in thermostat automatically turns the heating pad on and off depending on the temperature of the tank or step. Easy, peel-and-stick installation.

- 277-000164

by:


These stick on very well after cleaning surfaces with alcohol as instructed. They are warm to the touch on a cold day. Very pleased so far 576565



- 277-000164

by:


Simple to install. Good value quick shipping. Thank you. 453998



- 277-000164

by:


These guys are the best!! Ordered with a “24 hour delay on shipping” and three hours later had a confirmed shipment AAANNDDD arrived a day earlier. Etrailer, you make our business look better!! THANK YOU!! 502002



- 277-000164

by:


Ordered this water tank warmer from the helpful staff at etrailer and it arrived a week later. Staff was very helpful in talking about the install as well. Best price from every where I looked. 454340



- 277-000164

by:


I ordered three electric tank heater pads. The price was great. The delivery quick. I will be ordering more from etrailer. The tank heaters will permit me to take my Chalet camper on ski trips and we will be able to have hot water and showers. 457104



- 277-000164

by:


Easy to install . No wiring information as regards amp or fuse requirements. Kept tanks from freezing through a NH winter.... 425482



- 277-000164

by:


Products did not work. They never turned on. My customers are very upset 468277



- 277-000164

by:


Great product. I chose the free shipping and wasn't expecting it for quite some time. I order Saturday night and actually received it today (thursday). Prices here are by far better than other sites or any other trailer site. Very happy. 460226



- 277-000164

by:


Happy with the products. 453531



- 277-000164

by:


I liked the price of the product. It was very easy to attach to the water tank. I am hooking it up now. I plan on buying more later on to use on other areas. I use my trailer during late year hunts and want running water. The low wattage/ amp use is low. 426223



- 277-000164

by:


The product received was exactly what was ordered. I have no installed them yet though. Shipping was very quick this time around. Less than 5 days. 469657



- 277-000164

by:


Received two holding tank heating pads today for my rv. I installed without problem in just a few minutes, motorhome was pre-wired. Less than $80 dollars invested. Bid for the work from a local rv dealer was over $1000! Thanks, etrailer.com 443554



- 277-000164

by:


I am pleased that your service was so prompt however I have yet to install my purchase. I will let you know how it works for me following its installation. Thank you 455535



- 277-000164

by:


Good product and quick delivery. Will solve cold weather issues in our trailer. 453769



- 277-000164

by:


Original order was received defective. Customer service and technical support was very responsive. It appears etrailer's customer service is handled in house and not farmed out to another country. A new item was delivered immediately. I was pleasantly surprised there are still companies that value customer service. 456164



- 277-000164

by:


great service fast delivery 428399



- 277-000164

by:


Reasonable price, delivery on time, product as advertised. Installation was a breeze, thanks to written instructions right on the product. Adhesive seems very durable, make sure you align the product exactly where you want it before application. 5 stars. 576128



- 277-000164

by:


Fast delivery. I called in with questions they were great help haven’t had a chance to use the items yet 583427



- 277-000164

by:


Bought this late in the season to keep my holding tank from freezing. I did not realize the outside temp needed to be above 60 degrees. Saving it to apply next summer. 582649



- 277-000164

by:


The tank heaters were easy to install and seem to work as represented. 578964


20
20

Ask the Experts about this LaSalle Bristol RV Fresh Water
Do you have a question about this RV Fresh Water?


  • Installing Therma Heat Holding Tank Heater Pads with Switch
  • The Therma Heat Holding Tank Heater Pad # 277-000164 referenced in your question is a very nice, full contact peel and stick heater pad designed for RV tanks between 29 and 40 gallons. These are designed for fresh water tanks and typically will not be needed for grey water. You can then use a switch like the Pollak Universal-Design Rocker Switch # PK34310, which is indeed rated for 20 amps.
    view full answer...

  • Keeping Fresh Water Tank and Lines from Freezing in a Lived-In 5th Wheel Trailer
  • If you live in the trailer all year then presumably you will be running heaters when it is cold. Provided the hot water heater and plumbing is internal to the trailer then the ambient temperature would prevent it from freezing. But I assume that the water heater is fed from the fresh water tank which is more external to the trailer. To keep it from freezing you could use a tank heater such as # 277-000164. Or we have heating element # W01-1573 designed for freeze protection on holding...
    view full answer...

  • How to Wire the ThermaHeat RV Holding Tank Heater Pad To an On/Off Switch
  • There are two wires coming from the ThermaHeat RV Holding Tank Heater Pad part # 277-000164. There is a red wire for the 12 volt power and a white wire for the ground. This heating pad draw's 4.8 amps of power. Therefore, if you will be attaching three of these to a single switch then the switch will need to be rated for 14.1 amps (4.8 x 3). For a switch, I recommend using the Universal-Design Rocker Switch part # PK34360 which is rated at 20 amps and will be sufficient for three of...
    view full answer...

  • Heating Pad for Freshwater Tank on RV
  • For as big as your tanks are I would recommend going with the part # 277-000163 which measures 25 inches by 7-1/2 inches for each of your tanks. These are designed for the freshwater tanks and would not be needed on grey water.
    view full answer...

  • Can Holding Tank Heater Pad such as # 277-000164 be Used on Gray or Black Water Tanks
  • There's nothing stopping you from using a Holding Tank Heater Pad such as # 277-000164 on black or gray water tanks. It wouldn't get hot enough to really cause an issue.
    view full answer...

  • Therma Heat RV Tank Heater Pads Installation
  • To install the Tank Heater Pads part # 277-000164, part # 277-000161, and part # 277-000162 together you will simply need to run them in parallel. This means that you will daisy-chain all of the positive (Red) wires together and connect them to the battery on your RV, and you will daisy-chain all of the negative (White) wires together and ground them. You can use the Pollak Universal-Design Rocker Switch # PK34310 between the battery and the pads as a way to turn them on and off. Since...
    view full answer...

  • Could Switch be Used to Power Two of the 18-1/4" x 12" Holding Tank Heater Pad 277-000164
  • As long as the switch can handle the amperage load of two of the heating pads part # 277-000164 yes it would be fine. This heating pad draws 4.8 amps. So the switch would need to be able to accommodate 9.6 amps. The part # D16740 would easily handle the amperage.
    view full answer...

  • Will Therma Heat RV Holding Tank Heater Pad Work with 12V Battery Operating Between 11-13.5 Volts
  • I spoke with my contact at Therma Heat regarding the RV Holding Tank Heater Pad # 277-000164 referenced in your question. She stated that the pads will work just fine with your 12V RV battery that operates between 11 and 13.5 volts. You will not have any issues. This full-contact heater pad will keep your RV holding tank warm and prevent freezing. It is also capable of thawing out a tank system if it is already frozen. I have attached a short video demonstration on this product that...
    view full answer...

  • How to Check for Proper Operation of ThermaHeat RV Holding Tank Heating Pads
  • RV holding tank heating pads like # 277-000164 and # 277-000163 operate on an automatic thermostat. The pads will automatically turn on at 45-degrees Fahrenheit and turn off at 67-degrees Fahrenheit. If you are nearby to the RV when the tanks are in a sub-45-degree environment you should be able to feel warmth from the pad if it is cycled on. I confirmed with LaSalle-Bristol, the manufacturer of ThermaHeat pads, that the thermostats in these pads read the tank surface temperature and...
    view full answer...

  • Will 18-1/4" x 12" Holding Tank Heater Pad # 277-000164 Work on 30 Gallon Freshwater Tank
  • The 18-1/4" x 12" Holding Tank Heater Pad # 277-000164 that you referenced would work well for your 30 gallon fresh water tank as it is designed for 29-40 gallon tanks. The heater is powerful enough that it would not need to make contact with the entire bottom of the tank. It would generate enough heat with it's pad size of 18-1/4 inch by 12 inch size to keep it warm. The pad runs off of DC power (what a vehicle runs off of) so you would need to either use a converter to adapt AC...
    view full answer...

  • Are Heater Pads Self-regulating or is a Thermostat Needed?
  • The Therma Heat heating pads # 277-000164 are thermostat controlled, automatically coming on at 45 degrees Fahrenheit and off at 67 degrees Fahrenheit.
    view full answer...

  • Can Therma Heat Holding Tank Heater Pads be Used on Gray and Black Water Tanks
  • The Therma Heat 18-1/4 Inch x 12 Inch Holding Tank Heater Pad # 277-000164 referenced in your question is typically used on freshwater tanks but can certainly be used on black and gray tanks as well. There is nothing in the product's design itself that would prevent you from doing this. The only potential issue with using a heating pad on a black water tank is that adding a heat source might create excess gases, which may lead to issues down the line. The heating pads will run off of...
    view full answer...

  • Can More than One Heating Pad be Used on a 100 Gallon Fresh Water Tank
  • You could use more than one holding tank heater if you wanted to and there are different options available. Pad heater # 277-000164 is one option. There is also another model, # 277-000163, with different dimensions. We also have elbow heater pad # 277-000161 (for 3 inch pipe) and # 277-000162 (for 1-1/2 inch pipe). And we have several self-regulating heating elements: # W01-1572 (15 feet), # W01-1573 (25 feet), and # W01-1574 (50 feet). These were designed for freeze protection for...
    view full answer...

  • Can 4 Holding Tank Water Heaters # 277-000164 Be Wired Together?
  • You cannot wire the Therma Heat RV Holding Tank Heater Pad w/ Thermostat - 18" Long x 12" Wide # 277-000164 in series but you can wire them together in parallel to add 4 of them to your camper. This means that you will daisy-chain all of the positive (Red) wires together and connect them to the battery on your RV, and you will daisy-chain all of the negative (White) wires together and ground them. You can add wire length as needed # 16-1-1. You can use the Pollak Universal-Design...
    view full answer...

  • Is 13 Inch Elbow Heater Pad 277-000161 Big Enough for a 10 Gallon Tank
  • Since a 10 gallon tank is not very large the 13 inch elbow heater pad # 277-000161 could be sufficient. Although if the tanks are all right next to each other you might be able to use a total of 2 of the 25 inch by 7-1/4 inch heaters # 277-000163. Two of the 25 inch models will draw about 11.6 amps at 13.5 volts compared to 2-1/2 amps from 4 of # 277-000161. In short the 25 inch models are larger and draw more power and thus should also provide more heat when properly installed.
    view full answer...

  • Is there a Heating Pad for Small Holding Tanks on a Pop-Up Camper
  • We do have some smaller heater pads such as # 277-000161 at 13 x 3 inches or # 277-000162 at 8 x 3 inches. The larger one draws 0.62 amps at 13.5 volts. The smaller one draws 0.3 amps at 13.5 volts.
    view full answer...

  • Installation of Therma Heat Holding Tank Heater Pad
  • The Holding Tank Heater Pad # 277-000164 does include instructions. They're actually on the label that is stuck to the pad itself. It can be wired to DC power while your traveling and through a converter when you're connected to a power source. This pad is for tanks that are 29 to 40 gallons so it's certainly more than you need. But I don't see how it would be harmful in anyway. It is generally applied to the bottom of the tank.
    view full answer...

  • Therma Heat Holding Tank Heater Pad is Not Getting Warm with Power Applied
  • The Therma Heat Holding Tank Heater Pad # 277-000164 referenced in your question will automatically turn on at 45 degrees Fahrenheit but will auto off at 67 degrees Fahrenheit. If the pad is not getting warm with power applied to the leads, it is likely too warm outside for the pad to start working. As long as power is applied to the unit, they will do a great job of warming your RV tank when the temperature dips below 45 degrees. You might try testing the unit at night when temperatures...
    view full answer...
