Pintle Hook Combo with 2-5/16" Ball

Pintle Hook Combo with 2-5/16" Ball

Item # 63012

lowest price pledge

Retail:$130.22

Our Price: $77.17

You Save: 41%
Pintle Hitch

Orders above $99 qualify for Free Shipping

Shipping Weight: 14 lbs

Quantity:
In Stock, Ships Today
63012 - One Ball Draw-Tite Pintle Hitch
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos


  • Pintle Hook - Ball Combo
  • Plate Mount
  • Bumper Mount
  • 16000 lbs GTW
  • Draw-Tite
  • 2-5/16 Inch Ball
  • No Shank
  • One Ball
Pintle Hitch Combo with 2-5/16" Trailer Hitch Ball Lowest Prices for the best pintle hitch from Draw-Tite. Pintle Hook Combo with 2-5/16" Ball part number 63012 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (39)
  • Q & A (29)
  • Videos (1)
  • Photos
  • Why etrailer?

Draw-Tite Pintle Hitch - 63012

Pintle Hitch Combo with 2-5/16" Trailer Hitch Ball


Features:

  • Capacity (as Pintle): 16,000 lbs maximum GTW
    • Capacity (as Ball): 14,000 lbs maximum GTW
    • 3,000 lbs maximum vertical load (tongue weight)
  • 2-5/16" diameter hitch ball
  • Ball hole diameter: 1-1/8"
  • Mount hole spacing: 3-3/8" (left to right) x 1-3/4" (top to bottom)
  • Mounting hardware included


Replaces 43022



63012 Pintle Hook Combo with 2-5/16" Ball






California residents: click here

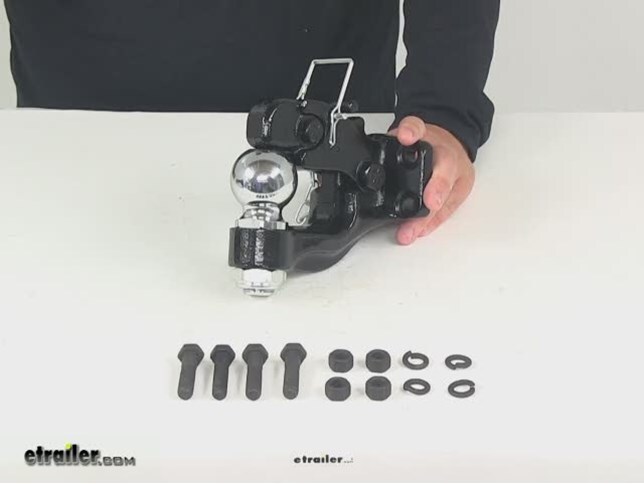

Video of Pintle Hook Combo with 2-5/16" Ball


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Draw-Tite Pintle Hitch - Pintle Hook - Ball Combo - 63012 Review

Today, we're going to take a look at the Draw-Tite Pintle Hook Combo, Number 63012. This is a pintle hitch combo with a 2-5/6 inch trailer hitch ball. It will mount directly to your bumper if you have a heavy duty reinforced bumper or you can hook it up to a pintle hook mount and will show you how to do that in just a moment. The pintle capacity for this item is 16,000 pounds, maximum growth towing weight capacity. The weight capacity of the hitch ball is 14,000 pounds and it has a 3,000 pound towing weight capacity or a vertical load limit. The ball hole diameter right here is 1-1/8 of an inch. Looking at the mounting platform here from the center here to center here, top to bottom is 1-1/3 of an inch; and side to side, center to center is 3-3/8 of an inch. All the mounting hardware that you see here is also included.

I'll show you how to use this. This would be the view from the top. First, you would remove the pin and clip and as you can see, the pin and clip is attached to the product with a lightweight chain then you would lift this lever here and that would move the pintle up, so you could back your vehicle to the trailer coupler and fit that there. Then you would raise that lever again to close it. For additional security while traveling, you would replace the pin and clip and that ensures that the lever won't move thereby accidentally opening that up while you're traveling. This is the Tow Ready Pintle Hook Mount, Number 63057.

It is sold separately. You can, using the mounting hardware there, just attach that to one of the sets of holes here depending on how high or low you need the pintle hook to be. This is in the drop position. You can also use it in the rise position, same way. This will fit a two inch trailer hitch receiver.

That should just about do it for Draw-Tite Pintle Hook Combo Number 63012.


Customer Reviews

Pintle Hook Combo with 2-5/16" Ball - 63012

Average Customer Rating:  4.9 out of 5 stars   (39 Customer Reviews)

Pintle Hitch Combo with 2-5/16" Trailer Hitch Ball

- 63012
by:

Excellent 195005



- 63012
by:

The pintle hook combo is performing well after 1 year of use. It is heavy cast steel, I do not think anything short of artillery will damage it. 320187



- 63012
by:

Thank you for the terrific customer service behind the product itself. I have been responsible for customer service for 40 years in a major corporation and know quality when I see it. 582476



- 63012
by:

Pintle works great. I spray it with fluid film every couple of months and the latch works just as smooth as when it was new. I have used both pintle and 2 5/16” ball to pull trailers weighing up to 16k lbs. 662085



- 63012
by:

Great dual purpose hitch. Comes with Grade 8 bolts, nuts and lock-washers! I couldn't find this item anywhere in a big city. It was shipped to me in 3 days in packaging that looked like it could survive a trip to the moon. 491115



- 63012
by:

Works fine for pulling tag-along trailer (pintle) and also ball hitch trailers... No issues or problems... 468673



- 63012
by:

Fast Shipping, Good packing. 450167



- 63012
by:

great product, just what i was looking for. added the pental hitch with the 2-5/16 ball so we can tow any trailer we have and quickly adjust the Hight with no tools. 420044



- 63012
by:

well built 408336



- 63012
by:

The hitch looks good but a little disappointed that it is made in China because I tow heavy weight time will tell 390728



- 63012
by:

excellent product went well with the curts c48343 pintle mounting plate thank you at etrailer for all your help 349851



- 63012
by:

Product is great. Will last for years. 342909



- 63012
by:

Pintle was exactly as pictured and described. Measurements given were correct so it bolted to the receiver I ordered with it. I especially liked that they sent a bolt packet with the pintle, so I knew I had the correct ones. Could not be happier with the product or service. I used free shipping and wondered how long it would take. It came the same week I ordered it. I would recommend etrailer to anyone. Thanks 331202



- 63012
by:

i would not think of stocking my shelves with anything but Etrailer products. I get 3 different PINTLE HOOK COMBOS and they are the best. I get nothing but compliments on this product. Some think they are pricey but after they try it,they come back every time. Thank you Etrailer. 305420



- 63012
by:

Product as represented. It arrived next day as the distribution warehouse is very close to the destination. it is ready to go on my truck. 273158



- 63012
by:

The Pintle Hook combo I purchased looks to be very heavy duty and I feel it will do great for what I need. 192187



- 63012
by:

Items arrived on time and was able to install easily. The adapter made it very easy to connect trailer to truck. The find the right adapter on your site made it very easy to find the right adapter needed in my case. I had looked on other sites but it was very confusing trying to get the right adapter I needed 185287


Comments

Great

Robert M - 04/14/2016

17468

- 63012
by:

Works great with the mounting plate I o rdered! 181025



- 63012
by:

Good product at good price. Very fast shipping. Could not ask for better service. 178085



- 63012
by:

Great product! great price! 176495



- 63012
by:

Great job getting you the right parts in a timely fassion 172056



- 63012
by:

Exactly what I ordered delivered on time very happy 158606



- 63012
by:

The product was exactly what we were looking for. The service and delivery times were outstanding. 152819



- 63012
by:

Delivered on time, works great, Thank s W 148302



- 63012
by:

Great product for use with regular ball mount or pintle setup. Fast shipping, arrived in 2 days. 124928



- 63012
by:

No problems 119822



- 63012
by:

Ordered parts and had them the next day 118475



- 63012
by:

Competitive Pricing / On time Delivery / Good communication and follow-up. 109743



- 63012
by:

Excellent Customer Service! We would definitely order again. We appreciate the promptness of the delivery of the product. 109355



- 63012
by:

Great product for a great price, smooth working latch and precise. 108929



- 63012
by:

Perfect fit on mount, up to 14k towing on the 2 5/16th ball, great having that extra strength. Shipping was extremely fast, thx etrailer. 92311



- 63012
by:

This company is nothing but superb in providing our company with great products,great prices and timely shipments. What a pleasure to do business with! 69156



- 63012
by:

Great product, even better shipping......I will use Etrailer again... Jeff 67146



- 63012
by:

Products are top notch and service is outstanding. 52101



- 63012
by:

Arrived in record time. Pictures and talking to a service person was extremely helpful in choosing the right product for the job. 51147



- 63012
by:

Well built - Solid - Recommended. 35286



- 63012
by:

The pintle hitch is very heavy duty and well constructed. The latch mechanism is very smooth also. I highly recommend this hitch! 30407



- 63012
by:

The Item description is a bit deceiving. I wanted an 8ton ball hitch, but instead I got a 7ton ball and an 8ton pintle, but is is a very strong product. 27950



- 63012
by:

Quick delivery and packaged very well. Thanks! 14572


39
39

Ask the Experts about this Draw-Tite Pintle Hitch

Do you have a question about this Pintle Hitch?


  • Can Curt Pintle Hook Work With Pro Series Adjustable Pintle Hook Mounting Plate
  • I went to the warehouse and pulled the Curt Pintle Hook, part # C48210 and a Pintle Hook Mount part # 63072. I also pulled a Draw-Tite Pintle Hook, part # 63012. All of the parts are interchangeable and can be used together with no issues at all. The # C48210 will work well with the Pro Series Adjustable Pintle Hook Mounting Plate, part # 63072.
    view full answer...

  • Can B&W Pintle Hook Mounting Plate Be Mounted in Rise Position
  • Yes, the B&W Pintle Hook Mounting Plate # BWPMHD14002 can be mounted in either the rise or drop position. If you also need a pintle hitch the Draw-Tite # 63012 is rated for up to 16,000 pounds when using the pintle hitch. This also included a 2-5/16 inch hitch ball.
    view full answer...

  • Availability of a Pintle Hook Mount Plate to Fit a 3 inch Trailer Hitch
  • The pintle mount we offer that is designed to fit the largest hitch opening is the part # RP38186 which is designed for a 3 inch trailer hitch opening. You might measure your hitch again to see if it is a 3 inch hitch otherwise this would be a bit loose in the hitch.
    view full answer...

  • Availability of Pintle Adapter for Trailer Valet XL Trailer Dolly TVXL25
  • It sounds like your military trailer uses a pintle style coupler such as # 63012. Trailer Valet does not offer an adapter for using this type of trailer with their XL Trailer Dolly # TVXL25. The main reason is that military surplus trailers will tend to have much higher tongue weight (TW) than typical agricultural or recreational trailers. This is simply a result of their very strong heavy-duty construction. The XL Trailer Dolly is rated for up to 1000-lbs of TW. Your trailer could easily...
    view full answer...

  • What Does the Pro Series Adjustable Pintle Hook Mounting Plate Part # 63072 Come With
  • The Pro Series Adjustable Pintle Hook Mounting Plate part # 63072 comes with both the shank that slides into the trailer hitch receivers tube opening as well as the mounting plate for the pintle hook. I have attached a photo of everything that is included with the above part for you as well. If you need the hook/ball combo then you can use part # 63010 for a 1-7/8" hitch ball, part # TR63011 for a 2" hitch ball, or part # 63012 for a 2-/16" hitch ball. I have also attached a few review...
    view full answer...

  • Will The Curt Class V 2 Inch Hitch # C15445 Fit A 2011 Ford F450 Cab And Chassis
  • The Curt Class V 2 Inch Hitch # C15445 is listed to fit a 2011 Ford F-450 Cab and Chassis with 34 inch wide frame. I am sending a link to the installation instructions of the Curt hitch. If you will be needing a pintle hook mount with a long shank I would recommend the Tow Ready Pintle Hook Mount # 63059. This mount will have a shank length of 11-3/8 inches from the center of the hitch pin hole to the end of the shank. You will also need the pintle hook and ball combo that will...
    view full answer...

  • Recommended Pintle Hook Combo to Mount to B&W Plate # BWPMHD14004
  • I do have a solution for you, however the Curt Pintle Hook # C48200 referenced in your question will not work with the B&W Pintle Hook Mounting Plate # BWPMHD14004. As you mentioned, the difference in mounting holes between the two items will not allow for a secure fit. To go with the B&W Pintle Hook Mounting Plate # BWPMHD14004, I instead recommend the Draw-Tite Pintle Hook Combo # 63012. This particular pintle hook features the same 3-3/8 inch horizontal and 1-3/4 inch vertical mount...
    view full answer...

  • Class IV ball Mount and Ball Recommendations for a 2 Inch Trailer Hitch Receiver
  • We have numerous ball mount styles and capacities that fit in a 2 inch trailer hitch, see link. For a Class IV with 16,000 pound capacity, the most popular options is # 40330 if you are looking for a standard fix ball mount. For a ball you can use # A-90 for a 2 inch or # 19286 for a 2-5/16 inch. If you are looking for a pintle hook combo, you could use # TR63041. The ball capacity on this one is 7,000 pounds and the pintle capacity is 12,000 pounds. For the same set up but with a 2-5/16...
    view full answer...

  • Available 2-Inch Pintle Style Mounts
  • The pintle mount that fits on the shank of the Pro Series Adjustable Pintle Mount # 63072 is not available as a separate item, only as part of the complete kit with the shank. I confirmed this with Pro Series. This item can be used with Pintle Hook # 63013, 2-5/16-inch Pintle Hook Combo # 63012 and 1-7/8-inch Pintle Hook Combo # 63010. I linked for you our main page for 2-inch pintle style mounts and related parts.
    view full answer...

  • Replacement Ball for a Draw-Tite Pintle Hitch Combination Trailer Hitch
  • The correct replacement ball for a Draw-Tite Pintle Hook Combo, # 63012, with a 2-5/16 inch ball is the Pintle Hitch Ball, # 63052. The Tow Ready Ball, # 63019, fits pintle hitch # TR63042. If you were towing a trailer with a lunette ring, you would not remove the ball. The ball is what retains the ring and the top part of the pintle hitch keeps it from jumping up and off of the ball.
    view full answer...

  • Can the Pintle Hook Mount part # 63057 Be Used in Rise and Drop Position
  • Yes, you can use the Pintle Hook Mount part # 63057 in the rise or drop position. For a pintle hook and ball combo with a 2-5/16 inch ball you would want the part # 63012.
    view full answer...

  • Will a Tow Ready Pintle Hitch Fit a Curt Pintle Mount
  • Yes you can use pintle hitch # 63012 with Curt pintle mount # C48343. The standard hole measurements for this type of set up are 1-3/4 inches from the center of one hole to the center of the next hole vertically. And side to side the holes are 3-5/16 - 3-3/8 inches apart on center. So these two parts will match up. You can use hardware # C48330.
    view full answer...

  • What Size are the Mounting Holes on Draw-Tite Pintle Hook Combo # 63012
  • I walked out to our warehouse and measured the mounting holes of the Draw-Tite Pintle Hook Combo # 63012. The holes measured 1/2 inch in diameter, and the kit includes the necessary 1/2 inch bolts. If you have the Titan Forged Pintle Hook Mounting Plate # RP45294, it will match up to attach to the Draw-Tite Pintle Hook Combo # 63012. You will also need to use a 5/8 inch diameter pin like the Titan Trailer Hitch Pin and Clip, part # 74149.
    view full answer...

  • Operation Details of The Draw-Tite Pintle Hook Combo # 63012
  • The Pintle Hook Combo # 63012 can be used for trailers that have a pintle hook setup that use a lunette ring, or for trailers that have a coupler and attach to a hitch ball. You cannot use the pintle to lock or secure the trailer to the hitch ball. To use the hitch ball, your trailer would need to have a 2-5/16 inch coupler to secure to the hitch ball. If you have a 2-1/2 inch hitch receiver, you will need to use Pintle Hook Mounting Plate, part # RP45294. If you have a 2 inch receiver,...
    view full answer...

  • Will the Titan Pintle Hook Mounting Plate # RP45294 Fit a 2008 Ford F-350 with 2-1/2 Inch Receiver
  • The factory 2-1/2 inch receiver on the Ford Super Duty trucks has more rounded corners whereas the Titan pintle hook mounting plate, # RP45294 has corners that are more squared. As a result, they tend not to fit together unless you remove some of the powder coating on the shank of the mounting plate. Do not remove any of the metal, though, just powder coat. A better fit would be # 45156 which has more rounded corners. You could then add pintle hook combo, # 63012. For a lock, I recommend...
    view full answer...

  • Difference In Pintle and Regular Mount, and Availablity of Pintle Mount For 2011 Ford F-350
  • A pintle hitch ball is designed to be used with trailers that use Lunette Rings, a regular or conventional hitch ball is designed to be used with trailers that have couplers. You would typically find trailers with Lunette Rings on industrial or construction type trailers. For a pintle towing setup, you will need a pintle draw bar, pintle ball, pin and clip, wiring, and brake controller. For a draw bar, I would recommend Titan Forged Pintle Hook Mounting Plate, part # RP45294, which...
    view full answer...

  • Fitment of 2-5/16 Inch Coupler on a 2 Inch Pintle Hitch
  • It is not recommended to use a larger coupler on a smaller ball size even if it latches. The coupler can come ajar because it will not be snug enough to the ball to overcome the force created when impacting road bumps. I would suggest getting a pintle hook combo with a 2-5/16 inch ball like # 63012 or replacing the ball on your current setup. You would just want to replace it with a 2-5/16 inch ball that has the proper hole diameter, which is 1-1/8 inches # 63052 on the pintle # TR63011...
    view full answer...

  • Recommended Pintle Hitch with 2-5/16 Inch Hitch Ball for Lunette Ring and Coupler Compatibility
  • It sounds like you are looking for a pintle/ball combination hitch like the Pintle Hook Combo with 2-5/16" Ball # 63012. If you want a hitch mounted option, then you can use the Curt Pintle Hook with 2-5/16" Ball - 2" Hitches - 13,000 lbs # C45910-15-20. Either of these options are compatible with the lunette rings like # BD1291010383 but will also allow you to use a trailer coupler on the hitch ball. If I misunderstood what you were asking please clarify the question for me.
    view full answer...

  • Can a 2 Inch Ball be Installed on Pintle Hook Combo # 63012
  • You could put a 2 inch ball in place of the 2-5/16 inch ball on Pintle Hook Combo # 63012. The problem is finding a ball with a 1-1/8 inch shank diameter which is not a standard size. There is a similar option for a 2 inch ball # C48190. Or if you need both sizes you could use # PH1 which comes with 3 balls (1-7/8, 2, and 2-5/16). I have linked a video review for you.
    view full answer...

  • Adjustable Pintle Hook Mount Recommendation for Towing Trailer with Lunette Ring
  • I'd go with the adjustable pintle hook mount part # 63072 and then mount the mount the hook/ball part # 63012 to the adjustable platform so that you can tow the military trailer you have with the lunette ring but then also be able to tow a trailer with a 2-5/16 inch ball if ever needed. Since the shank is adjustable you'd be able to accommodate various height rental trucks as well and still be able to tow the trailer level.
    view full answer...

  • Will a Reese Pintle Hook Fit MaxxTow Mount # MT70038
  • The hole spacing on the MaxxTow pintle mount # MT70038 is 3-3/8 inches on center side to side and 1-3/4 inches on center up and down. Pintle hook/ball combo # 63012 or regular pintle hook # 63015 have the same mounting pattern so they will work. If you already have a Reese pintle hitch then it would just need to have the same mounting pattern.
    view full answer...

  • What is the Capacity of a Pintle Hook Combo Hitch when Used with a 2 Inch Ball
  • If you were to use a 50mm ball or the 2 inch ball # 63018, you will need to go by the ball capacity since it will most likely be lower than the pintle hitch capacity. In the case of # 63018, the capacity is 10,000 pounds. If using it as a pintle, it would have a 16,000 pound capacity. If you only needed the smaller ball though you could just use pintle hook combo # TR63011.
    view full answer...

  • What are the Dimensions of Pintle Hitch Ball with 1-7/8" Diameter 63050
  • Tow Ready ball # 63050 is a 1-7/8 inch diameter ball. The shank is 2-13/64 inches long which is just a hair over 2-3/16 inches. The Shank diameter is 1-1/8 inches. It is designed to work with pintle combo # TR63011 or # 63012 so if you have one of those it will fit. If you are looking for a specific dimension let me know and I take it.
    view full answer...

  • What is the Ball Weight Capacity of the Tow Ready Pintle Combo 63012
  • The ball weight carrying capacity of the Tow Ready Pintle Combo, part 63012, is 14,000 pounds. When used as a pintle with a lunette ring, the capacity is 16,000 pounds.
    view full answer...

  • Does Pintle Hook Latch Lock into Place When Couple to the Ball on Pintle Hook Combo 63012
  • If using a pintle hook combo such as # 63012 and coupling to the ball then the latch part would not be able to come down far enough to insert the pin to hold it in place which is fine because the coupler locks onto the ball. Looking through the other pintle/ball combos, see link, they all work in this same or a similar manner.
    view full answer...

  • Which Pintle Balls are Compatible with Pintle Hook 63012
  • I pulled the two inch diameter pintle hitch ball, # TR63051, and part # 63012, off the shelf and you can swap this ball onto the pintle in part # 63012. If you only need a 2 inch ball and not both balls, you can order part # TR63011 which is the same pintle with a 2 inch ball. The note you read on the bottom of the page on part # 63018 pertains to a different manufacturer of pintle hooks, but this ball will not fit on the pintle hook combo, # 63012, because the shank is 1-1/4 inch...
    view full answer...

  • Length of Pintle Hook Combo with 2-5/16" Ball # 63012 from Mounting Surface to Center of Ball
  • I went out to the warehouse to measure the Pintle Hook Combo with 2-5/16" Ball # 63012. From the back of the mounting surface to the center of the ball measures 6-1/8 inches. I have linked a video review of this pintle hook combo for you.
    view full answer...

  • Distance from the Mounting Surface to the Center of the Ball on the Pintle Hook Combo part # 63012
  • I went out and pulled a Pintle Hook Combo part # 63012 from our warehouse and measured it from the center of the ball to the surface of the mounting plate and found that it measured 6 inches.
    view full answer...

  • How to Pick Out the Correct Rise/Drop Ball Mount for a 2013 GMC HD 3500 with 2-1/2 inch Hitch
  • The best way to pick out the correct ball mount is to pick the one that will allow your trailer to be towed as level as possible. I attached an FAQ on exactly how to do this. Once you check out that link and determine what rise/drop you need check out the other link I attached that will take you to all of the ball mounts we offer that are designed to fit 2-1/2 inch hitches like what you have. You will want to select the rise/drop you need from the filters on the left and the correct...
    view full answer...
