Curt Combo Bar with 2" Trailer Hitch Receiver - 36" Long - Unpainted

See what our Experts say about this CURT Hitch Fabrication Parts

• Can Curt Raw Finish Receiver Hitch be Drilled
  The raw finish Curt receiver hitch, part # C49360, can be drilled with a stainless steel or caride drill bit. You'll probably want to use penetrating oil as well. You didn't say why you're drilling into it but if it's to bolt it on instead of welding it I wouldn't recommend that. Drilling is going to reduce the capacity of the receiver to an unknown amount and could compromise its integrity.
  view full answer...
• Does the 36 Inch Curt Combo Bar # C49360 have a Weight Capacity Rating
  Curt combo bar # C49360 does not have an official weight capacity rating because it is not an extension. They use this bar and others in the manufacturing of their trailer hitches which have a wide range of capacities. If you can tell me the intended purpose/amount of weight I can tell you if the combo bar will be able to handle it or if something else is needed. But if you are looking for a 2 inch hitch extension then the longest that fits a 2 inch hitch and still has decent capacity...
  view full answer...
• What is the Outer Diameter of the Curt Combo Bar # C49360
  I went out to the warehouse and found that the outer diameter of the Curt Combo Bar # C49360 measures 2-1/2" x 2-1/2" so technically it should fit your 2-1/2" receiver. However, this part was designed to be welded and act as a hitch receiver so instead you will want to use the Curt Hitch Extension and Reducer # C45048 which gives you up to a 34" extension and was designed to be used this way.
  view full answer...
• Availability of 30 Inch Long Combo Bar w/ 2 Inch Receiver
  We don't offer a 30 inch combo bar, but Curt does offer one that's 36 inches long, part # C49360. You could use a chop saw or angle grinder with a cut-off wheel to cut the bar down to the desired length.
  view full answer...
• Outside Diameter and Wall Thickness of Buyers Products 337RT25836B and Curt C49360 Receiver Tubes
  Buyers Products # 337RT25836B and Curt # C49360 are both 36-inch long 2 x 2-inch receiver tubes with a 5/8-inch hitch pin hole diameter. Both have an outside diameter of 2-1/2-inches. I measured the two items' wall thickness with a digital caliper and found the Buyers tube to have a wall thickness of 0.23-inches and the Curt to have a wall thickness of 0.21-inches. The difference between the two is due to the Buyers item having a black powder coat finish while the Curt has no painted finish...
  view full answer...
• Availability of Hitch Tube For 2 inch Hitch Accessories Longer than 30 Inches

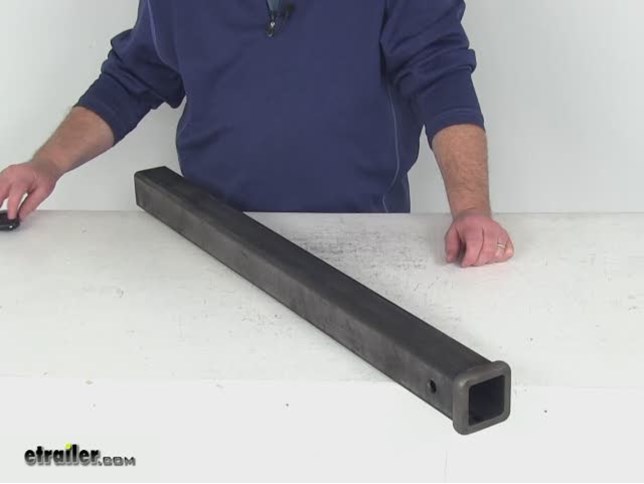

  Sounds like you are looking for the part # C49360. This is a 2 inch hitch accessory tube that measures 36 inches long and has the standard 5/8 inch pin hole. I attached a review video for this product for you to check out as well.
  view full answer...
• Can the Curt Combo Bar C49360 Be Used as an Extender?
  The Curt Combo Bar # C49360 is generally used as a weld on receiver for custom applications on trailers, RVs, or service vehicles. I spoke with Curt and they have not tested the # C49360 as an extender, so they couldn't give me any specifications as to capacity as an extender. With that being said, I cannot recommend using it as an extender. The Curt Hitch Extension and Reducer for 2-1/2" Trailer Hitches # C45048 may be a better option. This arrives at 34 inches long, but can also be trimmed...
  view full answer...
• Availability of 2-Inch Hitch Extensions for Towing with 2005 Chevrolet Silverado 2500
  Curt Combo Bar # C49360 is a fabrication part with a raw metal finish that is intended for use in welding/fabrication. Examples of applications are adding a 2-inch receiver to a suitable vehicle or trailer frame. But we do offer hitch extensions that are made for use in 2-inch hitches like the one on your 2005 Chevrolet Silverado 2500. These extensions, such as # C45796 from Curt and the others on the linked page, have a powder-coat finish to protect them from corrosion and they do not...
  view full answer...
• Type of Metal & Thickness of Curt Tubing with 2" Trailer Hitch Receiver
  The Curt Combo Bar with 2" Trailer Hitch Receiver # C49360 is made of solid raw steel. It is made in the USA and this unit is equipped with a 1/2" reinforcing collar for extra strength and has a raw finish to be ready for welding. The thickness is a heavy Duty 1/4" wall tubing. This receiver tube has a 2" x 2" opening and measures 36" in length.
  view full answer...
• Outside Diameter of the Curt Combo Bar C49360
  The outer tubing of the Curt part # C49360 is 2-1/2 inches by 2-1/2 inches. This would fit well in a 2-1/2 inch hitch, but this is not the intention of this product so I can't really recommend you use it like that. Instead you would want the part # RP45292 which is designed for use as a hitch extender for a 2-1/2 inch hitch.
  view full answer...
• Trailer Hitch Receiver for 2006 Chevy Express 3500 Cutaway Box Truck
  You will need to weld to the frame one way or another to have a hitch installed on your box truck. The hitch on the picture you attached is still connected to the frame underneath, it just runs up through that step bumper. If you wanted to attempt to replicate that setup you could take the Curt Combo Bar # C49360 to a custom fabricator and have them design it to fit your truck. The other option is to use a universal hitch like the Curt Class V Universal Weld-on Receiver Hitch # 15902....
  view full answer...

• Can Curt Combo Bar with 2" Trailer Hitch Receiver be Cut to Length and Welded On
  Curt Combo Bar with 2" Trailer Hitch Receiver - 36" Long - Unpainted # C49360 was meant to be used in the fabrication of a trailer hitch. It is ready to be trimmed, welded, and painted so you will be good to go!
  view full answer...
• Custom Hitch Extention To Fit 2-1/2 Inch Receiver
  I reached out to my contact at Curt and they can't give you a rating for a custom application like you are referring to because they can't test it and don't know what tools you are using to drill your pin holes, etc. Drilling holes will reduce the integrity of the Curt Hitch Extension and Reducer for 2-1/2" Trailer Hitches - 24" to 34" Long, # C45048, we just can't tell by how much. In theory it will work without any issue if you are using the correct tools. The Curt Combo Bar with 2"...
  view full answer...
• Hitch Ball for Custom Application on a Komatsu Dozer
  Since this is such a custom application, you will most likely need to fabricate something as we don't have a specific adapter. You may be able to put a 2-5/16 inch hitch ball like Curt Chrome Hitch Ball # C40007 in the upper hole of the clevis hitch on your Komatsu Dozer if the pin hole is big enough for the shank of the ball. The hitch ball shank is 1 inch in diameter and is 2-1/4 inches long. The only other suggestion would be to try to weld a combo bar like Curt Combo Bar with 2 Inch...
  view full answer...
• Hitch Extension for 2-1/2 inch Hitch for 2019 GMC Sierra that is Around 3 Feet Long
  The # C49360 was not designed for fitting into a 2-1/2 inch hitch to act as a hitch extender. We have part # RP45292 that could go as long as 34 inches which is close to the 36" you are looking for.
  view full answer...

Do you have a question about this Hitch Fabrication Part?
