24x27 TorkLift Lock and Load Maximum Security Cargo Tray for 2" Hitches 500 lbs
TorkLift

24x27 TorkLift Lock and Load Maximum Security Cargo Tray for 2" Hitches 500 lbs

$597.45
Retail:$642.91
You Save: $45.46
Hitch Cargo Carrier
Add to cart
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

Need help with installation?
Locate installers near me
Keep your generator or other cargo secure on this locking carrier. Heavy-duty lock works with adjustable steel straps to guard your gear. Sturdy steel is powder coated for corrosion resistance. 1-800-940-8924 to order TorkLift hitch cargo carrier part number TLA7752 or order online at etrailer.com. Free expert support on all TorkLift products. Great prices and Fastest Shipping for 24x27 TorkLift Lock and Load Maximum Security Cargo Tray for 2" Hitches 500 lbs. Hitch Cargo Carrier reviews from real customers.
  • All Info
  • Reviews (66)
  • Q & A (0)
  • Photos
  • Used (2)

TorkLift Hitch Cargo Carrier

  • Flat Carrier
  • Fixed Carrier
  • Fits 2 Inch Hitch
  • 28 Inch Long
  • 24 Inch Wide
  • Steel
  • Heavy Duty
  • Class III
  • Class IV
  • TorkLift

Keep your generator or other cargo secure on this locking carrier. Heavy-duty lock works with adjustable steel straps to guard your gear. Sturdy steel is powder coated for corrosion resistance.


Features:

  • Hitch-mounted cargo carrier is designed for generators and other heavy-duty equipment
    • Also great for camping gear, tool boxes, and more
  • Maximum security strap easily adjusts to fit your cargo
    • Constructed of sturdy steel for top-notch security
    • Coated in rugged thermoplastic to avoid scratching your gear
    • Heavy-duty, tamper-resistant lock included
  • Adjustable divider helps hold cargo in place
  • High-impact powder coated steel
  • Made in the USA


Specs:

  • Application: 2" x 2" trailer hitch receivers
  • Outside tray dimensions: 29-13/16" long x 26" wide x 8" tall
  • Inside tray dimensions: 27-3/4" long x 24" wide x 5-1/2" deep
  • Distance from center of hitch pin hole to closest part of tray: 6-1/2"
  • Weight capacity: 400 lbs
  • Strap adjustments:
    • Minimum dimensions: 13-3/4" long x 6-3/4" wide x 13-1/4" tall
    • Maximum dimensions: 27-3/4" long x 23-1/2" wide x 23" tall
  • Lifetime warranty

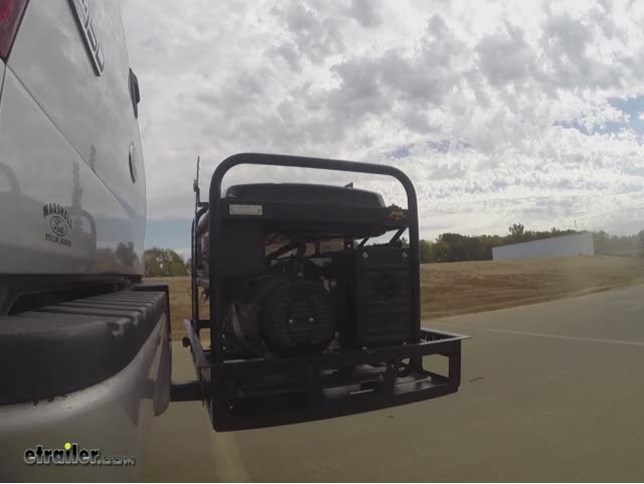

TorkLift Lock and Load cargo trays mount on front and rear hitches



A7752 Tork Lift Lock and Load Maximum Security Cargo Tray

Item # TLA7752





Customer Satisfaction Score:


Customer Reviews

24x27 TorkLift Lock and Load Maximum Security Cargo Tray for 2" Hitches 500 lbs - TLA7752

Average Customer Rating:  4.7 out of 5 stars   (66 Customer Reviews)

Keep your generator or other cargo secure on this locking carrier. Heavy-duty lock works with adjustable steel straps to guard your gear. Sturdy steel is powder coated for corrosion resistance.

by:

Lock and Load was easy to install. Mounted our Champion 4000watt generator for our Eagle Cap truck camper. No vibration felt with the generator running attached the front hitch. Only concern is the set is low and out of sight when traveling. I attached an orange tag to the top to mark its location for driving and parking.



by:

Excellent product! Should include a lockable pin for the receiver instead of just the pin. Someone could just take the whole thing . lol



by:

Needed a secure means to haul our dual fuel generator for the camper without taking up space in the bed of the truck. This cargo tray is awesome. Easy to install, secured to the back bumper of the trailer with a locking pin and the built in security cage is great. I'd recommend this cargo tray to anyone. Great item purchased from a great online retailer. Thanks.



by:

We unboxed the product, it's well built,this product is solid, The only issue I found it had a dent on the upper corner of the tray I was a little disappointed but overall it seems great , would I buy from e trailer again yes ,also the tracking was awesome (cosmetic damage that's all it was)



by:

Bought to hold two Honda EU2200i generators on front bumper. You will need to buy another locking mechanism from torklift directly, about $230.00 out the door and shipped to lock both of them. Works great. eTrailer and Torklift gets it done.



by:

I give it four stars for its usefulness and durability, but I think the locking bar system needs to be redesigned. I could pull my generator out from under it. Had to add a second lock to feel it was safe from theft.



by:

I have had the cargo tray mounted to my travel trailer with a generator on it for 14,000 miles and have had no issues.



by:

The Carrier is perfect, we had one previously. It perfectly fits and clears our spare tire. The Firman 4000/3200 Generator fits perfectly. We did add some damping pads under the wheels and the feet of the Generator to prevent vibration. Great security mechanism. Highly recommend this tray and other Torklift Products. Note: we rarely use the gas furnace, the exhaust is right there, heat shield blank to deflect heat if needed.



by:

The item seems nice and fits the generator well. Giving one star because the tray didn't ship with the correct pieces as seen in the picture. The upper support bars are two unique pieces and they sent two of the same piece and zero of the second needed support. Will have to custom make something.



by:

The instructions were hard to understand but I found a video on YouTube and it made it very clear how to put it together. I love this product. I think it's a great product and uh, so I encourage anybody to buy it



by:

I bought this to carry a Westinghouse igen4500 on the rear of my 5th wheel. So far it's been perfect for the job. The quality is very good. The carrier is sturdy and is highly adjustable. I searched for a long time for the smallest carrier that would fit my generator with the greatest weight capacity. The TorkLift, while a bit expensive, fit the needs perfectly. I had extra reinforcements welded from my trailer frame to the hitch point, added an anti-rattle receiver lock and we now have the perfect generator carrier solution. Hope this review can save others time in their search for the same kind of solution.



by:

I recently purchased the 24x27 TorkLift Lock and Load Maximum Security Cargo Tray for my 2" hitch, and I couldn't be happier with my decision! The tray arrived on time and in perfect condition. It's sturdy and has a robust weight capacity of 500 lbs., making it perfect for my hauling needs.



by:

My new Cummings Generator was too large to store in our 5th wheel and too heavy to load and unload in the bed of our truck. With the 500 pound capacity and the 2" hitch, the Tork Lift was the perfect solution. The generator fit perfectly, the heavy duty steel construction is amazing and the installation was simple. THANKS ETRAILER and TORK LIFT for the LOCK & LOAD UNIT!!



by:

I use it for a predator 3500 inverter/generator on the rear of my fifth wheel trailer. Very secure and stable. I made a roof for it and was able to find a canvass cover that is just a little larger than the carrier. I use the generator while it is secured in the carrier.



by:

This generator tack is awesome. It has kept my generator safe and sound.



by:

Product is excellent, packaging was poor. The hardware was not properly secured in the bag provided and missing pieces. Please ensure attention to detail by packers. I now have to go to a hardware store to replace the missing hardware.



by:

The service at trailer is far and above anyone else in this industry. They are consistently helpful when making or researching an item. Prices are mostly comparable to the competition but the reason I buy from them is the service both pre and post sale.



by:

This product is well built. Locks my generator in place without movement. I haven't had a chance to travel with it yet but I'm sure it will meet all my expectations. Little pricey but remember you get what you pay for.no regrets.



by:

Awesome product and company

Larry profile picture

Larry

5/7/2024

It has worked out good. It is perfect for carrying our generation on the back of our Rv. Easy to install.



by:

Excellent cargo tray for securing my Honda generator with extra room for firewood, etc.

The generator is so secure and tamperproof that thieves will look for an easier target.

Don profile picture

Don

7/30/2023

One year and approximately 1,000 miles and have experienced no problems with the Cargo Carrier. The carrier has attracted several inquires from fellow RVers.



by:

I put this on the back of a travel trailer to carry a 4500w generator. It did the job just fine after I chopped off the main hitch rail and welded on a longer one. It was too short to reach the hitch mounted under the travel trailer bumper. The tie down bars and locking mechanism work great. I felt the price was a bit steep but it was the best/only option I could find for my needs. I don’t regret my purchase, but if I needed another one, I would simply build it myself and save a few hundred bucks. Of course this option doesn’t exist for everyone, including myself. I didn’t have access to as many tools when I needed this product a year ago.



by:

etrailer never disappoints. Shipping was fast and TorkLift is just as I expected. It went together very easily and feels sturdy and safe to care my generator on while traveling about the country.

Jenny profile picture

Jenny

5/8/2023

We traveled over 8,000 miles last year using this carrier to haul a 3500kw generator around the country while RVing and not only did it do its job perfectly, but got a lot of compliments for the security and convenience it provided.



by:

Works great. Only con is its expensive but I really have not seen anything else like it. Like anything else it's not impenetrable but you just need to have something Better that other guy!



by:

I like this cargo tray for use on my travel trailer. I use it for my generator. The only issue I have is when I run the generator, my trailer vibrates like crazy. Is there a way to buffer this by adding some bushings or something?

Jenny N. profile picture
Etrailer Expert

Jenny N.

10/11/2022

You mentioned that when running the generator, it causes the trailer to vibrate. I recommend using anti vibration pads under each corner of the generator or you can use a large mat that goes under the whole generator. I recommend one made of neoprene rubber or cork.



by:

Product came with a missing weld nut on the vertical bar and I had to use my own 3/8" bolt and lock nut to assemble. The weld nut on the 2nd vertical bar was full of powder coating and needed to be re-tapped. Would recommend purchasing a locking hitch pin as they include a non-locking hitch pin. If I was not mechanically inclined with my own set of tap tools, hardware and hand tools, this product would not be able to be assembled. Not sure I trust this cargo tray yet though I inspected the welds and they seem to be adequate.


25
66
Show More Reviews

See what our Experts say about this TorkLift Hitch Cargo Carrier

  • Cargo Carrier for Portable Generator That Doesn't Effect Ability To Use Plugs On Generator
    I have a solution for you, but the 16x21 TorkLift Lock and Load SideKick Cargo Carrier # TLA7901 is going to provide a pretty tight fit and the upright arms are going to make using the plug-ins while on the carrier difficult. I would instead use the 24x27 TorkLift # TLA7752 which has a larger tray and an adjustable divider that will allow you to carry the generator in a manner that will allow you to plug in without interference from the upright of the carrier. It's not that the 16x21 won't...
    view full answer...
  • Option to Carry Honda EU3200i Generator
    To carry your Honda EU3200i generator the only option is a hitch-mounted carrier from TorkLift: - 24x27 TorkLift Lock and Load Maximum Security Cargo Tray for 2" Hitches # TLA7752 The # TLA7752 has inside tray dimensions of 27-3/4" long x 24" wide x 5-1/2" deep and you can either mount it on a front hitch of your truck if you have one, or use an extension like the Extender for 2" Hitch Receivers -18" Long # C45796.
    view full answer...
  • Is There a TorkLift Lock and Load Cargo Tray That Locks Two Generators
    Hey Kieran, There isn't an option for a TorkLift Lock and Load that'll secure two generators, just the one that has the lock for the single generator, the TorkLift Lock and Load Maximum Security Cargo Tray for 2" Hitches # TLA7752. What you can do though is add a cable lock and wrap it around the handle of your generator and onto the other generator or the cargo tray itself. I know it's not exactly the same as the locking mechanism of the tray, but a good lock will provide security, one...
    view full answer...
  • Is There a Way to Carry Generator at Rear of KZ Connect Camper
    Hey Stan, KZ would be the authority on what the weight capacity of your bumper would be and if the 24x40 Cargo Carrier part # e99050 would work for you or not. We also have generator specific bumper carriers like the # MNT47ZR as well as more at the attached link on this page. Or we have hitch mounted generator carriers like the part # TLA7752 which would require a hitch installed on your frame with the part # 13703.
    view full answer...
  • Can 2 Yamaha EF2000iS Generators Fit on TorkLift Lock and Load 27-3/4" x 24" Cargo Tray TLA7752
    Since the Yamaha EF2000iS generator is 11 inches wide and 19.3 inches long you could indeed put 2 of them side by side on TorkLift Lock and Load 27-3/4" x 24" Maximum Security Cargo Tray - 2" Hitches Item # TLA7752. You would not need extra straps if you placed the generators front to back instead of left to right. Since the carrier has an inside space of 27-3/4" by 24" the two generators would fit either way so front to back means you would not need additional straps.
    view full answer...
  • Recommended TorkLift Generator Tray For A Predator 4375
    Hey Joshua, so we do have a potential option for you, but the TorkLift Lock and Load SideKick Cargo Tray # TLA7901 that you mentioned will not work with a Predator 4375 generator. Based on the specs I found online the Predator 4375 is 23.3" long x 18.7" wide x 19.3" tall. The tray on the # TLA7901 is only 21-1/4" long x 16-1/8" wide. What you can do is use the TorkLift Lock and Load Maximum Security Cargo Tray # TLA7752. This has a 27" long by 24" wide tray so plenty of room for your Predator...
    view full answer...
  • Will TorkLift Space Dock Receiver Adapter Work With Any TorkLift Cargo Tray
    The Space Dock 2" Receiver Adapter for TorkLift Palomino Landing Pad Bumper # TLA7900 has a 2" receiver but while the 24x27 TorkLift Lock and Load Maximum Security Cargo Tray # TLA7752 will technically fit, the Space Dock is only meant to be used with the smaller 16x21 TorkLift Lock and Load SideKick Cargo Tray # TLA7901 so I can't recommend using anything else.
    view full answer...
  • Is There Way to Mount Torklift Generator Carrier off to Side of Rear of Vehicle
    Hey Jan, to locate the Torklift Generator carrier part # TLA7752 off-center in front of only one of the doors would require finding a welder/fabricator in your area who could add an additional hitch opening off to the side. This is such a rare request there isn't a product available for this specific application.
    view full answer...
  • What is the Distance from the Shanks Pinhole to the Tray on the 24x27 TorkLift Carrier # TLA7752?
    I have a great solution for you. Given that you have a total of 10 inches total from the pinhole of your hitch receiver to the edge of the bumper, you will have some bumper clearance issues. I confirmed with my contact at TorkLift that the measurement from the center pinhole to the closest part of the tray of the 24x27 TorkLift Lock and Load Maximum Security Cargo Tray # TLA7752 is only 6-1/2 inches. A great solution is to purchase a 2-inch hitch extender like the Curt Hitch Extender...
    view full answer...
  • Recommended Front Mount Trailer Hitch And Generator Tray For A 2022 Ford F-350 Super Duty
    I recommend the EcoHitch Hidden Front Mount Trailer Hitch Receiver # EH83GR for your 2022 Ford F-350 Super Duty. I like this front mount hitch over the others because it has a hidden cross tube after installation that will provide your 2022 Ford F-350 Super Duty with a clean, from the factory look. The hitch has an easy, bolt-on installation. When it comes to hauling your portable generator I recommend the 16x21 TorkLift Lock and Load SideKick Cargo Tray for 2" Hitches - 200 lbs # TLA7901...
    view full answer...
  • Will the 24x27 TorkLift Lock and Load Cargo Tray Work With Champion 2,500 Watt Inverter Generator
    The inside dimensions of the 24x27 TorkLift Lock and Load Maximum Security Cargo Tray part # TLA7752 are 27-3/4" long x 24" wide and a Champion 2,500 Watt Inverter Generator is 21" long x 13.7" wide so yes, you will be able to fit the generator and will still have room to spare for some other items.
    view full answer...
  • Does 24x27 Torklift Lock and Load Maximum Security Cargo Tray # TLA7752 Come with Sight Indicator
    Yes the visual sight indicator you mentioned that you see in some of the product pictures of the 24x27 Torklift Lock and Load Maximum Security Cargo Tray # TLA7752 does come with it.
    view full answer...
  • Recommended Generator Carrier for etrailer 3200-Watt Generator
    In order to carry the 3200-Watt Portable RV Inverter Generator w/ Cover # 333-0003 on the back of your trailer with the 2" receiver you can use the 24x27 TorkLift Lock and Load Maximum Security Cargo Tray for 2" Hitches 500 lbs # TLA7752. This carrier can fit generators up to 24" wide x 27" long, so it will work well for the 23-1/4" long x 17-15/16" tall x 17-7/8" wide # 333-0003 and the locking function on the carrier keeps your generator from walking away when it's unattended, so it's...
    view full answer...
    Image 1 for
  • Torklift Lock and Load Cargo Carrier Recommendation for Securing Generator
    If you have a front hitch installed on your GMC 1500 truck you could use the Torklift Lock and Load part # TLA7752 which would work well to secure your generator. It will do a great job allowing you to transport the generators and will prevent theft as well. You didn't tell me what year truck you have so I can't pick you out a front hitch if you were in need of one.
    view full answer...
  • Can TorkLift Lock and Load Maximum Security Cargo Tray # TLA7752 be Used in Travel Trailer Hitch
    The 24x27 TorkLift Lock and Load Maximum Security Cargo Tray # TLA7752 that you referenced is rated for the rougher ride quality that is present at the rear of travel trailers like yours which is a bit rougher like you noticed. I attached a picture of this installed in the hitch of a similar RV as well. Your generator that weighs 100 lbs would be perfectly secure in this. There would be no damaged to the RV hitch or frame. I attached a review video as well as a test course video link...
    view full answer...
    Image 1 for
  • Dimensions of the TorkLift Lock and Load 27-3/4" x 24" Maximum Security Cargo Tray
    The tray dimensions of the # TLA7752 are 27-3/4" long x 24" wide and the strap adjustment range is 13-3/4" long x 6-3/4" wide x 13-1/4" tall as a minimum and 27-3/4" long x 23-1/2" wide x 23" tall as a maximum. I am not sure which bent items you are referring to straightening, but I can't recommend you bend components of this cargo tray. I attached a review video and some product pictures of this carrier for you to check out as well.
    view full answer...
    Image 1 for Image 2 for
  • How Safe is the Steel Strap on the TorkLift Lock and Load Maximum Security Cargo Tray # TLA7752
    My contact at TorkLift advised that the two-piece adjustable steel security strap on their Lock and Load Maximum Security Cargo Tray # TLA7752 cannot be removed once the straps are adjusted properly to suit the load size and secured with the include lock. Items with a flat top surface, such as a tool box or generator, will rest right underneath the steel strap and so there will be little to no play at all in the straps. This protects the contents from curious hands. Please refer to the...
    view full answer...
    Image 1 for
  • Locking Cargo Tray for Generator Loaded Behind 5TH Wheel Camper
    Yes, the TorkLift Lock and Load Cargo Tray # TLA7752 will work for your application. The Tray itself weighs 67lbs, combined with your 150lb generator you are at 217lbs. As long as you don't exceed the lowest manufacturer capacity rating you will be okay. I recommend getting a Anti-Rattle Trailer Hitch Receiver Lock # 63232 as well. This will limit the movement of the tray in the receiver on your 5th wheel, protecting your generator. It also has a lock built in so that your tray is secured...
    view full answer...
  • Recommended Travel Trailer Hitch Receiver and Cargo Carrier for Gas Generator
    On your Dutchmen Coleman Lantern 17rd travel trailer, I recommend the Curt RV Bumper 2" Trailer Hitch Receiver # E-100 which has a weight capacity of 350 lbs maximum tongue weight. Then for a 4,000 watt running generator like the Q-iPower # 289-AP5000 which weighs 117 lbs and has dimensions of 23-1/4" long x 17" wide x 18-1/2" tall, you will want a cargo carrier like the TorkLift Lock and Load # TLA7752. This will not only help carry the generator but also deter theft. If you want...
    view full answer...
  • Recommended Anti-Rattle Lock for Torklift Maximum Security Cargo Tray
    The 24x27 TorkLift Lock and Load Maximum Security Cargo Tray for 2" Hitches 400 lbs # TLA7752 does not come with a hitch lock antirattle device. I recommend the Anti-Rattle Trailer Hitch Receiver Lock for 2" Hitches - 2-5/8" Span # 63232 to secure the rack. Many people also like to keep the generator installed on the carrier and if removing from the hitch the etrailer Hitch Pin Alignment Collar for Bike Racks, Cargo Carriers, Ball Mounts, and Tow Bars # e98942 is nice to have.
    view full answer...
  • Can I use a Hitch Adapter With the Torklift Lock and Load TLA7752
    Yes you can use an adapter like the Brophy Trailer Hitch Receiver Adapter - 1-1/4" to 2" Hitch # HTAD to adapt your hitch over for use with the 24x27 TorkLift Lock and Load Maximum Security Cargo Tray for 2" Hitches 500 lbs part # TLA7752 that you had mentioned. The biggest thing to keep in mind is that an adapter like this will reduce your hitch's capacity by 50 percent so that is going to be the limiting factor in the setup. The Lock and Load is going to be about 55 lbs plus your...
    view full answer...
  • How To Raise Generator Carrier on the Back Of a Winnebago Travato
    I do have an option for you but none of the suspension enhancements we have for your 2019 Winnebago Travato 59K on a Ram ProMaster 3500 Chassis will lift the motorhome from stock height. The SuperSprings Custom Suspension Stabilizer and Sway Control Kit part # SSA11 which is what I recommend will prevent the motorhome from sagging therefore increasing clearance but again nothing we offer will raise the rear of the motorhome from stock. If you are carrying the generator on a hitch mounted...
    view full answer...
  • Front Hitch for 2006 Dodge Ram 2500 Diesel to Carry Generator
    We have a front hitch that fits your 2006 Dodge Ram 2500 diesel with part # 65046 that can be used to carry a generator like yours but the EcoHitch front hitch you mentioned does not fit your truck. For a hitch mounted generator carrier we have the Torklift part # TLA7752 which was designed specifically for carrying generators. I attached a review video for this carrier for you to check out as well for more info.
    view full answer...
  • Fit of Yamaha EF3000ISE 3000 Watt Generator in TorkLift Lock & Load Maximum Security Cargo Tray
    According to my research the Yamaha EF3000ISE 3000 Watt Inverter Generator is 26.8 inches in length, 17.5 inches in width, and 21.9 inches tall. This is great news because this is less than the maximum dimensions of the TorkLift Hitch Cargo Carrier # TLA7752 you were looking at. So, your Yamaha EF3000ISE will fit in the carrier great. I have linked the above mentioned product to this page for your convenience.
    view full answer...
