Item # HT31368
This item qualifies for free shipping
Shipping Weight: 46 lbs
Gooseneck ball designed to attach to above-the-bed fifth wheel rails. 2-5/16" ball.
Mounting Tab Measurements:
Video of Husky Gooseneck Hitch for Fifth Wheel Rails - 25,000 lbs
Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

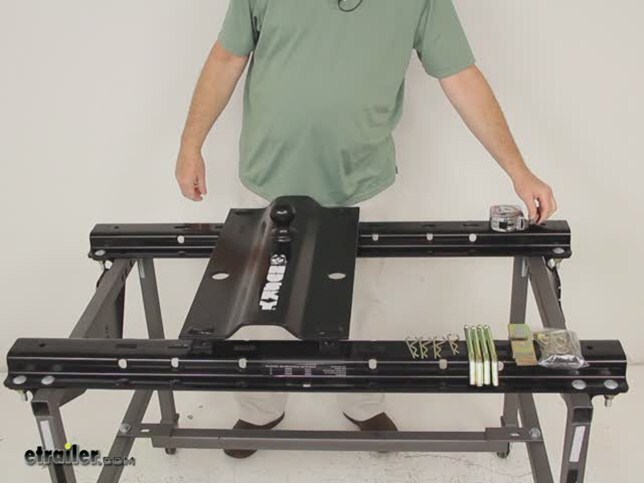

Today we're going to review part number HT31368, this is the Husky Fixed Ball Platform Gooseneck Hitch, for the fifth-wheel rails. It has a 25,000 lbs capacity, and the part that we'll be demonstrating today is this part right here. The platform that's made to fit into the rails. For demonstration purposes, I do have a stand here with a set of above-bed fixed rails attached to it. These would be the rails like would be in your truckbed. Basically, this platform plate with this 2-5/16ths diameter ball will sit in the slots in these above-bed rails to allow you to tow a gooseneck trailer. These will easily mount to the above-bed rails that we sell separately.
The standard rails it fits, would be the Curt, the Draw-Tite, the Hidden Hitch, the Reese, the Valley and the Husky brand rails. It's a very easy installation and removal, using these pins and clips and the other mounting hardware is all included. Basically this will drop in, you could use the pins to lock into place, when you're done towing you can remove the pins, remove the plate and then you'll still have full access to your truck bed when it is removed. This part is a durable powder-coat black paint finish. If you'll notice these holes here right in the plate, these can be used as the safety chain attachments for your trailer. Now just a note, there are some states that do require the safety chains of your trailer to be attached to a separate connection point than to the hitch - so you do want to check your local laws to see if that pertains to you. This does have a 2-5/16ths ball diameter, and again the gross towing weight capacity is 25,000 lbs, the tongue weight capacity on this platform is 6250 lbs. The measurement on this plate, the overall width, 13 , overall length is 24 inches.
The measurements between these tabs, center to center is going to be 10 inches, which is usually a standard measurement. Then from the front tab to the back tab, center to center is 22 inches again, which is a standard measurement, so it will fit all those rails I mentioned earlier. One other thing I do want to show you also if you look at this - it weighs about 30 lbs - but if you look at that ball, this is an offset platform, and the reason they say that is, if you look at the ball it's about 3 inches from the center offset. The reason they do that is if you're going to use it for, for instance if I'm the cab up here and back here is the tailgate. So if you're going to put the ball closer to the cab - in the case of maybe a long-bed truck - you can drop it so that it's positioned like this, drop it right into the tabs. Now if there's a case where you have a short-bed truck and you want gain some clearance from that cab, you can actually rotate this plate, just like that, and as you notice the ball is now moved closer to the tailgate.
Then you can just drop it into the tabs, just like that, take your pin, run your pin through the bottom, just like that. Then put your clip right on the end in all four places and it would lock it into place. Simple as that. That should do it for the review on part number, HT31368, Husky Fixed Ball Platform Gooseneck Hitch, for the fifth-wheel rails. .
Average Customer Rating: 4.9 out of 5 stars (61 Customer Reviews)Gooseneck ball designed to attach to above-the-bed fifth wheel rails. 2-5/16" ball.
by: Mike R.03/28/2014
Product was installed and great fit! Has not been put in use yet so cannot comment on usage, but appears will work as intended. Thank you. 122626
by: Charles King01/28/2015
I like the design it allowes me to go from gooseneck to 5th wheel without removing the gooseneck plate i can just leave it in the truck then it is not in the way somewhere else thanks great product and workmanship c king 171570
by: Jeff Moore08/03/2015
Lightning service and delivery. Solid, accurately described product. I highly recommend etrailer. 216369
by: William G04/21/2014
Easy order, quick ship, good product. 126174
by: Ronald Talmadge02/23/2015
Dropped right into the rails with no problems hauled great 175791
by: John B.07/20/2016
Gooseneck Hitch Plate fit the mounting rails I had installed for my fifth wheel hitch perfectly. Within 10 minutes or less I can have my fifth wheel hitch removed and the gooseneck plate installed with the same mounting pins. Gooseneck Hitch Plate also has ball unit mounted off center of the plate so it can be used on a short or long bed truck. Nice unit and it has served me well. 274137
by: Pulling goosenecks02/23/2015
Bought truck used and it had valley rails and was going to take rails off to put gooseneck hitch in bed. Friend told me e trailer had husky hitch that would fit into rails. After seeing picture of hitch on web I was a bit skeptical but ordered it. Got it in 3 days later and fit perfect and looks well built. Saved me a lot of $ from having to installing a hide away hitch !!! 175688
by: Tim S01/29/2017
Product is great. Easy to install and perfect for the truck. Be careful with the trailer you purchase. Recommend a V front otherwise you need to buy an offset hitch for your trailer to prevent breaking out your rear window. This is a problem with all short bed trucks. Luckily the company I purchased my goodsensck from advised me in advance and I have had no issues. 336501
I was shocked at how fast I received my hitch. I ordered late one afternoon and it was here 48 hours later. The hitch popped right into the rails that are for my Reese fifth wheel hitch. No shipping charge and a good price after looking at several sites for the same product. Well Pleased. 168549
by: Jeff B07/13/2016
I have only had time to look at the unit and verify that it will work with my rails. The quality of the unit looks great. After i use it i will update my review but at this time it looks like it will do what i am needing 271333
by: Kurt M12/22/2016
This is a great product, I pull fifth wheels and goose necks and it works great with just a few minutes to switch from one style to another. Ordering from etrailer was fast and easy and the people there are great. 327305
by: Bill M.10/17/2016
A great fit to my Fifth wheel rails. Looks fantastic , with easy mount and removal. A beautiful product. Etrailer service was great, second to none. Package received in great shape and very quick. 308149
by: John P05/19/2015
The hitch came quickly and in good shape. It looks very stout and I have no concerns about it doing the job. It slipped right into the Husky rails that were part of our existing 5th wheel hitch. 194459
by: John C.11/08/2013
received the hitch in just 2 days, and with just standard shipping. Fits good, no problems. easy to remove and switch back to 5th wheel if needed. very happy with the gooseneck hitch. 106807
by: Ernie P02/07/2017
Versatile product. Can be swapped around to have the pin forward or towards the back depending on application. Fits easily into my Reese rails and comes with the locking pins. 339571
by: Tim P.04/30/2015
I received the product next day just as I had requested since I needed it to haul a trailer and it was just as described. This was last weekend and it worked great! 188987
by: Mike B08/27/2013
My package arrived at my door early and contained everything the customer rep told me I would be getting and I'm very satisfied with the product thanks again! 97246
by: Billy H.08/26/2015
this hitch fit perfectly into my fifth wheel rails and gives me the use of more types of trailers. This was installed on a 2004 GMC Serria 2500hd Duramax. 221762
This fit right into the rails that were already in my truck. Easy fix because I don't use the 5th wheel hitch that was in my truck. What a great idea! 186724
by: LINDSEY B.04/17/2014
GREAT PRODUCT WITH AN EVEN BETTER PRICE. SHIPPING WAS SUPER FAST AND ETRAILERS STAFF IS A PLESURE TO WORK WITH. I WILL BUY FROM ETRAILER IN THE FUTURE. 125793
by: greg s02/06/2015
Great job getting my product out and to me on time. It was just as easy to install as they said. Thank you for making it easy on me Greg S 172711
I received the product in two days. I installed it in less than ten min. This is great if you pull fifth wheel and goose neck trailers. 175278
by: Tommy Coon06/02/2015
Heres one more great review to add to all the great reviews I read before I ordered mine. Great price,great shipping and easy install. 199928
by: Al E.08/25/2014
I have the rails in the truck for my fifth wheel so the Gooseneck Hitch fit right in just two new holes to drill. Fast shipping also! 148249
by: Robert B.04/23/2014
While I haven't pulled anything yet, the hitch was everything it was advertised to be. Easy installation...just fell into place. 126801
by: David B08/08/2014
Great hitch, it gives me the ability to haul a gooseneck trailer, as well as my 5th wheel. Shipping was unbelievably fast!!!!!! 145221
This will be handy to use on my parents farm. Now I can pull my fifth wheel and able to pull their gooseneck trailers too. 266836
by: Dave D05/29/2014
Great service and a quality product was delivered just as promised. Great follow up and notification of when item shipped. 133298
by: Blane W.10/09/2015
Talked with Wayne, he recommended this gooseneck adapter for my fifth wheel rails. Excellent. Fit perfectly. 229626
It was just what I ordered. It arrived quickly and slipped right in. Another great product from a great company. 316378
by: R. Graber04/22/2014
Took a little grinding to get the extra paint off the tabs, then it slid into the 5th Wheel Rail slots perfect. 126551
This product is well built and the price was half price of every other companies. This was a great experience 117696
Great! Easy to install. It looks great in my Ford F250 truck. Great choice. Looks just like the pictures. 112257
by: Todd J.12/03/2014
I have purchased many different brands of hitches and this Husky Gooseneck hitch is by far the best ever! 163310
by: RICHARD B11/22/2013
THIS IS THE BEST . IT TOOK ME ABOUT 5 MINTUES TO INSTALL IT . AND HOOKS RIGHT UP TO THE RAIL IN MY BED . 108124
by: Eric S01/18/2017
Very nicely built, Great fit in my existing rails. Plate looks to be about 3/8 thick. Heavy duty! 333607
by: Tyler B.06/09/2016
Product came in mail with fast shipping nice quality piece of metal easy install very pleased. 259578
by: Greg H.06/12/2015
A very good product.it's it is easy to change from the5th wheel hitch to the gooseneck hitch. 202885
by: David A07/30/2016
Exactly what I was looking for. Great product. Would definitely recommend to others. Thanks 277779
They were very knowledgeable on their products and very quick on delivering it !!!!!!!!!!! 204482
by: Ray s03/31/2015
Was exactly as pictured fit in the fifth wheel rails with no problem Quick shipment. 181792
by: Jered M.09/28/2014
Easy ordering. Quick shipping. Fit perfect. Will order from etrailer again. Thanks. 153414
by: Bill Hendricks08/02/2016
What I ordered, good quality and it fit . Very good delivery time Thanks 278666
by: Jonathan Sons04/24/2015
Product did not fit in existing bed rails and needed to be modified 187832
by: Jerry M.05/26/2015
The hitch was what was discribed and it delivered on time. Thanks 196888
by: DAn H07/17/2016
Installed easy. Quick easy conversion at a reasonable price 272817
by: John J.07/10/2016
Very good product, instruction to install very clear. Thanks 270279
by: Ray s05/29/2015
Worked well on my truck so I bought another for my sons truck 198463
by: Tom Caldwell01/20/2014
Great product, Very happy, wish I would have thought about it 114263
by: Bob E08/16/2014
Ordered on Friday Recieved on Monday Everything was great 147041
