B&W Turnoverball Underbed Gooseneck Trailer Hitch w/ Custom Installation Kit - 30,000 lbs

B&W Turnoverball Underbed Gooseneck Trailer Hitch w/ Custom Installation Kit - 30,000 lbs

Item # BWGNRK1111

lowest price pledge

Retail:$538.00

Our Price: $479.00

You Save: $59.00
Gooseneck

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

This item qualifies for Free Shipping

Shipping Weight: 93 lbs

Arrives before Christmas with Ground or Free Shipping.
Quantity:
In Stock, Ships Today

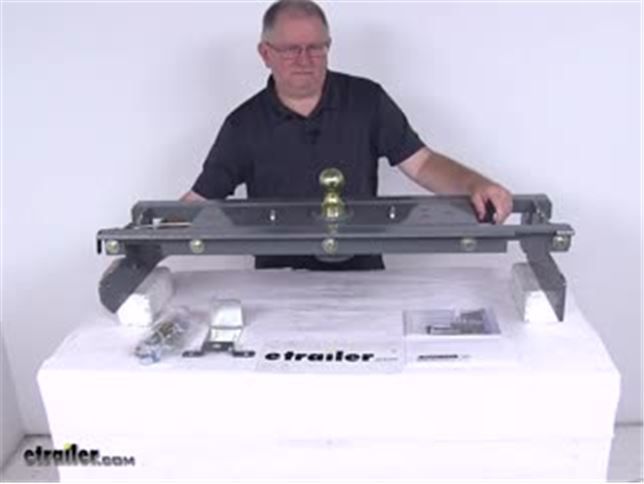

B and W Gooseneck - BWGNRK1111
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed

Customer Photos

Install this heavy-duty hitch on your vehicle so that you can securely tow your gooseneck trailer. Store the removable ball upside down in the hitch when you aren't towing to get complete bed access. Square ball base won't turn in hitch. Call 800-298-8924 to order B and W gooseneck part number BWGNRK1111 or order online at etrailer.com. Free expert support on all B and W products. Guaranteed Lowest Price and Fastest Shipping for B&W Turnoverball Underbed Gooseneck Trailer Hitch w/ Custom Installation Kit - 30,000 lbs. Gooseneck reviews from real customers.
  • All Info
  • Reviews (101)
  • Q & A (88)
  • Videos (10)
  • Photos
  • Why etrailer?

B and W Gooseneck - BWGNRK1111

  • B and W
  • Below the Bed
  • Removable Ball - Stores in Hitch
  • Wheel Well Release
  • Manual Ball Removal
  • 30000 lbs GTW
  • 2-5/16 Hitch Ball
  • 7500 lbs TW

Install this heavy-duty hitch on your vehicle so that you can securely tow your gooseneck trailer. Store the removable ball upside down in the hitch when you aren't towing to get complete bed access. Square ball base won't turn in hitch.


Features:

  • Heavy-duty underbed hitch lets you tow your gooseneck trailer
  • Complete truck bed access when you're not towing
    • Remove ball from hitch, flip it upside down, and drop it back into hitch for storage
  • 5/8" Thick, spring-loaded, steel locking pin on end of handle goes all the way through ball to secure it in place
    • Access handle at rear driver's-side wheel well
  • Single-piece, machined ball socket provides rugged durability
  • Square ball base prevents ball from turning in hitch during hookup
  • "Corners only" fit of stowed ball prevents grime buildup inside of hitch
  • Specially designed accessories (sold separately) make it easy to customize the hitch to fit your needs
    • Tow a 5th-wheel trailer with the B&W Companion hitch adapter
    • Add a ladder rack that leaves your truck bed side rails free
  • Spring-loaded safety-chain hookups are built in
  • Simple installation with included custom mounting kit
    • No welding required
    • Truck bed does not have to be removed
    • 4" Diameter hole must be cut into bed
  • Powder coated steel is sturdy and corrosion resistant
  • Made in the USA


Specs:

  • Gross towing weight: 30,000 lbs
  • Vertical load limit: 7,500 lbs
  • Ball size: 2-5/16"
  • Limited lifetime warranty


With the B&W Turnoverball underbed gooseneck trailer hitch you get the best of both worlds. When you go to tow, the Turnoverball creates a sturdy, dependable connection with your gooseneck trailer. And when you're done towing, you can stow the ball upside down in the hitch to get full bed access and a clean appearance.


Easy-to-Remove, Simple-to-Store Hitch Ball

The durable steel hitch ball included with the Turnoverball system secures in the hitch with a sturdy, 5/8" thick steel pin that is incorporated into the end of the operating handle. To lock the ball in place, drop it into the hitch hole in the bed of your truck. Then rotate the handle in your driver's-side wheel well counterclockwise until the latch engages. When the latch is engaged, the spring-loaded pin on the end of the handle will be inserted all the way through the base of the hitch ball, forming a strong, solid connection and ensuring absolute security when you're towing.


B&W Turnoverball Gooseneck Hitch Operation

When you're done towing, remove the hitch ball by simply pulling the handle out as far as it will go and then rotating it clockwise until it unlatches. Remove the ball, flip it upside down, and drop it back into the ball hole of the hitch. Then reengage the latch to secure the stowed ball in place.


Unlike typical gooseneck balls - which have round bases - the Turnoverball hitch ball is designed with a square base. This makes latching the ball in the hitch easier because the base won't rotate inside of the hitch like a round base might, so lining the pin up is a snap. The base of the ball also fits tightly within the ball hole during storage. Because only the corners of the base contact the sides of the socket, any dirt or grime that gets into the hitch will fall through the socket, thus helping to prevent any buildup that could cause the ball to seize up in the hitch.


Simple, Custom Installation

This hitch is custom designed for your vehicle. The included mounting brackets bolt to existing holes in your truck's frame. While some modification is required - you will need to cut a 4" diameter hole in your bed for the hitch ball and drill holes for the built-in safety chain loops - there is no need to weld onto or to drill into your frame.


Once you have the hitch brackets and body installed, set up the operating handle. This handle is designed to be accessed from the rear driver's-side wheel well. On the end of the handle is the heavy-duty steel pin that secures the hitch ball.


B&W Turnoverball Gooseneck Hitch Accessories

B&W makes it easy to tow just about anything. With the many adapters and accessories available, the Turnoverball can be made to work with almost any gooseneck trailer. Hitch balls are available that have a built-in rise, an offset, and even a different connection type. Add on the Companion fifth-wheel hitch - which attaches directly to the Turnoverball with no other parts required - and you can tow your fifth-wheel trailer. Even a truck bed utility rack is available so that you can easily haul ladders and lumber with the load placed on the hitch (and therefore your truck's frame) instead of your bed rails.



GNRM1111 B and W Turn Over Ball Gooseneck Hitch Custom Installation Kit

GNRC800 B and W Turn Over Ball Under Bed Gooseneck Hitch Center Section



BWGNRK1111 Installation InstructionsInstallation Details BWGNRK1111 Installation instructions

This Product Fits The Following Vehicles

2011 - 2014 Ford F-250 and F-350 Super Duty 6-3/4 Foot Bed without OEM Prep Pkg

2015 - 2016 Ford F-250 Super Duty 6-3/4 Foot Bed without OEM Prep Pkg

2015 - 2016 Ford F-350 Super Duty 6-3/4 Foot Bed without OEM Prep Pkg

2011 - 2014 Ford F-250 and F-350 Super Duty 8 Foot Bed without OEM Prep Pkg

2015 - 2016 Ford F-250 Super Duty 8 Foot Bed without OEM Prep Pkg

2015 - 2016 Ford F-350 Super Duty 8 Foot Bed without OEM Prep Pkg

2011 - 2016 Ford F-450 Super Duty 8 Foot Bed without OEM Prep Pkg



California residents: click here


Video of B&W Turnoverball Underbed Gooseneck Trailer Hitch w/ Custom Installation Kit - 30,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Gooseneck Trailer Hitch Installation - 2011 Ford F-350 Super Duty

Today on our 2011 Ford F-350 Super Duty, we're going to be installing the B&W Turnoverball Underbed Gooseneck Trailer Hitch with Custom Installation Kit, part number BWGNRK1111. This kit is designed to work with the B&W Fifth Wheel Companion Hitch, part number BWGNRK1111-5W. Here's what our hitch looks like installed on our vehicle. Now, let's go over the operation of it. To unlock the pin, you'll reach into the wheel well, pull out on the handle, and rotate it forward. Now, the pin is in the unlock position.

Once our gooseneck ball has been installed, we'll come back to the wheel well where we'll release the pin latching the ball in place.Now when you don't need to use your gooseneck ball anymore, you'll come back to the wheel well, pull the pin back to the open position, turn the gooseneck ball over, putting it back down into the receiver, and then releasing the latch here in the wheel well. Now, we'll show you how to install it. We're going to first need to go ahead and lower down the spare tire, and set it out of the way for now. We will be reinstalling this at the end of the installation. Next, we're going to go ahead and remove each of the rear wheels, just to give ourselves a little more working room and allow you to see things a little bit better.Next, we're going to need to mark our bed, but we're going to need to drill our hole.

I will go ahead and take our tape measure. We'll set it over the end of the bed. Now that we've measured from the rear of the bed, up to the distance specified in the instructions, go ahead and put a mark here. Next, we're going to need to measure the distance between the wheel wells, and find the center point. Now that we have our mark, well go ahead and take our pilot bit.

Well drill a pilot hole down through the bed. Next, well go ahead and take our hole saw. Go ahead and drill our hole out.Now, weve come underneath the vehicle. Next, were going to need to remove this heat shield here from underneath the passenger side. To do that, were just going to take a pry bar.

Slide it up underneath. Go ahead and work the heat shield off the underside of the bed, and it will not be reinstalled. Next, were going to need to lower down the exhaust. Before we do that, were going to go ahead and install a safety strap here at the back portion of the exhaust just to give it a little bit of support once we removed the bracket. Now that our strap is emplaced, were going to need to remove this exhaust bracket right here. To do that, well need to take this bolt out here as well as the bolt out up there. Well then use our safety strap to lower the exhaust down a little.Next, were going to come over here to the driver side wheel well, and were going to need to cut a small notch in this lip here to allow the cross members of the gooseneck to fit in place. Well measure back as per the instructions. Now to cut this notch out here, you can use either a pair of tinsnips or even a rotary tool with the proper cutoff wheel. Next, were ready to install the cross members. Well begin with the rear cross member. In the right rear side, well have the double-notch in it like this. This right here is how to be positioned once its in its final place underneath the bed. Now, well be using the notch that we just cut in the driver side fender wheel to help us slide the cross members in.Now when installing this front cross member, over on the passenger side, we have to go up and over the shock mount. Now, maybe helpful to use a rubber mallet to help you slide the cross member in just past this shock mount. We also used a pair of pliers to help angle the cross member up. Now, we have to clear the edge of the shock bracket. Now on this particular vehicle, the bed was crushed in a little bit, so we needed to use a pry bar and a rubber mallet to help us work the cross member over the shock mount. Now that we have our cross bracket emplaced, we can go ahead and take a pair of pliers, and twist it up into position.Next, were ready to install the front cross member. When its in position, it will be positioned like this underneath the bed. Now that we have our front cross member emplaced, again we had to use a rubber mallet and a pry bar on this one because our bed is so bent. Go ahead and take our pliers, and well twist it up into position. Now to make things a little bit easier and so that youre not fighting the exhaust, were going to go ahead and were going to remove this back section of exhaust. To do that, were going to need to remove the nut here, here, and one right there.Once we have the three nuts removed, were going to need to use a little bit of spray lubricant to remove this rubber exhaust hanger as well as this one right here. Now, well go ahead and use a large pry bar to help work the rubber exhaust hanger spray. Now, its a good idea to get an extra set of hands to help you raise this center section up into position. You want to make sure that the latch mechanism is on the driver side. Next, lets go over the hardware that well be using to attach the center section to each of the cross members. Therell be a total of six locations. The hardware will be the same for all six locations. Well be using a half-inch by inch-and-a-half hex bolt, using a half-inch flat washer, a half-inch lock washer, and a half-inch hex nut.Go ahead and take the bolt and a flat washer. Go through the cross member and into the center section. Well then install the lock washer and the hex nut. Well go ahead and repeat the same process for the other five mounting locations. Next, were ready to go ahead and install our side plates. Well begin over here on the driver side. Well be attaching here, here, and these three locations, the side plate will attach to the frame. Now to attach the side plate to the cross members, well again be using the half-inch by inch-and-a-half hex bolt with a half-inch flat washer. Well then install a half-inch lock washer, and finally, a half-inch hex nut. This will be the same hardware at all four locations, two on each side to secure the side plate to the cross member.Next, lets go over the hardware that well be using to attach our driver side, side plate to the vehicles frame. For this center hole here, well be using a three-quarter-inch bolt. This special square washer, it goes like that. This will then feed from the backside of the frame. Well then feed this spacer on to the three-quarter-inch bolt, and it will go in between the vehicles frame and the side plate. Well then put a three-quarter-inch lock washer on, followed by a three-quarter-inch hex nut. Well go ahead and reach in underneath. With our three-quarter-inch bolt emplaced, well raise the side plate up, slide our spacer on. Well then install the three-quarter-inch lock washer, and then the hex nut.Next, lets go over the hardware that well be using for the smaller holes or the forward and rear mounting location on the side plates. This will be the same hardware you used on both the driver and the passenger side. Well be using a half-inch by inch-and-a-half hex bolt that will feed in from the backside. Im going to be adding a half-inch washer, a half-inch lock washer, and finally, a half-inch hex nut. This will be the same at the other three mounting locations. The only difference in hardware between the driver and the passenger side is for the three-quarter-inch bolt, well be using a round three-quarter-inch washer instead of the square washer for this location right here.Next, well go ahead and tighten, and torque to the manufacturers specification the six locations to secure the center section to the cross members. Next, were going to need to take a couple measurements to make sure that our hitch is square in the vehicle. If the hitch or the hole in the receiver is not square, some B&W accessories may not work properly. Next, well go ahead and tighten down our three-quarter-inch bolt. Well then go ahead and tighten down the forward and back bolt securing the side plate. Now that weve got our hardware all tight here, well go ahead and torque it down to the manufacturers specification. Well repeat the same process over on the passenger side.The final locations that we need to tighten and torque to the manufacturers specification are right here and here. Thats what attaches the side plate to the cross members. Well need to repeat this same process on both the driver and the passenger side. Next, were going to need to install the latch pin release handle. Well go ahead and take the end with the rubber piece on it. Well feed it through this hole right here. Go up and over the top of the frame, coming out into the driver side wheel well. Well then take the handle and go in front of the latch pin, so it will look like that. To secure it, well be using a five-sixteenths carriage bolt and a five-sixteenths locking flange nut. We can then go ahead and tighten down the flange nut.Next, were going to need to drill some holes to install the U-bolts for the safety chains. Well be using the two holes closest to the center round receiver tube on both sides. Well be using a half-inch drill bit to drill these holes out. Now that we have our holes drilled out, well go ahead and come up here into the bed. Well need to drop the U-bolts down through the two holes. Well go ahead and install a spring that looks like this. It will go the larger side on first. Well then install a lock nut on to the threads. Well go ahead and repeat this for the other three locations. Now when tightening down the nut, you want to make sure that you tighten the nut down, so that the threads are even with the bottom side of the nut.Next, well go ahead and reinstall our exhaust. Next, were going to need to install a bracket that helps lower the exhaust down, and heres the reason why. You can see right here on the rear cross member, our exhaust is hitting it. Heres what our bracket looks like. Were going to need to take the quarter-inch carriage bolt. Slide it through the bracket like this. Were going to need to slide it in the underneath the factory bracket, so it looks like that. Well then put a locking flange nut under that quarter-inch carriage bolt. Next, were going to take a five-sixteenths carriage bolt. Well angle the bracket. Well go through the hole right here and come back through the bottom bracket like that. Well then install a locking flange nut under this one as well.Next, well come back into the wheel well. Were going to need to install this spacer that looks like this behind these two set of holes. Now to attach the bracket to the frame, were going to be using a five-sixteenths carriage bolt and a five-sixteenths locking flange nut. This will be the same hardware for both holes. Now with the two carriage bolts emplaced, go ahead and put both of the locking flange nuts on, and then we can tighten down all the hardware. Now with our bracket installed to lower the exhaust down, we can see now that we have clearance between the exhaust pipe and the rear cross member of the hitch.Next, we can go ahead and reinstall both of the rear wheels as well as for the spare tire back up into position. That will do it for the installation of the B&W Turnoverball Underbed Gooseneck Trailer Hitch, part number BWGNRK1111, on our 2011 Ford F-350 Super Duty. .
