Price: $457.00

B&W Turnoverball Underbed Gooseneck Trailer Hitch w/ Custom Installation Kit - 30,000 lbs

Item # BWGNRK1108

lowest price pledge

Retail:$514.00

Our Price: $457.00

This item qualifies for Free Shipping

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
b and w gooseneck removable ball - stores in hitch 2-5/16 bwgnrk1108
b and w gooseneck manual ball removal 2-5/16 hitch bwgnrk1108
b and w gooseneck manual ball removal removable - stores in hitch bwgnrk1108
b and w gooseneck below the bed manual ball removal
b and w gooseneck below the bed 2-5/16 hitch ball b&w turnoverball underbed trailer w/ custom installation kit - 30 000 lbs
b and w gooseneck manual ball removal removable - stores in hitch
b and w gooseneck below the bed removable ball - stores in hitch b&w turnoverball underbed trailer w/ custom installation kit 30 000 lbs
b and w gooseneck below the bed removable ball - stores in hitch bwgnrk1108
b and w gooseneck below the bed manual ball removal b&w turnoverball underbed trailer hitch w/ custom installation kit - 30 000 lbs
b and w gooseneck below the bed 2-5/16 hitch ball

In Use/Installed

2008 ford f-250 and f-350 super duty gooseneck b w manual ball removal 2-5/16 hitch bwgnrk1108
2008 ford f-250 and f-350 super duty gooseneck b w below the bed 2-5/16 hitch ball b&w turnoverball underbed trailer w/ custom installation kit - 30 000 lbs
2008 ford f-250 and f-350 super duty gooseneck b w below the bed 2-5/16 hitch ball in use
2008 ford f-250 and f-350 super duty gooseneck b w below the bed removable ball - stores in hitch b&w turnoverball underbed trailer w/ custom installation kit 30 000 lbs
2008 ford f-250 and f-350 super duty gooseneck b w below the bed manual ball removal in use
2008 ford f-250 and f-350 super duty gooseneck b w below the bed removable ball - stores in hitch b&w turnoverball underbed trailer w/ custom installation kit 30 000 lbs
2008 ford f-250 and f-350 super duty gooseneck b w below the bed 2-5/16 hitch ball b&w turnoverball underbed trailer w/ custom installation kit - 30 000 lbs
2008 ford f-250 and f-350 super duty gooseneck b w manual ball removal removable - stores in hitch bwgnrk1108
2008 ford f-250 and f-350 super duty gooseneck b w removable ball - stores in hitch 2-5/16 bwgnrk1108
2008 ford f-250 and f-350 super duty gooseneck b w manual ball removal removable - stores in hitch use
2008 ford f-250 and f-350 super duty gooseneck b w below the bed removable ball - stores in hitch bwgnrk1108
2008 ford f-250 and f-350 super duty gooseneck b w below the bed manual ball removal b&w turnoverball underbed trailer hitch w/ custom installation kit - 30 000 lbs
2008 ford f-250 and f-350 super duty gooseneck b w manual ball removal removable - stores in hitch bwgnrk1108
2008 ford f-250 and f-350 super duty gooseneck b w below the bed removable ball - stores in hitch bwgnrk1108
2008 ford f-250 and f-350 super duty gooseneck b w removable ball - stores in hitch 2-5/16 bwgnrk1108
2008 ford f-250 and f-350 super duty gooseneck b w below the bed removable ball - stores in hitch bwgnrk1108
2008 ford f-250 and f-350 super duty gooseneck b w below the bed manual ball removal in use
2008 ford f-250 and f-350 super duty gooseneck b w manual ball removal 2-5/16 hitch bwgnrk1108
2008 ford f-250 and f-350 super duty gooseneck b w manual ball removal removable - stores in hitch use
2008 ford f-250 and f-350 super duty gooseneck b w below the bed 2-5/16 hitch ball in use
2008 ford f-250 and f-350 super duty gooseneck b w below the bed manual ball removal b&w turnoverball underbed trailer hitch w/ custom installation kit - 30 000 lbs

Customer Photos

b and w gooseneck below the bed removable ball - stores in hitch bwgnrk1108
b and w gooseneck below the bed removable ball - stores in hitch b&w turnoverball underbed trailer w/ custom installation kit 30 000 lbs
b and w gooseneck manual ball removal removable - stores in hitch bwgnrk1108
b and w gooseneck manual ball removal removable - stores in hitch use
b and w gooseneck below the bed 2-5/16 hitch ball in use
b and w gooseneck below the bed removable ball - stores in hitch bwgnrk1108
b and w gooseneck below the bed removable ball - stores in hitch b&w turnoverball underbed trailer w/ custom installation kit 30 000 lbs
b and w gooseneck below the bed removable ball - stores in hitch bwgnrk1108
b and w gooseneck below the bed removable ball - stores in hitch b&w turnoverball underbed trailer w/ custom installation kit 30 000 lbs
b and w gooseneck manual ball removal removable - stores in hitch bwgnrk1108
b and w gooseneck manual ball removal removable - stores in hitch use
b and w gooseneck below the bed 2-5/16 hitch ball in use
b and w gooseneck manual ball removal 2-5/16 hitch bwgnrk1108
b and w gooseneck removable ball - stores in hitch 2-5/16 bwgnrk1108
b and w gooseneck below the bed 2-5/16 hitch ball b&w turnoverball underbed trailer w/ custom installation kit - 30 000 lbs
b and w gooseneck below the bed manual ball removal in use

  • B and W
  • Below the Bed
  • Removable Ball - Stores in Hitch
  • Wheel Well Release
  • Manual Ball Removal
  • 30000 lbs GTW
  • 7500 lbs TW
  • 2-5/16 Hitch Ball
Install this heavy-duty hitch on your vehicle so that you can securely tow your gooseneck trailer. Store the removable ball upside down in the hitch when you aren't towing to get complete bed access. Square ball base won't turn in hitch. Call 800-298-8924 to order B and W gooseneck part number BWGNRK1108 or order online at etrailer.com. Free expert support on all B and W products. Guaranteed Lowest Price and Fastest Shipping for B&W Turnoverball Underbed Gooseneck Trailer Hitch w/ Custom Installation Kit - 30,000 lbs. Gooseneck reviews from real customers.



B and W Gooseneck - BWGNRK1108

Install this heavy-duty hitch on your vehicle so that you can securely tow your gooseneck trailer. Store the removable ball upside down in the hitch when you aren't towing to get complete bed access. Square ball base won't turn in hitch.


Features:

  • Heavy-duty underbed hitch lets you tow your gooseneck trailer
  • Complete truck bed access when you're not towing
    • Remove ball from hitch, flip it upside down, and drop it back into hitch for storage
  • 5/8" Thick, spring-loaded, steel locking pin on end of handle goes all the way through ball to secure it in place
    • Access handle at rear driver's-side wheel well
  • Single-piece, machined ball socket provides rugged durability
  • Square ball base prevents ball from turning in hitch during hookup
  • "Corners only" fit of stowed ball prevents grime buildup inside of hitch
  • Specially designed accessories (sold separately) make it easy to customize the hitch to fit your needs
    • Tow a 5th-wheel trailer with the B&W Companion hitch adapter
    • Add a ladder rack that leaves your truck bed side rails free
  • Spring-loaded safety-chain hookups are built in
  • Simple installation with included custom mounting kit
    • No welding required
    • Truck bed does not have to be removed
    • 4" Diameter hole must be cut into bed
  • Powder coated steel is sturdy and corrosion resistant
  • Made in the USA


Specs:

  • Gross towing weight: 30,000 lbs
  • Vertical load limit: 7,500 lbs
  • Ball size: 2-5/16"
  • Limited lifetime warranty


With the B&W Turnoverball underbed gooseneck trailer hitch you get the best of both worlds. When you go to tow, the Turnoverball creates a sturdy, dependable connection with your gooseneck trailer. And when you're done towing, you can stow the ball upside down in the hitch to get full bed access and a clean appearance.


Easy-to-Remove, Simple-to-Store Hitch Ball

The durable steel hitch ball included with the Turnoverball system secures in the hitch with a sturdy, 5/8" thick steel pin that is incorporated into the end of the operating handle. To lock the ball in place, drop it into the hitch hole in the bed of your truck. Then rotate the handle in your driver's-side wheel well counterclockwise until the latch engages. When the latch is engaged, the spring-loaded pin on the end of the handle will be inserted all the way through the base of the hitch ball, forming a strong, solid connection and ensuring absolute security when you're towing.


B&W Turnoverball Gooseneck Hitch Operation

When you're done towing, remove the hitch ball by simply pulling the handle out as far as it will go and then rotating it clockwise until it unlatches. Remove the ball, flip it upside down, and drop it back into the ball hole of the hitch. Then reengage the latch to secure the stowed ball in place.


Unlike typical gooseneck balls - which have round bases - the Turnoverball hitch ball is designed with a square base. This makes latching the ball in the hitch easier because the base won't rotate inside of the hitch like a round base might, so lining the pin up is a snap. The base of the ball also fits tightly within the ball hole during storage. Because only the corners of the base contact the sides of the socket, any dirt or grime that gets into the hitch will fall through the socket, thus helping to prevent any buildup that could cause the ball to seize up in the hitch.


Simple, Custom Installation

This hitch is custom designed for your vehicle. The included mounting brackets bolt to existing holes in your truck's frame. While some modification is required - you will need to cut a 4" diameter hole in your bed for the hitch ball and drill holes for the built-in safety chain loops - there is no need to weld onto or to drill into your frame.


Once you have the hitch brackets and body installed, set up the operating handle. This handle is designed to be accessed from the rear driver's-side wheel well. On the end of the handle is the heavy-duty steel pin that secures the hitch ball.


B&W Turnoverball Gooseneck Hitch Accessories

B&W makes it easy to tow just about anything. With the many adapters and accessories available, the Turnoverball can be made to work with almost any gooseneck trailer. Hitch balls are available that have a built-in rise, an offset, and even a different connection type. Add on the Companion fifth-wheel hitch - which attaches directly to the Turnoverball with no other parts required - and you can tow your fifth-wheel trailer. Even a truck bed utility rack is available so that you can easily haul ladders and lumber with the load placed on the hitch (and therefore your truck's frame) instead of your bed rails.



GNRK1108 B and W Turn Over Ball Gooseneck Trailer Hitch



BWGNRK1108 Installation InstructionsInstallation Details BWGNRK1108 Installation instructions

This Product Fits The Following Vehicles

1999 - 2010 Ford F-250 and F-350 Super Duty 6-3/4 Foot Bed

1999 - 2010 Ford F-250 and F-350 Super Duty 8 Foot Bed

2008 - 2010 Ford F-450 Super Duty 8 Foot Bed



Video of B&W Turnoverball Underbed Gooseneck Trailer Hitch w/ Custom Installation Kit - 30,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

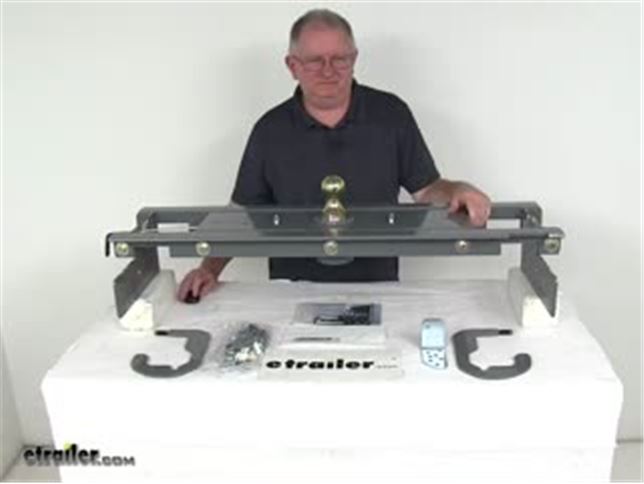

Video Transcript for B&W Gooseneck BWGNRK1108 Review

Today we are going to review part number BWGNRK1108. This is the B&W turnover ball underbed gooseneck trailer hitch with the custom installation kit. For this video, I have already installed the installation kit brackets to this gooseneck hitch to give you an idea of what this part would look like underneath your vehicle. This is a custom fit design. It is designed to fit the Fords, the 250s, the 350s, and the 450s and certain years, what I would recommend, if you go to the product page for this part number, and at the bottom of the page it would break down the years and the models that this part would fit onto. This heavy duty under bed hitch will let you tow your gooseneck trailer. You can remove, if you pull out on this handle and twist it, to lock it open, you can remove this ball from the hitch and flip it upside down and drop it back into the hitch for storage and then release it and it will be locked into place.

When you do that it will give you complete truck bed access when you are not towing. It is held in place by a 5/8 inch thick spring loaded steel locking pin which is on the end of this handle. You just pull it out and you can see this pin will actually go through this hole right here in the ball and secure it into place. This access handle, when it is installed on your vehicle, will be at the rear drivers side wheel well. Now, the ball itself is a single piece machine ball socket. It has the square ball design to it; provides rugged durability.

The square design, and also the opening it goes into is a square ball base. This will prevent the ball from turning in the hitch, so when its in the place you can see when you are hooking up, it will prevent the ball from turning. Now also if you notice, the corners on this are chamfered edges, and the reason that is, and it is also rounded in the opening here so when you do drop the ball in, it does leave a little bit of a gap on the corners and that helps as far as prevents any grime or dirt from building up inside here and from making it hard for the ball to come out or go in so they do put that on there, its a nice feature. Now, this B&W underbed gooseneck hitch is specifically designed to use B&W accessories that we sell separately. It makes it very easy to customize this hitch to fit your needs. One of the accessories that comes in very handy is if you all of a sudden need to tow a 5th wheel trailer instead of a gooseneck trailer, B&W offers a part called the companion hitch adapter; its a 5th wheel hitch adapter and what that does is if you take this ball out, the 5th wheel hitch adapter will have a post in it with a 5th wheel hitch and with this in the bed of your truck, you can drop that post in there and lock it into place and then you would actually have a 5th wheel hitch in your truck bed, so you could tow a 5th wheel trailer if needed.

Thats a nice little accessory that would be sold separately. It does have the spring loaded safety chain hook ups right here that are built in. As you can see, just pull up, put your safety chain hook in there, let it go and it would hold it into place. Installing this is a very simple installation. It comes with the custom installation kit like I show you here, and all the mounting hardware. There is no welding required.

The truck bed does not have to be removed for installation. The only thing you would have to do to the truck bed is drill a 4 inch diameter hole right here to allow access to the turnover ball opening. All parts of this are powder coated steel which is sturdy and corrosion resistant. The part is made in the U.S.A. This does have a gross towing weight capacity of 30,000 pounds. It has a vertical load limit or PIN weight capacity of 7500 pounds and as you can see the ball size on this gooseneck is 2 5/16. It does come with a limited lifetime warranty. Again, just to show you if you are going to tow with a gooseneck, you can just drop the ball in, on the handle if you just twist it, it will release it, the pin would slide in and lock the ball into place. You are ready to tow. If you are done towing and you just want to store the ball away, again, pull out on the handle, twist it and you can hear it lock into place that locks it open. Pull it out, theres a little handle right here, you can hold onto, you can drop the ball for storage, twist it to release it, the pin locks it into place. Now you have full truck bed access; very simple to go from towing with a gooseneck or just for storing the ball into place. That should do it for the review on part number BWGNRK1108, the BNW turnover ball underbed gooseneck trailer hitch with the custom installation kit. .


Customer Reviews

B&W Turnoverball Underbed Gooseneck Trailer Hitch w/ Custom Installation Kit - 30,000 lbs - BWGNRK1108

Average Customer Rating:  4.9 out of 5 stars   (432 Customer Reviews)

Install this heavy-duty hitch on your vehicle so that you can securely tow your gooseneck trailer. Store the removable ball upside down in the hitch when you aren't towing to get complete bed access. Square ball base won't turn in hitch.

- BWGNRK1108

by: Larry G07/13/2017


It took me a while to get this hitch installed because there were after market airbag suspension supports that were in the way. After I removed them the installation went a bit smoother. The B&W instructions were so light, I was glad to had the opportunity to view the etrailer.com resource video and other helpful informaiton in determining the rear airbag support could be removed without causing a structural issue to the truck. So if you got these airbags install, know that they can be removed so you can take advantage of this high quality hitching system. I used impact wrenches to loosen the old and install the new bolts... made life a lot easier than with the standard wrenches, so worth the price i invested in the right tools for the job. 405136



- BWGNRK1108

by: Jim C.12/08/2014


I purchased the B & W turnover ball hitch from E Trailer for my 2006 Ford F250 SuperDuty. Jan in customer service was very helpful. I received the hitch within 2 days. My wife and I installed it according to the instructions and installation video on their website. E trailer really did their homework on the installation of their hitches. We got the hitch insatlled with minimal problems. All you have to do is follow the video/instuctions. I am very pleased with the hitch and would recommend ETrailer and the B&W hitch to anyone who tows. I tow a 5th wheel with a Ranch Hitch Gooseneck adapter. Now I dont have to deal with the 5th wheel hitch in the bed of my truck. I will continue to purchase other towing accessories from ETrailer. A wonderful experience. 163592



- BWGNRK1108

by: David R in Shelbyville, Tn07/13/2017


This was my Second Hitch to order from etrailer. The first was on my 2012 Ford Transit Connect. This time was on my newly purchased 2008 Ford F250 Super Duty Diesel truck. It did not have the Goosneck Hitch and I have Horses and use a Trailer to transport them. Instead of paying Much More to have the hitch put in, I elected to do it myself. I looked at the Video and read the instructions Twice before starting. Since I am almost 75, I need the help of my son. While he was at work, I did most of the work myself. When he got off work, we finished the job. I will continue to purchase from etrailer. The items fit Perfectly and instructions are Great. In the picture, is Sophie, my dog which watched as we worked. 405070



- BWGNRK1108

by: Jeff K.10/15/2015


This is the third B & W turnover ball hitch I've installed on my trucks. Quality is great. Instillation time is about two hours, and relatively easy. 230010


Comments

Great

Jeff K - 10/14/2016

21507

- BWGNRK1108

by: austin05/24/2015


great product, super heavy duty and easy to install on your own 196551


Comments

One year later and still working well.

austin - 05/26/2016

18043

- BWGNRK1108

by: Brian1553011/24/2016


I love it. The difference being that I own a 2003 F350 so I bought the correct B And W Turnoverball gooseneck for my truck. After the work I started I found my bed was rotten and need to replaced with one from a 2016 F series truck. The B & W cross member fit fine but the side plates didn't work well with the 2016 bed for the gooseneck location and I didn't want to drill a hole in my frame. So I welded the holes shut and drilled new holes to fit my frame. With the slight location forward the weight was slightly better for handling and loading 319364



- BWGNRK1108

by: Thom B.01/21/2015


Good old boys (and good old girls) that are in the know for tow products raved about the B&W product. My good buddy has installed several on trucks he's owned. I went with their advice and went with B&W. After watching a couple of YouTube videos I felt confident and went for it. The installation was easy and 'factory perfect.' I saved hundreds of dollars doing this myself and doing so got me up off the couch for a few hours. I have a product which will perform year after year, mile after mile. Awesome. 170683



- BWGNRK1108

by: James S,06/26/2017


The B&W Hitch and wiring harness I purchased worked great. Did the install myself which was a job but the instructions were good and the video may it fairly straightforward. The wireing harness had to be 100% wire-for-wire soldered into place becaue the original connector on my truck had been damaged and replaced. So the plug-and-play part not working was a surprise but we dealt with it. All-in-all a perfect fir for everything. I would highly recommend both items. Great quality and ease of use perfect. 400724



- BWGNRK1108

by: Keith B08/30/2016


I could not be more satisfied. Starting with Etrailer web site is very friendly to use and very helpfully on installation. Order was shipped and received as stated. Excellent transaction. B&W customer service was also excellent. I bought a slightly used companion from private party and B&W was very helpfully on making sure the unit was perfect. Etrailer has a lifetime customer. 289369


Comments

This hitch along with the B

Keith B - 08/30/2017

27745

- BWGNRK1108

by: Chris O.08/24/2017


The BW turn over ball paired with the BW companion is an amazing 5th wheel hitch. Having the option to remove my hitch and have access to my truck bed with ease is why I chose BW and also now I can pull a gooseneck is need be. Also the turnover ball installation is easy and did it myself, just watched a couple of YouTube videos and saved me 400 in installation costs. 424639



- BWGNRK1108

by: B & T Tree & Grading09/13/2017


Recently purchased the B & W turnover ball gooseneck hitch from etrailer and have been using it now for approximately eight months and have had no issues. Sales representative, ( Hally C. ) was very helpful and knowledgeable about the product. Highly recommended asking for Hally C. For your sales representative. 432151



- BWGNRK1108

by: Alan05/23/2016


I rely on etrailer for parts. I have numerous trailers, from small tag alongs to a 12 ton GN. Over the years, from LED lights to hitch's, the products I need are found upon your website. I've done business for numerous years with you folks and most certainly share your site and recommend etrailer. ~ Alan R 251202



- BWGNRK1108

by: Samuel Coleman02/26/2015


This hitch is very well made and MADE IN THE USA! Easy to install too. I've had and used almost every type of goose neck hitch in the past and I believe this hitch is much better made than any of the others I've used in my other trucks. Etrailer was very easy to work with and good prices as well. 176134



- BWGNRK1108

by: DJ04/18/2016


Product was well made. Easy installation was a little disappointed with the pin that locks the ball into place it does not pull out of the ball all the way and usually results in me crawling underneath my truck with a hammer to knock the pin out. 245948



- BWGNRK1108

by: James B.01/23/2017


I purchased hitch # BWGNRK1108 a year ago and it works teriffic. It was easy to install as we had the bed off the truck at the time of instillation. I would recomend this hitch to anyone. Thank you again for the excellant pricing. James B 334567



- BWGNRK1108

by: Barry R07/03/2015


Shipping time and installation time were great. The made in the USA quality is built into the B&W Gooseneck Hitch and all there other products. thank you and I have sent other customers to the etrailer site. 209177



- BWGNRK1108

by: Stan H.04/30/2017


Shipping was fast, product is built with quality. The video that you have on your web site for installing of the hitch is excellent. Having a way to lift the truck and another person to help is the best way to install. 374272



- BWGNRK1108

by: Linda10/03/2016


Joseph installed this himself. While it definitely wasn't easy it is manageable for one person. We have had no issues and i proudly display the made in America sticker on my trailer. 303010



- BWGNRK1108

by: Sid Meece08/05/2016


Great product ! I have purchased 4 of these hitches over the last 10 years & I am never disappointed. Easy to install & work perfect. 279989


Comments

Still no complaints

Sid M - 08/07/2017

26947

- BWGNRK1108

by: Rich Huber05/06/2015


Great service. Excellent communication and quick delivery. Will order again as it just doesn't get any better. Thanks, Rich 190993



- BWGNRK1108

by: Chad03/20/2017


Installation was easy except my bed had been bent during previous use. Great product and very satisfied customer. 356373



- BWGNRK1108

by: global fab05/08/2017


Very happy with the hitch . Installation was a tight fit , but all worked as instructions said , nice product . 377683



- BWGNRK1108

by: George l02/27/2015


very nice hitch very easy to install and I liked the installation video on the web page very helpfull 176330



- BWGNRK1108

by: Jason J.08/19/2015


Great service and fast delivery very friendly staff great product not to hard to install 220348



- BWGNRK1108

by: Marcus Jones02/08/2017


Nice hitch , written instructions are hard to follow, but the video is a life saver. 339919



- BWGNRK1108

by: Frankie B.11/04/2014


Had a welded in gooseneck hitch before... will never go back....great build quality. 159137



- BWGNRK1108

by: Ron09/12/2015


Good solid product, easy to follow directions installed very easy in about 1 hr. 225222



- BWGNRK1108

by: Jose N09/05/2016


Love The product it was very easy to install it was work but it is done. thanks 291394



- BWGNRK1108

by: Justin C.06/19/2017


Product was as advertised and a breeze to install thanks for a quality product 395943



- BWGNRK1108

by: Bill04/12/2016


Hitch was shipped faster than I could drive across the river and pick it up. 243938



- BWGNRK1108

by: lee05/13/2015


Great fit and clear instructions worth the extra money from the cheaper ones 192529



- BWGNRK1108

by: Miles06/10/2017


Great product. Very happy with quality. Shipping was fast and on time 391380



- BWGNRK1108

by: Lance L11/24/2016


Great hitch with easy installation best hitch I've owned 319285



- BWGNRK1108

by: Ryan B04/06/2016


Great product, we haul 8-10 tons and and no problems! 243123



- BWGNRK1108

by: Rod h07/30/2016


Works and does what it says 277703



- BWGNRK1108

by: S Smith09/21/2016


Great USA product 297026



- BWGNRK1108

by: Steve K.10/31/2016


awesome!!!!!!!!! 312333



- BWGNRK1394

by: Martin J. M02/07/2015

Review from a similar B and W Turnoverball in Gooseneck


I had the truck restored front to back. The box/bed is in the paint shop so putting the hitch on is even easier. Assembly of the hitch looking at the picture from paperwork, extremely easy. Bolting on to the truck frame easy for hitch mounting holes are cut in correct spot for frame holes so no drilling is needed on truck frame. Bolt the side frame of the hitch to truck frame loosely, then put top section already bolted together loosely on to truck frame tighten all bolts down tight and done. Be careful on starting bolts for paint on inside of the threads makes it hard to start. If you have a tap and die set in SAE 1/2 inch National Course this would work good to clean paint off inside of the threads so bolts start easier. Then you have two choices for your hitch being directly above the rear axle or a bit forward toward the cab of the rear axle. The choice being made by the bolt pattern of the hitch frame. Four bolts holes per side only two are needed. Customer purchasing the hitch has to decide on this decision when they put the hitch on. A great heavy duty goose neck hitch made in USA for the price being paid! 172848


Comments

Excellant! Best hitch Ever! If I ever purchase another truck I will be putting another hitch like this in the truck.

Martin J - 02/08/2016

16725

- BWGNRK1314

by: Happy Customer02/14/2015

Review from a similar B and W Turnoverball in Gooseneck


etrailer not only have a great procedure for online trading or online store, but also a great website....people on similar business can appreciate that as per other this feature can be transparent for them...it takes a great effort of team work to accomplish what this level of a,b,c,d online process to be done the way of etrailer has done. The products are simply well described, well packed, fast shipping. Whether is in stock or direct ship from manufacture, they make it look like is nothing..to me another great team effort and well though software architecture. As often we find instructions from manufacture to be some confusing, etrailer back it up which bunch of literature and videos to easy the process. Device recommendations: I strongly recommend that anyone purchasing this item to purchase also the harness kit, installation is plug and play and it looks part of another factory install. Cons: The part where every instruction or videos said "remove the clamp of the exhaust pipe to move exhaust pipe over" I found that is extremely difficult to accomplish that procedure on a 2014 3500 Ram with a Diesel Engine which it has the extra exhaust regeneration device or so call DPF...where fuel exhaust particles are burn, etc. that makes my vehicle exhaust to be solid almost one foot before reaching my rear end axle, meaning location where I need to be working installing my under bed gooseneck hitch. I did not removed any exhaust clamps and I simply got me a short 22 mm and tight my bolts with a wrench and a hammer. NOTE: ABS harness bracket it looks like is going to be rubbing against the hitch and it is extremely close, but it does not once bolts are tight you will have about 1/2 clearance (will not rub). Last comments, everything fits and everything goes where is says instructions, do not remove your bed of cut your truck in half..jejejejej Good luck, hope I help someone God Bless 174729



- BWGNRK1394

by: Matt L.02/11/2017

Review from a similar B and W Turnoverball in Gooseneck


This B&W gooseneck installed easily on my 2001 Dodge Ram 2500 in a little under 4 hours by myself. The only drilling required is for the holes in the bed for the receiver and the safety chain hooks. I'd definitely recommend a tip I saw online-- use a 3/4" piece of plywood as a template/stabilizer when you cut the 4" hole in the bed because the hole-saw will want to bite and grab badly on the bed without it. Quality product made in the USA by B&W, this is my 3rd B&W hitch and they will last forever. I will use this and another in my wife's truck so we can have one fifth wheel hitch (Companion) that will fit both trucks. Great service as always from etrailer. HIGHLY recommended. Thanks! 340805



- BWGNRK1314

by: Lee10/02/2016

Review from a similar B and W Turnoverball in Gooseneck


The E-trailer videos and instuctions are great! I would suggest going ahead and removing the spare tire heat shield to make life easier with the torque wrench and when drilling the safety chain holes. The other item I am glad I caught before installing my hitch is the size of the hole they want you to use. B&W suggest a 3-1/2" hole and provide a plastic spacer to kinda hide the gap, I didn't like the idea of how this was going to look. I still installed the plastic spacer to support the bed around the hole, but I used a 3-1/4" hole saw and very lightly filed the edges for a much better fit. (Just make sure you hit your pilot hole location.) Test fit the hitch from the top side when checking the hole size. When installing, tighten the bolts to where the hitch just starts to make contact with the frame and then go top side and check hitch/hole alignment. Tap the hitch around with a mallet if you need to line it up with the hole. (Once the hitch was tight it didn't protrude through the bed anyways, so the hole could have been small and still worked). After removing the exhaust hanger, I used a ratchet strap to pull the tail pipe towards the spring to allow access to drill the passenger side safety hook holes. Another tip, I used a piece of rope tied to the ball retaining pin and fed it up through the hole in the bed. My 11 year old son was able to hold it in place this way while I started the bolts. I am happy with the end results and it looks great! The one thing I feel could be better is how far the ball retaining pin protrudes into the second side of the hitch housing, on mine I only have about 1/4" into the second side. I would feel better with 3/8"-1/2" engagement. 302603



- BWGNRK1067

by: Maurice J.01/06/2015

Review from a similar B and W Turnoverball in Gooseneck


The customer service from eTrailer is top notch. I ordered my B&W 1067 the day before New Year's Eve. I had it within 5 days including the holiday and weekend. The B&W 1067 installed pretty easy. I did it myself in about 3 hours. I was lucky that my truck previously had a B&W 1067 installed so I didn't have to drill any holes. The only complaint that I have is I was short 2 bolts in the hardware bag. I didn't worry with calling eTrailer; I just went and bought new ones. 167940


Comments

Works great, easy to use and pulls my trailer without issues.

Maurice J - 01/06/2016

16348

- BWGNRK1067

by: Paul O03/16/2017

Review from a similar B and W Turnoverball in Gooseneck


The hitch and controller was installed on a 2002 Chevy 2500HD. It took roughly 15 min to install the Tekonsha P3 Brake Controller, plug it in and program it. As far as the B&W Turnover Ball Hitch, I cut the hole in the bed and cut the heat shield out the day before while I was waiting for the hitch to arrive. The next day my parts arrived, I laid out all the parts to make sure everything was there and then started the install. I didn't want to cut the 1"x1/2" notch out of my fender well to get the angle iron in so I spent about 15 min. trying to get it up on top the frame from underneath the truck. A waste of time. Do like the instructions say, cut the notch and slide it straight across the top of the frame. It will save time and aggravation. After getting both braces in place I ran a piece of rope down thru the hole and pulled the hitch plate up into place and tied it off. I installed all the bolts finger tight, put the side plates on and tightened everything up. It looks nice and I saved myself a $435.00 installation fee. With out a lift and without taking my rear tires off it took about 3 1/2 hrs. to install by myself. The only thing I want to say to B&W is don't place the heavy metal hitch parts on the booklet with the packets of Lithium Grease in it, they bust as the picture shows. Last but not least, thank you Sherry for all your help with my order and getting it to me quick in such short notice. I really appreciated it. 358380



- BWGNRK1111

by: Tom B03/22/2017

Review from a similar B and W Turnoverball in Gooseneck


To etrailer's credit the product (B&W underbed turnover ball gooseneck hitch kit ) arrived quickly and in good shape albeit with whining from the "overworked" UPS driver. Installation went smoothly but not having a chassis lift working space was at a premium. There's a lot of fuel and pollution control plumbing along the driver-side frame rails on a '16 Ford diesel so space is tight. B&W's instructions are good but more appreciated are etrailer's videos, they're good. Measure (and remeasure ) the location for the turnover ball hole. Don't trust Ford's dimple, it ain't necessarily right and there's not a lot of wiggle room with a 4" hole. B&W's measurement is RIGHT. I used the Andersen Ultimate Hitch I had with a ratchet strap to support the center section through the drilled bed hole which really facilitated mounting it to the cross members. I was working solo. The only place I varied from the instructions was to partially loosen the bed mounting bolts (8 #45 torx head )an inch or so and jack the bed a couple inches. This really increased the working access for insertion of the crossmember beams and a half dozen of the mounting bolts. Though it's a pain I'd also recommend putting the rearend on jackstands and removing the wheels, much improved access, much improved torquing accuracy. Working solo, not hurrying and first time... about 6 hours. Props to B&W Hitches and especially etrailer. 357056



- BWGNRK1012

by: Jeff L06/22/2017

Review from a similar B and W Turnoverball in Gooseneck


This is an excellent product! Let's start from the beginning. The ordering was easy and hassle-free. They shipped my order the next day and it arrived as promised. The only issue I had was when I opened the box. It comes in two separate boxes due to weight. The package that contains all the hardware had a slight tear. After inspection I realized one lock washer had fallen out and it wasn't in the box. No worries there, I simply picked up another at the hardware store. Installation was as difficult as expected. You're working under a truck with about 130lbs of steel... it's not going to be real easy but it's not super difficult either (use your head and read the instructions). The instructions are easy to read and understand. I recommend you lay everything out on the ground exactly as it is assembled. That way you can get a clear picture as to how everything will go together when you are under the vehicle trying to hold a 50lb piece of steel above your head. Bottom line though... this system was designed and put together excellently. If you follow the instructions it will install perfectly with no gaps or unsightly holes. This is my first in-bed trailer hitch system. I wasn't sure if I should go with just a goose neck or fifth wheel. This system allows for both. My only regret is that I didn't take pictures as I went along. It truly does go in as easily as they say. 397466



- BWGNRK1115

by: Josh06/22/2017

Review from a similar B and W Turnoverball in Gooseneck


I bought this for my new 2017 F150. I would not buy it again. First off they say in the instructions to drill a 4" hole at 42 5/8" from the back of the bed. Both measurements are wrong. If you use a 4" hole saw which I did the hitch will not fit in the hole. I had to open it up after it was drilled. I ended up with a 4 1/4" hole. I drilled at 42 5/8" as per the instructions. That measurement wouldn't let the hitch be mounted in the center of the hole. It was tight against the back of the hole. Which would of put aluminum directly in contact with steel To get it to fit right I ended up shifting the centerline of the hole 3/16" towards the back of the truck and making an 1/8" shim to push the center section forward to get the hitch centered in the hole. 42 5/16" would have been a better centerline for the hole. Also the bolts for the side mounts are longer then they need to be. They could at least be fully threaded to be able to use the retaining clips as intended. I called B&W about my issues. It's was basically like talking to a brick wall. They acted like I did something wrong. I worked in a machine shop for years working with tolerances down to .0001". I'm pretty sure I can read a tape. Also the paint finish on the hitch is horrible. It flakes of in long strips. If I had to do it again I would look at a different hitch. Possibly a Curt or something else which is less expensive. 397812



- BWGNRK1016

by: Dean S.09/11/2016

Review from a similar B and W Turnoverball in Gooseneck


I installed this yesterday, along with the Companion 5th Wheel Hitch. Very good instructions, well written, great illustrations. Everything fit perfectly, no struggles with alignment. Very good hardware. Looks to be very sturdily built, the welds looks great. One thing to look out for - on my 2016 Chev 3500 anyway, the exhaust is in the way of drilling the passenger side retractable chain hook holes. You will need an angle drill or drill with a flexible extension cable. Or get your steel rule out and do some serious measuring like I did and drill the holes from the top down. I drilled the accessible driver's side, then transposed those measurements to the passenger side and drilled from the top using a small drill. After hitting the hole, I used progressively larger drills until I found the edge of the 1/2" hole in the center plate, then hogged out the hole the rest of the way with a Dremel grinder. Not a big deal, just had to get a little creative. Over all, excellent experience, from the purchase, the help from customer service (fantastic people!), fast delivery and easy install. Highly recommended! 293451


Comments

Works fantastic! Used quite a bit for work and play. No problems!

Dean S - 09/11/2017

28088

- BWGNRK1309

by: Pete04/05/2015

Review from a similar B and W Turnoverball in Gooseneck


Talk about putting 10 pounds of crap in a 5 pound bag! Engineering for this goose neck hitch is excellent. Everything fits perfectly and the instructions are very good. One word of advice, where the instructions direct you to remove the plug fasteners holding the wiring harness on the rear cross member, remove them. If you cut them off it leaves a small piece of plastic protruding which causes the mounting holes in the hitch to misalign. The hitch can be installed by one person but after installing mine I highly recommend two. The instructions suggest a motor lift, overhead lift or similar to lift and hold the center section of the hitch in place. I would say that it is essential. The first thing that you will do is drill the 4 inch hole in the bed, when all parts are in place you will need to pull the center section up into the hole that you drilled and then tighten the other parts to the center section. You will need a couple of things that most people don't have laying around, two hole saws, a 4" and a 3/4". You should also consider picking up a 24" long 7/16" bit. You will need this for drilling the pilot holes for the safety chain attachments from underneath the truck bed. An excellent product with instructions written for the first time installer in mind. 183311



- BWGNRK1016

by: JB01/07/2017

Review from a similar B and W Turnoverball in Gooseneck


This is a high quality, basically bolt in product that fits well and has all ample hardware. The video is priceless and must be watched since it answers many questions otherwise. Spare tire removal is basically mandatory but we did leave rear wheels on. Only a problem when torqueing the side frame bolts. Exhaust is problematic at least for the Duramax. We did loosen some rubber hangers and with 2 people, were able to pull down on the exhaust to slip the center section in. The answer to the drilling for passenger side safety chain hooks is correct. Due to the exhaust pipe, you either punch a small drill hole at an angle from the bottom and enlarge it from the top or measure from the top only (less accurate). We drilled from bottom and enlarged it, which was perfect. Drilling a 4" hole in the bed of a brand new truck is scariest part! Measure twice, cut once, be accurate and with a spray in bed liner, its almost the exact same rear measurement (mine was tight getting the center section through the bed after allowing for the spray in product about 1/8"). Otherwise drill a 4 1/8" or 4 1/4" hole. On GM, the center (width about 25 1/2") is centered on the middle bed high slot, not the lower one. Also, shipping, emails, communications etc. were all outstanding. 330727



- BWGNRK1067

by: Bill A.03/14/2017

Review from a similar B and W Turnoverball in Gooseneck


A very nice well built hitch. My son and I installed this hitch in 3.5 hours. The instructions were a little vague, but the video that etrailer provided for a 2001 GMC Crew Cab with a short bed, was similar to my 2003, an was very helpful. We removed the rear wheels, and had to cutout a section of heat shield, and cut a v shape in the bed. We didn't have to touch the exhaust, like the video instructed. The braces were a little tight to get in place, but weren't that difficult. We used a tractor, and chain to hold tension on the hitch while we bolted it together. All said and done, I would say make it a 2 man job, and you will be pleased with the results.... 352515


80
479
Show More Reviews


Ask the Experts about this B and W Gooseneck
Do you have a question about this Gooseneck?


  • Needed Gooseneck to Fifth Wheel Adapter to Tow a Montana Mountaineer Fifth Wheel Trailer
  • Since you already have the B&W Turnoverball Gooseneck Hitch # BWGNRK1108 in your 2001 Ford F-250 then you can add the B&W Companion Fifth Wheel Hitch # BWRVK3500. The Companion is designed to work with the B&W gooseneck so you can have a good quality fifth wheel hitch without having to remove your gooseneck hitch. If you prefer an adapter that installs onto the king pin you can use the Ranch Hitch Adapter # AM3100. If you decide to replace your pin box you will need the model number...
    view full answer...

  • Recommendation for a Gooseneck Hitch on 2002 Ford F350 4x4 Long Bed
  • According to B&W, on gas trucks the exhaust will not cause any clearance issues. On models with Diesel engines, in some cases the muffler might need to be moved slightly to clear the hitch. There is an bracket included with the hardware kit that is used to relocate the muffler if needed. The installation instructions make no mention of the need to relocate a brake line, they just mention that they want to be aware of where they are to make sure you don't damage them when positioning...
    view full answer...

  • How to Install a Companion Fifth Wheel Hitch on a Flat Bed Truck
  • Since you have a flatbed on your truck now the only recommended way to use a Companion hitch will be to first use the # BWGNRK1500 as a gooseneck hitch and then for a fifth wheel hitch you would need the # BWRVK3050. The # BWGNRK1108 that you had previously installed on your truck is not compatible with flatbed trucks so there would be no recommended way for you to use it.
    view full answer...

  • Fit of B and W Turnover Ball Gooseneck # BWGNRK1108 on Diesel Equipped 2008 Ford F2-350 SD
  • The BandW Turnover Ball Underbed Gooseneck Hitch you referenced, part # BWGNRK1108 is indeed a fit for Diesel models of the 2008 F250 and 350 Super Duty. I have confirmed this with B and W. If you need to install a 7-way in your truck bed, you could use part # 41157. I have linked you to an install and a product demonstration video you might find helpful.
    view full answer...

  • Will a Colibert 205B Work with a B and W Turnover Gooseneck Hitch
  • We don't carry the Colibert 205B, but it is basically a standard fifth wheel to gooseneck adapter like the part # CAB-C5G that you referenced. It would work just fine with a B an W Turnover gooseneck hitch like the part # BWGNRK1108 that you have installed in your 2006 Ford F-350.
    view full answer...

  • Can Hopkins Smart Hitch Back Up Camera be Installed In Line with In Bed 7-Way Trailer Connector
  • Yes, you can add a 5th wheel/gooseneck in bed trailer wiring connector and still use the Hopkins Smart Hitch backup camera, # HM50002. Since you already have a 7-Way you can daisy chain the camera connection with the new wiring harness and the camera connectors. For a new harness you can use # 41157 which is also a Hopkins product. You will just unplug the camera from the factory wiring harness, leave the other end plugged into the back of the 7-Way. Then plug in the new 7-Way in line...
    view full answer...

  • Will a B&W Gooseneck Trailer Hitch Fit a 2001 Ford F-250 4x4 with Air Bags
  • The B&W Turnover ball hitch for your 2001 Ford F-250 is # BWGNRK1108. The brackets for it install on the outsides of the frame rails on the truck (part fits underneath but would not interfere with the airbags). However, there is that center bolt that holds the air bag top bracket on. The hole for that bolt is also used for the B&W bracket. So the two parts will share that same hole and it will work out fine. I have linked instructions for the B&W hitch and a video showing installation.
    view full answer...

  • Does Exhaust Have to Be Lowered to Install a Gooseneck Trailer Hitch on a 2008 Ford F-350 Diesel
  • Yes, you would need to lower the exhaust on your 2008 Ford F-350 to install Curt gooseneck trailer hitch # C640-644. It is required on 2005 and newer models that have a diesel motor. After looking at the installation details for the other hitches that fit your truck, this is something that would have to be done to install any of them. You might want to consider the B&W hitch # BWGNRK1108. There is still exhaust lowering required but the hitch costs less than the Curt, and B&W has an...
    view full answer...

  • Replacement Center Section Recommendation for a B and W Turnover Ball Gooseneck Hitch
  • If you have a B and W Turnover ball gooseneck hitch in your 1999 Ford F350 like part # BWGNRK1108 the correct center section would be the part # BWGNRC800 that you referenced. You might be able to hit the stuck ball in your hitch with a liberal application of lubricant several times to see if you can free it up. Applying the lube to the lower side of the ball underneath the truck ball would be recommended as well.
    view full answer...

  • How Much Turning Clearance Is Lost When Installing Gooseneck Versus Bumper Hitch
  • When you change over to a gooseneck trailer from the bumper mount trailer setup, you may lose clearance but it would be impossible for me to tell you how much because of the different style trailer available. If you have a trailer with an open flat bed you may actually gain more clearance. Per the installation instructions for the B and W Gooseneck, part # BWGNRK1108, the hitch ball is placed 47 inches from the rear edge of the tailgate. You would need to know the length of the gooseneck...
    view full answer...

  • Air Suspension Kit Recommendation for a 1999 Ford F-250 with B and W Fifth Wheel Rails Installed
  • For your 1999 Ford F-250 the Firestone Ride Rite Kit part # F2550 is a confirmed fit and is listed to be compatible with fifth wheel/gooseneck install kits like your B and W part # BWGNRK1108. I attached an install video for Firestone Ride Rite kit on a similar Ford truck as your as well.
    view full answer...

  • Recommended Gooseneck Hitch for 2000 Ford F-350 with 8 Foot Bed
  • You can see all available gooseneck hitches for your 2000 Ford F-350 with 8-foot bed by clicking on the link provided. Its easy to recommend the B&W Turnoverball Underbed Gooseneck # BWGNRK1108. Apart from being USA-made and having a limited lifetime warranty, this B&W gooseneck easily converts into a 5th wheel through the addition of the B&W Companion 5th wheel hitch # BWRVK3500-5W.
    view full answer...

  • Gooseneck Hitch Recommendation for a 2000 Ford F-250 SuperCab Short Bed Diesel 4x4
  • I have a gooseneck hitch for your 2000 Ford F-250 SuperCab short bed with the diesel engine and manual transmission, but the Blue Ox Gooseneck Hitch, # DH1201, will not work. The exhaust will interfere with the hitch. The gooseneck hitch I recommend for your truck is the B&W Turnoverball Gooseneck Hitch, # BWGNRK1108. This hitch will fit your truck and B&W is one of the best gooseneck hitch manufacturers around. We have installed this hitch on an F-250 so I attached the installation...
    view full answer...

  • Gooseneck Hitch Setup that Can Tow Gooseneck Trailer and Inverted Fifth Wheel
  • I really wish there was a gooseneck to inverted fifth wheel adapter available for Curt hitches but the inverted fifth wheel setup is so rare there really isn't much of a demand for that type of adapter. The only setup I can recommend is the B&W Inverted fifth wheel adapter part # BWGNXA4000 but it will require you to replace your Curt gooseneck with a B and W part # BWGNRK1108.
    view full answer...

  • Firestone Suspension Enhancement Recommendation for a 2000 Ford F-350 with B and W Turnover Hitch
  • I checked with Firestone and they now recommend the Ride Rite kit part # F2550 for the 2000 Ford F-350 4WD. They state that this kit is compatible with fifth wheel and gooseneck rail kits. The brackets install on the inboard side of the truck frame whereas the # BWGNRK1108 you have installed in your truck is mainly on the outside of the truck frame
    view full answer...

  • Adapter Needed to Carry 5th Wheel Hitch with a 2003 Ford F-350 8 foot Bed with a B&W Gooseneck Hitch
  • I do have a solution for you to carry a 5th wheel hitch that fits standard above bed base rails with the B&W Gooseneck Hitch # BWGNRK1108 installed on your 2003 Ford F-350 with an 8 foot bed. I believe that the 5th wheel hitch from B&W that you were referring to was the Patriot, like part # BWRVK3200 or part # BWRVK3255, as opposed to the B&W Companion, like part # BWRVK3500, which was built to install directly into a B&W Gooseneck Hitch. If the B&W hitch that your Dad owns fits into...
    view full answer...

  • B and W Gooseneck Hitch Recommendation for a 2013 Ford F250
  • The only B and W gooseneck hitch I could safely recommend for you 2013 Ford F250 would be the B and W gooseneck hitch part # BWGNRK1111. The # BWGNRK1108 uses a very different bracket design that if modified to fit your vehicle would void the warranty so I can't recommend it for you. When a hitch manufacturer has to release a new style of installation brackets for a hitch it's not because they want to. It costs a lot of money in research, development and testing. I can assure you there...
    view full answer...

  • B and W Gooseneck Hitch and Air Lift Suspension Kit Recommendation for 2001 Ford F-250
  • The 1105R is no longer made but I do have a solution for you. For a B and W hitch you would want the part # BWGNRK1108 which is confirmed as a fit for your 2001 Ford F-250 and then for an Air Lift Kit confirmed to fit this hitch you would want the part # AL57393.
    view full answer...

  • B&W Turnover Ball Gooseneck Hitch for 2007 Ford F350 Long Bed
  • B&W does indeed have a gooseneck hitch application for your truck, part # BWGNRK1108. If you're also interested in fifth wheel towing, you can get the B&W Companion, part # BWRVK3500-5W which would easily install into the Turnover Ball, providing a fifth wheel hitch. If you don't already have a 7-way trailer connector installed in the truck bed, you can do so using part # 54701-003. If you click the provided links, you can see installation videos for the Turnover Ball gooseneck hitch...
    view full answer...

  • Will BandW Companion 5th Wheel Hitch Fit BandW Gooseneck Hitch in 2015 Ford F-350
  • If you are referring to a 5th wheel hitch, the BandW Custom Underbed Installation Kit for B&W Companion 5th Wheel Trailer Hitches that you referenced, part # BWGNRK1012-5W, will allow a BandW Companion 5th wheel hitch to be installed. Please note that this particular install kit is not a fit for either of your trucks. If you are asking about a goose neck hitch being moved from one truck to the other, then the answer is no. The correct BandW goose neck for your 2002 F-250 (with 8-foot...
    view full answer...

  • Compatibility of B&W Turnoverball Gooseneck Trailer Hitch with Firestone Ride-Rite Air Springs
  • The B&W Turnoverball Underbed Gooseneck Trailer Hitch # BWGNRK1108 uses frame brackets that install on the outside of the frame of your 2006 F-250 and the Firestone Ride-Rite Air Helper Springs # F2400 install on the inside of the frame. Therefore you will be able to install both the springs and gooseneck hitch together. I've attached installation videos of both they may be helpful for you. You also may be interested in the Firestone Air Command I Compressor System # F2097 so you...
    view full answer...

  • Will Draw-Tite Hi-Rise Hitch 9480 Fit a Square Hole Gooseneck Hitch in a 2006 Ford F-350
  • You mentioned that the gooseneck hitch in your 2006 Ford F-350 has a square hole. If this is the case then it isn't a Draw-Tite Hide-A-Goose because those have round holes. Hitch # 9460-48 is the Hide-A-Goose that fits your truck and you can see it has a round hole. The B&W hitch for your truck, # BWGNRK1108, has a square hole. If this is the hitch you have then the Hi-Rise 5th wheel hitch # 9480 will fit. If you cannot verify the brand of the gooseneck hitch then the safe option...
    view full answer...

  • Recommended Fifth Wheel Hitch For 2003 Ford F-250 With Turnoverball Installed
  • If you have the B&W Turnoverball Underbed Gooseneck Trailer Hitch, part # BWGNRK1108 installed on your 2003 F-250, we have just the fifth wheel hitch you need. I recommend the B&W Companion 5th Wheel Trailer Hitch, part # BWRVK3500-5W. This is a 20,000 lb hitch and has a height adjustment between 16-1/4 and 18-1/4 inches. I was unable to find the part number RSB3006 you referenced but part # BWRVC3006 is a replacement head for the B&W Companion fifth wheel hitch and will not work...
    view full answer...

  • Suspension Enhancement Recommendation for a 2006 Ford F-250 with B and W Gooseneck
  • Yes, the Air Lift LoadLifter 5000 Air Helper Springs # AL57291 that you referenced has been confirmed as a fit for your 2006 Ford F-250 with a B and W gooseneck hitch 1105 or 1199R hitch installed in it so it should work very well for you as long as you have one of those hitches. Currently B and W is using the 1108 hitch, part # BWGNRK1108 so if this is the hitch you have it has not been tested. For a suspension system that will work regardless the Timbren part # TFR350SDF would...
    view full answer...

  • Will the Firestone Airbags F2400 Work with the B&W Gooseneck BWGNRK1108 on a 2006 Ford F-350
  • The only 5th wheel hitch that is compatible with the B&W Turnoverball Underbed Gooseneck Trailer Hitch w/ Custom Installation Kit part # BWGNRK1108 is the B&W Companion 5th Wheel Trailer Hitch part # BWRVK3500-5W. The Andersen Ultimate Connection 5th Wheel Trailer Hitch System with Adapter part # AM3200 will not work with the B&W Turnoverball Underbed Gooseneck Trailer Hitch. For a set of airbags compatible with the B&W Turnoverball Underbed Gooseneck Trailer Hitch on your 2006 Ford...
    view full answer...

  • Plug Or Cover For 4 Inch Hole In The Bed Of My 2010 Ford Super Duty Truck
  • We don't have a puck cover like # RP30136 that has a 4 inch internal dimension. Most underbed gooseneck systems required a 4 inch hole cut for the unit, but that included the outside ring of the system and sometimes trim as well as the hole for the ball. It sounds like there was an underbed gooseneck system installed. For instance, the 2010 Ford F-250 and F-350 Super Duty B&W Turnoverball Underbed Gooseneck Trailer Hitch w/ Custom Installation Kit - 30,000 lbs, # BWGNRK1108, required...
    view full answer...

  • Best Gooseneck Trailer Hitch Options for a 2004 Ford F-350
  • We have several gooseneck trailer hitch options that will fit your 2004 Ford F-350. You can use Draw-Tite hitch # 9460-48, B&W hitch # BWGNRK1108, Curt hitch # C640-644 or # C612-647. No drilling in the frame required for any of those. The B&W hitch is the most popular and it is made in the USA! I have included links to some videos showing example installations for you.
    view full answer...

  • Can a 2009 Ford F-350 4X4 Dually Pull a Three Car Hauler
  • Your F350 Dually should be able to pull a 3 car hauler with no problem, but as a first step, you'd want to find the max towing capcity of the truck. You can do this by finding the GCWR (gross combined weight rating) on the sticker located on the driver's side door jamb. This figure represents the maximum combined weight of the vehicle and trailer. If you subtract the fully loaded weight of the vehicle from the GCWR, the difference is the maximum trailer weight you can tow. You can use a...
    view full answer...

  • Weight Rating Compatibility Of B&W Gooseneck Hitch With 1999 Ford F-350 Super Duty
  • The 30,000 lb Gross Towing Weight of the B&W Turnoverball Underbed Gooseneck Trailer Hitch w/ Custom Installation Kit - 30,000 lbs, # BWGNRK1108, as well as other gooseneck hitches is rated for the hitch itself and is normally rated higher than your truck's towing capacity. That weight is rated on what weight the hitch itself can tow at maximum capacity without issue. I've linked an installation video of this hitch on a F-250 which will be very similar. I looked up the owner's manual...
    view full answer...

  • Correct Location Of The Ball B&W Turnover Ball Underbed Gooseneck Trailer Hitch On a 2000 F-250/350
  • Yes. You will measure from the tail gate end of your truck bed floor by hooking a tape measure over the end of the truck box and mark the floor at 47-inches. This will provide you the exact location for your ball. See step 1 on the installation directions attached. The B&W gooseneck # BWGNRK1108 is a confirmed fit for your 2000 Ford F250 and/or F350. I have included an FAQ and installation video for you too.
    view full answer...


Do you have a question about this Gooseneck?





  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality gooseneck for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate gooseneck information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Test Fit:
Joe V
Expert Research:
Jackie C
Expert Research:
Michael L
Video Edited:
Zack K
Written by:
Lindsey S
Expert Research:
Michael H
Expert Research:
Jameson C
Video Edited:
Joshua S
Expert Research:
Adam R
Test Fit:
Shane T
Expert Research:
Jeffrey L
Video by:
Alan C
Video by:
Sue W
Video Edited:
Chris R
Test Fit:
Joe B

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.




^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
71

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
