Price: $362.00

B&W Extend-A-Goose Gooseneck Coupler - 2-5/16" Ball - 10" Offset - 24,000 lbs

Item # BWTEXA4200

lowest price pledge

Retail:$376.00

Our Price: $362.00

This item qualifies for Free Shipping

Select Ground or 3 Day Shipping for delivery before Christmas

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
b and w gooseneck trailer coupler 2-5/16 inch ball bwtexa4200
b and w gooseneck trailer coupler with inner tube only b&w extend-a-goose - 2-5/16 inch ball 10 offset 24 000 lbs
b and w gooseneck trailer coupler with inner tube only 2-5/16 inch ball bwtexa4200
b and w gooseneck trailer coupler with inner tube only b&w extend-a-goose - 2-5/16 inch ball 10 offset 24 000 lbs
b and w gooseneck trailer coupler 2-5/16 inch ball bwtexa4200
b and w gooseneck trailer coupler  bwtexa4200
b and w gooseneck trailer coupler with inner tube only

Customer Photos

b and w gooseneck trailer coupler with inner tube only 2-5/16 inch ball bwtexa4200
b and w gooseneck trailer coupler with inner tube only 2-5/16 inch ball b&w extend-a-goose - 10 offset 24 000 lbs
b and w gooseneck trailer coupler 2-5/16 inch ball bwtexa4200

Videos


  • Coupler with Inner Tube Only
  • B and W
  • 24000 lbs GTW
  • 2-5/16 Inch Gooseneck Ball
Attach this inner tube to your gooseneck trailer to get a heavy-duty coupler that provides an extra 10" of clearance between your truck cab and trailer. Fits standard 4" diameter outer tubes. Easy-to-grip, spring-loaded handle eases hookup. Call 800-298-8924 to order B and W gooseneck trailer coupler part number BWTEXA4200 or order online at etrailer.com. Free expert support on all B and W products. Guaranteed Lowest Price and Fastest Shipping for B&W Extend-A-Goose Gooseneck Coupler - 2-5/16" Ball - 10" Offset - 24,000 lbs. Gooseneck Trailer Coupler reviews from real customers.



B and W Gooseneck Trailer Coupler - BWTEXA4200

Attach this inner tube to your gooseneck trailer to get a heavy-duty coupler that provides an extra 10" of clearance between your truck cab and trailer. Fits standard 4" diameter outer tubes. Easy-to-grip, spring-loaded handle eases hookup.


Features:

  • Sturdy inner tube pairs with existing outer tube to create a gooseneck coupler for hooking your trailer up to your truck
    • Offset adjustment holes accommodate outer tubes with pins in different positions
  • Offset design offers extra clearance between truck cab and trailer
    • Make tight turns, even with your short bed truck
  • Heavy wall tubing and internal gussets ensure strength
  • Easy-to-grip, spring-loaded handle eases hookup
  • Lockable with padlock (sold separately)
  • Powder coated steel resists corrosion
  • Made in the USA


Specs:

  • Ball size: 2-5/16"
  • Offset: 10"
  • Tube outer diameter: 4"
  • Range of vertical adjustment (when used with outer tube): 8"
  • Weight capacity: 24,000 lbs
  • Vertical load limit: 6,000 lbs
  • Limited lifetime warranty


B&W Extend-A-Goose Gooseneck Coupler with 10" Offset

With the Extend-A-Goose from B&W you can finally get the clearance you need to tow your gooseneck trailer with your short bed truck. This sturdy steel coupler provides 10" of offset so that you can complete turns even with relatively tight tolerances between your trailer and truck cab.


B&W Extend-A-Goose Gooseneck Coupler with Padlock

The easy-to-grip, spring-loaded handle not only makes it simple to properly latch the coupler around the ball, but it also allows you to lock down the coupler for security. Just use a standard padlock (sold separately) to secure the handle in the latched position, and no one will be able to uncouple your trailer from the hitch ball.



TEXA4200 B and W Extend-A-Goose 10" Extended Gooseneck Trailer Coupler



BWTEXA4200 Installation InstructionsInstallation Details BWTEXA4200 Installation instructions



Premium - This item

B&W Extend-A-Goose Gooseneck Coupler - 2-5/16" Ball - 10" Offset - 24,000 lbs


B&W Extend-A-Goose Gooseneck Coupler - 2-5/16" Ball - 10" Offset - 24,000 lbs
B and W Gooseneck Trailer Coupler

11 reviews

Code: BWTEXA4200

In Stock

Retail:$376.00

Our Price: $362.00


  • Gooseneck Trailer Coupler
  • Coupler with Inner Tube Only
  • 24000 lbs GTW
  • 2-5/16 Inch Gooseneck Ball
  • B and W


Attach this inner tube to your gooseneck trailer to get a heavy-duty coupler that provides an extra 10" of clearance between your truck cab and trailer. Fits standard 4" diameter outer tubes. Easy-to-grip, spring-loaded handle eases hookup.

more information →
Compare Similar Products
Economy
Price: $90.95
$271.05 Less

Bulldog BX1 Gooseneck Coupler Inner Tube - Round - 2-5/16" Ball - 30,000 lbs


Bulldog BX1 Gooseneck Coupler Inner Tube - Round - 2-5/16" Ball - 30,000 lbs
Bulldog Gooseneck Trailer Coupler

96 reviews

Code: BD1289050300

In Stock

Retail:$133.84

Our Price: $90.95


  • 30000 lbs GTW
  • Bulldog


Short base assembly is made of durable steel. Large bottom locking plate makes hookup fast and easy. Ball pocket provides tight fit with less rattle. Pair with existing outer tube for a secure, easy-to-use gooseneck coupler.

more information →
Value
Price: $145.27
$216.73 Less

Bulldog Gooseneck Coupler - Adjustable - Round - 2-5/16" Ball - 30,000 lbs


Bulldog Gooseneck Coupler - Adjustable - Round - 2-5/16" Ball - 30,000 lbs
Bulldog Gooseneck Trailer Coupler

21 reviews

Code: BD0289500300

In Stock

Retail:$184.61

Our Price: $145.27


  • Coupler with Outer and Inner Tube
  • 30000 lbs GTW
  • Bulldog


With superior steel construction, an adjustable-height design, fast and easy hookup and disconnect ability, and a tight fit around the ball for ultimate security, this gooseneck coupler is perfect for your heavy-duty towing needs.

more information →
Premium
Price: $270.36
$91.64 Less

Convert-A-Ball Multi-Cushioned Gooseneck Trailer Coupler - Round - 30,000 lbs


Convert-A-Ball Multi-Cushioned Gooseneck Trailer Coupler - Round - 30,000 lbs
Convert-A-Ball Gooseneck Trailer Coupler

13 reviews

Code: CG

In Stock

Retail:$292.12

Our Price: $270.36


  • 30000 lbs GTW
  • Convert-A-Ball


Rubberneck hitch is a coupler designed for gooseneck trailers. Fully cushioned up and down, forward and back, and 360 degrees all ways. The rubberneck will take the shake, rattle and roll out of gooseneck towing.

more information →

Related Products



Customers compare BWTEXA4200 to these similar products





Customers Who Purchased This Gooseneck Trailer Coupler Also Bought...

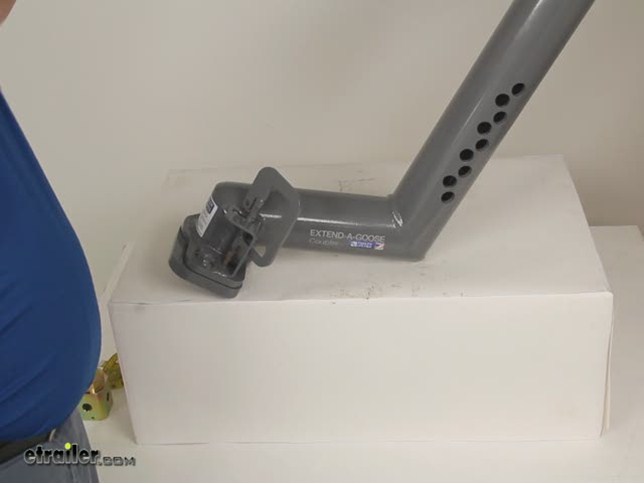

Video of B&W Extend-A-Goose Gooseneck Coupler - 2-5/16" Ball - 10" Offset - 24,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for B and W Trailer Coupler BWTEXA4200 Review

Today we're going to review part number BWTEXA4200. This is B&W Extend A Goose Gooseneck Coupler with a 10 inch offset and a 24,000 pound weight capacity. This is a sturdy inner tube which is designed to pair with your existing outer tube on your gooseneck trailer to help create a coupler for hooking your trailer up to your truck. As you can see, the 10 inch offset design will give you that extra clearance between your truck cab and your trailer and it will allow you to make tight turns even with a short bed drop 00:00:33. This is designed with a heavy wall, designed tubing and has internal gussets on the inside which will ensure strength. Has this easy to grip spring loaded handle which will ease hook up to the ball and also it is lockable. If you'll notice when I unlock it, you'll see this little hole in the handle right here and then when you go to lock it, that hole drops below here. You can actually put a padlock through here if you like, to give you extra security. Now the padlocks we do sell separately if you do want one.

So it can be locked so nobody can unlock it to try to steal something. The finish on this has a powdered coat finish which will help resist corrosion. The part is made in the USA. It is designed to fit onto a standard 2 and 5/16 diameter gooseneck ball. Some more for this one right here I have demonstration purposes. The offset measures from the center of this tube to where the center of the ball would be. So if we put a ruler on that, that's going to give you the 10 inch measurement, the 10 inch offset.

Now, the outer diameter on this tube is 4 inches. This is designed to slide up into the outer tube on your trailer already. If you'll notice, it has a range of a vertical height adjustment here of all these holes and the range from the center of the bottom hole to the center of the top hole is going to be right at 8 inches and each one of those holes is at 1 inch increments, so you can get fine too in your adjustment for the height you would need. The weight capacity on this is 24,000 pounds. A vertical low limit or tin weight capacity is 6,000 pounds and it does come with a limited 1 year warranty. Now, what I'm going to do is just to give you an idea, we're going to swing this, let me open it up.

Now it's in the open position. Here is the gooseneck ball. Basically . and again, this plate has a funnel designed to it so if the ball gets close enough, it will funnel it towards the opening .. to put into place.

Once it's locked into place, as you can see right there, then you'll just do your spring loaded handle. Spring load handle, you just push it off the little edge right here and it will lock into place, you can put a padlock through here if you like and as you can see, the ball is locked into place. What I'm going to try to give you another idea is we're going to lay this down just to show you how there's the ball, the pin from this handle goes right through this plate, locks it, so you can't release it and then when you go to release it, if you just pull up on it, move that handle over to lock into place, it will pull right out. Goes right in, lock it. Just like that and then release it, pulls right out. Very simple installation. That should do it for the review on part number BWTEXA4200, the B&W Extend A Goose Gooseneck Coupler. .


Customer Reviews

B&W Extend-A-Goose Gooseneck Coupler - 2-5/16" Ball - 10" Offset - 24,000 lbs - BWTEXA4200

Average Customer Rating:  4.9 out of 5 stars   (11 Customer Reviews)

Attach this inner tube to your gooseneck trailer to get a heavy-duty coupler that provides an extra 10" of clearance between your truck cab and trailer. Fits standard 4" diameter outer tubes. Easy-to-grip, spring-loaded handle eases hookup.

- BWTEXA4200

by: Mark S.02/24/2017


I live in the Flint Hills of Northeast Kansas and we started using a Bar Six Cake feeder on our pickup to take care of cattle on winter pasture. I couldn't pull my trailer without crunching the cake box. I saw an extend-a-goose on another truck with a similar set-up and I thought this might be the answer. I charted out my problem on paper and figured out the trigonometry that I could increase my turning radius by 18 degrees with the 10" drop in the hitch. I went ahead and ordered the item and installed it the day it came, which incidentally is always very quick with E-Trailer products. It worked like a charm. We still have to be careful with the trailer, but the extender helps me do my job more efficiently. 345502



- BWTEXA4200

by: John W.08/30/2017


The coupler is good quality and easy to install. It applies the down force from the trailer at the design point, so there is no compromise in trailer handling qualities for the truck. My truck is a 2016 Ford F-150 crew cab with a short bed, which has limited clearance for the gooseneck. My trailer is a two horse Sundowner gooseneck, which has a V-nose. With the extender, I can make the tightest possible turn moving forward with good clearance between the cab and trailer. Backing up, there is plenty of clearance provided that I do not jackknife the trailer. I estimated that contact would occur with an 82 degree angle between the trailer and truck. That means there is clearance for any maneuver you want to actually make, but of course if you jackknife the trailer too much it would be possible to damage the truck. This is an excellent solution for a v-nose trailer with the F150 crew cab. I would not recommend it for a flat nose trailer. I formerly had a standard bed F150 that I pulled this trailer with. There is no noticeable difference in pulling with the short bed and extended coupler as compared with the 2011 standard bed. The 2016 has more capacity thanks to the lower weight of the aluminum body and the higher torque of the 3.5L turbo charged V6. 426740



- BWTEXA4200

by: George A03/06/2017


Good workmanship Fits well Used with B&W 4 in offset 2 5/16 ball in combo to get clearance between trailer corner and shortbed cab rear window on 2011 F350 pickup. Have a gooseneck 3 horse trailer with straight front that I used to pull with a F350 long bed pickup. Shortbed lacked clearance and this product took care of problem. 349365



- BWTEXA4200

by: Charlie F10/29/2016


Excellent product. Mounted on a Sundowner. We pull it with a 2008 Dodge Ram 3/4 with shorter bed. Before we use the extend, my wife popped the cab turning in a circle. Fortunately it was minor damage. With the extend, it can't happen. Again, excellent product. 311950


Comments

It’s an awesome piece. Well made and perfect for our Sundowner and Dodge truck. Thank you for producing it.

Charlie F - 11/01/2017

30277

- BWTEXA4200

by: Matt11/06/2017


made Incredible difference in turning radius. It solved the problem of tight turns and the trailer hitting my truck cab. A must have for short bed pickups. Better built than the factory insert. 449391



- BWTEXA4200

by: Larry06/22/2016


Great product. No problems with it. It definitely helps with shortbeds and gaining extra clearance. Sold the trailer and kept the coupler. 263579



- BWTEXA4200

by: vicki w05/11/2017


My customer was pleased to get the item he wanted. I was pleased that it only took a few days to receive after ordering. 379131



- BWTEXA4200

by: Todd R01/12/2017


Product shipped quickly and arrived well packaged. Product fit as described and solved my shortbed Gooseneck problem. 332022



- BWTEXA4200

by: Daris07/08/2017


Solved our problem of pulling a gooseneck trailer with an extended cab Dodge 2500. 402948



- BWTEXA4200

by: Curt11/18/2016


Product quality is excellent, service was GREAT!! 317882



- BWTEXA4200

by: Stan B05/05/2014


Came and did just as stated, Very nice product 128912


13
13

Ask the Experts about this B and W Gooseneck Trailer Coupler
Do you have a question about this Gooseneck Trailer Coupler?


  • Can the B and W 4 Inch Offset Ball be Used with the Extend-A-Goose Coupler
  • First, the B and W Extend-A-Goose Gooseneck Coupler # BWTEXA4200 is designed to fit in place of a 4 inch outer diameter inner tube on a gooseneck coupler. Other than that there are no restrictions on the brand it will fit. I have linked a video review for you. I spoke with my contact at B and W and was told that the Extend a Goose and the 4 inch offset ball # BWGNXA4085 can be used together. However, the pivot point of the trailer will still only be 4 inches back from its original position...
    view full answer...

  • Will Extend-A-Goose Coupler Allow 90 Degree Turns With Square Nose Trailer
  • When you install the B&W Extend-A-Goose Gooseneck Coupler, part # BWTEXA4200, it will provide an additional 10 inches of clearance from your truck cab for your trailer. You may be able to execute turns with the extender installed but you probably will not be able to execute a 90 degree turn. The BWTEXA4200 is designed to fit in place of a 4 inch outer diameter inner tube on a gooseneck coupler. There are no restrictions on the brand it will fit. I have attached a link to a product...
    view full answer...

  • Increasing Clearance While Towing Gooseneck or Fifth Wheel Trailer with 2014 GMC Sierra Short Bed
  • Since you have a short bed truck, you may want to use the B&W Companion Slider hitch # BWRVK3400. This fifth-wheel trailer hitch, which also adapts your Turnoverball gooseneck hitch, incorporates a slider that gives you an extra 12" of fore/aft movement to ensure proper cab clearance when executing turns. I have included a view review of this fifth wheel hitch for you to check out. If you are pulling a gooseneck trailer you will need something like the B&W Extend-A-Goose Gooseneck...
    view full answer...

  • Turning Clearance for Gooseneck Trailer
  • You can refer to the linked diagram for general guidelines about minimum clearances required when towing. If you have 8 or 9-inches of vertical clearance between the bed rails and the trailer you should be fine since 6-inches is considered adequate in most cases. As for clearance at the back of the cab, if your trailer has only the standard gooseneck tube structure in the front (and no enclosed trailer structure near it) cab-to-trailer turning clearance should not be an issue. If the trailer...
    view full answer...

  • Pin Recommendation for the Extend-A-Goose Gooseneck Coupler # BWTEXA4200
  • According to B&W, the Extend-A-Goose Gooseneck Coupler # BWTEXA4200 adjustment holes are 7/8 inch in diameter. I'd recommend using the Draw-Tite # 58388 as a through pin. The pin is 6 inches long by 3/4 inches in diameter. A pin is not included with the coupler.
    view full answer...

  • Availabliltiy of a 8 Inch Offset Gooseneck Hitch
  • I can help you find a gooseneck (hitch) OPTION with an offset for your 2012 Chevrolet Silverado. For your 8 inch offset need, I would recommend the B&W Extend-a-Goose Coupler # BWTEXA4200 in conjunction with the Curt Spider 5th Wheel to Gooseneck Adapter # 16085. This will give you 10 inches of clearance between your truck cab and trailer. According to my contact the B&W and Curt Spider are compatible because the Spider has a standard 2-5/16 inch ball that the coupler requires. Unfortunately,...
    view full answer...

  • Purpose Of Offset Holes On B And W Extend-A-Goose Gooseneck Coupler
  • I called my contact at B&W about the Extend-A-Goose Gooseneck Coupler, part # BWTEXA4200. They told me that the offset holes are so that the adapter can accommodate couplers that have the pin in different locations, and will not affect the towing of your trailer. I have attached a link to a product review video you can check out.
    view full answer...

  • Will Reese Gooseneck Hitch Ball with 5 Inch Offset Fit Curt Gooseneck Hitch
  • We have some options for you to have an offset for your gooseneck, but the Reese Gooseneck Hitch Ball with 5 Inch Offset # 19308 will not work with the Curt gooseneck hitch in your 2015 GMC Sierra 3500. The # 19308 is designed to work with Reese Hide-A-Goose gooseneck hitch heads. The only Curt offset gooseneck hitch ball we offer is the Curt 4 Inch Offset Ball for Double-Lock Gooseneck Hitch # C602. This hitch ball is designed for use with Curt's Double-Lock gooseneck hitches. If...
    view full answer...

  • Is there an Offset Gooseneck Ball for Factory Gooseneck Hitch in a 2015 Ford Truck
  • Reese, who makes the factory gooseneck hitch for the 2015 Ford trucks, does not have an offset gooseneck ball that fits that particular mount. but another possible option is an offset gooseneck coupler such as # BWTEXA4200. It features a 10 inch offset, which is going to be much more than any ball would have. It fits a 2-5/16 inch ball and has an outer diameter of 4 inches.
    view full answer...

  • Offset Recommendation for 2017 Ram 2500 Short Bed with Factory Gooseneck Trailer Hitch
  • We do have a possible solution for you but there isn't a hitch ball like the Reese # RP30140 that offers an offset to the factory gooseneck hitch in your 2017 Ram 2500 short bed. Instead I recommend using the B&W Extend-A-Goose Coupler # BWTEXA4200 on your gooseneck trailer. It'll give you 10 inches of offset which is way more than you'll get from a hitch ball. It fits on standard 4 inch diameter gooseneck outer tubes.
    view full answer...

  • B&W Gooseneck Trailer Hitch for a 2016 Ford F-350 Short Bed
  • Yes, for your 2016 Ford F-350 with 6-3/4 foot bed I recommend the B&W gooseneck trailer hitch and installation kit # BWGNRK1111. B&W are leaders in the towing industry and this hitch is made in the USA. It is rated for 30,000 pounds gross trailer weight. I have included a link to a video showing an example installation for you. Since you have a short bed truck, you may need a little more clearance when making turns. For that I recommend the offset ball # BWGNXA4085 which will provide...
    view full answer...

  • How Does B&W Extend-A-Goose Gooseneck Coupler # BWTEXA4200 Install on Trailer
  • The B&W Extend-A-Goose Gooseneck Coupler # BWTEXA4200 that you referenced installs on your trailer in place of the standard inner tube. The Extend-A-Goose slides into the goose neck trailer's larger outer tube (4-inch diameter is standard). This is certainly something you can do yourself provided that the coupler's 50-lb weight is not an issue. This coupler can be removed and re-installed as needed. It provides an additional 10-inches of clearance thanks to its angled design. The height...
    view full answer...

  • Can Offset Ball Be Used With Offset Gooseneck Coupler
  • I spoke with my contact at B&W about the 4 inch offset ball part # BWGNXA4085. They told me that they do not offer a 15 inch offset coupler so they could not recommend using the 2 together. They did say the Extend-A-Goose Gooseneck Coupler, part # BWTEXA4200 would work with the offset ball, but I am unable to guarantee your coupler would work with the # BWGNXA4085.
    view full answer...

  • Recommended Underbed Gooseneck Trailer Hitch For 2016 Ram 2500
  • For an under bed gooseneck hitch I recommend the B&W Turnoverball Underbed Gooseneck Trailer Hitch, part # BWGNRK1384. This comes with a custom installation kit. The hitch has spring-loaded safety-chain hookups built in. The hitch ball can be removed and flipped upside down in the hitch for storage when you are not towing. The gooseneck can be used with a Companion fifth wheel hitch if you ever need to tow a fifth wheel. If you need a wiring harness for your trailer I recommend...
    view full answer...

  • Gooseneck Trailer Hitch for a 2007 Dodge Ram 3500 Mega Cab Short Bed
  • In order to tow a gooseneck trailer I recommend using a gooseneck trailer hitch in your 2007 Dodge Ram 3500 Mega Cab short bed. The use of a 5th wheel hitch and then an adapter is not as secure as using a gooseneck hitch directly. The ride quality will be better. If the trailer is the typical gooseneck design with the wedge or V-shape at the front then the short bed will likely not be a problem. But there are ways to get additional clearance if needed. First, you will need a gooseneck...
    view full answer...

  • Can B&W Extend-A-Goose Coupler BWTEXA4200 Be Used with Offset Gooseneck Ball
  • The B&W Extend-A-Goose Gooseneck Coupler # BWTEXA4200 will provide 10-inches of offset for better clearance between the truck and trailer. It sounds like you are using a B&W Offset ball like # BWGNXA4085 which gives you 4-inches of offset. It is okay to use these two items at the same time, for a total of 14-inches of offset. Since this Extend-A-Goose replaces a standard straight tube you will have little change to the trailer's handling, apart from the better clearance it provides.
    view full answer...

  • Length of the Vertical Tube of the B&W Extend-A-Goose Gooseneck Coupler # BWTEXA4200
  • I went out into our warehouse and grabbed a B&W Extend-A-Goose Gooseneck Coupler # BWTEXA4200 to get the dimension you are looking for and found it to be 20 inches from the top of the tube down to the weld where it attaches to the lower pipe. If the outer tube of your trailer is 4 inches in diameter and is longer than 20 inches this would fit and would fit all the way into it.
    view full answer...

  • Will Extend-A-Goose Gooseneck Coupler Work In Recessed Opening In Truck Bed
  • The B&W Extend-A-Goose Gooseneck Coupler, part # BWTEXA4200 you referenced is designed to be able to attach to the inner tube on a gooseneck trailer and provide an additional 10 inches of clearance from your truck cab for your trailer. This adapter will fit a standard 4 inch diameter outer tube on the gooseneck, and has a weight capacity of 24,000 lbs. It is designed to fit a standard 2-5/16 inch ball. I have attached a couple of photos of this adapter and you can see the dimensions....
    view full answer...

  • Gooseneck Trailer Hitch for a 2003 Ford F-150 Short Bed
  • For a gooseneck trailer hitch for your 2003 Ford F-150 short bed I recommend B&W Turnover Ball hitch # BWGNRK1197. This is a very popular hitch and B&W is a leader in the industry and the hitch is made in the USA. I have linked a video review of the hitch and a link to the installation instructions for you to view. With a short bed truck you might have clearance issues when turning. If so then you can get a little more clearance using an offset ball, # BWGNXA4085. It will provide 4 inches...
    view full answer...

  • Gooseneck Trailer Hitch for a 2015 Ram 1500 EcoDiesel with Air Suspension and 5-1/2 Foot Bed
  • There is one gooseneck trailer hitch for the 2015 Ram 1500 with the 5-1/2 foot bed and air suspension package. It is B&W Turnover Ball hitch # BWGNRK1309. I have linked a video review of this hitch for you. Since you have such a short bed you may also need the offset ball # BWGNXA4685 and/or an alternate gooseneck coupler that offers 10 inches of additional clearance, # BWTEXA4200.
    view full answer...

  • Definition of Weight Capacity and Vertical Load Limited for B&W Offset Gooseneck Coupler
  • The weight capacity of 24,000 pounds would be the most the trailer can weigh. So the gross weight capacity of gooseneck coupler # BWTEXA4200 is 24,000 pounds. The vertical load limit is the amount of weight pushing down on the ball. On a regular hitch it's called tongue weight. So as long as the trailer "tongue" weight is under 6,000 pounds it will be within the capacity of this coupler.
    view full answer...

  • Gooseneck Extender Recommendation for Use with Ford F-350
  • What I believe you are looking for is a product like the B&W Extend-A-Goose Gooseneck Coupler # BWTEXA4200. This will fit nearly all gooseneck hitch balls so it should work well for you in that regard as well as it will fit the standard 4 inch diameter outer tubes. This will provide you with 10 additional inches between the cab and trailer for better turning clearance.
    view full answer...

  • Recommended Offset Coupler For Trailer Gooseneck Coupler
  • It sounds like you need an offset coupler for your gooseneck. I recommend the B and W Trailer Coupler, part # BWTEXA4200. This replaces the inner tube on your gooseneck coupler and provides an extra 10 inches of clearance between the truck cab and the trailer. This is designed to fit standard 4 inch diameter outer tubes and it has a vertical adjustment range of 8 inches. We also offer an offset hitch ball for gooseneck hitches. This is part # 19308. This offset ball measures 5 inches...
    view full answer...

  • Gooseneck Trailer Hitch for a 2009 Chevy Silverado 1500 with 5-1/2 Foot Bed
  • First, for a gooseneck trailer you will need a gooseneck hitch in your 2009 Chevy Silverado 1500 with 5-1/2 foot bed. I recommend the Draw-Tite Hide-A-Goose, # 9465-54. Then, to get more clearance, you could replace the coupler on the trailer with one that has an offset. Coupler # BWTEXA4200 has a 10 inch offset and is going to be the best chance for being able to make tight turns.
    view full answer...

  • Pin to Secure B&W # BWTEXA4200 Extend-A-Goose Coupler
  • According to B&W, the Extend-A-Goose Gooseneck Coupler adjustment holes are 7/8 inch in diameter. I'd recommend using the Draw-Tite # 58388 as a through pin. The pin is 6 inches long by 3/4 inches in diameter.
    view full answer...

  • Gooseneck Clearance Equation and Offset Ball Options for 2017 Ford F-350 Short Bed
  • For your 2017 F-350 short bed, the clearance calculation is the measurement from the cab to ball center minus 1/2 the trailer width. This will give you the minimum clearance. If that number is positive the trailer will not interfere with the cab of the truck, but if it is negative then it will interfere and you need to be extremely cautious. We do have offset hitch balls that are hitch specific to gain more clearance and we also have the B&W Extend-A-Goose Gooseneck Coupler - 2-5/16"...
    view full answer...

  • Availability of 30k Rated Gooseneck Couplers
  • The only offset gooseneck coupler we offer is the B&W Extend-A-Goose Gooseneck Coupler # BWTEXA4200 that has a 24k capacity. The only couplers we offer with a 30k capacity would be one like the Bulldog Coupler part # BD0289500300.
    view full answer...

  • Recommended 5th Wheel Rail Kit and Hitch for 2017 F-150 & Highland Ridge Open Range Light 5th Wheel
  • The 2018 Highland Ridge Open Range Light lf318rls has a gross vehicle weight rating (GVWR) of 9,995 lbs and an unloaded weight of 7,895 lbs. According to Ford, your 2017 F-150 Ecoboost 3.5L Supercrew 4x4 has a towing capacity of 10,200 lbs. So, you won't have any problem towing this 5th wheel trailer. For your 2017 F-150, I recommend the Reese Quick-Install Custom Base Rails and Installation Kit for 5th Wheel Trailer Hitches # RP50087-58 which is a custom fit for your vehicle. Then...
    view full answer...

  • Max Distance Behind Gooseneck Ball for Trailer Turning Clearance
  • For your 1993 Dodge Cab and Chassis with 10 foot bed, the distance from the hitch ball to the back of the bed needed would depend on your trailer as they are all slightly different. You would need to measure from the center of the ball to the farthest rear edges of your truck bed and then measure from the center of your gooseneck coupler that same distance to see if there is an impact point. If you need to gain a little space, we have the B&W Extend-A-Goose Gooseneck Coupler - 2-5/16"...
    view full answer...


Do you have a question about this Gooseneck Trailer Coupler?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality gooseneck trailer coupler for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate gooseneck trailer coupler information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Expert Research:
Michael L
Written by:
Lindsey S
Expert Research:
Michael H
Expert Research:
Jameson C
Expert Research:
Adam R
Photos by:
Jim W
Updated by:
Sarah W
Updated by:
Hannah L

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.




^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
71

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
