The chrome-plated ball on this gooseneck hitch locks in place with 2 pins for extra security. When you're done towing, flip the ball over and store it inside the hitch, freeing up your truck bed. Innovative center locator eases installation.
Features:
Specs:

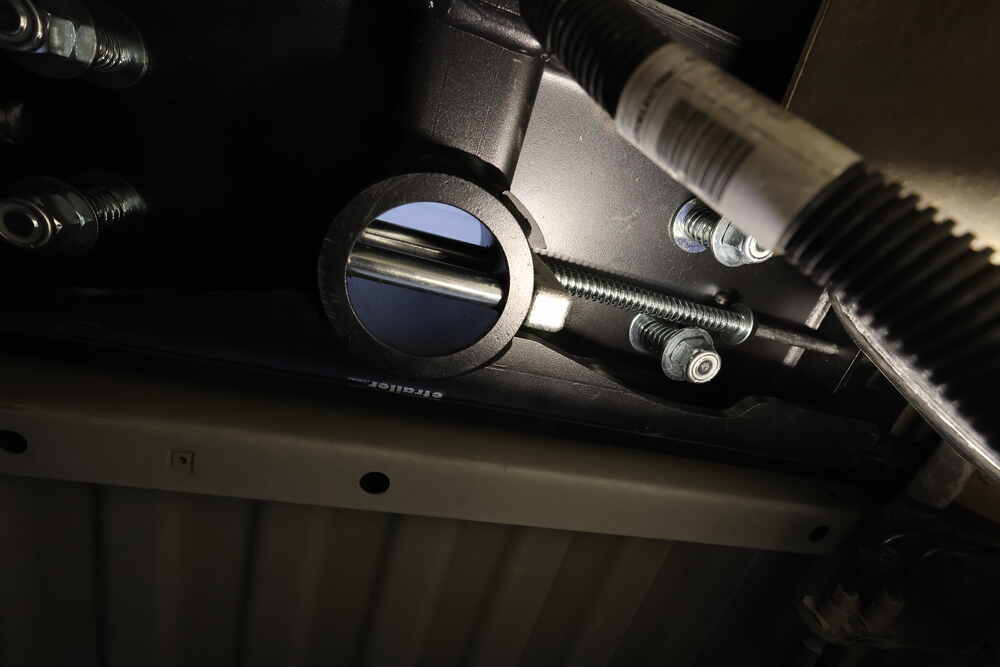

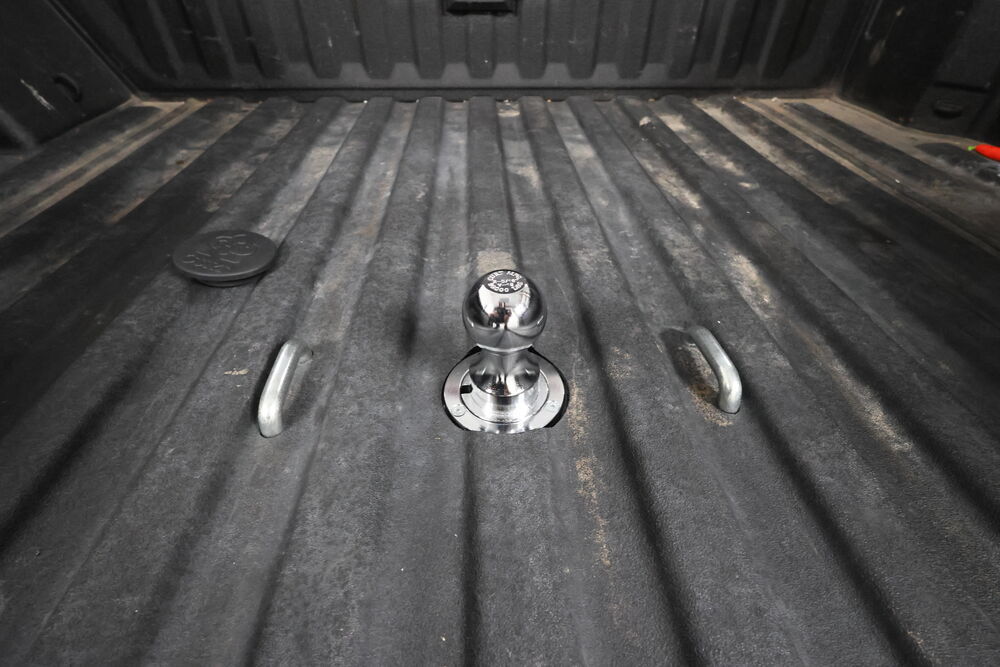

The Curt EZr Double Lock underbed gooseneck trailer hitch provides a sturdy, secure connection for towing your gooseneck trailer and also allows for a clean, unobtrusive look for your truck bed when you aren't towing. To tow, simply pull the included handle out to unlock the hitch. Then insert the chrome-plated hitch ball into the ball hole. You may need to rotate the ball to line it up with the dual locking pins. When the ball drops into place, rotate the handle counterclockwise until the locking pins snap into position. Because there are 2 locking pins instead of 1, you get extra security for your towing setup.

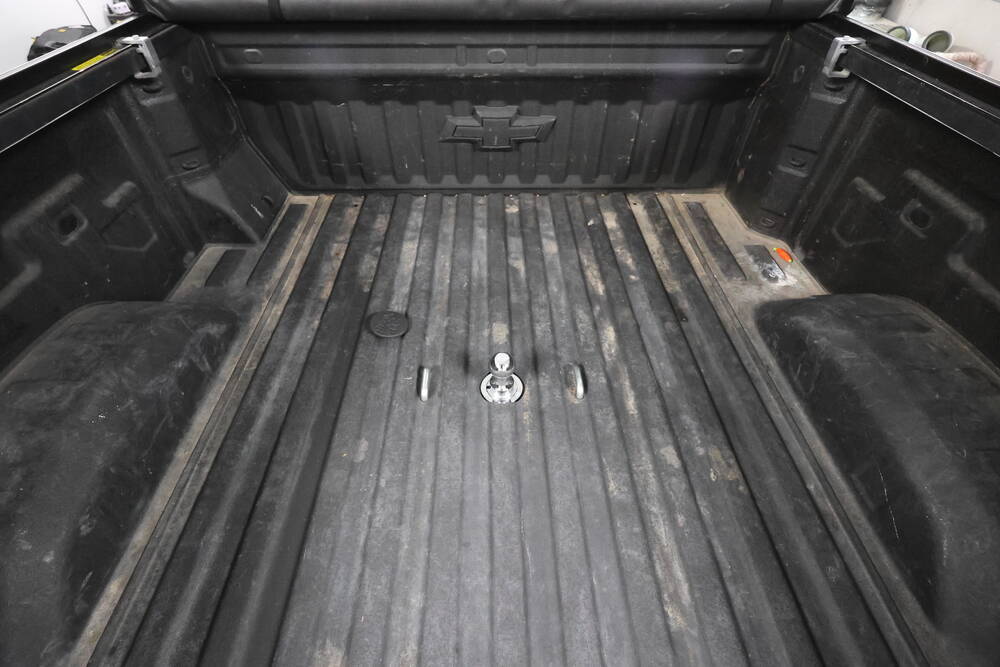

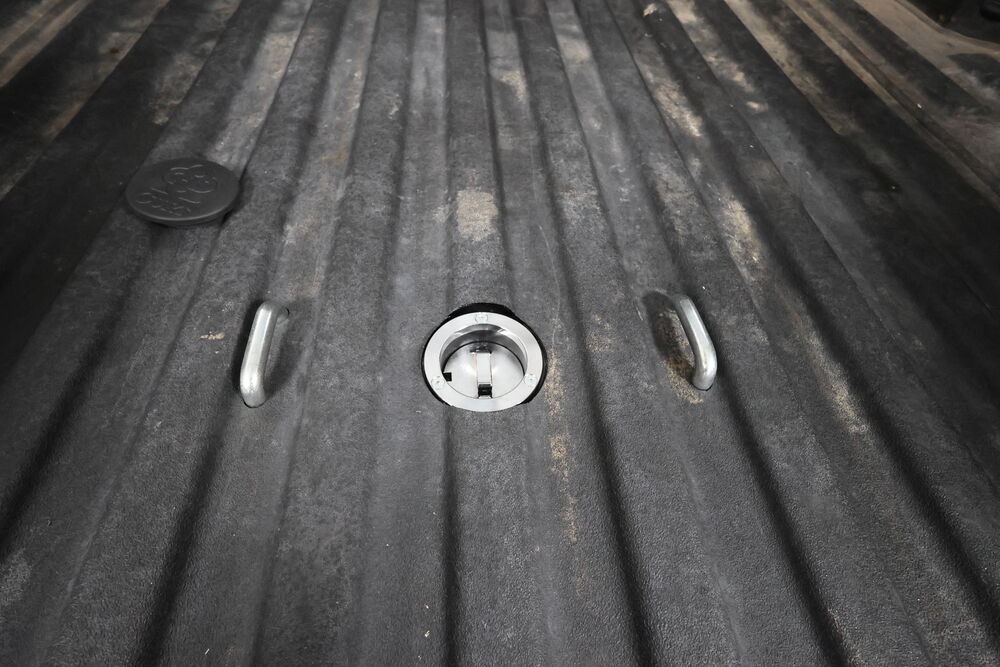

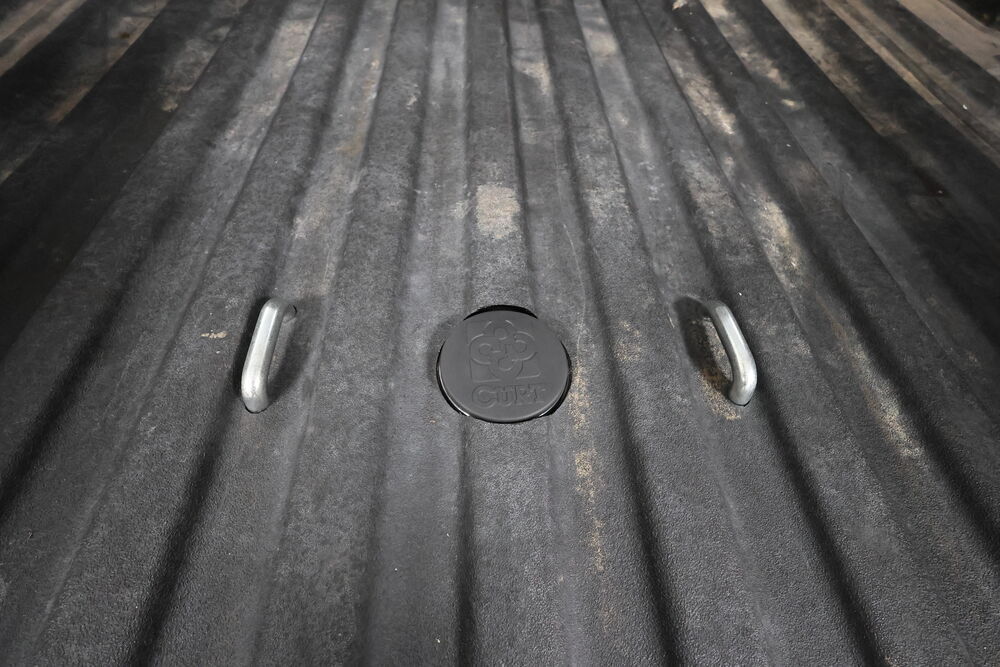

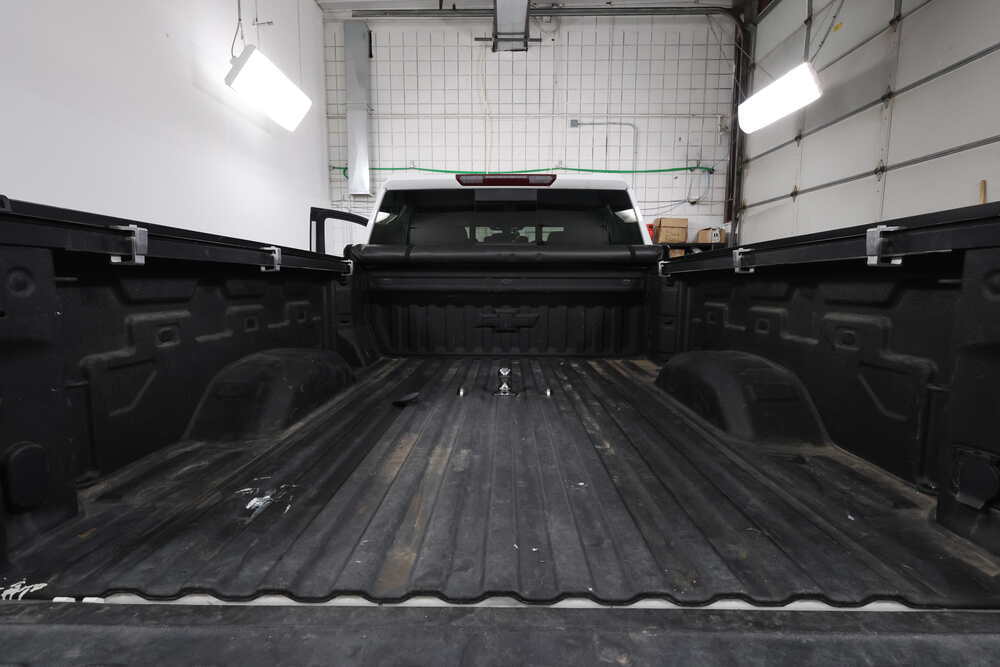

Get full bed access when you're not towing. Just remove the ball, flip it upside down, drop it back into the ball hole of the hitch, and use the handle to lock the ball in place. A rubber cover is included with the EZr Double Lock. When the ball is stowed upside down in the hitch, place this cover over the ball hole to keep out dirt and grime and create a clean look for your vehicle.

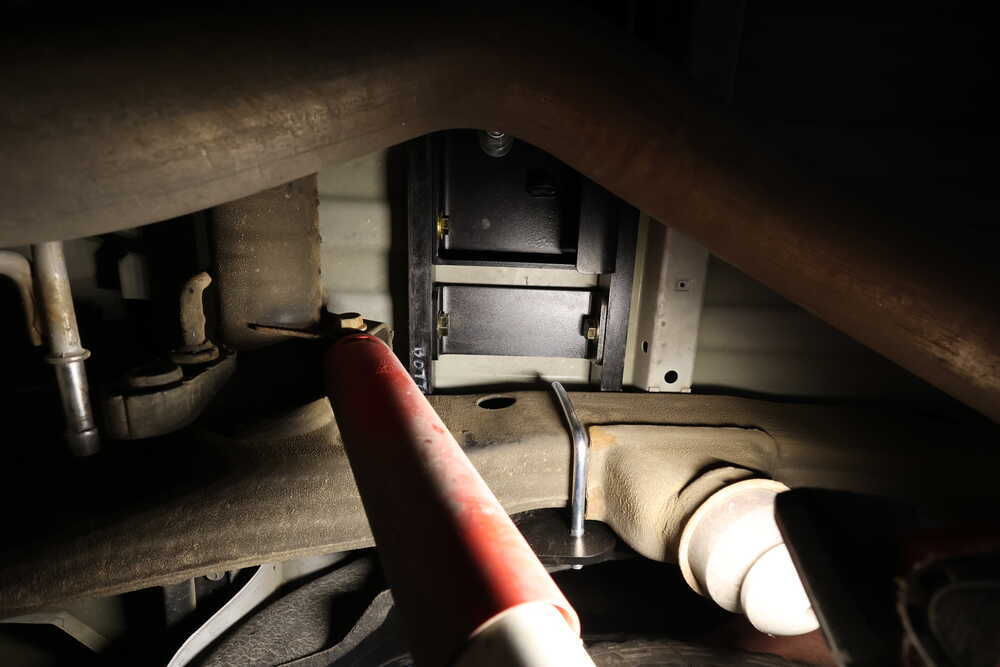

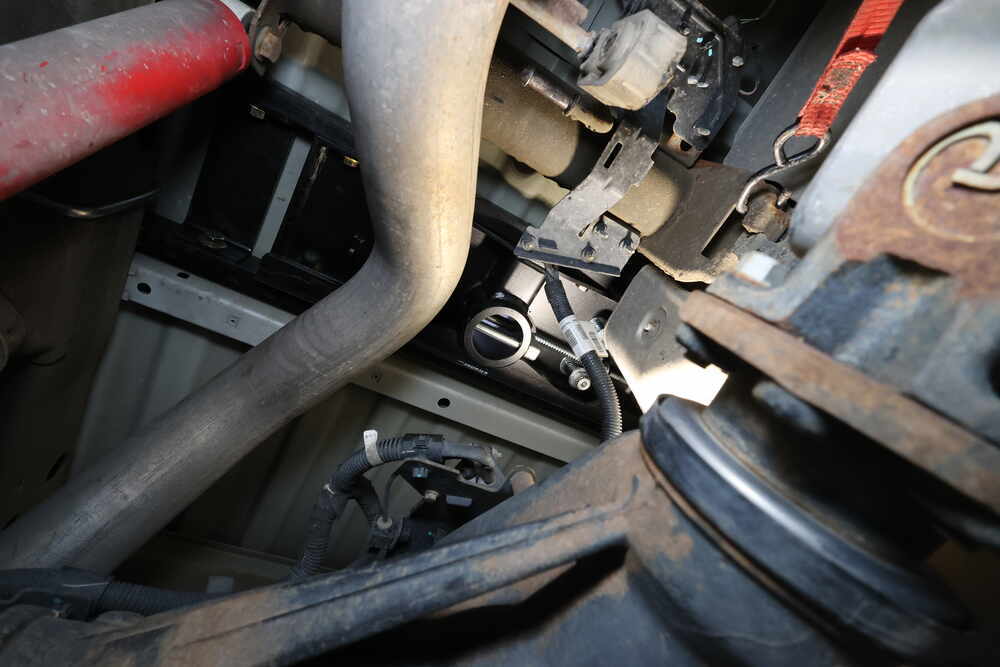

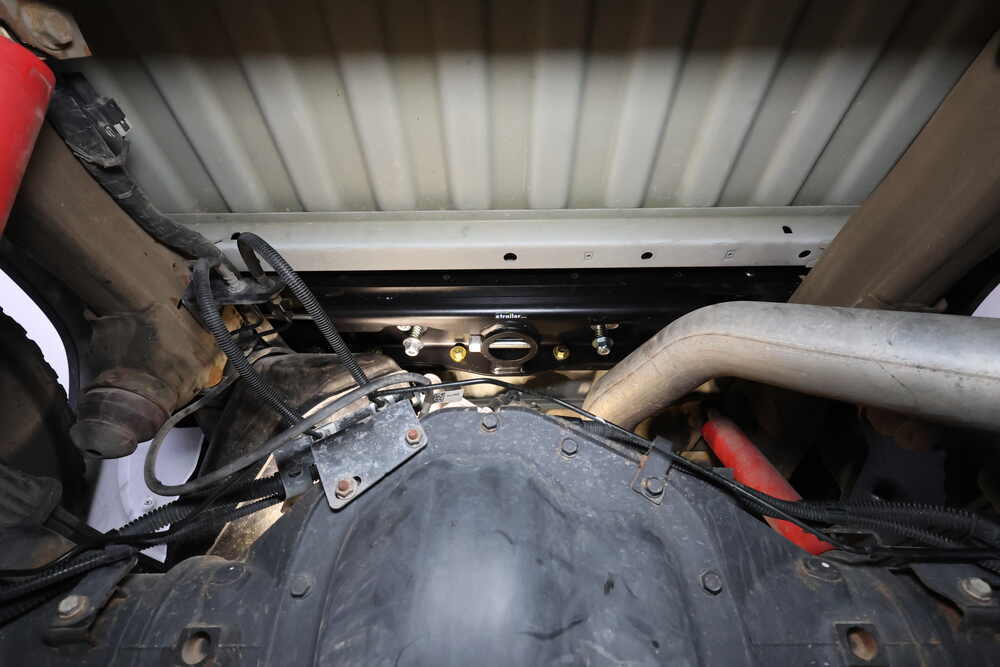

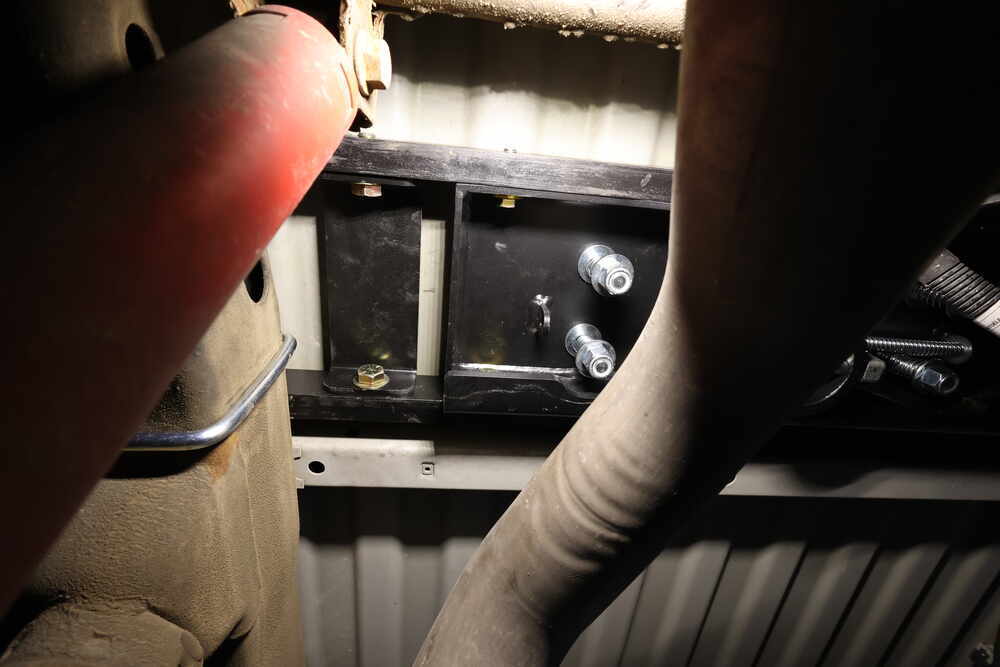

The innovative center locator tool included with this gooseneck trailer hitch is designed to make installation fast and easy by eliminating the need to measure where the ball hole must be cut into your truck bed. Once you have the custom installation kit in place and the gooseneck hitch is properly attached to the rails, the bright orange locator will help you to finish installation.
Use the hole at the center of the locator to line up your 3/16" drill bit, and drill up from beneath the bed to create a pilot hole. This pilot hole will be your guide as you cut the 4" diameter ball hole into your truck bed.
When you begin cutting through your bed, the locator will act as a trim shield, ensuring that you don't drill too deep. Continue cutting from the top of your truck bed until orange shavings appear. Once you see these shavings, you've gone far enough. The center locator can be easily removed from the hitch once installation is complete.
Alternate Instructions
Tech Tip

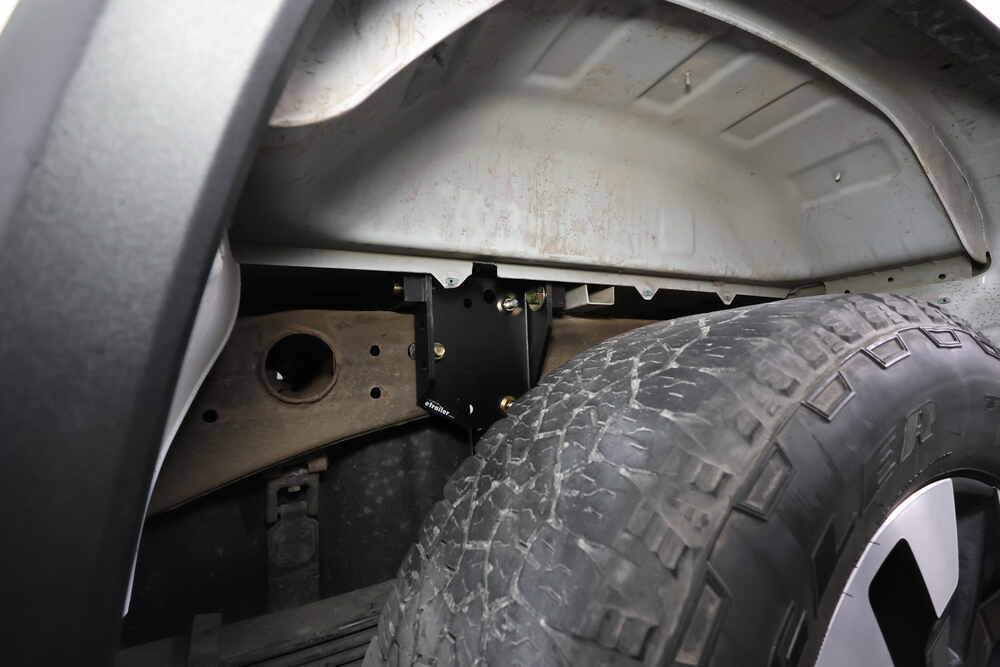

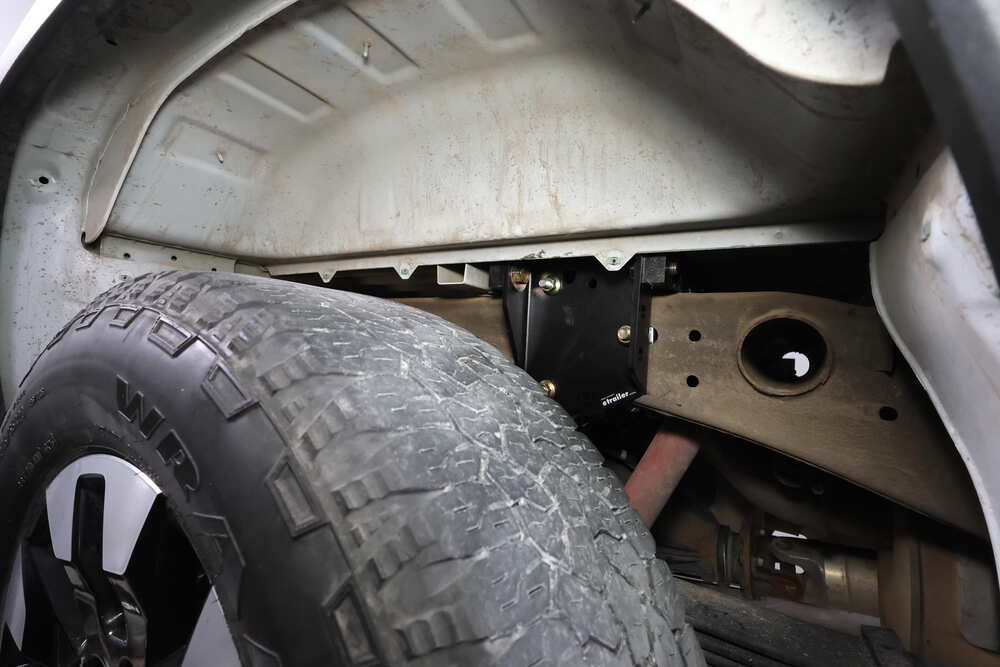

No drilling required to install the frame brackets of installation kit. Installation rails are rated to meet vehicle manufacturer's tow ratings - see vehicle owner's manual
