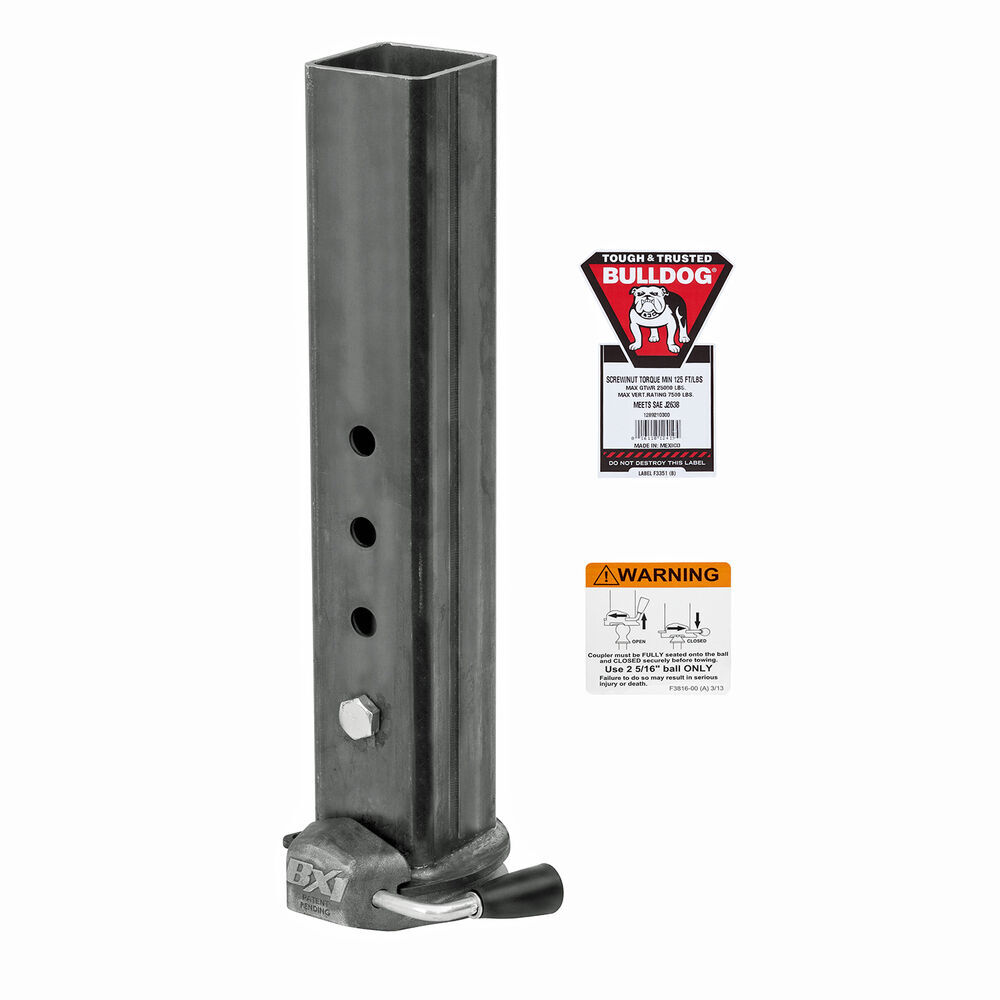

Bulldog BX1 Gooseneck Coupler Inner Tube - Square - 2-5/16" Ball - 25,000 lbs
Bulldog

Bulldog BX1 Gooseneck Coupler Inner Tube - Square - 2-5/16" Ball - 25,000 lbs

$166.26
Retail:$262.64
You Save: $96.38
Gooseneck Coupler
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

Need help with installation?
Locate installers near me
Short base assembly is made of durable steel. Large bottom locking plate makes hookup fast and easy. Ball pocket provides tight fit with less rattle. Pair with existing outer tube for a secure, easy-to-use gooseneck coupler. 1-800-940-8924 to order Bulldog gooseneck coupler part number BD1289210300 or order online at etrailer.com. Free expert support on all Bulldog products. Great prices and Fastest Shipping for Bulldog BX1 Gooseneck Coupler Inner Tube - Square - 2-5/16" Ball - 25,000 lbs. Gooseneck Coupler reviews from real customers.
  • All Info
  • Reviews (167)
  • Q & A (0)
  • Photos

Bulldog Gooseneck Coupler

  • Square Tube
  • Coupler with Inner Tube Only
  • 25000 lbs GTW
  • 2-5/16 Inch Gooseneck Ball
  • Bulldog
  • Manual Latch

Short base assembly is made of durable steel. Large bottom locking plate makes hookup fast and easy. Ball pocket provides tight fit with less rattle. Pair with existing outer tube for a secure, easy-to-use gooseneck coupler.


Features:

  • Sturdy, short inner tube pairs with existing outer tube to create adjustable gooseneck coupler
  • Oversize funnel makes it easy to guide ball into socket
    • Bottom locking plate is 50 percent larger than competition
    • Coupler engages even if you miss the ball by just over an inch
  • Tight ball fit helps to reduce jarring and rattling
    • Ball pocket provides contact on both sides of ball
  • One-handed operation with easy-to-use handle
    • Lockable with padlock (sold separately)
    • Oil-impregnated bushings increase life of locking mechanism
  • Smooth operation over time
    • Integrated grease fittings throughout make for simple maintenance
  • Superior, high-strength steel construction


Specs:

  • Ball size: 2-5/16"
  • Tube outer width: 4"
  • Range of vertical adjustment (when used with outer tube): 8"
  • Overall length: 22-1/2"
  • Weight capacity: 25,000 lbs
  • Vertical load limit: 7,500 lbs
  • Theft-deterrent locking hole diameter: 5/16"
  • Limited 5-year warranty


The BX1 gooseneck coupler from Bulldog is designed to provide the easiest, most secure hookup possible. The bottom locking plate on this coupler is 50 percent larger than the competition, providing additional surface area to guide the ball into the socket. Miss the target by just over an inch and the coupler will still engage.

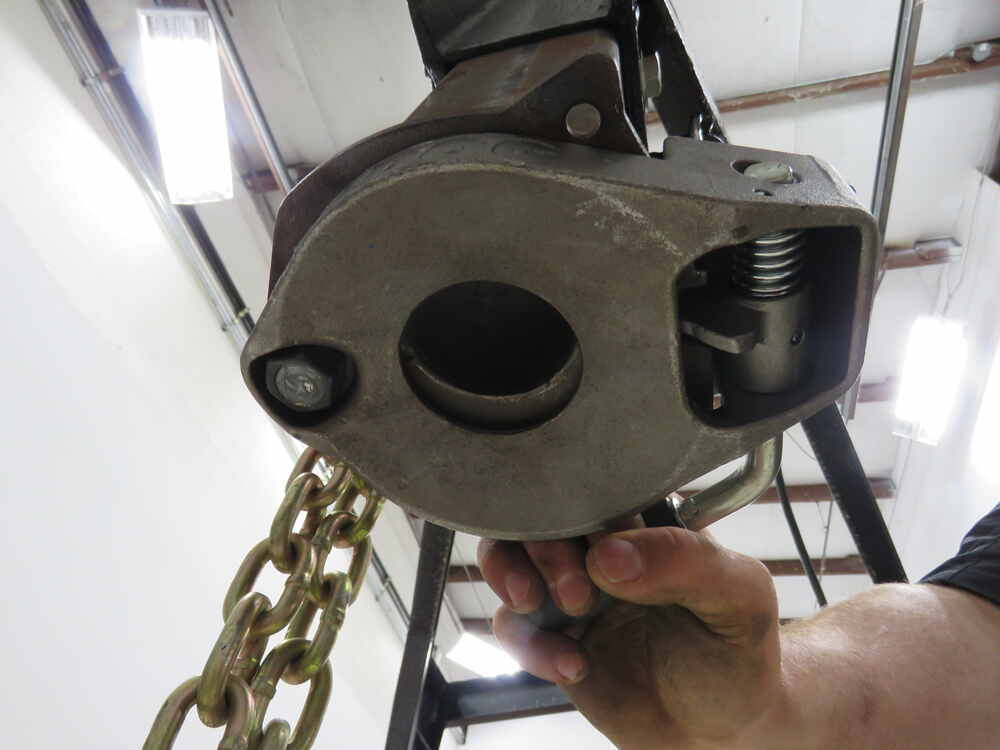

Bulldog BX1 Gooseneck Coupler Locking Plate

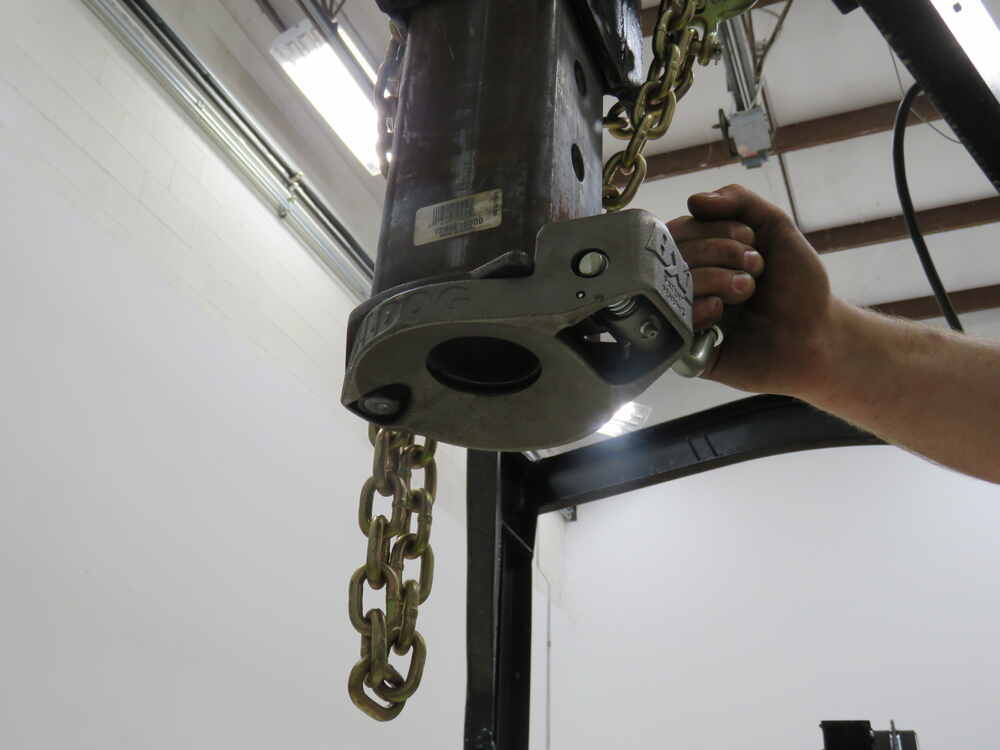

Once hookup is complete, use the easy-to-access, easy-to-maneuver handle to lock the coupler to the ball. When the handle is down, you know that everything is secure and it's okay to tow. For extra security you can insert a padlock (sold separately) through the fixed plate.


Once you begin towing, you may notice that there is far less rattle and jarring at the coupled point than you'd experience with a standard gooseneck coupler. This is because the ball pocket on the BX1 provides contact on both sides of the hitch ball, rather than on only one side, which is typical of the competition. The result is a tight fit around the ball that makes for a smoother, quieter and more secure towing experience.



1289210300 Bulldog BX1 Gooseneck Trailer Coupler without Outer Tube - 25,000 lbs

Item # BD1289210300

Installation Details BD1289210300 Installation instructions
