Roadmaster Wiring Kit with Smart Diodes for Variable Voltage LED Tail Lights
Roadmaster

Roadmaster Wiring Kit with Smart Diodes for Variable Voltage LED Tail Lights

Part Number: RM47ZR
In Stock
$152.32
Flat Tow Wiring Harness

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

Add to cart
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

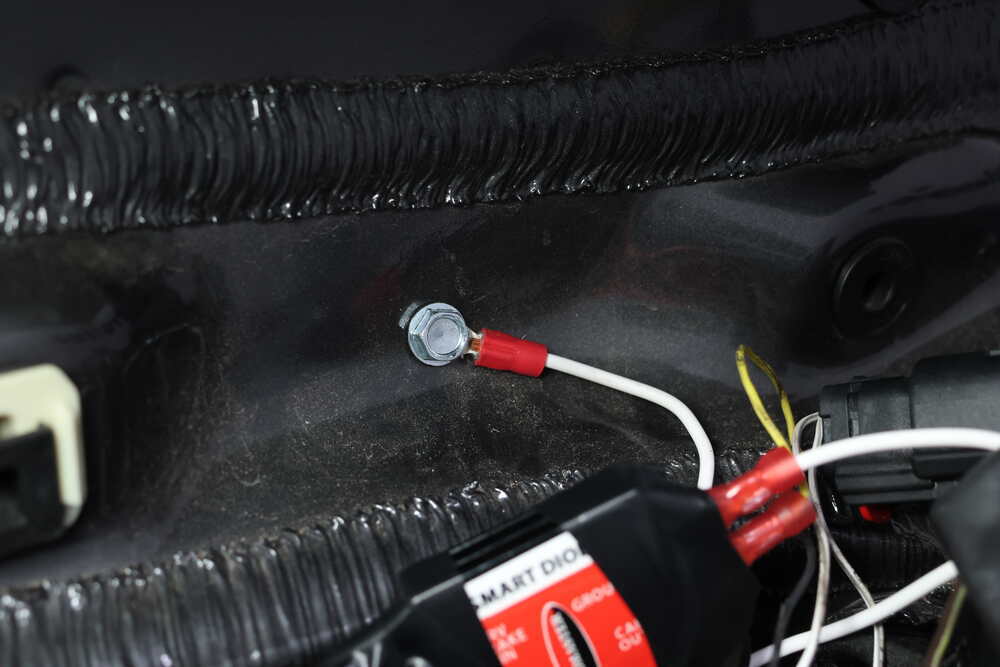

In Use/Installed

Need help with installation?
Locate installers near me
The diodes in this kit convert the 12V signal from your RV to a 9V signal, ensuring that your car's variable voltage tail lights function as intended. 4-Wire harness included for installation. Adapter cord and plug sold separately. 1-800-940-8924 to order Roadmaster flat tow wiring harness part number RM47ZR or order online at etrailer.com. Free expert support on all Roadmaster products. Great prices and Fastest Shipping for Roadmaster Wiring Kit with Smart Diodes for Variable Voltage LED Tail Lights. Flat Tow Wiring Harness reviews from real customers.
  • All Info
  • Reviews (58)
  • Q & A (0)
  • Photos

Roadmaster Flat Tow Wiring Harness - RM47ZR

  • Diode Kit
  • Bypasses Vehicle Wiring
  • Tail Light Mount
  • Roadmaster
  • Universal
  • 27 Foot Long Harness

The diodes in this kit convert the 12V signal from your RV to a 9V signal, ensuring that your car's variable voltage tail lights function as intended. 4-Wire harness included for installation. Adapter cord and plug sold separately.


Features:

  • Wiring kit lets you connect your RV's tail, brake, and turn signal lights to your towed car's lighting system
  • Smart diodes ensure that your variable voltage, LED tail lights function as they should while your car's being towed
    • Converts the 12V signal from your RV's wiring to a 9V signal so your tail lights work as intended
    • Prevents electrical feedback that can damage your vehicle's electrical components
  • Power coated aluminum casing on diodes is corrosion resistant and provides protection from the elements
  • Kit includes 2 smart diodes, wiring harness, split loom, ring terminals, and zip ties
  • Brake light relay (RM-88400 sold separately) may be required if used with supplemental braking system
  • Made in the USA


Specs:

  • Maximum amperage: 5 amps
  • Maximum voltage: 16 volts
  • Wiring harness length: 27'
  • Limited lifetime warranty


This smart diode wiring kit lets you connect your RV's tail, brake, and turn signal lights to your towed car's lighting system so that you'll have the signal lights necessary for flat towing your vehicle.


Because your vehicle has variable voltage tail lights, you cannot use a standard diode wiring kit to get these signal lights. If regular diodes are used on a vehicle that has variable voltage tail lights, the bulbs will light up as though the towed car is braking whenever the tail lights are on. In other words, there will be no difference between the vehicle's brake lights and running lights. This is because variable voltage tail lights use the same wire to power both the brake lights and tail lights. They do this by using a 12-volt signal for brake lights and a 9-volt signal for tail lights.

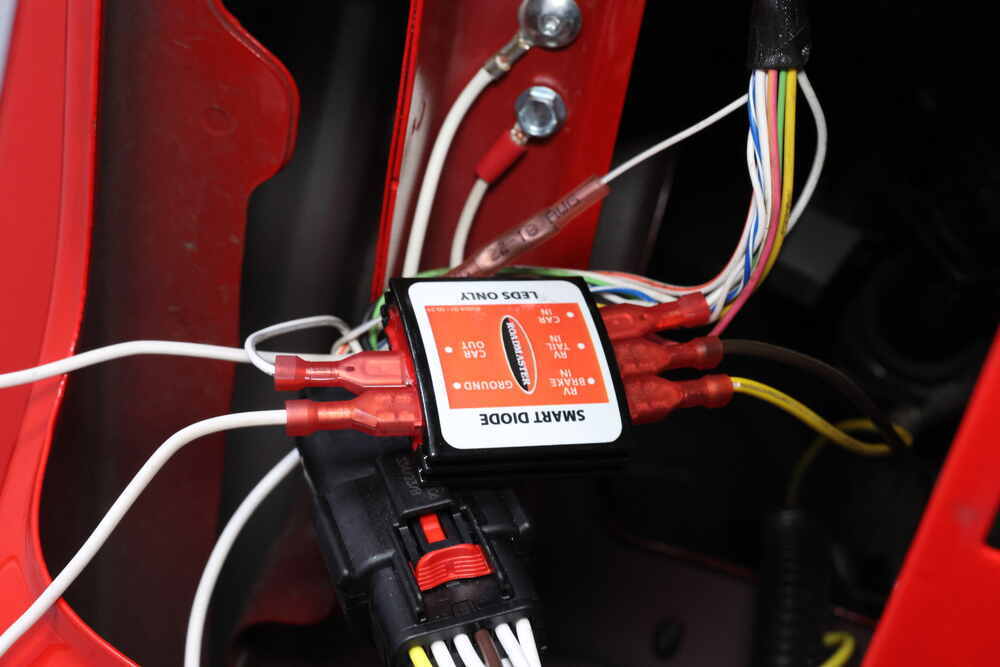

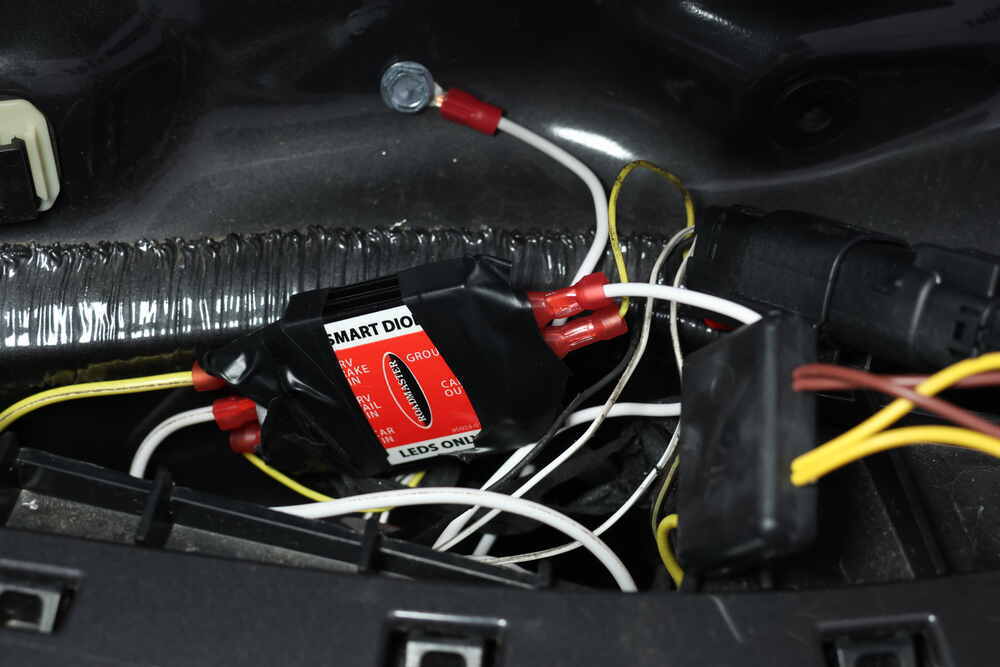

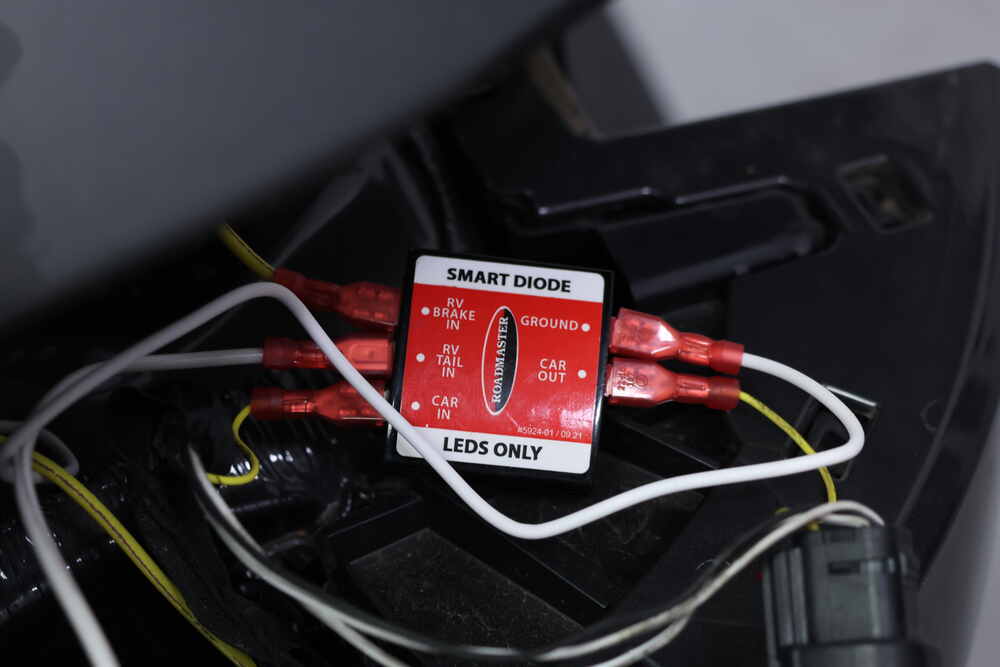

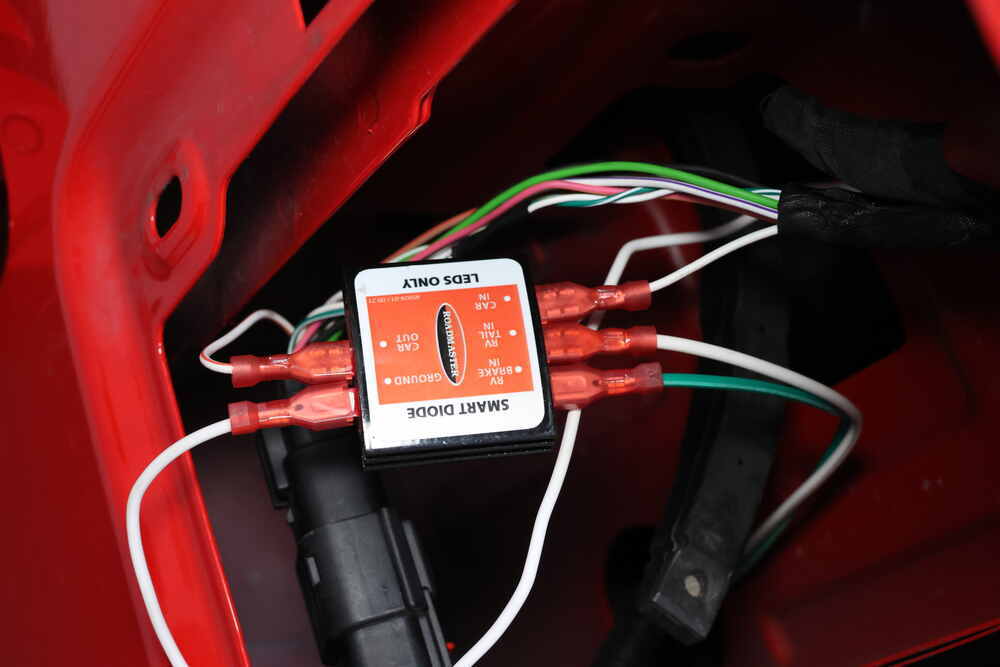

Smart diodes correctly modulate the 12-volt signal coming from your RV to activate only the intended circuit. The result is that your vehicle's tail lights look and function as intended.


This wiring kit is designed to work with LED lights only. If your vehicle has incandescent lights, you'll need to use the smart diode kit designed for incandescent tail lights (RO94FR - sold separately) instead.

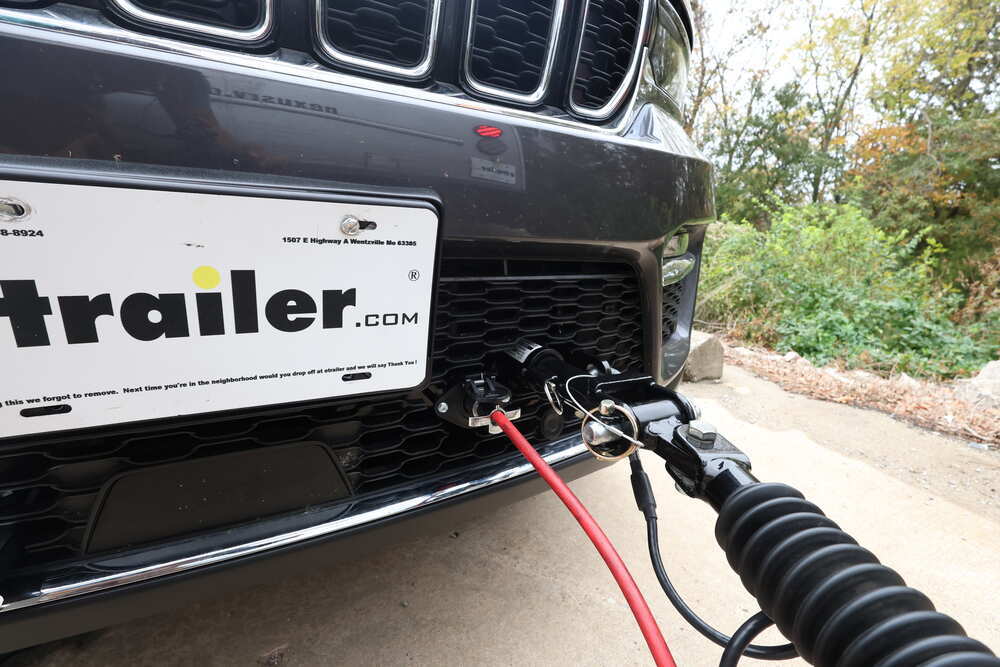

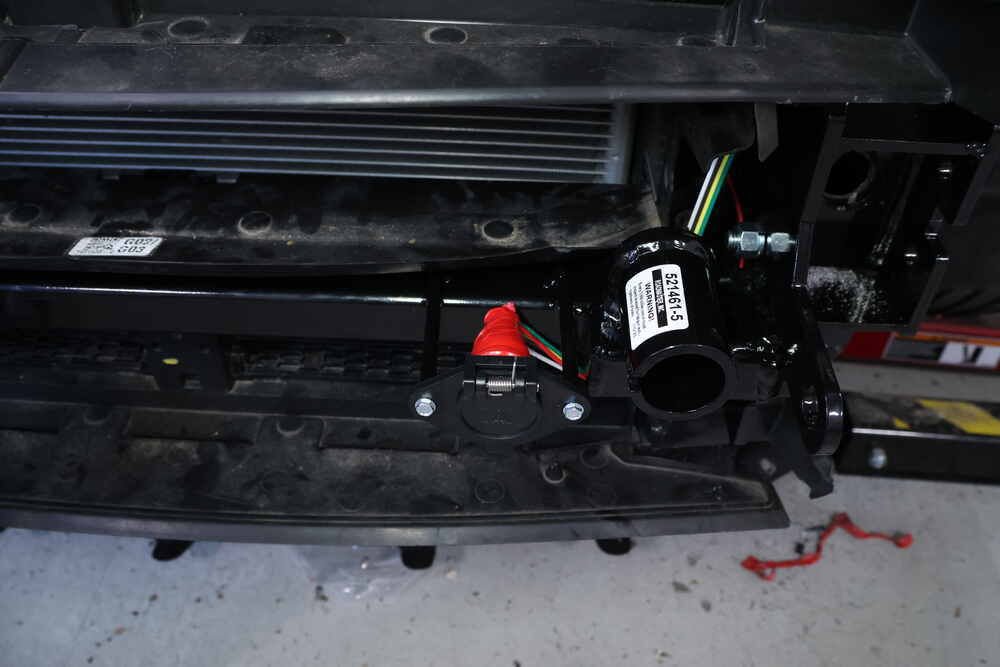

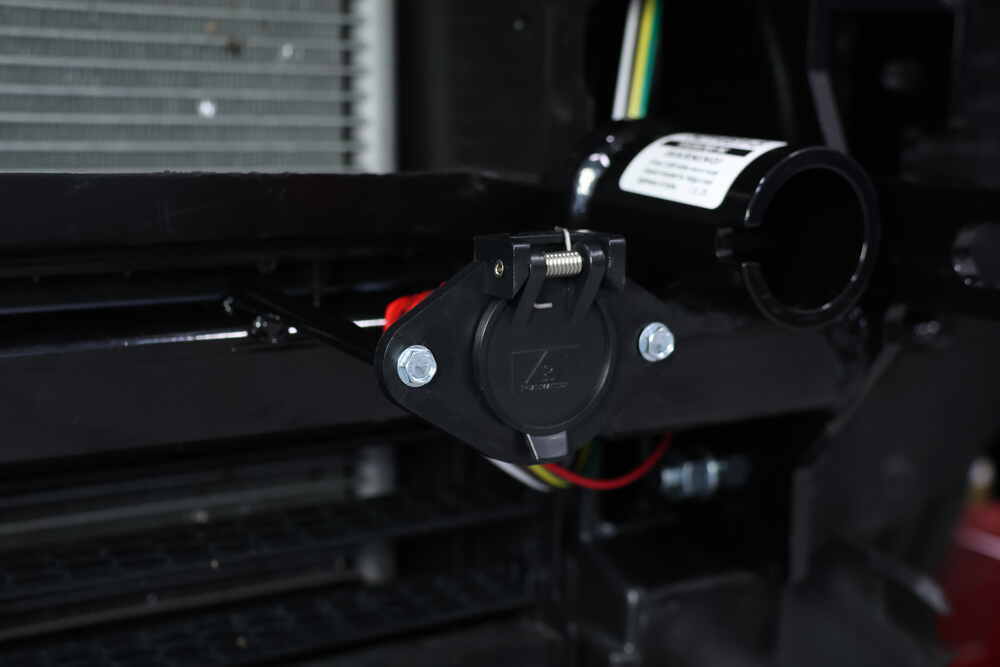

When installing this kit, you will need to add either a 4-way or 6-way round electrical connector to the front of your vehicle so you can connect to your RV when you're ready to tow. Use one of Roadmaster's coiled cable kits (RM-164-7 or RM-146-7 - sold separately) to get both the connector and the adapter cord needed for fast, easy hookup.


If your RV has separate tail light wiring, wherein the brake and turn signals run on separate wires, you'll need a wiring converter (RM-732 - sold separately) to complete this installation.


Smart Diode Wiring Diagram


152789 Roadmaster Wiring Kit with Smart Diodes for Variable Volt and LED Bulbs

Installation Details RM47ZR Installation instructionsAlternate Instructions RM47ZR Installation instructions
