Curt E16 5th Wheel Trailer Hitch w/ Rails and Universal Installation Kit - Slide Bar Jaw - 16K

Item # C16116

lowest price pledge

Retail:$701.56

Our Price: $450.75

Fifth Wheel

This item qualifies for Free Shipping

Shipping Weight: 145 lbs

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
curt fifth wheel double pivot 13-1/4 - 17 inch tall c16116
curt fifth wheel hitch and install rails double pivot
curt fifth wheel fixed double pivot e16 5th trailer hitch w/ rails and universal installation kit - slide bar jaw 16k
curt fifth wheel double pivot 13-1/4 - 17 inch tall c16116
curt fifth wheel hitch and install rails double pivot c16116
curt fifth wheel double pivot 13-1/4 - 17 inch tall e16 5th trailer hitch w/ rails and universal installation kit slide bar jaw 16k
curt fifth wheel fixed hitch and install rails e16 5th trailer w/ universal installation kit - slide bar jaw 16k
curt fifth wheel fixed double pivot e16 5th trailer hitch w/ rails and universal installation kit - slide bar jaw 16k
curt fifth wheel fixed 13-1/4 - 17 inch tall e16 5th trailer hitch w/ rails and universal installation kit slide bar jaw 16k
curt fifth wheel double pivot 13-1/4 - 17 inch tall c16116
curt fifth wheel fixed double pivot e16 5th trailer hitch w/ rails and universal installation kit - slide bar jaw 16k
curt fifth wheel hitch and install rails double pivot
curt fifth wheel hitch and install rails double pivot

Videos


  • Curt
  • 16000 lbs GTW
  • Fixed Fifth Wheel
  • Hitch and Install Rails
  • Economy - Slide-Bar Jaw
  • Double Pivot
  • 13-1/4 - 17 Inch Tall
  • 4000 lbs TW
Sturdy, secure fifth-wheel hitch features an adjustable height to fit your towing needs. Dual-pivot head includes a slide-bar jaw, Permalube bushings and an anti-rattle skid plate for a smooth ride. Rails and universal installation kit included. Call 800-298-8924 to order Curt fifth wheel part number C16116 or order online at etrailer.com. Free expert support on all Curt products. Guaranteed Lowest Price and Fastest Shipping for Curt E16 5th Wheel Trailer Hitch w/ Rails and Universal Installation Kit - Slide Bar Jaw - 16K. Fifth Wheel reviews from real customers.


  • All Info
  • Reviews (137)
  • Q & A (31)
  • Videos (1)
  • Photos
  • Why etrailer?

Curt Fifth Wheel - C16116

Sturdy, secure fifth-wheel hitch features an adjustable height to fit your towing needs. Dual-pivot head includes a slide-bar jaw, Permalube bushings and an anti-rattle skid plate for a smooth ride. Rails and universal installation kit included.


Features:

  • 5th-Wheel hitch mounts in your truck bed so you can tow your 5th-wheel trailer
  • Auto-locking, slide-bar jaw mechanism provides superior security
    • Rear tension bar works with slide bar to clamp around king pin, minimizing rattle and movement
    • Lockable with padlock (sold separately)
  • 4-Position height adjustment for multiple towing applications
  • 2-Pin head removal makes it easy for 1 person to remove hitch
  • Dual-pivoting head with 10-degree lateral movement for simple hookup
    • Permalube pivot bushings increase hitch life and reduce maintenance
  • Anti-rattle skid plate provides smooth, quiet ride
    • Nylon lube plate (sold separately) will help to prevent scratches on skid plate and to let king pin glide smoothly into hitch during hookup
  • Base rails and universal-fit installation kit included
    • Universal kit requires drilling
    • Semi-custom brackets or additional hardware may be required
  • Sturdy, steel construction with carbide black finish


Specs:

  • Gross towing weight: 16,000 lbs
  • Vertical load limit: 4,000 lbs
  • Hitch height: 13" - 17"
  • 5-Year limited warranty


Note: This fifth-wheel hitch is compatible with rotating pin boxes, such as the Reese Sidewinder, Reese Revolution, and 5th Airborne Sidewinder, only when used with a wedge (sold separately).


E16 5th Wheel Jaw

Simple, Secure Hookup

With a dual-pivoting head that offers 10 degrees of lateral movement, the E16 fifth-wheel hitch makes hookup a snap, even on unlevel ground. Once the king pin slides into the hitch, the auto-locking, slide-bar jaw secures it in place. A unique feature of the E16 is the rear steel tension bar within the jaw that activates upon hookup to clamp down on the king pin, providing a tighter grip that maximizes security and minimizes rattle.




16116 Curt E16 5th Wheel Hitch with Base Rails - 16,000 lbs

16515 Curt E5 5th Wheel Hitch Head Unit

16200 Curt Universal, Carbide Fifth Wheel Base Rails with Universal Brackets and Hardware



C16116 Installation InstructionsInstallation Details C16116 Installation instructionsC16116 Installation InstructionsAlternate Instructions C16116 Installation instructions


Video of Curt E16 5th Wheel Trailer Hitch w/ Rails and Universal Installation Kit - Slide Bar Jaw - 16K


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

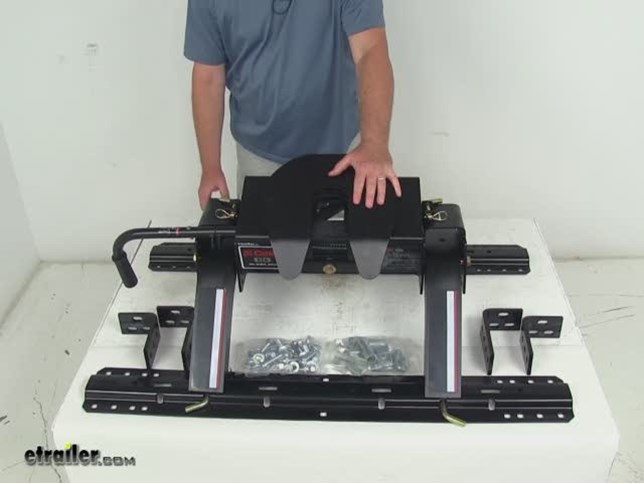

Video Transcript for Curt Fifth Wheel C16116 Review

Today we're going to review part C16116. This is the Curt 00:00:04E sixteen fifth wheel trailer hitch with the rails and the universal install kit with the 16,000 pound weight capacity. Now, this is an entry level hitch which offers several unique features. Has this auto-locking slide bar jaw 00:00:18 mechanism right here, provides superior security. Also, right behind it is this rear tension bar. This will work with the slide bar to clamp around the kingpin to help minimize rattle and movement.

Right over here on the handle you can see there's a hole on the handle itself and then a hole here. You can actually put a padlock through there if you'd like for extra security, so it is lockable with a padlock. If you have one you can use it, if not we do sell padlocks separately on our website. This is a dual pivoting head, has a ten degree lateral movement for simple hook-up. Underneath and in the head they permalube 00:00:50 pivot bushings to help increase your hitch lift and reduce maintenance. Has an anti-rattle skid plate right here.

Provides a nice, smooth quite ride. Now we do recommend the use of a nylon lube 00:01:01 plate. We do sell those separately on our website. They're actually listed on this product page as a related product. It will help prevent scratches on this skid plate and it lets the kingpin glide a lot more smoothly into the hitch during hookup. Right here on the side is a four position height adjustment for multiple towing applications.

When you attach the cross member to the legs you have a choice of four different rows, so you can get four different hitch height adjustments. Now, the hitch height is measured from you truck bed to the top of the hitch plate. You want to be able to tow that fifth wheel and keep it pretty level with the truck bed, so the range would be anywhere from about thirteen and a quarter up to seventeen inches. Now, another nice feature on this, you can see it has the pins and clips right here. If you take those clips out, slide the pins out, you can remove the head and then that'll make the cross member and the legs a lot lighter so you can actually take those out also. So, it makes it very easy for just one person to remove the hitch from the truck. Now, if you notice I have everything laid out here.

The base rails right here, universal rails, are included. And the insulation kit, universal insulation kit is all included. Does come with a nice set of detailed instructions and telling you how to install it all. Now, the hitch itself is a sturdy steel construction with a nice carbine 00:02:15 black finish. The gross towing weight capacity on this is 16,000 pounds. Vertical load limit or pin weight capacity is 4,000 pounds and I have mentioned, the hitch height adjustment is from thirteen and a quarter inches up to seventeen inches and it's in an inch and a quarter increments you can adjust it. What I'm going to show you now is we're going to show you how the hitch operates. Here's an example I'm going to use. This is what your kingpin would look like. It's on the pin box of your trailer, so I'm going to show you how your trailer would install. So, when you're ready to hook up what you're going to do, take the handle, just flip it straight up, then what you'll do is pull it all the way out and when you've got it all the way out you'll hear it click and lock in open position. Then what you'll do is, this will be the kingpin on your pin box when you're hooking up, you'll see what will happen is there's a tension bar right here, as this kingpin goes up against this tension bar it pushes it in, releases that slide bar that goes across. The tension bar still keeps some tension on the kingpin, as you notice it's very secure. The handle falls down and once it's in the down position you can see it won't open and then you can put your padlock through there to give you the security so no one can open that up. When it's in the down position it won't open up. You'll be all ready to go and if you want to remove it just flip it up again, pull it all the way out, just like that, locks open position, your kingpin comes out. That should do it for the review on part number C16116. The Curt 00:03:44E sixteen fifth wheel trailer hitch with the rails and the universal installation kit and this has a 16,000 pound weight capacity.


Customer Reviews

Curt E16 5th Wheel Trailer Hitch w/ Rails and Universal Installation Kit - Slide Bar Jaw - 16K - C16116

Average Customer Rating:  4.7 out of 5 stars   (137 Customer Reviews)

Sturdy, secure fifth-wheel hitch features an adjustable height to fit your towing needs. Dual-pivot head includes a slide-bar jaw, Permalube bushings and an anti-rattle skid plate for a smooth ride. Rails and universal installation kit included.

- C16116

by:


As a first timer towing a 27' fifth wheel, I was really nervous. And it didn't help that the people who installed my hitch threw away the directions. Thankfully technology and YouTube came to the rescue with a video on EXACTLY how to hitch up. And once I figured out that the jaws have to be opened to accept the kingpin, I was well and truly set. The hitch worked like a dream and hooking up was easy. Yesterday, I did it all by myself using the rearview mirror. Thank you so much for a wonderful, easy to use product. I am no longer nervous about hitching, unhitching and towing. Now if you have another product to help with the whole backing up thing..... 254388



- C16116

by:


Went together and functions perfectly. I bought the fifth wheel, the rails, the trailer brake controller/ wiring and the trailer wiring harness all together. It got o me in 2 days! One of the few purchases I made that everything actually fit right out of the box and worked. I would recommend buying from etrailer.com to anyone who needs the right stuff fast. TC 229435



- C16116

by:


I love my 5th Wheel Hitch, At first i was hesitant of it, i never pulled a 5th wheel before. This hitch is so heavy duty and has been a great tool for major situations where i thought the trailer may possibly disconnect in harsh roads. It has never let me down or has never disconnected. Very Good Hitch. 340655



- C16116

by:


Great product,easy to install.i have a 32 foot fifth wheel trailer and this hitch pulled in with no problems.i would definitely recommend this hitch to anyone looking for a good deal. 291871



- C16116

by:


Have pulled the camera around pretty much everywhere. And it has done what it was supposed to do. You know the way everything you buy should work. 283306



- C16116

by:


Product came quickly in great condition. Installed as advertised and functions as it was described. Very happy with hitch, price and service. 271369


Comments

It has continued to function properly and am well pleased with the product

Jim B - 07/13/2017

26051

- C16116

by:


Etrailer has always provided excellent products at great prices with fast shipping. Hitch & install kit are great. Installing today. 229720



- C16116

by:


Perfect for my 5th wheel. Have to order another set of rails to switch to another truck when needed but definitely worth the $$$ 502924



- C16116

by:


My fifth wheel dry is 12,500 and with it all loaded up this hitch works great, can’t beat the price and the easy installation. 498968



- C16116

by:


Excellent purchase and excellent personal, real fast shipping no trouble at all. recommended 100%. 468123



- C16116

by:


Excellent customer service, fast turn around time, and reasonable prices!! Highly recommend. 379053



- C16116

by:


Hitch arrived with in a week , easy installation and works great , thanks etrailer 516353



- C16116

by:


Shipping box was in bad shape, but looks like the hitch is in good shape. 274153



- C16116

by:


Haven’t used yet, but it looks like a great product. 468231



- C16116

by:


Great price works well and extremely fast shipping 523277



- C16116

by:


Great service, quick delivery and easy ordering! 491826



- C16116

by:


Looks good works good great place to buy from 470325



- C16116

by:


easy install all part were there 480342



- C16116

by:


We have loved it! Works great! 343480



- C16116

by:


Great hitch for the money. 298222



- 16516

by:

Review from a similar Curt E5 in Fifth Wheel


Very well made. It was not really tough to install. I would recommend this product. 110292


Comments

Hi,I am looking at this particular hitch set up Curt E16 5th Wheel Trailer Hitch w R16 Roller - Slide Bar Jaw - 16,000 lbs Curt Custom Fifth Wheel Installation Kit for 2007 Toyota Tundra - Gloss Finish Part Numbers: 16516, C16468-104I am in the process of looking at hitch options but I would like to know the exact weight of the hitch when assembled together. How much does this hitch weigh? Thanks.

-- comment by: Patrik K - 01/16/2014

2593

Our shipping weight is 216 pounds. I called my contact over at Curt and assembled outside of the boxes, it tips the scales at a bit over 200 pounds. There are a few things that make up the extra weight over other designs. The bars that the slider system use are solid round stock, not hollow tubes, that are secure to plate steel bases. The legs are made of plate steel rather than stamped. All of these adds up to put the hitch at about 50 pounds heavier than other similar setups.

-- Patrick B - 1/31/2014

Comments

Its very well made and works great. I would buy this again. I have had no problems with it, very happy.

Robert S - 12/18/2014

8081

- C16115

by:

Review from a similar Curt E5 in Fifth Wheel


The Product was nice and worth the money, the packaging for shipping was really poor. The shipping was very fast but when we received it, one part was damaged with dents and scratches. We are very unsatisfied with that. We paid 400 for a hitch that is damaged and will rust. The parts in the hitch box were not wrapped for protection. Also, instead of putting it in a box that fit, they staples a million staples to make a box around the factory box. It was very unprofessional. Pretty upset for the money we spent. 413611



- C16115

by:

Review from a similar Curt E5 in Fifth Wheel


Very quality unit. Only had trouble with handle mounting as the tube was turned 180 degrees and I put handle on as instructions said and it was not lined up with grooves to pull hitch lock out. Took top back off and seen this so removed handle and put on in up position instead of down and was able to pull to line up grooves with slots and release hitch lock and lock it in down as it should be. Works real good and sets secure in rails and in hitch top. Real good fit with no rattles going down road when nothing is hitched. 222508


Comments

Real good, handles any camper and works smooth.

Dan - 08/28/2016

20637

- 16516

by:

Review from a similar Curt E5 in Fifth Wheel


Excellent product. Installation wasn't to bad, did take some time but overall wasn't horrible. It doesn't have a lot of bells and whistles but works flawlessly. I chose this hitch for two reasons. 1. It's a simple yet reliable design from a great manufacturer. 2. I needed the lower height adjustment than the Q series offered. My '06 dodge doesn't have any aftermarket suspension parts but I do run 285 70/17 tires and it does sit a little bit higher. Glad I did because the lower height adjustment is almost perfect. I highly recommend getting a lube plate to go with any fifth wheel hitch, very cheap and no mess. As far as etrailer.com goes. This is the best place I've ever ordered from. Great communication and very fast shipping. The hitch arrived days faster than expected even with the bad weather delays. You can't go wrong with this item or this company. I will definitely be ordering from here in the future and will be buying more Curt products. 238344


Comments

This is the best hitch Ive ever used. Very simple and smooth. Not one issue so far! Would buy it again!

Arron M - 02/19/2017

22515

- C16115

by:

Review from a similar Curt E5 in Fifth Wheel


Well packed, free 5 days shipping, easy to assemble and nice looking hitch. Im extra amazed because i can remove the king pin base/head from the bridge leg assembly to easily transport them. Still not tested with the coach. Practically no lateral movement and have the suspicion bushings. Very firm and easy mechanisms. Do not leave the gate open for long term because could damage the main spring. I plan to pull a 11k 334FWFLS. Nothing compared to this hitch in this price range. I will add some extra feedback after couple travels. 450600



- 16516

by:

Review from a similar Curt E5 in Fifth Wheel


I ordered on a Monday and got the equipment on Wed. I started the installation Wed after noon. Finished Thur. about 11:00 am. I did all the work myself with a little help from my son on holding the U bolts. I am 75.5 years old and had no trouble with the instructions. Thanks. PS Added the Jeep picture for fun. 184654



- C16115

by:

Review from a similar Curt E5 in Fifth Wheel


What a great experience! I was looking for a "basic" new 5th wheel hitch to replace my aging Lill Rocker by RBW; the Curt E16 looked to be very similar. I found a Curt E16 at a local RV dealer and decide to check with etrailer.com before purchasing. To my amazement, the price on etrailers was half of the dealer price. Moreover, the customer service at etrailer.com was above my expectations. I called to see how long it would take an order to arrive to my location (planning a trip and needed the new hitch in 3 to 4 days). Sandy was very helpful and assured me the hitch would arrive in time for my trip. Not only did I receive the hitch in great condition, it came a day earlier than I thought. Based on such a great first experience with etrailer.com, I will be purchasing from them again! 289116



- C16115

by:

Review from a similar Curt E5 in Fifth Wheel


This is a very basic hitch. Very simple to install and use. However, with the head not being fully articulating, its a very noisy hitch. Plenty of rattle, clank and chucking. The chucking can be a bit alarming. It worked well enough for our small 22' 5er but since stepping up to a 34' trailer and 12,000#, I decided to upgrade to a B&W Patriot. If you're on a tight budget and have smaller lighter trailer, this will get the job done but Id have gone with a better jaw type hitch over the slide bar had I known better at first. The custom install kit for my 2013 Silverado 3500 long bed was amazing in fit. You need to be a little handy to install it but its well worth the extra few $$. The installation instructions are adequate but could be a little clearer. 300491



- C16115

by:

Review from a similar Curt E5 in Fifth Wheel


Due to the low price of this hitch I was wary of its quality, but now after 1 year of use with a 30' Jayco fifth wheel and sometimes double towing with a 3000 lb trailer behind the 5th wheel I have complete confidence in this hitch. I installed it in a 2014 Ram 2500 with Ram Boxes using a Reese Sidewinder. The only modification I had to make was shortening the release handle due to the narrow bed with the Ram Boxes. Other than that this hitch combined with the sidewinder I can turn the camper and truck just over 90 degrees with absolutely no clearance problems and without the need for a slider hitch. The only problem at first was the hitch was somewhat tight but as it wears that tightness is getting better. Overall a well made hitch for a good price. 267066



- 16516

by:

Review from a similar Curt E5 in Fifth Wheel


Successfully installed this hitch even in a RAM Box. I did remove 2" from the handles so I have the proper clearance for the RAM box. That shortened length hasn't changed my ability to unlock the hitch for either function even being 5'-8". I do think this installation method with U-bolts that go around the frame is easier than the 1/2 ton version I installed which pulled knurled bolts through the factory frame holes to hold the support brackets. 512542



- 16516

by:

Review from a similar Curt E5 in Fifth Wheel


Thank you for such a fine product!! We installed the fifth wheel hitch in my 2015 RAM 2500 Mega Cab without any problems. It took us 5 hours to complete the installation and all the brackets and bolts went in without an difficulties!! 375392



- C16115

by:

Review from a similar Curt E5 in Fifth Wheel


The product went in my truck just fine but the instructions were not the best to read. I wish that the company would of gave me an orthographic blue print instead of an isometric. "2D instead of 3D". A video would of been great to see some of the tricks. But all in all everyting went pretty well. It took me from 3:30pm to 10:30pm to get it put in. Once I did the first side the second side went much faster. Make sure the brackets are not flipped around so you don't add extra holes like I did. The box was complete distroyed when it arrived. I think that every thing is in operational shape won't know until I hook up. 186424



- C16115

by:

Review from a similar Curt E5 in Fifth Wheel


Excellent hitch. Went together easy. No issues. 201495


Comments

Its been a great hitch! No issues whatsoever. I have about 1500 tow miles on it.

Jim J - 06/06/2016

18360

- 16516

by:

Review from a similar Curt E5 in Fifth Wheel


So here I am 1 year later and 7000 + miles later having towed/hauled a 30' Keystone Cougar with the Curt E16K hitch and bed rails. I installed the item and it was fairly easy with the help of a friend to help tighten bolts and nuts. On the rails I have the E16K Curt Hitch in a 2007 - 2500 Dodge Ram Cummins. I used to remove the Hitch after every trip. That lasted for the first 2-3 times. It is darn heavy to remove and put back in. So now I leave it installed in the truck and remove it when/if I need to haul something in the bed. Hope this helps your decision and Happy Hauling :o) 307813



- 16516

by:

Review from a similar Curt E5 in Fifth Wheel


This is a great product and all the parts and hardware arrived in tact. Had a few issues with the under bed mounts due to my truck is the 2017 power wagon and more parts had to be removed to get installed and relocate harnesses. over all installation took a good day even with a mechanics back ground. Also will be installing hellwig air bags to accommodate coil springs. I really liked that etrailer customer service called me to verify my order. After that the package arrived with in a week. Really happy with the parts and etrailer service. 477054



- C16115

by:

Review from a similar Curt E5 in Fifth Wheel


Simple well built product. Easy to assemble for use (about 15 min). The way I did it was to Assemble loosely at first, Then pin the hitch on the rails. After that I tightened everything up. I put the adjustment to highest position then I would adjust downward to get the the truck and trailer level. I found putting the hitch to its highest and then adjust the pin box as high as possible gave me the extra clearance I wanted between the tailgate and the trailer pin box bracket. I have one of those 5' 6" beds to deal with. Fit great. 359879



- 16516

by:

Review from a similar Curt E5 in Fifth Wheel


This is my first hitch. I decided to go this route after finding out the dealership wanted over 1500 to install rails hitch and plug. Install was not too aweful bad I did the install in about 4 hours of everything. I took my time so nothing would be screwed up. The install videos where awesome and very discriptive. 346172



- 16516

by:

Review from a similar Curt E5 in Fifth Wheel


I've only towed my camper once with my new hitch so far and it worked just fine, when i bought it, it arrived on time and in good shape, the only little problem i had was part of the steel under the release handle wasn't painted so when it rained rusty water came out the handle tube and kind of stained my rubber bed liner, but it was an easy fix. anyway i'm happy with it ! P.S. the vehicle specific frame mount makes the set-up much quicker and eaiser than the universal mount . 305663



- 16516

by:

Review from a similar Curt E5 in Fifth Wheel


The unit was as described and installed without a hitch (no pun intended). This unit went into a new GMC 1500 and we did not have to cut anything to install the mounting bolts -- but it was a bear to get the nuts on the bolts and then tighten. I used a universal (free) installation kit and we had to weld the braces to the frame. eTrailer always delivers on time and so far always with the correct product - wouldn't think of going to any other company. 206872



- 16516

by:

Review from a similar Curt E5 in Fifth Wheel


Product was as advertised. With a standard 6.5ft box on my truck I was always worried about the front of my 5th wheel hitting the cab while getting into some of the tight turns needed for some camping spaces. This hitch has eliminated that worry. As a bonus with the hitch in the rearward position I can now easily see the hitch while hooking up the RV. Very happy with the speed in which etrailer processed and shipped this hitch. 493089



- 16516

by:

Review from a similar Curt E5 in Fifth Wheel


The product arrived on time and in perfect shape. I installed it with the instructions inside the box without any difficulty. The product works wonderful and I am extremely satisfied with this purchase! 373798



- 16516

by:

Review from a similar Curt E5 in Fifth Wheel


Installed nice no instructions on the right rear front bolt on a 2017 3 quarter ton Ram pickup rear end mounted were they wanted you to put the bolt on the coil suspension Dodge 520008



- C16115

by:

Review from a similar Curt E5 in Fifth Wheel


I bought the curt fifth wheel and base to convert my B&W turnover ball and this thing fits perfectly it went together smoothly and in under an hour easily highly reccomend 272110



- 16516

by:

Review from a similar Curt E5 in Fifth Wheel


Great kit. Bolted together quickly! The boxes being heavy caused holes to be punched into the boxes. This caused a nut to go missing for the hitch release handle. 448195



- 16516

by:

Review from a similar Curt E5 in Fifth Wheel


The hitch is easy to put together as I have a 2016 2500hd I had to bolt it inn the very top holes to clear my box. There seems to be alot of plat in the king pin lock a clank and clunk starting and stopping. Id buy from etrailer again they are a great company this product was built for what I paid its a middle of the road hitch. I will upgrade at some point 377732


Comments

It works I don’t care for the hitch after a year. There is to much slack in the hitch and no adjustment. Don’t like the handle you have to turn just right to disconnect. Wouldn’t buy it again matter of fact gonna switch it out this year as I don’t like it.

Myron L - 05/09/2018

38330

Thanks for your follow up Myron. I have confirmed with my contacts at Curt and if you would like you can change out the head unit of your current system and use the # C16520
Replacement Head Unit for Curt A16 and Q16 5th Wheel Trailer Hitches - 16,000 lbs
$401.47
. This head unit offers upgraded features in the coupler head, handle and adjustable height adjustability of the head to the base. If you were to switch out the heads only it would be more cost effective that getting an entire new 5th wheel hitch, and you would be able to utilize your existing underbed install kit, rails, and slider portion of your existing system. However if you would like to consider a different hitch set up, I have provided a link for your reference that includes the 5th wheel hitches that have the same capacity of your exisiting system for reference.

-- Rachael H - 5/9/2018


- 16516

by:

Review from a similar Curt E5 in Fifth Wheel


This 5th wheel assembled and installed with ease. Was advised that it would install without moving my air bag suspension. This is not true. If you use the custom vehicle specific brackets, you will have to remove airbags if equipped and re-install. Had that little issue not popped up, install would have taken about an hour or two at most. 487231



- 16516

by:

Review from a similar Curt E5 in Fifth Wheel


This 5th wheel assembled and installed with ease. Was advised that it would install without moving my air bag suspension. This is not true. If you use the custom vehicle specific brackets, you will have to remove airbags if equipped and re-install. Had that little issue not popped up, install would have taken about an hour or two at most. 487229



- C16115

by:

Review from a similar Curt E5 in Fifth Wheel


Not hard to install, Just hard for me due to recent surgery. Every thing fit and instructions were better than average. Chevy 2500HD, 8ft bed. Be sure to take the spare tire out before starting so you will have room under the truck. Can't beat etrailers prices and shipping. I've bought from them before and I'm sure I'll buy in the future. 225626



- C16115

by:

Review from a similar Curt E5 in Fifth Wheel


An entry level product, I first looked through the instructions and thought they were a little vague, but as I started assembling the unit, everything fell into place and I had no problems understanding what to do. I loved the price, the communication, and the results. I plan on using it next week with our toy hauler and I'm excited! 279362



- C16115

by:

Review from a similar Curt E5 in Fifth Wheel


Nice looking hitch and well made, I just installed it but haven't towed with it yet. etrailer shipped fast but UPS damaged the carton and the bolt kit was lost in transit. Customer service at etrailer was very helpful in getting a replacement kit shipped now all is good. I would not hesitate to do business with them again. 357694


Comments

I pull a 36 5th wheel with the hitch and no problems at all.

Don O - 03/23/2018

36324
57
144
Show More Reviews

Ask the Experts about this Curt Fifth Wheel


  • Curt E16 5th Wheel Hitch and Base Rail Compatibility with 2017 Ford F150 5-1/2 Foot Bed
  • The Curt E16 5th Wheel Trailer Hitch # C16115 will fit the industry standard base rails compatible with your 2017 Ford F-150. If you don't have the base rails yet, then I recommend the Reese Quick-Install Custom Installation Kit w/ Base Rails for 5th Wheel Trailer Hitches # RP50087-58 confirmed to fit your truck. These brackets won't require drilling into your truck frame. If you want to use the kit # C16116, it will work with your truck, but you will need to drill into your frame...
    view full answer...

  • 5th Wheel Trailer Hitch Installation Kit for a 2006 Ford F-250 Long Bed
  • For your 2006 Ford F-250 long bed there are universal 5th installation kits and custom installation kits. The difference, besides cost, is how long each takes to install and how much drilling is involved. The less expensive universal kit, # RP30035, will fit your truck. But it will take the better part of the day to install and you will have to drill into the truck frame. The custom kits, such as # RP50082-58, cost more but install in about half the time compared to the universal...
    view full answer...

  • Can Curt E5 Fifth Wheel Hitch, # C16116, Be Converted To Slider Hitch By Using Hitch Roller Adapter
  • You will need two items to convert your CURT Fifth Wheel, # C16116, to a slider fifth wheel hitch. You will need to attach your CURT E5 head to the R5 Roller Adapter for CURT E5 Fifth Wheel Trailer Hitch, # C16505. Then, you will attach the CURT E5 head and the adapter to the CURT R16 Fifth Wheel Trailer Hitch Roller, # C16560. Then, the CURT R16 Fifth Wheel Trailer Hitch Roller should be installed in the rails on your truck. I am sending a video link to the CURT hitch Roller being...
    view full answer...

  • Curt Fifth Wheel Hitch and Install Kit Recommendations for 2015 Chevy Silverado 2500HD
  • The Curt E16 hitch you mentioned includes the # C16100 universal install kit that is compatible with your 2015 Silverado 2500. The kit uses four brackets mounted to the truck frame as attachment points for the bed rails. You will need to drill holes into the truck frame to install the frame brackets. This being said, the E16 hitch provided with the # C16116 wouldn't be a good choice for your truck. In order to provide proper clearance between the front of the fifth wheel trailer loft...
    view full answer...

  • Inexpensive 5th Wheel Trailer Hitch and Install Kit for a 2011 Ram 3500 Long Bed
  • The universal installation kit that comes with Curt 5th wheel trailer hitch # C16116 will only fit your 2011 Ram 3500 long bed with the addition of bracket # RP58023. Then the installation will be similar to that of installation kit # RP30035-023. However, if your truck has overload springs, which is likely on a 3500 series, then this installation kit will not work. So instead of the Curt hitch and universal installation kit I recommend the Curt Semi-Custom kit, # C16301-200, which does...
    view full answer...

  • Does Curt 5th Wheel Trailer Hitch and Installation Kit # C16116 Require Spacers, 2011 Toyota Tundra
  • According to the Installation instructions (linked for reference) for the Curt E5 Fifth Wheel Trailer Hitch with Rails and Universal Installation Kit, # C16116, for Toyota Tundra applications Spacer Kit, part # C16302, is required. You will need to stack one 3/16 inch and one 5/16 inch thick slotted spacer to avoid crushing the truck bed. Any of the installation kits, custom or universal, for your truck will include or require additional parts for the best fit.
    view full answer...

  • Curt 5th Wheel Trailer Hitch Installation Kit Recommendation for a 2010 Dodge Ram 3500 Long Bed
  • The best option for the Curt E5 5th Wheel Trailer Hitch, # C16115, and your 2010 Dodge Ram 3500 long bed is the Curt Custom Fifth Wheel Installation Kit for Dodge Ram, # C16420-104. This kit requires a lot less drilling than a universal kit which means you save a lot of time on installation. The estimated install time for this kit is a mere 1-1/2 hours. I have included a link to the installation details below. You can look at all of the available 5th wheel trailer hitch and installation...
    view full answer...

  • Will Curt E16 5th Wheel Trailer Hitch w/Universal Install Kit Fit a 2015 Chevy Silverado 2500
  • Yes! I checked with Curt and 5th wheel trailer hitch with universal installation kit # C16116 will fit your 2015 Chevy Silverado 2500. I have included a link to a video review of this product for you. I also recommend installing a 7-Way trailer connector in the bed of your Silverado using # 41157. This will make hooking up the trailer easier than plugging it into a 7-Way at the back of the truck or having to extend any of the wiring to reach.
    view full answer...

  • Curt E16 5th Wheel Trailer Hitch and Rails Only for a 2012 Chevy Silverado 1500 Short Bed
  • Generally speaking if you have a short bed truck, like your 2012 Chevy Silverado 1500 with 6-1/2 foot bed, then you would need to use a slider hitch and not a fixed hitch. That is unless the trailer is very narrow or it has a tapered front cap that was designed to be towed by a short bed truck. Otherwise the trailer could make contact with the truck cab when making tight turns. If you already have frame brackets that you want to use then you would need to get the hitch and rails separate...
    view full answer...

  • Will Curt E16 5th Wheel Hitch and Universal Install Kit Fit a 1997 Dodge Ram 1500 Short Bed
  • Curt 5th wheel hitch and universal installation kit # C16116 will fit your 1997 Dodge Ram. But since you have a short bed I recommend the slider version, # C16616, so you will have more clearance when making turns while towing. If your truck has the factory 7-Way connector at the bumper you can add an in-bed harness # C56071, that will plug in line with the factory 7-Way. This allows you to have 2 functioning 7-Ways without the need of an extension. If you want to use an extension though...
    view full answer...

  • 5th Wheel Trailer Hitch Install Kit for a 2006 Ford F-250 with Firestone Air Bags
  • There are a few different Firestone kits that fit your 2006 Ford F-250. As long as the kit you have is NOT F2452 you will be able to install a 5th wheel installation kit. For a custom kit for your Reese hitch I recommend the Reese custom installation kit # RP50082-58. I have included a link to the installation instructions and a link to a video showing an example installation for you. You can also use Curt installation kit # C16448-204.
    view full answer...





  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality fifth wheel for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate fifth wheel information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Photos by:
Theodore B
Written by:
Lindsey S
Expert Research:
Robert G
Expert Research:
Michael H
Expert Research:
Jeff D
Expert Research:
Jameson C
Expert Research:
Jeffrey L
Updated by:
Chelsea B
Photos by:
Zach O

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time.




^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
71

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
