B&W Patriot 5th Wheel Trailer Hitch - Dual Jaw - 16,000 lbs

B&W Patriot 5th Wheel Trailer Hitch - Dual Jaw - 16,000 lbs

Item # BWRVK3200

lowest price pledge

Retail:$653.00

Our Price: $598.00

You Save: $55.00
Fifth Wheel

This item qualifies for Free Shipping

Shipping Weight: 146 lbs

Quantity:
In Stock
BWRVK3200 - Hitch Only B and W Fixed Fifth Wheel
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos


  • B and W
  • 16000 lbs GTW
  • Fixed Fifth Wheel
  • Hitch Only
  • Standard - Double Jaw
  • Double Pivot
  • 16 - 19 Inch Tall
  • 4000 lbs TW
The dual jaw on this 5th-wheel hitch offers a secure connection with 360-degree jaw-to-king-pin contact. Durable polyurethane bushings limit rattle and vibration. Base adjusts for ideal vertical and fore/aft positioning. Rails sold separately. Call 800-298-8924 to order B and W fifth wheel part number BWRVK3200 or order online at etrailer.com. Free expert support on all B and W products. Guaranteed Lowest Price and Fastest Shipping for B&W Patriot 5th Wheel Trailer Hitch - Dual Jaw - 16,000 lbs. Fifth Wheel reviews from real customers.


  • All Info
  • Reviews (28)
  • Q & A (113)
  • Videos (1)
  • Photos
  • Why etrailer?

B and W Fifth Wheel - BWRVK3200

The dual jaw on this 5th-wheel hitch offers a secure connection with 360-degree jaw-to-king-pin contact. Durable polyurethane bushings limit rattle and vibration. Base adjusts for ideal vertical and fore/aft positioning. Rails sold separately.


Features:

  • 5th-Wheel hitch mounts in your truck bed so you can tow your 5th-wheel trailer
  • 3/4" Thick dual jaws provide 360-degree jaw-to-king-pin contact
    • Less rattle and more security than slide-bar jaws
  • Cam-action latching handle helps prevent binding
    • Simple release, even on unlevel terrain
    • Lockable to secure trailer to hitch - padlock sold separately
  • Fully articulating head eases hookup and helps to limit chucking
    • Front-to-back and side-to-side pivot
  • Improved cab clearance achieved with 4" of front-to-back adjustment
    • Attach pivot arms to base in desired position fore or aft
  • 4 Height settings to fit your application
  • Quiet, rattle-free ride with polyurethane bushings
  • Base rails and installation kit sold separately
    • Compatible with industry-standard, above-bed rails - B&W, Curt, Draw-Tite, Hidden Hitch, Pro Series, Reese, and Valley
    • Simplify installation with a semi-custom bracket kit (not available for all applications)
  • Gray powder coated steel is corrosion resistant
  • Made in the USA


Specs:

  • Gross towing weight: 16,000 lbs
  • Vertical load limit: 4,000 lbs
  • Hitch height: 16" - 19"
  • Limited lifetime warranty


Quiet, Secure Ride

The 3/4" thick jaw on the Patriot is precision machined to provide a tight, sturdy connection. And unlike slide-bar models, the rounded 2-piece jaw on this fifth-wheel trailer hitch inhibits rattle and movement by securely wrapping around your trailer's king pin, resulting in easier hookup and a safer, quieter ride.


In addition to the sturdy jaw, the Patriot has durable polyurethane bushings built in to provide a smoother, more comfortable towing experience. These bushings sit on top of the pivot arms that support the fifth-wheel head. Because the head is resting on padded area, it is able to pivot without clanking. The ability of the head to pivot - both front to back and side to side - along with the trailer also helps to limit the chucking that may occur with a more static hitch.


Non-Binding Latch Handle

The dual jaw on the Patriot is operated by a simple-to-use cam-action handle. This handle allows you to quickly and easily release the jaws on the hitch, even if you are on uneven terrain. If any binding does occur between your truck and trailer, the jaws may remain closed after you move the handle to the open position. But because the handle is unlatched, there is nothing keeping the jaws closed except for the binding pressure. Therefore, simply driving your truck forward will be enough to force the jaws to open.


The cam-action handle is held in the closed position with the included pin and clip. For extra security, you can replace the pin with a sturdy padlock. The shackle on the lock you choose should have a diameter of 5/16", height of 3", and a width of 2-1/4".


Easily Adjustable Design

The B&W Patriot can be adjusted front to back as well as up and down for optimal positioning. As a result, this hitch can accommodate the height of your trailer and also help to give you the cab clearance needed to execute turns while towing.


Patriot Hitch Arm Positioning Diagram

To adjust either the height of the Patriot or the fore/aft positioning, just attach the hitch's pivot arms in the desired location on the base. The above diagram gives an indication of where to mount the arms so that you get the height and the cab clearance that you need.



RVK3200 B and W Patriot Fifth Wheel RV Hitch



BWRVK3200 Installation InstructionsInstallation Details BWRVK3200 Installation instructions

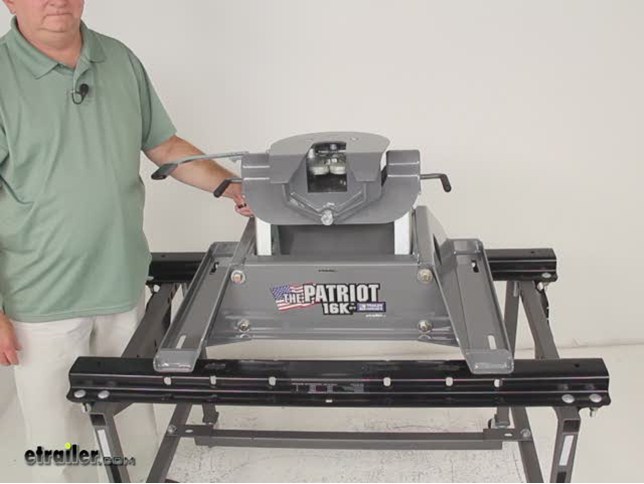

Video of B&W Patriot 5th Wheel Trailer Hitch - Dual Jaw - 16,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for B and W Fifth Wheel - Fixed Fifth Wheel - BWRVK3200 Review

Today were going to review part number BWRVK3200. This is the B and W Patriot fifth wheel trailer hitch. Its a dual jaw design. It has a 16,000 lbs. gross towing weight capacity. This fifth wheel hitch will mount in your truck bed so that you can tow your fifth wheel trailer.

It does use the inch thick dual jaws which will provide 360 degree jaw to kingpin contact. That will give you less rattle and more security then a lot of your slide bar type fifth wheel hitches. Now the dual jaw in this Patriot is operated by this simple to use cam action handle. Basically, let me just rotate this so you will be able to see. Heres a pin and a clip here.

If you remove the clip and then pull the pin out that will release the handle so what youll be able to do is when you push this handle back youll see that the dual jaws will open and youre ready to hook up to the trailer. And when you back up and the kingpin slides in here it will push up against the very back of those jaws and when it does that it will push those jaws closed around the kingpin and will move that handle back into its position to where you can drop the pin through there and put the clip on and its locked and ready to go. This handle will allow you to quickly and easily release the jaws also. Even if youre on uneven ground, basically what will happen is if theres any binding that occurs between the truck and the trailer, what will happen is these jaws may remain closed after you move this handle to the open position. What will happen is because the handle is unlatched, theres a cam in here and if this handle is unlatched theres nothing keeping these jaws closed except for the binding pressure between the truck and the trailer.

So what will happen is when you open this and if theyre still closed, you can actually start to pull forward and that kingpin will push those jaws open. So thats a nice features if you happen to be on uneven ground. And also if you want where this pin and clip goes through the hole, you can put a padlock through there if you like to lock it to make it more secure. We do sell those separately. Now this fifth wheel hitch does have a fully articulating head which will ease hookup and helps eliminate any chucking.

It will, as you can see front to back, it rides on these polyurethane bushings and is a quiet, rattle free ride. It will articulate front to back and then this head part will also move side to side also. Its very hard because theres no weight on it right now. You can also get your cab clearance. You can get more cab clearance if you like with the 4 inches of front to back adjustments. So your fore and aft can be adjusted. Basically the way you do that is how you would attach these pivot arms to your base plate right here and basically on the side of this base plate they have about five rows of five holes, so about 25 holes on each side so these pivot arms can move front to back. Theres even sort of a triangle shape. Let me turn it again and youll see theres sort of a triangle shape. You can actually flip them around. So depending on where you mount in which holes it will give you up to 4 inches of fore and aft adjustment from to back. Now you can also, by where you put them up or down, you have four different height settings to fit your application also. Depending on the lowest setting, it would be about 16 inches hitch height above the truck bed all the way up to the highest setting which would be 19 inches. Now another thing I would recommend is if you go to the product page for this part number, on the product page we have a chart and it will show you when this pivot arms are put in each different position what the measurements it will be. It will give you fore and aft and the height so that will help you out tremendously. Now the base rails and the installation kit are sold separately. It is compatible with your industry standard above bed rails by B and W, Curt, Drawtight, Hidden Hitch Pro Series inaudible 00:03:58 Valley. You can simply the installation with a semicustom bracket kit. You need to check your vehicle to see if one is available. They are not available for all applications, but it will save you some time. This has a grey powder coat on this steel. The steel is grey powder coat finish which is corrosion resistant. It is made in the USA and again the gross towing weight capacity is 16,000 lbs. Vertical load limit or pin weight capacity is 4,000 lbs. The hitch height I had mentioned can be adjusted anywhere fro 16 inches all the way up to 19 inches. It does have a limited five year warranty. The other thing I want to mention to you is when you go to remove this, instead of having to, you dont want to have to move all of this weight all at one time so to make it easier to remove what you can do is these handles right here on the side, they have these rubber coating on them. If you just pull up on these handles you can pick this hitch head up and remove it off these pivot arms and that will save you some weight and then the pivot arms and the baseplate you can take out separately so you dont have to pull the whole thing out of your truck bed. If youre done towing a fifth wheel and you want full access to your truck bed to make it easier you can pull this head off and then pull the base plates out separately. Now one other thing I want to mention is when you do pull this head off what you do want to check is underneath the head in the middle you will notice theres a grease zerk fitting and that grease zerk fitting is made to where you can attach a grease gun to and then you can lube this pivot point right in here to help as far as the movement of the articulating head. That should do it for the review on part number BWRVK3200, the B and W Patriot fifth wheel trailer hitch with the 16,000 lbs. gross weight towing capacity. .


Customer Reviews

B&W Patriot 5th Wheel Trailer Hitch - Dual Jaw - 16,000 lbs - BWRVK3200

Average Customer Rating:  4.9 out of 5 stars   (28 Customer Reviews)

The dual jaw on this 5th-wheel hitch offers a secure connection with 360-degree jaw-to-king-pin contact. Durable polyurethane bushings limit rattle and vibration. Base adjusts for ideal vertical and fore/aft positioning. Rails sold separately.

- BWRVK3200
by:

Solid, reliable hitch, has given us no problems in the time that we have owned it. Very well made product. 577233



- BWRVK3200
by:

SOLID. Hooking up and dropping off trailer was a breeze with the pivoting head unit. I bought this hitch along with the rail and frame mounting kit (BWRVK2401). Easy enough for one person to install, if you have help it would be easier. Had to drop the DEF tank (2015 Ford F-250), would have been nice to have a wire to fish a bolt and locking star washer through from the inside of the frame without dropping the tank. Also have the Airlift 5000 bags installed and had to drill a hole in the drivers side frame mounting bracket for one of the mounting bolts for the air bag. Overall very happy with everything purchased from etrailer. 566493



- BWRVK3200
by:

My first impression of the hitch as I was unpacking it was that the fit and finish was superb. The hardware was easy to work with and good instructions. I also ordered the B&W custom rail installation kit and began installing the rails after assembling the hitch. Again, great fit and finish of the hardware but the instructions might need a little bit of modification. All went well until I finished installing the second rail and test fit the hitch. Because of the tight tolerances, I had to loosen all of the hitch bolts in order to get it to drop into the rail slots and pin it, then re-torque the bolts while mounted on the rails. Also, there is a bracket inside the drivers side frame rail that must be relocated. The almost identical kit from Reese includes a new bracket to remount the old bracket that must be moved. The B&W kit does not have this bracket although it was easy to fabricate one. I am waiting for my new trailer to arrive so I haven't hitched up anything yet. However, I am confident that the B&W hitch will certainly do the job well. I purchased the Patriot hitch based on actual user comments I found on the RV forums and can see now that it is a quality product. 548668



- BWRVK3200
by:

Wow what a big difference my new 16k Patriot hitch has made. Easier to hook up and unhook my 5th wheel. Definitely makes a smoother ride, no up and down, up and down. My only regret is I should have bought it sooner. Thanks for a superior product! 513046



- BWRVK3200
by:

A great, well made American product. Easily assembled if you choose to install it yourself as I did. I am a big fan of the cam lock and handle assembly for the jaws. There is no movement or noise when pulling our 5th wheel. I would recommend this hitch to anyone needing such a product and would recommend you buy it from etrailer. 337957


Comments

It is working great, No problems what so ever..

James R - 02/03/2018

34164

- BWRVK3200
by:

Was not happy when the it was delivered and missing the top half. Through good communication the piece was delivered a month earlier than they said as it was back ordered. Have ordered from them since and like there service and parts. 339522



- BWRVK3200
by:

I bought this hitch to replace a slider hitch from another manufacturer. I wanted something I could get out of the bed without help, and with the 2" offset, I can get plenty of angle in a tight turn, thus eliminating the need for a slider. So far this hitch is fantastic. Hook up is so easy. Handle moves with zero effort. Same for unhooking. As soon as it was installed, I did a test run, and it was rock solid. I tried to make it chuck when starting and stopping. It wouldn't do it. Zero slop. On that note, the tolerances are tight on this thing from the bolt holes to the legs that insert it into the rails. My rails we're not perfectly lined up and required a little dremel and foot stomping to get it in the rails. In summary, if your looking for solid, conventional, non-slider FW hitch, this one is a great choice. 430654


Comments

The hitch has been flawless. I have nothing bad to say about it. Does what it should without any issue.

Sean C - 09/10/2018

43406

- BWRVK3200
by:

B&W (employee owned) produced a very heavy duty American made product. Good assembly instructions (a few minor clarifications would be helpful for those not mechanically inclined), and the hitch worked perfectly the first time. 655739



- BWRVK3200
by:

Easy assemble. Great quality. 652970



- BWRVK3200
by:

Very well made, haven’t used it yet but install was easy and very well laid out 643154



- BWRVK3200
by:

Bitchin hitch. Well built. Solid. Functions well. And I like the look of it. 635522



- BWRVK3200
by:

It went together very nice and tomorrow I'm going to pull my 5th wheel with it. I'm replacing a Reese slider hitch because it makes so much noise. 628361



- BWRVK3200
by:

Product is heavy duty. The packaging is heavy as well, which means no open boxes and lost hardware. Instructions are clear. 628006



- BWRVK3200
by:

Let me start with the hitch worked fine, I was disappointed with the fact I had to bolt it together. I can understand the height and distant part but the main frame for that much money should have been assembled. I saw the bolts in the picture but assumed it was put together. Will see how it holds up and how much it works loose. 616548



- BWRVK3200
by:

Excellent hitch easy to use I had it installed by a shop so no install comments pulling an 2007 Arctic Fox 27-5 608391



- BWRVK3200
by:

Excellent product. Have made several trips and moved hitch to a different truck. Haven’t had any problems. 562565



- BWRVK3200
by:

The Patroit 5th wheel is a great product & value. The fact the 5th wheel plate lifts off makes it much easier to load & unload. Thanks etrailer 547400



- BWRVK3200
by:

The BW Patriot is an excellent hitch for our Jayco 5th wheel. The best thing about it is that it is made in the USA. We installed ourselves and installation was not to difficult with the instructions provided. etrailer was excellent when I placed the order and met my needs when I made a last minute decision to pick up in person instead of having the hitch shipped. 529591



- BWRVK3200
by:

Could not be happier, hitch arrived with no damage, went together very easy, not sure on some complaints of the metal retainers not holding the nuts but I had no problem. Cant wait to try it out. 518809


Comments

Still very happy. Working just as good as the day I got it. Works good, don’t rattle and has never jams up on me like my old Reese hitch

Jeff - 06/08/2019

56357

- BWRVK3200
by:

Received the hitch in two separate shipments in a timely manner. It was easy to assemble and install on my truck. I can not believe how quite the hitch is when I made my test run it was like the trailer was not behind me. Well Done etrailer and B&W 492870


Comments

Outstanding, it is a great hitch and guilt when maneuvering.

Alric - 04/06/2019

51542

- BWRVK3200
by:

Great hitch. Easy to put together. No chucking when pulling the 5th wheel. 490982



- BWRVK3200
by:

I am impressed. The tight fit and use of grade 8 fasteners puts this hitch in a class all its own. Plus the fact its american made with american steel. 478893



- BWRVK3200
by:

I bought the B&W 16K Patriot hitch knowing it was a bolt together hitch. Having said that the process was complicated by nut retainers supplied by B&W were not strong enough to do their designed job. I spoke with B&W about this and they offerd to replace them but the design was the same. The hitch itself, once assembled, is fantastic. It is solid and quiet and the adjustability of the head position makes it very versatile as well. I would recommend the B&W Patriot, but think it would be better if you can, to spend the other $200 and get the welded base 18K model. 404083


Comments

After having this hitch for a year and towing my 34ft 5th wheel for thousands of miles, I would 100 recommend this hitch for anyone considering it. It is solid, quiet, and made and backed by American workers.

Scott L - 07/10/2018

40770

- BWRVK3200
by:

fast delivery, and in excellent conditi on. 397115



- BWRVK3200
by:

Well made and a tight connection to the trailer. 383676



- BWRVK3200
by:

Installed hitch today--worked perfect Already hooked to my fifth wheel leaving in the morning for camp ground 378860



- BWRVK3200
by:

Hitch was easy to assemble and install. For the most part it worked well I was hoping for a little better ride but it is still better than my old hitch. 304941



- BWRVK3200
by:

This product is exactly what I wanted. The product information and instructions were spot on and that to me is what is great. The only thing I might suggest is to install the rails at the time you install the hitch, it makes it easier to line up the rails. 242986


29
29

Ask the Experts about this B and W Fifth Wheel
Do you have a question about this Fifth Wheel?


  • Recommended 5th Wheel Rails and Hitch for 2018 Ram 2500 Tall Bed Rails
  • For your 2018 Ram 2500, we haven't had anyone say they couldn't find a 5th wheel fit. You will want to go with a hitch that has the higher height adjustment and then you'll want to make sure your pin box of your trailer is adjustable as well. I recommend the B&W Patriot 5th Wheel Trailer Hitch # BWRVK3200 which will use standard rails and will adjust up to 19 inches tall. This is a very strong hitch that is made in the USA. For your rails, I recommend the Reese Quick-Install Custom...
    view full answer...

  • B&W 5th Wheel Trailer Hitches for a 2019 Ford F-250 with Factory Prep Package
  • The B&W Patriot 5th Wheel Trailer Hitch # BWRVK3200 is designed to fit industry standard above the bed rails so it is not a fit for the Ford factory prep package that will be in your 2019 Ford F-250. Assuming that the Ford prep package does not change between 2018 and 2019 you will be able to instead use the B&W Companion # BWRVK3300 or # BWRVK3305 for a long bed or use Companion Slider # BWRVK3370 for a short bed. I have linked videos on all 3 of these hitches for you.
    view full answer...

  • Weight of B&W Patriot 16K 5th Wheel Hitch BWRVK3200
  • If you intend to purchase a 5th wheel trailer that has a Revolution or Sidewinder pivoting pin box for use with your 2013 Ram 2500 short bed then you will not need a sliding-type hitch and can use a fixed hitch of your preference. However, the excellent B&W Companion 20K hitch # BWRVK3500-5W, which mounts using the gooseneck install kit # BWGNRK1313-5W, is not compatible with any type of pivoting pin box. You are correct that B&W makes a serious product. Their 5th wheel hitches are produced...
    view full answer...

  • How to Remove Chucking From Fifth Wheel Trailer with Reese Revolution Pin Box
  • Typically it's the fifth wheel hitch that is responsible for chucking and bouncing. A looser fitting jaw to the king pin of the pin box is the number one reason for chucking. You didn't mention what hitch you have, but for a hitch with an excellent jaw design The B and W Patriot part # BWRVK3200 would be a great option. Then for a wedge to fit the hitch to your Reese Revolution the # SWW-06 would be the correct product.
    view full answer...

  • American Made Fifth Wheel Hitch Recommendation with Great Jaw Design
  • Not all fifth wheel jaws are created equal. Some are designed to be lower priced but they will allow quite a bit more noise and "chucking", others are much nicer and will provide a much smoother ride quality. You should note that slider hitches in general have more moving parts so they make more noise/have more movement. Just going to a stationary hitch will make an improvement. For an American made fifth wheel hitch with an excellent jaw design we have the B and W Patriot # BWRVK3200...
    view full answer...

  • Should the 16K or 18K B&W Patriot 5th Wheel Hitch be Used for a 16,000 lb GVWR Trailer
  • You are correct. Even though the 16K B&W Patriot # BWRVK3200 is a great option, if the GVWR of your 5th wheel Montana 3120RL is 16,385 you do want to give yourself a safety margin. We typically recommend having at least 1,000 lbs - 2,000 lbs of "cushion" between the GVWR rating of your trailer the the hitch so the 18K Patriot # BWRVK3255 is the perfect solution. It looks like you put a 2003 Dodge Ram Pickup in as your vehicle. If your Dodge Ram doesn't already have a 7-Way connector...
    view full answer...

  • B and W Patriot Fifth Wheel Hitch and Reese Rail kit for 2018 Chevy Silverado 2500
  • The B and W Patriot hitch you mentioned part # BWRVK3200 is a great USA made hitch that is designed to fit industry standard fifth wheel rails. Any of the rail kits you mentioned will fit this hitch. The Reese kit part # RP56001-53 does fit and would be a great choice. It's an outboard rail kit which means it will install a bit easier than the other ones so it's a great choice. I attached an install video for the rail kit for you to check out as well.
    view full answer...

  • Will the Lippert Turning Point Wedge fit B&W Patriot 5th Wheel Hitch
  • The universal wedge of your Lippert Turning Point will work with the B&W Patriot 5th Wheel Trailer Hitch # BWRVK3200. That said I do recommend using a custom wedge for a better fit, the Custom Wedge for B&W Fifth Wheels # SWW-06; we have had a number of customers tell us that this wedge, which was designed for use with Reese Sidewinders, works perfectly with the similar Lippert Turning point. I have added links to video reviews of the Patriot and wedge for you to check out as well.
    view full answer...

  • Rail Kit Recommendation for 2000 Ford F-350 with B and W Patriot Hitch
  • The B and W Patriot hitch you have # BWRVK3200 is designed to fit the industry standard fifth wheel rail offered by several different manufacturers. So you have a few optoins. The custom install kits are the way to go as they minimize drilling (no frame drilling), and the cut install time down quite a bit as well. I really like the Reese rail kits as they aren't too expensive but you get a great kit and rail setup. So for your 2000 Ford F-350 I'd recomend the Reese kit part # RP50082-58...
    view full answer...

  • Fifth Wheel Hitch Recommendation Quieter than Draw Tite 16k Fifth Wheel Hitch
  • For a 16k fifth wheel hitch to fit the same rails your older Draw Tite fits that will be nice and quiet I recommend the USA made B and W Patriot part # BWRVK3200. This has a 16k capacity and a dual jaw setup that allows it to hold the king pin of the trailer very tightly which translates to a very quiet ride quality. It's also very easy to use and has a reputation as being one of the most reliable and long lasting fifth wheel hitches on the market.
    view full answer...

  • Will the B&W Patriot 5th Wheel # BWRVK3200 Work with RBW Rails
  • The B&W Patriot 5th Wheel Trailer Hitch # BWRVK3200 is designed to work with industry-standard, above-bed rails. If the RBW 5th-Wheel Hitch you currently have for your 2008 Ford F-250 is also designed to attach to industry-standard rails, then the B&W Hitch should work as well. If your current RBW 5th-Wheel Hitch is not designed for industry-standard rails, then you can add the custom install kit and rails, part # BWRVK2400 for your 2008 Ford F-250. You mentioned having an RBW slider...
    view full answer...

  • B and W Companion Hitch Solution for Towing with 2016 Ram 2500 Short Bed with Factory Rail
  • The Demco Ram rail kit adapter part # DM6099 that you referenced will work for you. It is designed to fit the factory rail kit of your 2016 Ram 2500 and it provides a set of industry standard fifth wheel rails like what your B and W Patriot Hitch part # BWRVK3200 would fit. Since your truck is a short bed though you are going to need a slider hitch though to make tight turns. For that the B and W Companion Slider part # BWRVK3670 will fit directly to your truck's rail kit without the...
    view full answer...

  • B and W Patriot Hitch Recommendation for 2008 Chevy Silverado for Use with Sidewinder Pin Box
  • The B and W Patriot hitch part # BWRVK3200 is a fit with a Sidewinder pin box. The correct rail kit you'd need for your 2008 Chevy Silverado 2500HD short bed would then be the # BWRVK2500 which is a custom install rail kit for your truck which will minimize drilling and install time when compared to a universal kit. The correct wedge for this hitch to fit a Sidewinder then is the part # SWW-06.
    view full answer...

  • Curt 5th Wheel Rail Compatibility with B&W 5th Wheel Hitch
  • The B&W Patriot 5th Wheel Trailer Hitch - Dual Jaw - 18,000 lbs # BWRVK3255 or 16K # BWRVK3200 will fit in your Curt 5th Wheel rails and do not require longer pins. The Sliding hitch for short bed trucks # BWRVK3270 also will fit your rails and does not require longer pins either. If you are upgrading your hitch, you may also want to consider adding a wiring harness like # PK11893-11932 for easy connection access.
    view full answer...

  • Compatibility of B and W Patriot 5th Wheel Hitch with Reese Revolution/Sidewinder
  • My contact at B and W has informed me that the Patriot 5th Wheel is compatible with Sidewinder pin boxes. He also tells me that the wedge on the underside of the Reese Revolution pin box (both the universal and hitch specific wedges) are compatible with the Patriot fifth wheel hitch. I have linked you to product demonstration and install videos that you might find helpful.
    view full answer...

  • Can Fifth Wheel Hitch Installed in 2010 Dodge Ram 1500 be Used in 2018 Ram 2500
  • If you have the B and W Patriot fifth wheel hitch part # BWRVK3200 that you referenced you can pretty easily install it in your 2018 Ram 2500 with just a new rail kit. For that all you'd need is the part # BWRVK2602 and you'd be set if your truck does not have the factory fifth wheel rail kit. If instead you do have the factory fifth wheel rail kit you'd want the rail kit adapter part # RP30154 to convert it to a rail set compatible with the Patriot.
    view full answer...

  • Can Demco 5th Wheel Rail Adapter be Used with B&W Patriot 5th Wheel Hitch
  • The Demco 5th Wheel Rail Adapter # DM6099 referenced in your question is confirmed to fit the factory prep fittings on your 2016 Ram 3500. Once mounted, it will provide you with industry-standard, above-bed base rails that are compatible with most fifth-wheel hitches, including your B&W Patriot # BWRVK3200. Your hitch will work perfectly with this adapter on your truck. I have attached a short video demonstration on this rail adapter that you can also check out.
    view full answer...

  • Adapter to Allow Installation of B&W Patriot 5th Wheel BWRVK3200 in Ram 2500 with Factory Prep
  • In order to install your B&W Patriot 16K fixed 5th wheel hitch # BWRVK3200 in your Ram 2500 with factory puck system you will need the Reese adapter kit # RP30154. This adapters drops into the factory pucks and provides the equivalent of industry-standard base rails (ISRs) that will accept the Patriot. Note the fixed Patriot hitch is suitable for use in long bed pickups, such as the 8-foot bed Ram 2500. Also please note that the Reese adapter will add 2-inches of height to the hitch setup.
    view full answer...

  • Adapter Needed to Fit B&W Patriot Hitch to 2016 Ford F-350 Factory Rail Kit
  • We have just what you need. The Reese Ford Rail kit adapter part # RP30156 is confirmed to fit the underbed rail kit of your 2016 Ford F-350 and will allow you to install your older B and W Patriot fifth wheel hitch # BWRVK3200 as it provides the same style of rails that this hitch attaches to.
    view full answer...

  • Will B and W Patriot Fit Rails that a Pullrite Hitch Fit
  • The B and W Patriot Hitches like part # BWRVK3200 are designed to fit industry standard fifth wheel rails. If the Pullrite hitch you had was designed to fit the industry standard rails then this hitch would fit the rails as well. I attached a picture that shows the dimensions of the rails.
    view full answer...

  • Will B&W Fifth Wheel Hitch Work With 2016 Nissan Titan XD Fifth Wheel Adapter
  • I did some research on the fifth wheel adapter from Nissan for your 2016 Titan XD. I found out that when the adapter is inserted in the puck system in the bed of the Titan, it will give you base rails that can work with any industry standard fifth wheel hitch. The B&W Patriot 5th Wheel Trailer Hitch, part # BWRVK3200 will work with these rails, but I recommend using a slider fifth wheel hitch. I recommend the B&W Patriot 5th Wheel Trailer Hitch w/ Slider, part # BWRVK3270. This...
    view full answer...

  • Will B and W Patriot Hitch # BWRVK3200 Fit Curt Fifth Wheel Rail Kit # C16426-204
  • Yes, a B and W Patriot hitch # BWRVK3200 will fit in the Curt Custom Fifth Wheel Installation Kit # C16426-204 that you referenrced.
    view full answer...

  • Can Reese Sidewinder be Used with B and W Patriot Hitch
  • Yes, Sidewinders can be used with the B and W Patriot fifth wheel hitch like the part # BWRVK3200 because unlike the Companion the Patriot uses 4 attachment points at all corners of the hitch. The Companion only uses the center post for attachment and that's why its not compatible with the Sidewinder. For a wedge to lock the head of the hitch to the arm of the Sidewinder you would want the part # SWW-06.
    view full answer...

  • Will B&W Patriot Fifth Wheel Trailer Hitch Fit Industry Standard Rails
  • Yes, the B&W Patriot Fifth Wheel Trailer Hitch # BWRVK3200 fits industry standard rails, like the eese Quick-Install Custom Base Rails and Installation Kit # RP50026-58. However, since your 2016 Ford F-250 Super Duty has the 6-3/4 foot long bed, unless your trailer has a Sidewinder or Revolution pin box, I recommend using the B&W Patriot Slider # BWRVK3270. This hitch travels up to 12 inches giving you more turning clearance and help prevent your trailer from making contact with your truck.
    view full answer...


Do you have a question about this Fifth Wheel?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality fifth wheel for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate fifth wheel information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Photos by:
Jackie C
Expert Research:
Michael L
Written by:
Lindsey S
Expert Research:
Michael H
Expert Research:
Jameson C
Updated by:
Adele M
Expert Research:
Adam R
Photos by:
Jim W
Expert Research:
Jeffrey L
Updated by:
Sarah W

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.
