2" Wide Continuous Stainless Steel Hinge, 6' Long

2" Wide Continuous Stainless Steel Hinge, 6' Long

Item # SH200

lowest price pledge

Retail:$72.63

Our Price: $64.42

You Save: 11%
Enclosed Trailer Parts

Orders above $99 qualify for Free Shipping

Shipping Weight: 6 lbs

Quantity:
In Stock, Ships Today
Polar Hardware Doors - SH200
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Videos


  • Doors
  • Door Hardware
  • Hinge
  • Continuous Hinge
  • Polar Hardware
  • 72 Inch Long
  • 2 Inch Wide
Also called a piano hinge. All continuous hinges rotate 270 degrees, measure 6' in length and come with no holes, making it easy to either weld or drill to specification. Call 800-298-8924 to order Polar Hardware enclosed trailer parts part number SH200 or order online at etrailer.com. Free expert support on all Polar Hardware products. Guaranteed Lowest Price and Fastest Shipping for 2" Wide Continuous Stainless Steel Hinge, 6' Long. Enclosed Trailer Parts reviews from real customers.


  • All Info
  • Reviews (3)
  • Q & A (6)
  • Videos (1)
  • Photos
  • Why etrailer?

Polar Hardware Enclosed Trailer Parts - SH200

Also called a piano hinge. All continuous hinges rotate 270 degrees, measure 6' in length and come with no holes, making it easy to either weld or drill to specification.


Features:

  • Stainless steel construction
  • Rotates 270 degrees
  • No pre-drilled holes - easy to weld or drill to match application

Specs:

  • Flat width 2"
  • Pin size 3/16"
  • Gauge 0.060"
  • Knuckle length 1/2"

SH200, Continuous Piano Hinge, Stainless 2" Wide 3/16" Pin 0.06 Gauge 72" Long



848 2" Wide Continuous Stainless Steel Hinge, 6' Long






Video of 2" Wide Continuous Stainless Steel Hinge, 6' Long


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Polar Hardware Enclosed Trailer Parts - Doors - SH200 Review

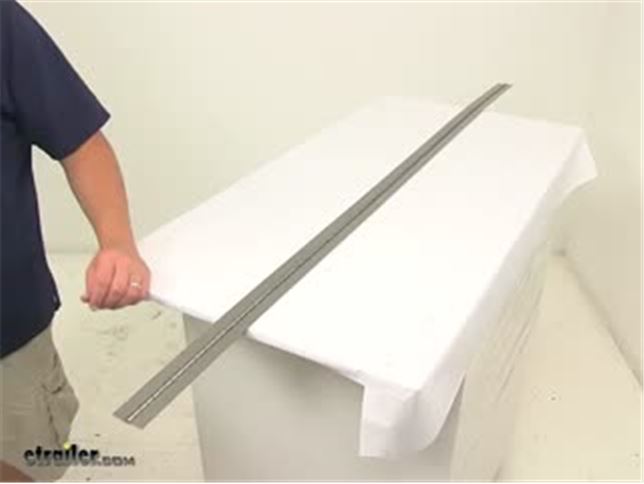

Today, we're going to be taking a look at the two-inch wide continuous stainless steel hinge that measure six feet long. This is also called a piano hinge. These types of hinges are used for a variety of applications. You'll find them on toolboxes, different types of flaps. They're commonly used for trailer ramp doors. This one, in particular, is going to be constructed of a stainless steel construction.

Very strong and durable design. Stainless steel also does a great job at resisting rust and corrosion, so it's going to last a long time. It does rotate two-hundred and seventy degrees. It's got nice, easy, smooth operation. As you'll notice, it does not feature any pre-drilled holes.

That makes it easier for welding applications. What that also does, is it makes it easier to customize this for the fit that you need for your application. You can drill holes along it, where you need it. That way it can fit your needs as best as possible. The only other thing about these hinges, is they can be cut to length.

If you don't need all of six feet, if you only need two feet, measure two from the end. Pick the area between the knuckles, where you can cut and make that cut. It's just a really nice design. The flat width. Right now, I have it flat on the table. If we measure from edge to edge of the unit, it's going to give us a width of two inches.

The pin size, there's going to be an internal pin that runs all through these knuckles here. That pin's going to have a diameter of around three-sixteenths of an inch. The steel that it uses, when it comes to the gauge, that's zero-point-zero-six-zero inches. If we take an overall length measurement, going from edge to edge, it's right on seventy-two inches. Six feet long. When it comes to the knuckle length, that's going to be the length of all the knuckles right here. Each one, individually, is going to measure a half of an inch. That's going to do it for today's look at the two-inch wide continuous stainless steel hinge that measures six feet long.


Customer Reviews

2" Wide Continuous Stainless Steel Hinge, 6' Long - SH200

Average Customer Rating:  4.7 out of 5 stars   (3 Customer Reviews)

Also called a piano hinge. All continuous hinges rotate 270 degrees, measure 6' in length and come with no holes, making it easy to either weld or drill to specification.

- SH200
by:

Great product! I am extremely satisfied with the hinge. I will definitely be a repeat customer. I was a bit disappointed with the shipping. I placed the order on Sunday morning and received an email the same day indicating the order had been shipped. I assumed the product would leave out on Monday morning. I paid extra for 3-Day shipping and expected the product to be delivered by Wednesday (3 days). The extra day through off my plans and delayed my trip out of town. This was a inconvenience to me and others traveling with me. I feel like the extra money spent on expedited shipping was wasted. 377949



- SH200
by:

Great product, worked perfect 331962



- SH200
by:

It is exactly what i was look for. Thank you 47034


3
3

Ask the Experts about this Polar Hardware Enclosed Trailer Parts
Do you have a question about this Enclosed Trailer Part?


  • Which Piano Hinge will Work the Best on a Trailers Ramp Extension
  • Determining between piano hinges, # H300 3 Inch Wide Steel 6 Ft Long or # SH200 2 Inch Wide Stainless Steel Hinge 6 Ft Long, depends what features you find more important for your application. The # H300 hinge will be stronger in that it is an inch wider than the # SH200. Plus, the extra width will allow for more surface area on the hinge to mount to the trailer making for a stronger hinge. However, if weather conditions are a concern, the # SH200 is made of stainless steel. The stainless...
    view full answer...

  • Hinge Recommendations for a 5 Foot Ramp to Support a 1,000 Pound Load
  • The piano style hinges such as # SH200 are fairly stout but what I recommend is a combination of a piano hinge and regular ramp door hinges such as # PLR1902. Since you will be putting a considerable amount of weight on the ramp you want everything to be as strong as possible. The ramp is going to have to be pretty heavy to handle the weight so even though the hinge won't be bearing all the weight of the ramp and the bike it still has to handle the weight of the ramp opening and closing....
    view full answer...

  • Availability of Door Hinge for RC Manufacturing Underbody Toolbox # UB1818-48
  • Yes, I do carry a door hinge for your RC Manufacturing Underbody Toolbox, part # UB1818-48. This toolbox uses a stainless steel piano hinge as the door hinge. To get the correct size hinge, I would recommend to measure the width and length of the hinge you have now. To find out the size you will need, fully open the door of the toolbox and measure the width of the hinge. If the toolbox has a width of 2 inches, you will use the Redline 2 Inch Wide Stainless Steel Hinge, part # SH200....
    view full answer...

  • What Kind of Attachment is Included with the Camco RV Oak Accents Countertop Extension
  • The Camco Oak Accents RV Countertop Extension, # CAM43421, comes with a piano style hinge, similar to # SH200, only shorter. It also has a brace that locks into place while the extension is in the horizontal position.
    view full answer...

  • Steel Ramp That Is 11-Inches Wide To Replace Plywood
  • We do offer ramps that are 11-inches wide but the length is quite a lot longer than the 58-inches you said your ramp is. I recommend a ramp like part # EM07464-2. these ramps fold and are 80-inches long and 11-inches wide. As far as the replacement hinge, I recommend a hinge like part # SH200. This is a 2-inch wide continuous hinge. The hinge is 6-ft long so you will need to cut it to the correct length you need.
    view full answer...

  • Can the 6-Foot Long Stainless Steel Piano Hinges be Cut In Half
  • All of the hinges we sell like # SH150 are 6 feet long. You can certainly trim a 6-foot length as needed provided you use the proper saw with a blade designed to cut metal. Hinge # SH150 is stainless steel, 6 feet long, and 1-1/2 inches wide. Hinge # SH200 is stainless steel, 6 feet long, and 2 inches wide. Hinge # SH300 is stainless steel, 6 feet long, and 3 inches wide.
    view full answer...
