Cam-Action Lockable Door Latch Kit for Large Enclosed Trailers - Zinc-Plated Steel

Cam-Action Lockable Door Latch Kit for Large Enclosed Trailers - Zinc-Plated Steel

Item # PLR258-002

lowest price pledge

Our Price: $50.97

Enclosed Trailer Parts

Orders above $99 qualify for Free Shipping

Shipping Weight: 9 lbs

Quantity:
In Stock, Ships Today
Polar Hardware Doors - PLR258-002
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Videos


  • Doors
  • Door Hardware
  • Door Lock
  • Cam Door Lock
  • Polar Hardware
Steel cam-action door latch is ideal for large trailers and similar applications. Can be installed flush on doors with a 3/4" offset. Positive double-action handle protects against in-transit jarring. 3/4" Pipe not included. Call 800-298-8924 to order Polar Hardware enclosed trailer parts part number PLR258-002 or order online at etrailer.com. Free expert support on all Polar Hardware products. Guaranteed Lowest Price and Fastest Shipping for Cam-Action Lockable Door Latch Kit for Large Enclosed Trailers - Zinc-Plated Steel. Enclosed Trailer Parts reviews from real customers.


  • All Info
  • Reviews (8)
  • Q & A (8)
  • Videos (1)
  • Photos
  • Why etrailer?

Polar Hardware Enclosed Trailer Parts - PLR258-002

Steel cam-action door latch is ideal for large trailers and similar applications. Can be installed flush on doors with a 3/4" offset. Positive double-action handle protects against in-transit jarring. 3/4" Pipe not included.


Features:

  • Cam-action door latch is ideal for side or rear doors on large trailers
  • Bridge-type hasp helps prevent accidental opening and ensures safe latching action
    • Can be locked with padlock (sold separately)
  • Narrow, wraparound keepers are ideal for rear door or side door applications
  • Double-action handle assembly ensures simple, secure latching and helps protect against in-transit jarring
    • Flip the handle keeper on the hasp latch up and lift the handle to release
    • Rotate the handle to either release or engage the cams
  • Zinc-plated steel construction provides durability and corrosion resistance
  • Black vinyl grip on handle makes it comfortable to use
  • Includes:
    • 1 Top keeper
    • 1 Bottom keeper
    • 1 Top lug
    • 1 Bottom lug
    • 3 Top pipe retainers
    • 3 Bottom pipe retainers
    • 1 Handle assembly
    • 1 Hasp
  • Simple bolt-on installation
  • Required 3/4" standard pipe and hardware are not included


Specs:

  • Hasp dimensions: 5-1/8" tall x 2" wide
    • 3-3/4" From center of hole to center of hole
    • Lock hole diameter: 1/2"
  • Retainer dimensions: 4" tall x 1-1/2" wide
    • Measures 2-13/16" from center of hole to center of hole
  • Handle length: 14"
  • Mounting hole diameter: 13/32"


258-002 Polar Heavy Duty Cam Action Door Lock for Enclosed Trailers - Steel






Video of Cam-Action Lockable Door Latch Kit for Large Enclosed Trailers - Zinc-Plated Steel


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Polar Hardware Enclosed Trailer Parts - Doors - PLR258-002 Review

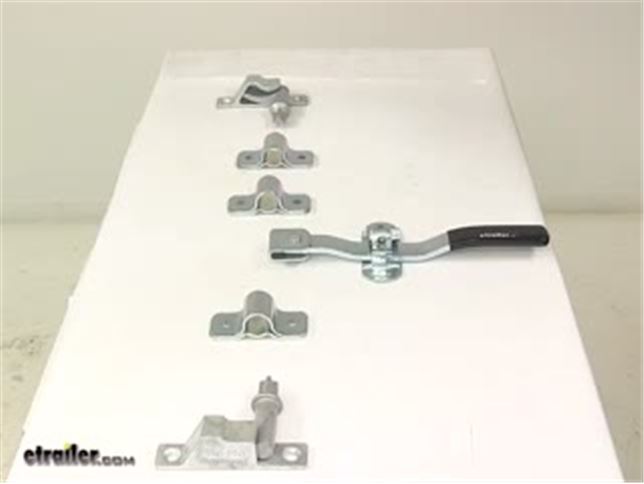

Today we're gonna be taking a look at the polar hardware heavy duty cam action door lock for enclosed trailers. This unit allows you to add - or replace an old or damaged - cam action door lock on your trailer. I do have it laid out in the way that it would install typically. The unit is made from a strong, durable steel construction. It is designed for flush to three-quarter inch off-set doors and is universal for the right or left hand doors. It can be used for side or rear door applications.

It does feature a bridge-type keeper that prevents accidental opening and ensures safe-locking action. The handle on the unit - this is going to measure about thirteen and three quarters of an inch long. Really nice thick steel construction. And, it's got a coated end on it right here, which gives the unit a really nice, easy grip - easy to handle design. Now this handle is designed to weld onto the pipe, so that really helps eliminate the need to have to cut the pipe. Your pipe is not included. This calls for a standard three-quarter inch inner diameter pipe, which will need to be provided separately or on your own.

When it comes to the extension from the trailer body for this unit, we're looking at one and three quarters of an inch extension. The islet right here - this is called the padlock or seal-eye - that gives us a diameter of a half inch. The keeper, that's gonna give us a width measurement around two inches and there's a mount located right here and a mount hole located right here. Now, all the holes on this unit will accept three eighth inch diameter hardware. Now any hardware is not included so that will need to be provided separately, as well. Padlock is not included either, so if you're interested in something like that you can check out some options at etrailer.com.

That length of that keeper bracket is gonna be about five to five and one-eighth of an inch long. A few other things that I wanna mention for you real quick is just the mount hole separation. So we have our keepers right here, these are really nice as well. Nice narrow design, which makes them great for using on a rear door or on a side door of your enclosed trailer. Then you got the pieces that connect to the top and bottom of the pipe.

But, I just wanna give you the mount hole separation on these and then I'll give you the mount hole separation on the other brackets that come with it that go around the pipe. So, center on center, the distance between our holes, we're looking at four and three-quarters of an inch. And then, center on center, the distance between these mount holes: these are gonna be separated on center by about three and one-eighth of an inch. That's gonna do it for today's look at the polar hardware heavy duty cam action door lock for enclosed trailers.


Customer Reviews

Cam-Action Lockable Door Latch Kit for Large Enclosed Trailers - Zinc-Plated Steel - PLR258-002

Average Customer Rating:  5.0 out of 5 stars   (8 Customer Reviews)

Steel cam-action door latch is ideal for large trailers and similar applications. Can be installed flush on doors with a 3/4" offset. Positive double-action handle protects against in-transit jarring. 3/4" Pipe not included.

- PLR258-002
by:

The unit works great for my application. I used it on a door for a wine cellar where the door needs to close tightly against the weather strip. 473589



- PLR258-002
by:

Parts arrived a day sooner than expected. And the y were exactly what I wanted. 546037



- PLR258-002
by:

This product worked great. It was a good fit and took care of my problem. 478244



- PLR258-002
by:

came a day before they said it was a very good product and i would buy from e trailer again and tell a freind thxs 321594



- PLR258-002
by:

Excellent made product 319813



- PLR258-002
by:

great product,very fast ship ,would buy again from etrailer 317599



- PLR258-002
by:

Heavy Duty 310795



- PLR258-002
by:

I bought this set to replace the worn and bent latches on my recycling truck. The package arrived quickly and contained everything as ordered. I was actually pleasantly surprised that this set is much heavier duty than I was expecting, and much better quality than the set I originally built the truck with (sourced locally). This is a very nice quality set that will last years longer than my existing door latches. Thanks eTrailer! 303294


8
8

Ask the Experts about this Polar Hardware Enclosed Trailer Parts
Do you have a question about this Enclosed Trailer Part?


  • Dimensions of Cam-Action Lockable Door Latch for Large Enclosed Trailers
  • The Cam-Action Lockable Door Latch Kit for Large Enclosed Trailers - Stainless Steel # PLR258-002-SS has the following dimensions as I measured them in our warehouse: Hasp dimensions are 5-1/8" tall x 2" wide 3-3/4" From center of hole to center of hole Lock hole diameter: 1/2" Retainer dimensions: 4-1/2 tall x 1-1/2" wide Measures 3-1/8" from center of hole to center of hole Handle length: 14" Mounting hole diameter: 13/32" Keeper dimensions: 5-1/8" long x -1-1/2" wide Measures...
    view full answer...

  • Bar Dimensions Compatible With Polar 258-002 Cam-Action Lockable Door Latch Kit
  • I went out to our warehouse to take measurements of the Cam-Action Lockable Door Latch Kit for Large Enclosed Trailers - Zinc-Plated Steel # PLR258-002. The bar you will need is 3/4 inches inner diameter and can be up to 1-1/8 inches outer diameter to fit in the brackets and move properly. I've attached a photo to assist.
    view full answer...

  • Will the Polar Heady Duty Camp Action Door Lock Work to Latch Horse Trailer Dutch Doors to Ramp
  • The Polar Heavy-Duty Cam Action Door Lock for Enclosed Trailers # PLR258-002 that you referenced will work well for you to add dual cam door locks to the dutch doors and ramp of your horse trailer. This cam action door lock can work for both right or left hand doors, so the same part number with work for both of the dutch doors on your trailer. The # PLR258-002 is designed for use with a 3/4 inch pipe, which is not included. This pipe can be found at your local hardware store.
    view full answer...

  • Cam Style Trailer Door Latch Recommendation For Limited Clearance Area for Brackets
  • The big difference between the Cam Door Latch # PLR458-018 and the # PLR658-002 is the robustness of the pipe mount on the handle side. The # PLR658-002 is more for heavy duty applications and comes with bushings for the pipe to mount in. This requires a 1-5/16 inch diameter pipe and the other requires 3/4 inch diameter. That said, since you said you only have a space of 2-7/16 inches for the bottom bracket to fit you'd actually want the part # PLR258-002 instead as it has a smaller...
    view full answer...

  • Are There Dimensions Required for Use when Installing the Polar Cam Action Door Lock # PLR258-002
  • When you install the Polar Heavy Duty Cam Action Door Lock # PLR258-002 You basically will want to mock it up on the trailer in the position you need it and then mark those locations so that when you permanently mount everything it all fits together well. If you are asking about the appropriate distance between the cams at the bottom of the pole and the pipe mounting brackets that really just depends on the setup. There isn't an exact distance required there. But I would try to get it as...
    view full answer...

  • Dimensions of Keepers on Lockable Door Latch
  • The bottom keeper on Cam-Action Lockable Door Latch Kit # PLR258-002 measures roughly 5-1/8" x 2", while the top keeper measures roughly 3" x 1-3/8". I made a diagram which displays these dimensions, and have also linked a review video for you to take a look at.
    view full answer...

  • Replacement Latches for 2002 Platinum LQ Horse Trailer
  • We may have a solution for you though we do not have parts specific to trailers so you would need to find something compatible with your current latches. The Cam-Action Lockable Door Latch Kit w/ Wide Hasp # PLR258-002 may be an option, as could side door lock # PLR3057. I will link our selection of available door hardware for you to take a look at. If you can get back to me with a photo of what you need I may also be able to help you that way.
    view full answer...

  • Replacement Hasp for Polar Cam-Action Latch Kit
  • Replacement Hasp # PLR258-101 can be used as a stand alone item but it is a replacement for the hasp that comes with Cam-Action Lockable Door Latch Kit # PLR258-002. It does not sound like what you are looking for though. To determine if we have what you are looking for I would need to see it. If you can please email me a picture.
    view full answer...
