Cam-Action Lockable Door Latch Kit w/ Wide Hasp for Small Enclosed Trailers - Zinc-Plated Steel

Cam-Action Lockable Door Latch Kit w/ Wide Hasp for Small Enclosed Trailers - Zinc-Plated Steel

Item # PLR158

lowest price pledge

Retail:$64.80

Our Price: $41.05

You Save: 37%
Enclosed Trailer Parts

Orders above $99 qualify for Free Shipping

Shipping Weight: 6 lbs

Quantity:
In Stock, Ships Today
PLR158 - Door Hardware Polar Hardware Doors
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos


  • Doors
  • Door Hardware
  • Door Lock
  • Cam Door Lock
  • Polar Hardware
Steel cam-action door latch with 2" wide hasp is ideal for small enclosed cargo trailers. Can be installed flush on doors with a 3/4" offset. Positive double-action handle protects against in-transit jarring. 3/4" Pipe not included. Call 800-298-8924 to order Polar Hardware enclosed trailer parts part number PLR158 or order online at etrailer.com. Free expert support on all Polar Hardware products. Guaranteed Lowest Price and Fastest Shipping for Cam-Action Lockable Door Latch Kit w/ Wide Hasp for Small Enclosed Trailers - Zinc-Plated Steel. Enclosed Trailer Parts reviews from real customers.


  • All Info
  • Reviews (19)
  • Q & A (7)
  • Videos (1)
  • Photos
  • Why etrailer?

Polar Hardware Enclosed Trailer Parts - PLR158

Steel cam-action door latch with 2" wide hasp is ideal for small enclosed cargo trailers. Can be installed flush on doors with a 3/4" offset. Positive double-action handle protects against in-transit jarring. 3/4" Pipe not included.


Features:

  • Cam-action door latch is ideal for side or rear doors on small utility trailers, vans, and trucks
  • Bridge-type hasp helps prevent accidental opening and ensures safe latching action
    • Can be locked with padlock (sold separately)
  • Double-action handle assembly ensures simple, secure latching and helps protect against in-transit jarring
    • Flip the handle keeper on the hasp latch up and lift the handle to release
    • Rotate the handle to either release or engage the cams
  • Zinc-plated steel construction provides durability and corrosion resistance
  • Black vinyl grip on handle makes it comfortable to use
  • Includes:
    • 1 Top keeper
    • 1 Bottom keeper
    • 1 Top lug
    • 1 Bottom lug
    • 4 Top pipe retainers
    • 4 Bottom pipe retainers
    • 1 Handle assembly
    • 1 Wide hasp
  • Simple bolt-on installation
  • Required 3/4" standard pipe and hardware are not included


Specs:

  • Hasp dimensions: 5-1/8" tall x 2" wide
    • 4" From center of hole to center of hole
    • Lock hole diameter: 1/2"
  • Keeper dimensions: 5-1/8" long x 1-3/8" wide
    • Measures 4" from center of hole to center of hole
  • Retainer dimensions: 4" tall x 1-1/2" wide
    • Measures 2-13/16" from center of hole to center of hole
  • Handle length: 14"
  • Mounting hole diameter: 13/32"


158 Universal Cam-Door Lock for Enclosed Trailers - 2" Hasp

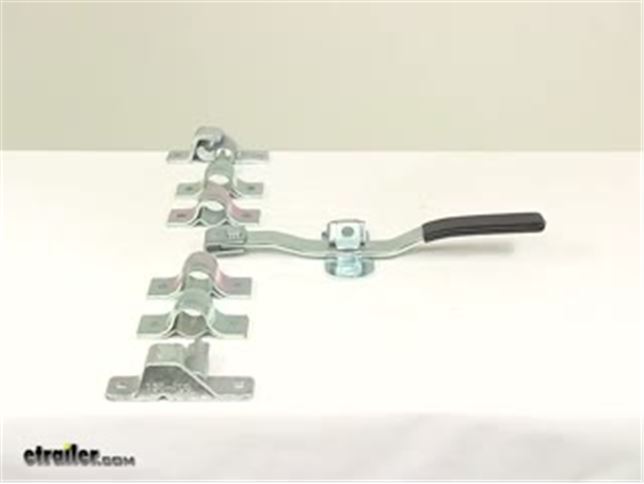

Video of Cam-Action Lockable Door Latch Kit w/ Wide Hasp for Small Enclosed Trailers - Zinc-Plated Steel


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Polar Hardware Enclosed Trailer Parts - Doors - PLR158 Review

Today we're going to be taking a look at the Polar hardware universal cam door lock for enclosed trailers. This plain finish cam lock is for all van bodies, trucks, and trailers. It's ideal for side door and rear door enclosed cargo trailer applications. The lock can be installed on flush to 3/4" offset doors. I do have it laid out for you in the way that it would install. Obviously on a table it is more compact, but this does give me an idea of how the unit would install to a trailer door application. It's made from a strong, durable steel construction.

It's going to feature a bridge type keeper that prevents accidental opening and ensures safe locking action. The positive double action handle gives dual protection against in transit jarring. This handle is designed to weld onto a pipe which eliminates cutting the pipe. It's designed to be used with a 3/4" inner diameter pipe which is not supplied, so that does need to be provided separately. You'll see here that this rotates up and out of the way. Here's your handle that allows to open.

Comes back down, and then you can install a clip or a lock on there. This will accept a shackle diameter up to 1/2". The unit's also going to feature all the other components, the handle has a nice coated end on it for an easy grip design. It's going to have the 3/16" thick bearing covers. It's a nice durable design as well.

Then the bearings right here go into the end of the 3/4" inner diameter pipe, and then they rotate under for a nice secure closure and security. When it comes to the keeper right here, that's going to give us a width of 2". Then the overall length of the keeper, that's going to measure 5" long. When it comes to the mount hole diameter for the pipe brackets and holders, these are 13/32" when it comes to the diameter, so these holes will accept 3/8" diameter hardware. The pipe brackets are a 2 piece construction. Again, everything is a steel construction, nice durable design.

Then this handle's going to measure 13 3/4" long. That's going to do it for today's look at the Polar hardware universal cam door lock for enclosed trailers.


Customer Reviews

Cam-Action Lockable Door Latch Kit w/ Wide Hasp for Small Enclosed Trailers - Zinc-Plated Steel - PLR158

Average Customer Rating:  4.8 out of 5 stars   (19 Customer Reviews)

Steel cam-action door latch with 2" wide hasp is ideal for small enclosed cargo trailers. Can be installed flush on doors with a 3/4" offset. Positive double-action handle protects against in-transit jarring. 3/4" Pipe not included.

- PLR158
by:

trailer is working great. great parts. thank-you 574443



- PLR158
by:

I needed some trailer parts for a quick turn-around project, and called etrailer. The sales person was awesome. I ordered on Friday and received parts on Monday. Perfect! 371519



- PLR158
by:

PRODUCT RECEIVED IN GOOD CONDITION. HOWEVER IT APPEARS WE ORDERED THE WRONG PART. WE WERE AFTER A LATCH AS APPEARS ON THIS E-MAIL BUT WHA WE GOT WAS A CAM ACTION LOCKABLE DOOR LATCH KIT WE ARE GOING TO BE ABLE TO USE THIS PRODUCT I WILL HAVE TO REVIEW WITH MY ASSOCIATE IN THEMORNING TO MAKE SURE HE ORDERED THE CORRECT PART 471360



- PLR158
by:

Received as promised - no problems - Wish I could have just ordered bottom latch as that is all I needed as the old one was lost on highway! 427664



- PLR158
by:

This Product saved us quite a bit of problems and would recommend it to anyone. Service was outstanding and was shipped in a timely manner even to Canada. 372937



- PLR158
by:

Etrailer had all the parts I needed for my project. Delivery was prompt and the customer support was great! I have been enjoying my smoker for well over a year and the door latches work great! Dave 623208



- PLR158
by:

Worked great would buy Again. 614075



- PLR158
by:

The order has arrived, thank you. 592149



- PLR158
by:

We are a welding shop and used the latch to repair a trailer for a customer. It bolted easy and worked great. 579128



- PLR158
by:

i have ordered with you folks a couple of times. very satisfied with the products and the transactions. keep up the great work. 516222



- PLR158
by:

Product arrived quickly - happy to see it was sturdy and well made. We welded it to a dump trailer and it's working well. 482473



- PLR158
by:

good 477153



- PLR158
by:

Used these in a 32' haulmark cargo trailer I re built. Well built and plenty heavy duty. Just cut your tubing to the length needed, and weld in the latch hooks, weld on the handle and your good to go 457665



- PLR158
by:

Works great 395353



- PLR158
by:

I have not done a review before; however the shipping and the quality of the items is unbelievable it force me to make the time. I am not making this statement based on just one order but on three over the last year. So with this statement etrailer.com is now the first place that we look. The promptness of the shipping is fantastic. On a scale from 1 to 10 on the shipping & quality they both are a 10! As for the price, they are very very good, you may save a buck or two but the quality is well worth every cent and when towing equipment id rather be safe than sorry!!!! 344887



- PLR158
by:

Price was good . Quick delivery . 325058



- PLR158
by:

Great quality product, excellent servic e!! 314624



- PLR158
by:

I was very happy with the product. Can't wait to put them on the leaf box. Fast shipping 306097



- PLR158
by:

Parts came as promised and quickly enough. Very satisfied with product and would purchase from here again 255289


19
19

Ask the Experts about this Polar Hardware Enclosed Trailer Parts
Do you have a question about this Enclosed Trailer Part?


  • Replacement Parts for Rear Door on 2006 CM Horse Trailer
  • It sounds like you are looking for replacement parts for a 2-point cam-door lock. We have many such kits, shown on the linked page, both kits that include the pipe like # 305736 and kits that do not, such as Universal Cam-Door Lock # PLR158. For this you would need to re-use your pipe (so long as it is 3/4-inch inner diameter) or supply a new one. For such an installation you will need to weld the handle to the pipe.
    view full answer...

  • Replacement Cam Door Hasp for Enclosed Trailer
  • Sounds like you are looking for the part # PLR158 which is basically the cam door latch that you mentioned without the bar. Or if you need just the hasp part we have the # 158-101.
    view full answer...

  • Material of Polar Universal Cam-Door Lock for Enclosed Trailers with 2 Inch Keeper
  • The Polar # PLR158 with 2 inch keeper is made of steel construction. The # PLR158 takes 3/4 inch I.D. sized pipe. If you prefer a 1 inch keeper the Polar # 383200 is also made of steel construction and takes a 3/4 inch I.D. sized pipe.
    view full answer...

  • Recommended Side-Door Lock Assembly For Enclosed Trailer With 24-Inch Gate
  • The handle and lock I recommend for your trailer is part # PLR3057-SS. This is a stainless steel lock. This system does not come with the required 3/4-inch pipe but you would be able to use a 24-inch length of pipe to work for your trailer. A couple other kits you may want to check out are part # PLR158 which attaches to a 3/4 inch pipe, or if you want ot use a 1-inch pipe you can check out part # 383200. The kits that you mentioned like part # 305736 that come with the pipe...
    view full answer...

  • How Does Handle of the Cam-Action Lockable Door Latch Kit # PLR158 Attach to Bar
  • The keeper and lug of the part # PLR158 are the two pieces that mesh together to hold the door shut like you mentioned. The handle of this gets welded to the bar. I attached a review video for this for you to check out as well.
    view full answer...

  • Mounting Hole Spacing Between Cam Door Lock # 3057-55 and Existing Door Lock Don't Match Up
  • Across different brands and sizes of bar lock assemblies, such as # 3057-55, I am certain there is more than one possible bolt pattern. What I recommend is a version that does not come with a bar such as # PLR158 so you can provide your own bar at the appropriate length. Otherwise you could line up either the top set of holes or bottom set of holes on the door and then drill new ones for the other bracket for # 3057-55.
    view full answer...

  • Trailer Lock for Toy Hauler Door
  • While we do not have any specific replacement parts we do have some options but you will need to replace the latch system (unfortunately the second picture you mentioned did not come through). For example, you may be able to use the 55" Lock Side-Door Bar Lock Assembly # 3057-55 or the Cam-Action Lockable Door Latch Kit # PLR158. I have added links to video reviews of these locks for you to take a look at as well as a link to our entire selection of locks so you can see if there is...
    view full answer...
