Superwinch LT3000ATV Winch - 3K

Item # SW1130220

lowest price pledge

Retail:$215.30

Our Price: $146.41

This item qualifies for Free Shipping

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

3d view icon
superwinch electric winch planetary gear load holding brake
superwinch electric winch load holding brake 1.0 hp lt3000atv - 3k
superwinch electric winch planetary gear 1.0 hp sw1130220
superwinch electric winch planetary gear load holding brake sw1130220
superwinch electric winch atv load holding brake lt3000atv - 3k
superwinch electric winch atv 1.0 hp
superwinch electric winch load holding brake 1.0 hp sw1130220
superwinch electric winch atv 1.0 hp lt3000atv - 3k
superwinch electric winch atv planetary gear lt3000atv - 3k
superwinch electric winch atv planetary gear
superwinch electric winch atv load holding brake sw1130220

In Use/Installed

2006 yamaha kodiak electric winch superwinch planetary gear 1.0 hp sw1130220
2006 yamaha kodiak electric winch superwinch load holding brake 1.0 hp sw1130220
2006 yamaha kodiak electric winch superwinch planetary gear 1.0 hp sw1130220
2006 yamaha kodiak electric winch superwinch atv load holding brake lt3000atv - 3k
2006 yamaha kodiak electric winch superwinch atv planetary gear lt3000atv - 3k
2006 yamaha kodiak electric winch superwinch atv load holding brake sw1130220
2006 yamaha kodiak electric winch superwinch planetary gear load holding brake in use
2006 yamaha kodiak electric winch superwinch atv planetary gear in use
2006 yamaha kodiak electric winch superwinch planetary gear load holding brake sw1130220
2006 yamaha kodiak electric winch superwinch atv load holding brake lt3000atv - 3k
2006 yamaha kodiak electric winch superwinch atv 1.0 hp in use
2006 yamaha kodiak electric winch superwinch planetary gear load holding brake sw1130220
2006 yamaha kodiak electric winch superwinch atv 1.0 hp lt3000atv - 3k
2006 yamaha kodiak electric winch superwinch atv 1.0 hp in use
2006 yamaha kodiak electric winch superwinch planetary gear load holding brake in use

Customer Photos

superwinch electric winch atv load holding brake sw1130220
superwinch electric winch atv load holding brake sw1130220
superwinch electric winch atv load holding brake lt3000atv - 3k
superwinch electric winch planetary gear load holding brake sw1130220

  • ATV Winch
  • Superwinch
  • Wire Rope
  • Standard Duty
  • 1.0 HP
  • Medium
  • Load Holding Brake
  • Fast
  • Planetary Gear
Superwinch electric winch for your 2013 Honda TRX 420 are available from etrailer.com. Installation instructions and reviews for your Honda electric winch. Expert service, and cheapest electric winch price guarantee. etrailer.com carries a complete line of Superwinch products. Order your Superwinch LT3000ATV Winch - 3K part number SW1130220 online at etrailer.com or call 800-298-8924 for expert service.



2013 Honda TRX 420 - Superwinch LT3000ATV Winch - 3K


Features:

  • Rated line pull: 3,000 lbs
  • Sealed 1.2 HP permanent magnet motor
  • 1-Stage planetary motor
  • Gear ratio: 136:1
  • Sealed solenoid, circuit breaker protected
  • Free-spooling, ergonomic control clutch
  • Automatic brake
  • Handle bar mounted rocker switch
  • Wire rope 3/16" x 50'
  • Heavy-duty, clevis pinned latch hook
  • Heavy-duty 4-way roller fairlead
  • 12' Hand-held remote
  • Dimensions: 13.2" L x 4-1/4" W x 4-1/4" H
  • Drum diameter: 2"
  • Drum length: 2-7/8"
  • Mounting bolt pattern: 3" x 4-7/8"
  • Line pull: 0 lbs -15 Amps motor draw / 27 FPM (8.3 MPM) line speed
  • Line pull: 3,000 lbs - 180 Amps motor draw / 4 FPM (1.2 MPM) line speed
  • 2-Year limited warranty

1130220 Superwinch LT3000ATV Winch - 3K - 12V



SW1130220 Installation InstructionsInstallation Details SW1130220 Installation instructionsSW1130220 Installation InstructionsAlternate Instructions SW1130220 Installation instructions

Economy - This item

Superwinch LT3000ATV Winch - 3K


Superwinch LT3000ATV Winch - 3K
Superwinch Electric Winch

41 reviews

Code: SW1130220

In Stock

Retail:$215.30

Our Price: $146.41


  • Electric Winch
  • ATV Winch
  • Planetary Gear
  • Medium
  • Standard Duty
  • Load Holding Brake
  • Fast
  • 1.0 HP
  • Wire Rope
  • Superwinch
Compare Similar Products
Economy
Price: $116.14
$30.27 Less

Superwinch LT2000 ATV Winch, 2,000 lbs


Superwinch LT2000 ATV Winch, 2,000 lbs
Superwinch Electric Winch

41 reviews

Code: 1120210

In Stock

Retail:$171.65

Our Price: $116.14


  • Slow
  • Light Duty
  • Non-Load Holding Brake
  • Slow
Value
Price: $209.03
$62.62 More

Superwinch Terra Series ATV Winch - Wire Rope - Roller Fairlead - 2,500 lbs


Superwinch Terra Series ATV Winch - Wire Rope - Roller Fairlead - 2,500 lbs
Superwinch Electric Winch

13 reviews

Code: SW1125220

Only 2 in stock. Order soon.

Retail:$305.84

Our Price: $209.03


  • Fast
  • Light Duty


The fully sealed Terra winch is built to handle all your ATV work and recreation activities. It has a heavy-duty, 1.3-hp motor; free-spool clutch; 50' wire rope and roller fairlead; hand-held remote; and a rocker switch for in-seat winching.

more information →
Premium
Price: $382.40
$235.99 More

Superwinch Terra Series ATV Winch - Synthetic Rope - Hawse Fairlead - 4,500 lbs


Superwinch Terra Series ATV Winch - Synthetic Rope - Hawse Fairlead - 4,500 lbs
Superwinch Electric Winch

13 reviews

Code: SW1145230


Retail:$528.46

Our Price: $382.40


  • Heavy Duty
  • Medium
  • 2.0 HP
  • Synthetic Rope


The fully sealed Terra winch is built to handle all your ATV work and recreation activities. It has a heavy-duty, 1.6-hp motor; free-spool clutch; 50' synthetic rope and hawse fairlead; hand-held remote; and a rocker switch for in-seat winching.

more information →

Related Products



2013 Honda TRX 420 Owners Who Purchased this Electric Winch Also Bought...



Replacement parts available for this product

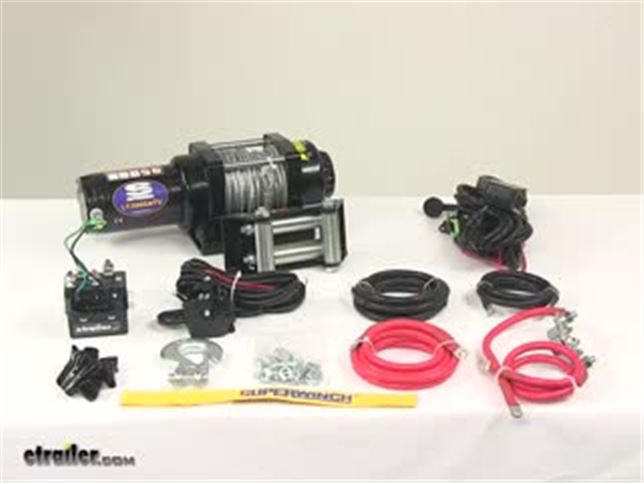

Video of Superwinch LT3000ATV Winch - 3K


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Superwinch Electric Winch SW1130220 Review

Today, we're going to be taking a look at the Superwinch LT 3000 ATV winch. This winch is going to be the perfect addition to your ATV or UTV. It can be used for a variety of other applications as well. It's going to feature a sealed 12-volt DC 1.2 horsepower permanent magnet motor. It's going to offer a rated line pull of 3,000 pounds. The solenoid, which is this component here, is completely sealed, and the winch itself is circuit-breaker protected. Now, when installing the winch, the solenoid should be mounted close to the battery, really nice, small, compact design when it comes to the design of the solenoid.

The gear ratio for the winch is 136 to 1. It's going to use a planetary gear train. It features mechanical and dynamic automatic breaking. The winch does come with a galvanized wire rope, and it's also going to come with a latched hook that attaches it or makes it very easy connecting. That's a quarter inch forged grade 70 hook. It's also going to come with a hand saver strap that attaches to the hook.

That way, when the winch is in free spool mode, you can grab the hand saver strap and pull the line out to where you need it quickly and easily. The wire rope measures 50 feet long. It's going to have a diameter of 3/16 of an inch. The Heavy-Duty 4-Way Roller Fairlead, which is this component here .. This is going to do a great job at protecting the wire rope and it's going to ensure proper re-spooling as well as ensuring that the wire extends out correctly as well.

This is a neat design. It mounts directly to the attachment points here on the mounting plate that is included with the winch. It's going to feature an ergonomic free-spooling clutch that allows for fast and easy release of the wire rope. Again, that way you can take it to where you need it quickly and easily. It's located right here. It's got a nice grip design on it, so right now, it's engaged, meaning, it's ready for winching.

If you want to disengage it or move it to a free spool mode, just grab this handle, flip it over, and really there's all there is to it. It's very easy to do that. Now a few other components that you're going to notice laid out here on the table that I just want to talk about briefly . The unit does come with a handlebar mounted rocker switch. That's this right here. This is going to allow you to control the wench from the seat of your ATV. It's got the mounts that come with it and again, that's a simple rocker switch. It has an in and out function which controls the direction of the line. Then, all the wiring is going to be protected. This would connect directly to the matching connectors here on the solenoid. I also want to mention that it's going to come with a 12-foot handheld remote. That's this right here. That way you can stand off to the side. You can operate the winch from a safe distance. It's going to be the same design as the other one, in and out functions. Again, this is going to connect into the solenoid. This has a multi-connect design because what you can do is you can actually connect the rocker switch, the handlebar mounted one, and the handheld one, at the same time. That way, you have your choice of which one you need to use depending on what situation you find yourself in. Again, this connects to the solenoid and then right here provides the connection point for the handheld remote that you just plug in. Then you're going to have a distance of about 12 feet when it comes to being able to operate that. Really neat design. The winch is a nice compact unit. A few measurements that I just want to mention for you real quick: It's going to give us an overall link from edge to edge of about 13 and a 1/4, an overall width or depth of about 4 3/8 of an inch, and an overall height of about 4 1/2 inches tall. That's just the winch itself. If the winch is used on the mounting plate that it comes with, which is going to be this plate right here, a nice steel design with the powder-coated finish on it. That way, it doesn't rust or corrode. The measurement do change a little bit. Instead of 4 1/2 inches tall, you're now going to be 4 1/4 inch tall. Instead of 4 3/8 inch wide or deep, the unit with the fairlead installed is now going to be about 7 1/2 inches deep. Hopefully these measurements will help determine whether or not this is going to fit on your particular application. The drum diameter on the unit is 2 inches. The drum length is 2 7/8 of an inch. The mounting pattern, that's the mounting bolt pattern, basically what that is is that's the distance between these holes on center. These holes line up with the holes on the bottom of the plate. When it comes to the mounting bolt pattern, these holes right here are separated on center by 3 inches. These holes are separated on center by 4 7/8 of an inch. The mounting plate, really nice design, this is going to measure 5 7/8 of an inch by 5 1/8 of an inch. Then it's got the holes here in the center that allows you to get that mounted to a flat, solid surface. When it comes to the rated line pull, if you don't have anything on the line, it's going to draw 15 amps. Its going to have a line speed of 27 feet per minute. If you have this loaded at max load, so if you're pulling 3,000 pounds, it's going to have 180 amp draw with a line speed of 4 feet per minute. The units going to come again with a mounting plate. It's going to come with the winch, roller fairlead. You're going to get both controls, solenoid. You're also going to get some rubber boots to protect the connection points. It goes over the bolts there. You're going to get the hook, hand saver strap. You're going to get all the necessary wires that you need. This one is where our circuit breakers are, so circuit breaker protected. Red is positive; black is negative. Overall, nice design. It's going to come with a nice owner's manual, installation instructions, an it's going to come with all the necessary hardware that you need for your installation as well. Real quick, before we end, I just want to walk you through how it would connect. Right here on the motor side, you're going to have two posts, color coated. That way, you can easily get the unit connected. Basically what you would do is you would take a black wire and a red wire, connect them to the post here. They have the terminals on there. Those wires would run straight to the color coated posts on the solenoid. Then from the solenoid, you would connect the other red wire with the circuit breakers, the other black wire, and then those wires are going to run straight to the 12-volt power source. That's going to do it for today's look at the Superwinch LT 3000 ATV winch.
