  • Custom Fit
  • Trailer Hitch Wiring
  • Tekonsha
  • 7 Blade
  • No Converter



Tekonsha Custom Fit Vehicle Wiring - 118242


Tow Ready Replacement 7-Way Wiring Harness for 1997-03 Ford F-150 Light Duty & F-250 Light Duty Pickups with OEM 4-Flat Trailer Connectors. Also fits 2004 Ford F-150 Heritage Series.


  • Exact Replacement for Damaged OEM Wiring Harness
  • Installs in Seconds on Vehicles not Factory Pre-Wired
  • Upgrades Vehicles From 4-Flat OEM Wiring to 7-Way Connectors
  • Connects Directly to Standard OEM Connector
  • Fits mounting bracket (PK-12711U) sold separately
  • Fuses and Relays Included
  • Can only be used with a factory 4-pole harness
    • This will not work with a factory 7-pole harness

118242 Will Not Work on Ford SuperDuty Trucks - use 118243


Product detail

Picture of OEM Connector. The plug is usually located on the driver's side between the back tires and the end of the truck bed.


Product detail

Picture of the 7-Way Connector



118242 Ford Replacement OEM Tow Package Wiring Harness, 7-Way



118242 Installation InstructionsInstallation Details 118242 Installation instructions

This Product Fits The Following Vehicles

2001 - 2003 Ford F-150 Flareside or SuperCrew with factory 4-flat connector

2000 - 2000 Ford F-150 Flareside with factory 4-flat connector

1997 - 1999 Ford F-150 and F-250 Light Duty Flareside with factory 4-flat connector

2004 - 2004 Ford F-150 Heritage Series Flareside with factory 4-flat connector

2001 - 2003 Ford F-150 non-Flareside or non-SuperCrew with factory 4-flat connector

2000 - 2000 Ford F-150 non-Flareside with factory 4-flat connector

1997 - 1999 Ford F-150 and F-250 Light Duty non-Flareside with factory 4-flat connector

2004 - 2004 Ford F-150 Heritage Series non-Flareside with factory 4-flat connector

2000 - 2003 Ford F-150 Standard Bed models

1997 - 1999 Ford F-150 and F-250 Light Duty Standard Bed models

2004 - 2004 Ford F-150 Heritage Series Standard Bed models

2000 - 2003 Ford F-150 Stepside models

1997 - 1999 Ford F-150 and F-250 Light Duty Stepside models

2004 - 2004 Ford F-150 Heritage Series Stepside models

2001 - 2003 Ford F-150 SuperCrew models

2000 - 2003 Ford F-150 with factory 4-Flat

1997 - 1999 Ford F-150 and F-250 Light Duty with factory 4-Flat

2004 - 2004 Ford F-150 Heritage Series with factory 4-Flat



Video of Ford Replacement OEM Tow Package Wiring Harness, 7-Way


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.




Video Transcript for Tow Ready Custom Fit Vehicle Wiring 118242 Review

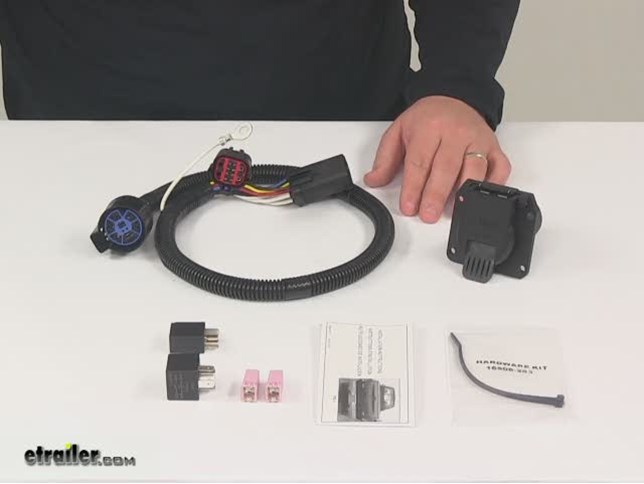

Today we're going to be taking a look at the Ford Replacement OEM Tow Package Wiring Harness with a seven way connector. This product fits numerous vehicles, so to make sure it works with your particular year and model, you can use the vehicle fit guide located on our website at etrailer.com. This is an exact replacement for your damaged OEM wiring harness. It's going to install quickly and easily, and it upgrades vehicles from a four flat OEM wiring to a seven way connector. The existing four way flat harness on your vehicle will still be functional. The unit's designed to connect directly to the standard OEM connector, you can see right here everything that it comes with. Your going to get the actual harness, your going to get your new seven way connector, plugs into this port right here on the harness.

Your going to get a hardware kit that's going to include two zip ties, detailed instructions, and your going to get the necessary fuses and relays. The connector right here, to make sure this is easily accessible at the back of your vehicle, we recommend using a mounting bracket. This is going to fit mounting bracket PK-12711U. That item is sold separate if your wanting to add a bracket to the vehicle for your seven way connector. You can find it here at etrailer.com. Now when it comes to installing the unit, you'll need to disconnect the vehicles negative battery cable, install the included fuses and relays according to the detailed instructions, locate the vehicles wiring plug that's going to be located in the rear underneath the vehicle, inside the driver's side frame rail.

Separate the plugs on the vehicle, and then install the trailer tow harness between mating plugs. These connectors are going to match up perfectly, they're going to snap lock together for a nice tight secure fit. Once you have those connected, make your ground connection, that's going to be you white wire with the inaudible 00:01:37 attached to it. That's going to get connected by using the existing ground stud on your frame rail, and then plug the seven way socket into the harness on this side. Push it in until it snaps together. It's got the locking tabs on it as well for a secure fit.

Once you have that done, you can reconnect the battery cables, test your installation, you can secure all your loose wires with the included zip ties or cable ties. Then you can mount the tow harness in an accessible location using the mounting bracket like I mentioned earlier. Please keep in mind, the unit can only be used with a factory four pole harness. This will not work with the factory seven pole harness. The instructions are detailed, they include some images in there to help with the installation process. A couple more things that I want to mention before we wrap up the video, here on the seven way connector, you can see it has a nice spring loaded lid, has a little tab right there so you can easily get that open, and get everything connected as you need to.

Really nice design. I just want you to know that your wiring is going to be protected. It's got the nice wire loom that goes around there to protect the wires. Again, when installing this, I do recommend going ahead and using the zip ties, to secure the wires up and out of the way, and keeping them safe. Especially during travel, and when a lot of grim builds up under the vehicle, having them tucked up and out of the way. Maybe even along the existing wiring harness is really going to help extend the life of this wiring harness, and just the wires. That wiring loom is going to help as well. That's going to do it for today's look at the Ford Replacement OEM Tow Package Wiring Harness with a seven way connector.
