T-One Vehicle Wiring Harness for Factory Tow Package - 4-Pole Flat Trailer Connector

T-One Vehicle Wiring Harness for Factory Tow Package - 4-Pole Flat Trailer Connector

Item # 118270
lowest price pledge
Retail:$46.78
Our Price: $25.95
You Save: 45%
Custom Fit Vehicle Wiring

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

Orders above $99 qualify for Free Shipping
Shipping Weight: 0.5 lbs
Quantity:
In Stock, Ships Today

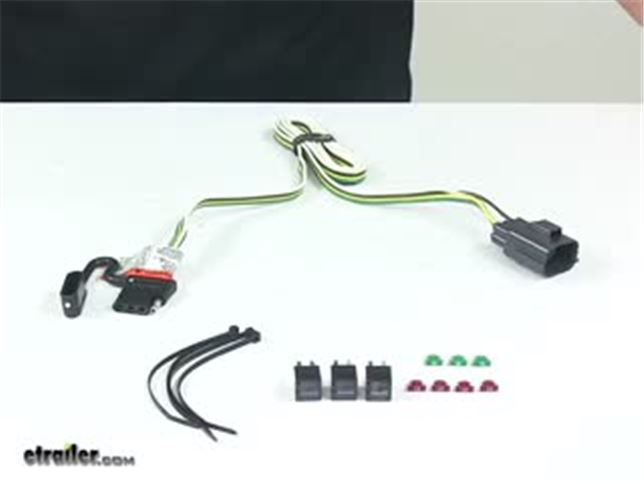

118270 - 4 Flat Tekonsha Custom Fit Vehicle Wiring
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

Quickly and easily install a 4-way trailer connector on your vehicle with this custom harness. T-One connector plugs directly into OEM tow package harness - no cutting, splicing or tapping required. Call 800-298-8924 to order Tekonsha custom fit vehicle wiring part number 118270 or order online at etrailer.com. Free expert support on all Tekonsha products. Guaranteed Lowest Price and Fastest Shipping for T-One Vehicle Wiring Harness for Factory Tow Package - 4-Pole Flat Trailer Connector. Custom Fit Vehicle Wiring reviews from real customers.
  • All Info
  • Reviews (312)
  • Q & A (85)
  • Videos (10)
  • Photos
  • Why etrailer?

Tekonsha Custom Fit Vehicle Wiring - 118270

  • Custom Fit
  • Trailer Hitch Wiring
  • Tekonsha
  • 4 Flat
  • No Converter

Quickly and easily install a 4-way trailer connector on your vehicle with this custom harness. T-One connector plugs directly into OEM tow package harness - no cutting, splicing or tapping required.


Features:

  • Provides a 4-way flat trailer connector at the back of your vehicle to power your trailer's signal lights
    • Designed for use with a factory tow package
    • Compatible with 5-pole, 6-pole and 7-pole adapters (sold separately)
  • Connects quickly and easily - no cutting or splicing of wires
    • Insert fuses and relays (included) in engine compartment
    • Locate connection points beneath your vehicle, along the frame rail
    • Plug in connectors
  • Constructed of 16-gauge bonded wire
  • Comes with dust cap for 4-way flat connector


Specs:

  • Maximum amperage:
    • Stop/turn lights: 7.5 amps per circuit
    • Tail lights: 7.5 amps per circuit
  • 1-Year limited warranty


Installation

This custom-fit T-One connector plugs into your vehicle's factory tow package wiring harness, which is located beneath the vehicle, near the frame rail on the passenger's side. Once you've plugged in the connectors, insert the included fuses and relays into their locations in the fusebox, which is located in the engine compartment.


Once installation is complete, the 4-way flat connector will be stowed beneath your vehicle, near the trailer hitch. A mounting bracket (sold separately) is recommended to keep the connector secure.


It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.




118270 Tow Ready T-1 T-Connector - OE Replacement 4-Flat

Installation Details 118270 Installation instructions

This Product Fits The Following Vehicles

2013 - 2016 GMC Acadia

2013 - 2016 GMC Acadia

2017 - 2017 GMC Acadia Limited

2017 - 2017 GMC Acadia Limited

2013 - 2017 Buick Enclave

2013 - 2017 Buick Enclave

2013 - 2017 Chevrolet Traverse with factory Tow Package

2018 - 2018 Chevrolet Traverse Limited with factory Tow Package



California residents: click here


Video of T-One Vehicle Wiring Harness for Factory Tow Package - 4-Pole Flat Trailer Connector

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Trailer Wiring Harness Installation - 2014 Chevrolet Traverse

Today on our 2014 Chevrolet Traverse, we're going to be taking a look at and showing you how to install the Tekonsha T-One Vehicle Wiring Harness with factory tow package, part number 118270. Here's what our wiring looks like fully installed. Now, we are using a bracket that is not included in our kit, but you can pick up several different options to mount your wiring on our website. Now, our wiring is going to give us a four-pole flat and all the required lights to have a trailer going down the road safely, such as our stop lights, turn signals and clearance lights. Now, this kit is for the factory tow package, so we're just going to have one length of wire that's going to run to our factory connector. Then, we're going to have a few fuses and relays that we're going to put in that'll start making everything function properly. Now that we've seen what it looks like when it's fully installed, let's show you how we got it there. To begin our installation, I already went ahead and removed our fascia door right here just so we can have access to our hitch and back here. Now, we're going to need to find the factory end that we're going to connect our harness to, which is going to be on the passenger side.

If we come up here and reach up and pulled my connector off of the frame, there's just a push pin holding it in place. It's not going to come down. We're going to be looking for the other end of the connector that looks like our harness, and we're going to be connecting it right here. Before we do, I'm going to put a little bit of dielectric grease and that's going to help prevent any build up of corrosion and prevent some moisture and debris from getting inside. If you need some dielectric grease, you can pick some up on our website using part number 11755. I'm just going to put a small bit inside the connector.

We're going to be putting it in this one since it is going to be easier than reaching up into the frame and trying to get it onto the other side. Once we have a little bit of dielectric grease in there, just going to take my connector and connect it to the one on the vehicle. We want to make sure it's locked into place. If you can, you're going to want to reach up and find that push pin that was attaching the connector. We're going to reattach it to the frame so it's not bouncing around. We're going to go ahead and route the end of our connector over to the center of our hitch.

I just want to mention that you want to stay away, or as far as possible away, from the exhaust. We're going to be moving parts so it doesn't damage the wire. Now, everybody's going to do it a little bit differently, but I'll get mine done and show you how I did it. I ran my wire until I came to my fascia at the back here. Then, I actually pulled the plastic down and routed my wire in-between my bumper beam and the fascia on my car. That way it would stay away from the exhaust, zip tying it along the way.

Then, I had it routed down to my hitch and it's coming out right here. Now, on our application, we are using this four-pole mounting bracket. If you need one of those, you can pick one up on our website using part number 18144. We can go ahead and go under the hood now, because we are going to have a few relays and a few fuses to put in place for our wiring to work. Now, under our hood, our fuse panel is going to be all the way towards the passenger side, towards the very back of the firewall. Now, we're going to go ahead and open up our fuse panel. Now, we're going to have a couple locking tabs that are going to hold it in place. You want to push in on that tab and lift up and it'll release it. You're going to have another one over here on the side as well. Now, we're going to find a few different locations and our instructions are going to give us the locations and the fuse that we're going to need to put in place. Now, in our instructions, they do provide us with a whole diagram saying what we're going to need to put where. Now, we're going to put our 10 amp fuse, that I have here, and we're going to put it in the trailer park lamp position. If we find on our fuse panel holder here, it's going to be at the very top next to the other two 10 amps in a row. We're going to put the 10 amp fuse in there. We're going to insert a fuse into our left trailer stop and turn signal slot, as well as the right, which is going to be two positions here, an F17 and F21. We can go ahead and take our 10 amp fuses from our kit, and put them into the fuse holder. We're going to have one more spot for our 10 amp fuses and that's going to be in position F8, which is going to be towards the right hand side of our vehicle. That's going to be for our trailer backup lights. We're going to have two 30 amp fuses that we're going to need to put in. If we come to kind of the center section of our fuse panel, we're going to have a raised section right here. That's going to be for our trailer brake and the position's going to be F34. Now, right next to that, in position F30 is going to be for our trailer power. Now, we're going to put both 30 amp fuses in those slots. Now, finally, we're going to have two more relays we're going to need to put in. Now, again, if we find the left hand side of our fuse panel more towards the driver's side, we're going to see that there's going to be a couple of gray relays there already. There's going to be two holes, and those two positions are going to be where we're going to be putting our relays in. The one towards the firewall is going to be our right trailer and stop and turn signal relay. This one is going to be for our left turn. We can just take our relays and insert them into place. Now, we can go ahead and test our lights and make sure everything's functioning properly. Now, here, I got my four-pole tester that I can plug in. Then, the lights on here are going to allow me to know if they're working properly. Now, if you don't have a four-pole tester, you can pick one up on our website using part number I26. I'm just going to plug it in just like I would with my trailer. Now, I'm going to grab an extra set of hands and have them run the lights, so I can verify that they are working properly. Can I have the headlights please Here, we can see our headlights are working properly. Now, the left turn signal. Okay, good. Now, the right turn signal. Good. Now, the brakes. Good. Finally, the brakes and both turn signals please. Looks like everything's good to go and we're ready to hit the road. Whenever we're not towing and we don't need our wiring, we can actually go ahead and reinstall the cover on our fascia here and everything will be nice and hidden and tucked away. At the same time, very easily accessible and ready when we need it. That'll finish up our look at the Tekonsha T-One Vehicle Wiring Harness for factory tow package, part number 118270, on our 2014 Chevrolet Traverse.


Customer Reviews

T-One Vehicle Wiring Harness for Factory Tow Package - 4-Pole Flat Trailer Connector - 118270

Average Customer Rating:  4.9 out of 5 stars   (312 Customer Reviews)

Quickly and easily install a 4-way trailer connector on your vehicle with this custom harness. T-One connector plugs directly into OEM tow package harness - no cutting, splicing or tapping required.

- 118270
by:
2015 Buick Enclave

I was pretty easy once I figured out how the plug receptacle on the vehicle was oriented. It ended up being easier to twist it to face downward so I could get a view of it. It's a VERY tight spot. The wiring kit worked perfect though and made everything else simple. 710851



- 118270
by:

This product works perfectly. It is a direct fit tot the vehicle. The plug is located behind the back passenger tire and is tucked in between the fender and inside wall. It is mounted into the sidewall so you have to feel for it. It plugs right in and then run the cables towards the tow hitch. Thank you guys for the assistance. 660024



- 118270
by:

One year down the road, receiver hitch and towing package light kit both work excellent, with pretty heavy use, I pull my boat a lot. The etrailer installation videos are extremely detailed, complete and accurate and made installing both a breeze. 664800



- 118270
by:

Plugged right in and worked right the first time, took about 15 minutes to install, and only took that long because I fished the wiring over the subframe to get it completely away from the exhaust. Came with extra fuses and relays, as my vehicle already had the fuses and relays installed. Shipping was prompt, and etrailer personnel answered my questions thoroughly, making this a smooth job. THANKS! Wish I could take pictures, but imagine in your mind the dirty underside of my car with clean trailer wiring firmly ziptied in place. 563444



- 118270
by:

Hi. The hitch and wiring fit like a glove. Looks Like it came from the factory new. Love the fact the draw tie hitch can hide away under the bumper cover. Highly recommend this Product. I will pass the word about your company to all my contacts in the business. Thanks for all your help Stephanie. Look Forward to doing business with you again 661401



- 118270
by:
Chevrolet Traverse

Received my Traverse hitch in 3 days , thought that was great . The hitch was a defective Draw-Tite 75528, the end mounting flange on one side was welded at an incorrect angle and the hitch would not bolt to the frame rails. I called etrailer about this and they shipped out another hitch at n/c in 3 days with a pre-paid UPS label to return the defect . That was a fair option to me , the replacement part was correct and it fit properly , the only thing was the hole for the ball mount hitch pin was undersize and I had to use a round file to open it up to fit the pin through it . I guess in Mexico they use a smaller pin size to hold the ball mount on The customer service at etrailer was great, thanks Niki 401037



- 118270
by:
2015 Buick Enclave

Free shipping, you can't beat that for starters. Received my trailer hitch on time. Installed it the same day. Most of the comments from previous posts apply, at least the ones that don't boast it's a piece of cake. In the video the mechanic is working at an appropriate level which makes the install as easy as it looks. I used my floor ramps to back onto and worked on my back on the garage floor. The hardest part was just wrestling off the rubber hangars. Pry bar doesn't work as there is no good pry point. Lube up the free end, especially the "lock" or blocking end. I used a pry bar but pounded it with my rubber mallet until just enough of the rubber was past the end where I could then muscle it off. The next "easy" part was holding up the hitch to get a bolt in . That only took 10 minutes or so, nearly broke a rib as it fell several times on my chest. But I've done this before on my Subaru Forester so I knew it would get done, just with a different set of bruises and scratches. And it got done. The fascia fit back nicely so when I go to the Country Club no one would suspect I actually enjoy towing my rowboat to the bay instead of booking a flight to Antigua. Getting hold of the plug to install the 4 way connector took more than just what the instruction manual indicates. That part of the harness was fastened to the chassis and I wound up having to reach up and after several attempts was able to mate the harness extension . I had to remove several screws on the wheel well to open up access but once that's done it's just zip ties and squinting to see where the fuses and relays go. So if you see me out there at the spit don't tell anyone that a Buick Enclave was being used for such a utilitarian task. They're liable to revoke my Country Club membership. 663136



- 118270
by:

Easy installation. Everything fit perfect. Wiring harness was a little tricky but the manufactures plug was hard to get to. After installation I was able to put my access door back on. 654740



- 118270
by:
2016 Chevrolet Traverse

It went on as easy as it looks in the video, which is surprising for most products you buy online. You can't go wrong with putting it on, as long as you follow the instructions and watch the videos they have on here. 349883



- 118270
by:
2013 Buick Enclave

Gave this order 5 stars for the prompt service and the product was just as described. I ordered a drawtite Hitch and wiring connector for my 2013 Buick Enclave. The hitch and wiring connector arrived quickly. I also ordered a bracket for the four wire connector within 10 minutes of the first order, which was shipped first, it was shipped by the USPS. All of the items fit perfectly and was easy to install following the excellent instructions. Great job! Recommend etrailer for all your towing needs. 416779


Comments
perfect fit working fine
Kershaw G - 08/06/2018

41971

- 118270
by:

Great product and easy to install. The vehicle was the only thing that got in the way with the tight space to access the wiring plug. Other than that the install was very simple. 739227



- 118270
by:

Product is still working and in great s hape! 732866



- 118270
by:

I am extremely satisfied with the ordering process, quick delivery and the quality of the hitch for my 2017 GMC Acadia. Installation was a breeze and every thing fitting together perfectly. 729757



- 118270
by:
2014 Buick Enclave

Works perfectly. Yah way easyer to instal then expected. 726294



- 118270
by:

Our plans changed & I have not mounted it yet, but with the ease of ordering, shipping, good mounting instructions, I am confident I will get it mounted relatively easily. Also the best price compared to every other product source I researched. 714114



- 118270
by:
2014 GMC Acadia

The video instructions made the installation on these products a breeze. The quality is outstanding and the price was the best I found in the market. This was one of the best products I've purchased. 714023



- 118270
by:

EASY TO INSTALL. PERFORMS WELL. 711732



- 118270
by:
2017 Chevrolet Traverse

EZ installation, plan on towing my 1932 plymouth coupe to car shows around the state. 704014



- 118270
by:

Have used it a few times and still works great. Fairly easy to install and the best part is the cannon plus on my vehicle fit it perfectly! 703222



- 118270
by:

Easy to install with instructions given at etrailer 699739



- 118270
by:

The wiring harness was well thought out and a good fit with good directions for installation. The relays fit in the fuse box and the connection fit in with the factory wiring. The tail to the hitch was sufficient length to route the cable without having too much extra. All the connections fit correctly and snugly as well as all circuits worked on the first test and have not failed over the course of the first year of use. 695580



- 118270
by:
2016 Buick Enclave

Great service, great prices, wonderful product what more could you ask for 694353



- 118270
by:
2016 Buick Enclave

My order was ready for shipping with the hour I ordered it. Need the wiring harness ASAP and paid for 2 day shipping. I received it early afternoon of second day. Easy to order and great service. Thank you. 692592



- 118270
by:
2016 Buick Enclave

Worked right away...here's a tip: for 2016 Buick Enclave to unhook the provided harness, up in right rear fender well, pull the plug towards the fender and it will unhook and come down a bit. 691795



- 118270
by:
2014 Ford F-150

Great item. Came with all necessary relays and fuses. Easy install 674047


34
326
Show More Reviews

Ask the Experts about this Tekonsha Custom Fit Vehicle Wiring

  • Recommended Trailer Wiring for 2017 Buick Enclave
    For your 2017 Buick Enclave, I recommend the T-One Vehicle Wiring Harness for Factory Tow Package - 7-Way Trailer Connector # 118271 which will connect to factory wiring and includes the fuses and relays to activate the tow package even if your vehicle did not come with one. This wiring harness will be tucked up under your side panel underneath on the passenger side which is difficult to see in the attached a video of the similar Chevy Traverse. If you just want a 4-way wiring harness,...
    view full answer...
  • Trailer Wiring Needed for 2017 Chevy Traverse with Rear Air Conditioning Unit
    Since your 2017 Chevrolet Traverse does not have the factory connector but does have a rear air conditioning unit I recommend first checking to see if you have the factory tow package. You can locate the plug for the Tekonsha T-One # 118270 at the rear passenger side as is shown in the attached installation video. If you don't have the factory tow package then you will want to go with the Hopkins # HM11141150. I spoke with my contact at Hopkins who said that he hasn't heard of having...
    view full answer...
  • Adding a Trailer Wiring Harness to a 2015 Chevy Traverse LT without Factory Tow Package
    You have a couple of options for adding a trailer wiring harness to your 2015 Chevy Traverse that did not come with the factory tow package. If your trailer has a 4-Way flat connector on it then you can use # 118270 to add a mating 4-Way to your Traverse. If the trailer requires a 7-Way then you can install # 118271. In either case the harnesses include the fuses and relays to make the harnesses fully functional on your Traverse. I have linked videos showing example installations of...
    view full answer...
  • Trailer Towing Setup Recommendation for 2014 Buick Enclave
    You are on the right track! The Draw Tite hitch part # 75528 is a confirmed fit for your 2014 Buick Enclave as well as the trailer wiring kit # 118270. The wiring mount part # 18144 will also give you a place to mount the 4-way that bolts to the bumper. The ball mount part # C45036 that you referenced is would also work well if you need 2 inch drop. I attached a help article that details how to pick out a ball mount drop as well.
    view full answer...
  • Wiring Kit Needed for Towing with a 2013 Chevrolet Traverse
    The Draw-Tite Max-Frame Trailer Hitch # 75528 is a great option for your 2013 Chevrolet Traverse! I can definitely help you figure out the best wiring kit to purchase to get you on the road. If you have the tow package on your Traverse then you will simply need to connect the T-One # 118270 up behind the bumper on the passenger side of your vehicle (see attached photo). This kit also requires you to connect the included fuses and relays to complete the wiring circuits. All of this is...
    view full answer...
  • Trailer Wiring Harness for a 2014 Chevrolet Traverse
    If you take a look at the 1:10 mark in the attached video, there may or may not be a connector for a trailer wiring harness behind the rear passenger side bumper just about the exhaust resonator. If you have the plug shown in this location then you will want to use the T-One Vehicle Wiring Harness for Factory Tow Package part # 118270. If you do not have this plug listed above then you will want to use the Hopkins Plug-In Simple Vehicle Wiring Harness with 4-Pole Connector part # HM11141150....
    view full answer...
  • Does Mounting Hardware Come With Draw-Tite Hitch for 2015 Buick Enclave?
    The Draw-Tite Hitch # 75528, which is a confirmed fit for your 2015 Buick Enclave, does come with the hardware needed for installation; it is a complete bolt-on installation that does come with bolts. I have added a link to a video of this hitch being installed on a '15 Enclave for you to take a look at. As for wiring, "regular" wiring would not work; for an aftermarket harness to work on this particular vehicle you would need to have the factory tow package to use T-One Vehicle Wiring...
    view full answer...
  • Correct Wiring Harness for a 2017 GMC Acadia Limited Without the Tow Package
    Good question! The T-One Vehicle Wiring Harness # 118270 will fit your 2017 GMC Acadia Limited whether it has the factory package or not. The plug should be located at the rear of your vehicle behind the rear passenger side tire (see attached photo). If you had the tow package you would simply make this connection and be done with it but since you don't you just need to use the fuses and relays that come with the T-One to activate the wiring. We actually do this exact thing on another...
    view full answer...
  • Parts Needed to Add a Trailer Hitch and Wiring Harness on a 2016 Buick Enclave
    If you are wanting to add a trailer hitch and a wiring harness to your 2016 Buick Enclave I recommend installing the Draw-Tite Max-Frame Trailer Hitch Receiver # 75528 and then either the T-One # 118270 for a 4-Way or the T-One # 118271 for a 7-Way. If you would like to have both a 4-Way and a 7-Way then install the T-One # 118271 and swap out the connector with the Hopkins # HM40920. To mount the 4-Way near your receiver you need part # 18144 while the 7-Way requires part # 18138. Instructions...
    view full answer...
  • Trailer Wiring Harness Recommendation for a 2013 Chevy Traverse without Tow Package
    For your 2013 Chevy Traverse without the tow package the correct trailer wiring harness would be the part # 118270. This will provide the turn signal functions for a trailer and will work with your rear AC unit. I attached an install video for you to check out as well.
    view full answer...
  • Trailer Wiring Harness for a 2010 GMC Acadia with or without Factory Tow Package
    I will be happy to help you select the right trailer wiring harness for your 2010 GMC Acadia. Harness # 118270 will not fit though but we do have options that will fit. If that harness you found has a connector on it then what you can do is use a circuit tester such as # 40376 or a meter if you have one and test the pins in that connector. Someone will have to sit in the vehicle and operate the various lighting functions. If it does have power then your Arcadia must have the factory...
    view full answer...
  • Which 7-Way Trailer Connector Fits a 2016 Chevrolet Traverse with the Factory Tow Package Connector
    I looked up your previous order and you purchased the wiring harness, parrt # 118270. Since this plugged in and worked for you it means you have the factory to package connector without having the complete tow package. This is good news because all you need to add a 7-way trailer connector is part # 118271. This will give you a 7-way and replace your 4-way plugging into the same place. So you don't need the # ETBC7 kit afterall.
    view full answer...
  • Trailer Wiring Harness and Other Parts to Tow a Trailer with a 2017 Chevrolet Traverse with Rear AC
    From what we have found all the Chevrolet Traverse models from 2017 like yours have the factory tow package connector under the vehicle near the frame rail on the passenger's side even if it doesn't have the tow package. I've attached a picture that shows the connector you need to find. If your Traverse does have this connector you can use # 118270 for a 4-way trailer connector. This also includes the fuses and relays you'll need to install to activate the tow package. I've linked a...
    view full answer...
  • Wiring Harness for 2016 Buick Enclave Without Tow Package
    The trailer wiring harness you would want to use with your 2016 Buick Enclave that does not have a tow package is the T-One Vehicle Wiring Harness # 118270. This kit comes with the necessary fuses and relays to activate the tow package since your Enclave did not come with it. I have included a link to an install video of this harness being for you to take a look at.
    view full answer...
  • Trailer Wiring Harness for a 2015 Chevy Traverse LS with or without Factory Tow Package
    The term "tow package" means different things for different vehicles and manufacturers. The definitive way to know if your 2015 Chevy Traverse has the factory tow package is to have a dealer run the VIN in their system and they can tell you how it is equipped. But for wiring, it does not matter in this case because wiring harness # 118270 fits models with or without the factory tow package. I have included a link to a video showing an example installation for you.
    view full answer...
  • 7-Way Trailer Wiring Recommendation for a 2016 Chevy Traverse
    To install a 4-way on your 2016 Chevy Traverse would require you to install the part # 118270. To install a 7-way (if you didn't have one) you would only need the part # 118271.
    view full answer...
  • Trailer Wiring Harness for a 2014 Chevy Traverse without Tow Package and with Rear Air Conditioning
    Trailer wiring harness # 118270 for the 2014 Chevy Traverse fits both models with or without the factory tow package. The connector will be present at the rear of the vehicle, passengers side, behind the bumper (see video link). The included fuses and relays will activate it.
    view full answer...
  • Trailer Wiring Harness for a 2015 Chevy Traverse without Tow Package and with Rear Air Conditioner
    Since your 2015 Chevy Traverse does NOT have the tow package but Does have the rear AC unit I recommend wiring harness # 118270. It includes the necessary fuses and relays to activate the wiring tow package and will be easier to install that trying to adapt a different harness to fit.
    view full answer...
  • Hitch Recommendation for 2014 Buick Enclave Which is Hidden and Allows Fascia to be Reinstalled
    The Draw-Tite Max-Frame Hitch # 75528 installation allows the fascia to be reinstalled on the 2014 Buick Enclave. This hitch is barely visible and looks great on the back of the vehicle. I've attached a photo of the hitch installed on a 2014 Enclave and a video of this hitch being installed so that you can get an idea of what it entails. You will definitely need a nylon tube brush like # 814092 to clean the weld nuts on your 2014 Enclave. Dirt and road grime can build up over time in...
    view full answer...
  • Trailer Hitch & 7-Way Wiring Harness for 2014 GMC Acadia
    We can help you get your 2014 Acadia set with a hitch and wiring. The hitch you can use is the 2-inch Class III Draw-Tite # 75528 which both costs less than the other option and offers higher weight capacity. This hitch features no-drill installation using included hardware. A video is linked for you showing this item installed on an Acadia. For wiring, the basic 4-pole setup for your Acadia is part # 118270 but if you want to have a 7-way along with this 4-pole you will install the...
    view full answer...
  • Where is the OEM Wiring Plug Located on a 2012 Buick Enclave
    According to the installation instructions for your 2013 Buick Enclave, the vehicle’s towplug will be located on the rear passenger side of your vehicle.Locate the opening just to the right of the muffler. Up in the opening you will find the vehicle's tow plug. The wiring will have a grey plug at the end and this plug is where # 118270 4-flat harness will plug in to your Buick's wiring. I have liked a installation video that will show you exactly how to install the # 118270 wiring harness.
    view full answer...
  • Trailer Wiring Harness Recommendation for a 2016 Chevy Traverse Without Tow Package and Rear AC
    Since your 2015 Chevy Traverse does NOT have the tow package but Does have the rear AC unit I recommend wiring harness # 118270. It includes the necessary fuses and relays to activate the wiring tow package and will be easier to install that trying to adapt a different harness to fit. The install of the # C56181 is blocked as the AC unit not allow access to the rear taillights.
    view full answer...
  • Does Trailer Hitch for 2017 GMC Acadia Limited Come With 4-Way Wiring?
    There is 4-pin wiring available for your 2017 GMC Acadia Limited, but Curt hitch # 13424 does not include the wiring. Instead, you need the T-One Wiring Harness # 118270 which gives you a 4-flat connector allowing you to power your trailer's lights. If you are going to be towing, I recommend checking out Ball Mount Kit # 989900, which is for 2” hitches and may fulfill your towing needs in one tidy package; two ball mounts - one with a 3/4” rise or 2” drop and the other with a 2-3/4”...
    view full answer...
  • Trailer Wiring Recommendation for a 2015 Chevy Traverse with Rear Air Conditioning
    The trailer wiring kit you would want for your 2015 Chevy Traverse that has the rear AC is the Tekonsha part # 118270. This wiring harness can be used as an OEM replacement, but it also includes the fuses and relays to activate the tow package if your vehicle was not equipped with the tow package. This will be a plug and play model that will install easily and would not interfere with the AC. The Hopkins kit you referenced would work but is a universal hardwire application. Check...
    view full answer...

Do you have a question about this Custom Fit Vehicle Wiring?




  • Why etrailer.com?

    At etrailer.com we guarantee:
  • Highest quality custom fit vehicle wiring for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate custom fit vehicle wiring information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Expert Research:
Mike L
Expert Research:
Michael H
Expert Research:
Jameson C
Expert Research:
Adam R
Expert Research:
Jeffrey L
Video Edited:
Joshua S
Video Edited:
Jacob T
Video Edited:
Andrew L
Video Edited:
Dustin K
Video Edited:
Chris R
Video by:
Kathleen M
Video by:
Michael B
Written by:
Laura H
Installed by:
Cole B
Test Fit:
Shane T
Test Fit:
Randy B
Test Fit:
Andrew S
Test Fit:
Shane H
Test Fit:
Robert C
Test Fit:
David F
Test Fit:
Ryan G
Updated by:
Sarah W
Updated by:
Alexander C
Updated by:
Isabelle B

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.


Product Experts Available Now!

Call 800-298-8924
