T-One Vehicle Wiring Harness for Factory Tow Package - 4-Pole Flat Trailer Connector

Item # 118269

lowest price pledge

Retail:$55.82

Our Price: $43.60

Orders above $99 qualify for free shipping

Quantity:

In Stock.
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
Tekonsha
Tekonsha
Tekonsha
Tekonsha
Tekonsha
Tekonsha

In Use/Installed

for 2017 Kia Sorento 4Tekonsha
for 2017 Kia Sorento 7Tekonsha
for 2017 Kia Sorento 5Tekonsha
for 2017 Kia Sorento 10Tekonsha
for 2017 Kia Sorento 2Tekonsha
for 2017 Kia Sorento 3Tekonsha
for 2017 Kia Sorento 6Tekonsha
for 2017 Kia Sorento 8Tekonsha
for 2017 Kia Sorento 9Tekonsha

Customer Photos

Tekonsha
Tekonsha
Tekonsha
Tekonsha
Tekonsha

  • Custom Fit
  • Trailer Hitch Wiring
  • Tekonsha
  • 4 Flat
  • Powered Converter



2011 Kia Sorento - T-One Vehicle Wiring Harness for Factory Tow Package - 4-Pole Flat Trailer Connector

Quickly and easily install a 4-way trailer connector on your Kia Sorento with this custom harness. T-One connector plugs directly into OEM tow package harness - no cutting, splicing or tapping required. Powered ModuLite reduces strain on wiring system.


Features:

  • Provides a 4-way flat trailer connector at the back of your vehicle to power your trailer's signal lights
    • Designed for use with a factory tow package
    • Compatible with 5-pole, 6-pole and 7-pole adapters (sold separately)
  • Connects quickly and easily - no cutting or splicing of wires
    • Locate connection points beneath your vehicle, along the frame rail
    • Plug in connectors
  • Includes ModuLite to ensure that your vehicle's wiring matches that of your trailer
    • Powered module connects directly to battery to avoid overloading vehicle's electrical system
  • Constructed of 16-gauge bonded wire
  • Comes with dust cap for 4-way flat connector


Specs:

  • Maximum amperage:
    • Stop/turn lights: 4.2 amps per circuit
    • Tail lights: 7.5 amps per circuit
  • 1-Year limited warranty


Installation

This custom-fit T-One connector plugs into your vehicle's factory tow package wiring harness, which is located along the frame rail at the rear of your vehicle. The exact location of the port will vary depending on the make, model, and year of your vehicle. Once you've plugged in the connectors, insert the included fuse into the in-line fuse holder.


Once installation is complete, the 4-way flat connector will be stowed beneath your vehicle, near the trailer hitch. A mounting bracket (sold separately) is recommended to keep the connector secure.


It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.


ModuLite Powered Tail Light Converter

A ModuLite power module is built into this T-One connector. Because most trailers run on a two-wire system - wherein the brake and turn signals are carried on one wire - the separate brake and turn signals from your vehicle's three-wire system need to be combined so they are compatible with the wiring system of your trailer. This power module functions as a tail light converter to combine the brake and turn signal functions of your automobile so that they run on one wire to properly activate your trailer's tail lights. Note: This will not affect how the tail lights on your vehicle operate.


With a ModuLite, your trailer's lights will be powered without overloading your vehicle's electrical system. Because the module draws power directly from your car's battery and bypasses the electrical routes that are used by a basic wiring harness, there is virtually no draw on your tail light circuits.



118269 Tow Ready T-1 T-Connector - OE Replacement 4-Flat - Modu-Lite



118269 Installation InstructionsInstallation Details 118269 Installation instructions

Video of T-One Vehicle Wiring Harness for Factory Tow Package - 4-Pole Flat Trailer Connector


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.




Video Transcript for Tow Ready Custom Fit Vehicle Wiring 118269 Review

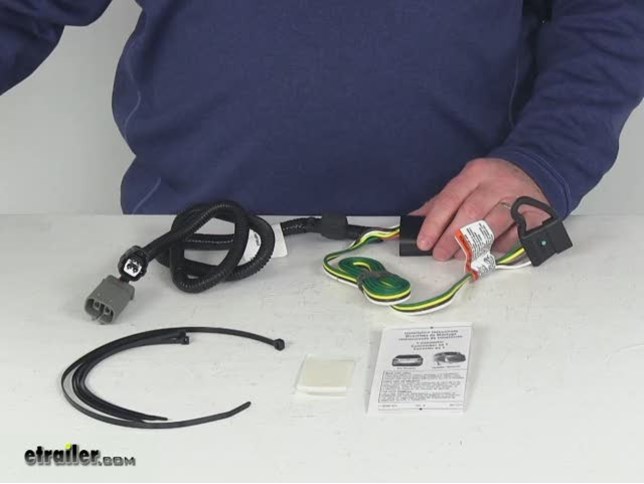

Today we're going to review part number 118269. This is the Tow Ready T-One vehicle wiring harness four factory tow prep packages. This has the 4-way flat trailer connector on it. This is a custom fit part number. It is designed to fit the Hyundai Santa Fe and Vera Cruz, and the Kia Sorentos all with the factory tow prep package starting in 2007. Now this is a custom fit part number so what I would recommend is go to our website, use our fit guide.

Put in your year and model vehicle and it will tell you if this part will work for your application. It includes everything shown here on the table: the harness with the ModuLite power module attached, cable ties, a piece of double-face tape to attach the ModuLite down, and a set of detailed instructions. Now this will provide a 4-way flat trailer connector at the back of your vehicle to power your trailer's signal lights. Again, this is designed for use on vehicle's that have the factory tow prep package. This does connect very quickly and easily. There's no cutting or splicing of wires.

You just use these plug-in connectors, attach them to the connection point on the vehicle and you'll be ready to go. Usually those connection points will be beneath the rear of the vehicle along the frame rail. Now in the detailed instructions it will show you each vehicle where to find that connection point, and it even includes some good pictures to help you out. Now this does include the ModuLite right here on the harness. This is to ensure that you vehicle's wiring matches that of your trailer. It is a powered module.

What that means is it's directly connected to the battery to avoid overloading your vehicle's electrical system. This extra length of wire with the 4-ways connected to is a 16-gauge bonded wire. You just run this out the back. When you're not using it you can just put it inside the vehicle. Also, if you notice the 4-way itself, does have this included dust cap to protect the 4-way so when you're not using it, put your 4-way on.

That will help keep it from getting damaged, and also protects it from the elements. A few specifications on this harness: the maximum amperage on the stop and turn light circuit is 4.2 amps per circuit. On the taillight it's 7.5 amps per circuit. Really briefly how this installs, you go to the rear of your vehicle. Again, using your instructions, it will show you where that connector is located on your frame rail. Plug this t-connector right into that. Then you'll run this out to the back. what you'll want to do is take your double-face tape, attach it to there, and then secure this ModuLite down so it doesn't bounce around or rattle. The other thing you want to make sure also is right here, this inline fuse holder, is pop that open and make sure the 15-amp fuse is installed right here. You can see the 15-amp fuse is installed. You do need to have that fuse in there. Then you'll have these cable ties if you want to take up any slack in the wiring harness. That should do it for the review on part number 118269. This is the Tow Ready T-One vehicle wiring harness for factory tow prep packages, and it includes the 4-way flat trailer connector. .
