Item # 119147KIT
Orders above $99 qualify for free shipping
Shipping Weight: 1.94 lbs
Tekonsha ModuLite Wiring Harness with Powered Converter by Draw-Tite, Hidden Hitch and Reese
Warning: Overloading circuit can cause fires. Do not exceed lower of towing manufacturer rating or:
Included with Hardwire Kit:
Video of Upgraded Modulite Vehicle Wiring Harness Kit with 4 Pole Trailer Connector (Includes Install Kit)
Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

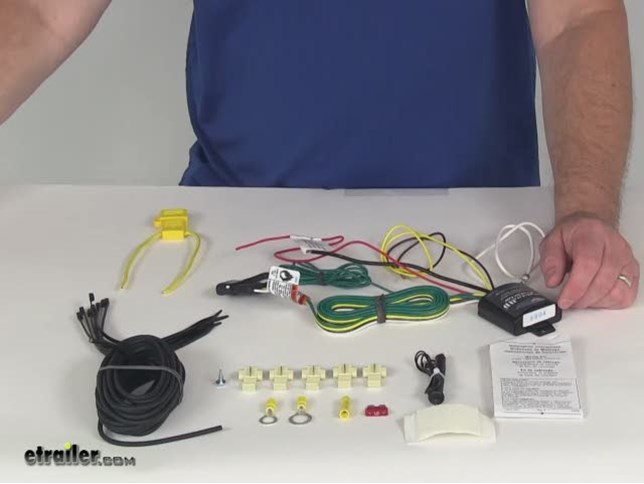

Today we're going to review Part #119147KIT. This is the toe ready, upgraded, module light vehicle wiring harnessing kit with the four way trailer connector, right here. It does include the module light install kit, also, everything shown here on the table. We'll go through all the pieces here in a minute. Now, this part will virtually eliminate any draw in your vehicle's tail light circuit. On a lot of your newer cars you're wiring is so thin that when you try to plug in a trailer it could overload your tail light circuit and cause major problems. What you're gonna do here is this module light when you connect it on your tow vehicle this will connect directly to the battery which will take away anything running through your tail light circuit. This will work with either LED's or incandescent bulbs on both trailer and vehicle.
It will work with most vehicles multi-plex wiring systems for lighting. The tail light circuit has been upgraded to work with vehicles using the PWM which is the Pulse with Modulation. It allows the converter to turn on fully giving your trailer maximum light brightness. This part will power your trailers stop, turn, tail, and running lights directly from the tow vehicles battery. This can be used on two and three wire systems. The thing you do have to remember when you use it on a two wire system that this red brake wire must be grounded.
This will eliminate the need for a heavy duty flasher. It does include everything shown here. It even includes a circuit tester, the extra length of wire to run to your battery on your vehicle, some five quick splices here so when you help install it and again, it includes the four way trailer connector cover which is attached to the four way. So, when you're not plugged in you can put it on there to cover the terminals. The rating on this- the maximum stop and turn light circuit one per side is 2.1 amps. The maximum tail light is 7.5 amps.
Included with this you get the module light with the length of wire with the four way on it, and the cover, and all your wires to connect. You also get a nice set of detailed instructions which shows you how to install this. I had mentioned you get the circuit tester so when you hook your wires up you can test the circuits on your vehicle to make sure you are hooking it up correctly, the quick splice connectors, you also get a screw that will help you attach and get a clean ground. All the connectors here and even double-faced tape for attaching your module light down keeping it from bouncing around, some zip ties to take up any length of wire that might be hanging down, and also this is your in-line fuse holder comes with the 10 amp fuse. Basically, when you go to install this what you'll do is .. all these wires coming out of your module light, your green wire, and again you'll use these quick splice connectors when you connect it.
Green wire will go to your right turn signal. Your red, again, is your brake light signal. The yellow would go to your left turn signal. The brown would connect to your tail lights. The white that has the eyelet on it that would go to a good, clean ground. We mentioned that it comes with a grounding screw, if needed. The last one, the important one, is the larger black wire- now this is what we'll run to the 12 volt power so, you need to run this all the way up to your battery. To do that, you get this length of wire. You'll connect it with the butt connector and run it up to length and then using this you'll connect to the butt connector to one side of this in-line fuse holder on the other side of the fuse holder you can choose between one of these two eyelets. They give you two of 'em because, they're different sizes. If you're going to connect to the top or the side post of the battery. You'll connect this to the positive side post of your battery using one of these. Then once before you use the system you'll take your 10 amp fuse, go ahead and put it into the in-line fuse holder. Then put the cover back on. As I mentioned, you have zip ties if any of this you run to the front of your car the wire needs to be tied up you can use your included zip ties. That should do it for the review of Part #119147KIT. This is the tow ready, upgraded, module light vehicle wiring harness kit with the four way trailer connector and it includes the module light install kit. .
