FITS 2013 Honda Fit
T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector

T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector

Item # 118420

lowest price pledge

Retail:$65.77

Our Price: $48.73

You Save: 26%
Custom Fit Vehicle Wiring
Confirmed to Fit
2013 Honda Fit

All Models

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

Orders above $99 qualify for Free Shipping

Shipping Weight: 0.88 lbs

Quantity:
In Stock
Tekonsha Converter Custom Fit Vehicle Wiring - 118420
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed

Customer Photos


  • Custom Fit
  • Trailer Hitch Wiring
  • Tekonsha
  • 4 Flat
  • Converter
Tekonsha custom fit vehicle wiring for your 2013 Honda Fit are available from etrailer.com. Installation instructions and reviews for your Honda custom fit vehicle wiring. Expert service, and cheapest custom fit vehicle wiring price guarantee. etrailer.com carries a complete line of Tekonsha products. Order your T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector part number 118420 online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (151)
  • Q & A (103)
  • Videos (12)
  • Photos
  • Why etrailer?

2013 Honda Fit - T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector

Quickly and easily install a 4-way trailer connector on your Honda Fit with this custom wiring harness. T-One connector plugs directly into existing wiring - no cutting, splicing or tapping required. Circuit-protected converter guards against shorts.


Features:

  • Provides a 4-way flat trailer connector at the back of your Honda Fit to power your trailer's signal lights
    • Compatible with 5-pole, 6-pole and 7-pole adapters (sold separately)
  • Connects quickly and easily - no cutting or splicing of wires
    • Locate connection points in trunk
    • Plug in T-connector
  • Includes circuit-protected tail light converter to ensure that your Honda Fit's wiring matches that of your trailer
    • Provides protection against electrical shorts and overloads
  • Constructed of 16-gauge bonded wire
  • Comes with dust cap for 4-way flat connector


Specs:

  • Maximum amperage:
    • Stop/turn lights: 2.1 amps per circuit
    • Tail lights: 5 amps per circuit
  • 1-Year limited warranty


Installation

This custom-fit T-One connector plugs into your Honda Fit's wiring harness, which is located inside your trunk, behind the tail lights on both the driver's side and passenger's side. You will need to remove some interior trim or carpeting to access the harness.


Once installation is complete, the 4-way flat connector will be stowed within your trunk.


It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.


Circuit-Protected Tail Light Converter

A tail light converter is built into this T-One connector. Because most trailers run on a two-wire system - wherein the brake and turn signals are carried on one wire - the separate brake and turn signals from your Honda Fit's three-wire system need to be combined so they are compatible with the wiring system of your trailer. The tail light converter combines the brake and turn signal functions of your automobile so that they run on one wire to properly activate your trailer's tail lights. Note: This will not affect how the tail lights on your Honda Fit operate.


This converter safeguards itself and your vehicle against possible electrical shorts and overloads with integrated short circuit protection. Just install the connector as indicated and rest assured that the wiring system of your vehicle will remain feedback-free.



118420 Tow Ready T-1 T-Connector - 4 Wire



118420 Installation InstructionsInstallation Details 118420 Installation instructions

Video of T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Tekonsha Custom Fit Vehicle Wiring - Trailer Hitch Wiring - 118420 Review

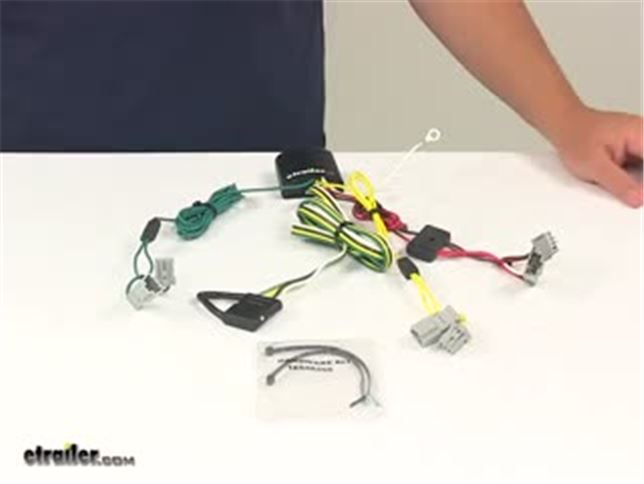

Speaker 1: Today we're gonna be taking a look at T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector. This product fits certain years and models of the Mazda 3, Honda Fit, Mitsubishi Galant, Acura TSX, Honda Accord, and Honda Civic. To ensure, double check that this is a fit for your vehicle you can always use the vehicle fit guide at etrailer.com.This unit provides a four way flat connector at the back of your vehicle to power your trailers signal lights. This is compatible with five pole, six pole, and seven pole adapters, adapters are sold separately. And it comes with the dust cap for the four way flat plug, that way you can cover up the connection points when it's not being used.The black box on the unit is the included circuit protected taillight converter, this insures that your vehicle's wiring matches that of your trailers, this provides protection against electrical shorts and overloads. The unit is designed to connect quickly and easily, you don't have to worry about cutting or splicing any wires.

It also comes with detailed installation instructions to help walk you through that whole process step by step.What you'll need to do is locate you connection points in the trunk of the vehicle and plug in all of your connectors. Now these connectors are custom fit for your vehicle, so they're gonna match up perfectly with the post on the vehicle and they're gonna snap lock together for a nice, tight, secure fit. Once you have those plugged in you'll need to make a ground connection, that's your white wire with the ring terminal attached to it. You'll want to get that grounded to a suitable grounding location and then you'll need to mount the converter box to a safe, out of the way location. It does come with a grounding screw and some cable ties that we can get everything mounted and secured and you can secure any excess or slack in the wiring with those cable ties.One your installation's complete the four way connectors gonna be stowed within the trunk of the vehicle.

You have plenty of wiring here, that way you can extend it out the rear when you need to use it, roll it up and tuck it away when you don't. It is recommended that you use a small amount of dielectric grease in all of your electrical connections, like the plugs on the vehicle and the four pole connector itself. That grease is specifically designed to help prevent corrosion to the connection points. It is available and sold separately at etrailer.com.When it comes to the maximum ampers for the stop and turn lights we're looking at 2.1 amps per circuit, but for the taillights we're looking at five amps circuit. That's gonna do it for today's look at the T-One Vehicle Wiring Harness with the 4-Pole Flat Trailer Connector..
