Price: $26.51

T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector

Item # 118325

lowest price pledge


Our Price: $26.51

Orders above $99 qualify for free shipping


In Stock.
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images


Customer Photos



  • Custom Fit
  • Trailer Hitch Wiring
  • Tekonsha
  • 4 Flat
  • Converter

1994 Ford Ranger - T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector

Quickly and easily install a 4-way trailer connector on your Ford Ranger with this custom wiring harness. T-One connector plugs directly into existing wiring - no cutting, splicing or tapping required. Includes tail light converter.


  • Provides a 4-way flat trailer connector at the back of your vehicle to power your trailer's signal lights
    • Compatible with 5-pole, 6-pole and 7-pole adapters (sold separately)
  • Connects quickly and easily - no cutting or splicing of wires
    • Locate connection points along frame rail
    • Plug in T-connector
  • Includes a tail light converter to ensure that your vehicle's wiring matches that of your trailer
  • Constructed of 16-gauge bonded wire
  • Comes with dust cap for 4-way flat connector


  • Maximum amperage:
    • Stop/turn lights: 2.1 amps per circuit
    • Tail lights: 4 amps per circuit
  • 1-Year limited warranty


This custom-fit T-One connector plugs into your vehicle's wiring harness, which is located beneath your vehicle, along the driver's-side frame rail.

Once installation is complete, the 4-way flat connector will be stowed beneath your vehicle, near the trailer hitch. A mounting bracket (sold separately) is recommended to keep the connector secure.

It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.

Tail Light Converter

A tail light converter is built into this T-One connector. Because most trailers run on a two-wire system - wherein the brake and turn signals are carried on one wire - the separate brake and turn signals from your vehicle's three-wire system need to be combined so they are compatible with the wiring system of your trailer. The tail light converter combines the brake and turn signal functions of your automobile so that they run on one wire to properly activate your trailer's tail lights. Note: This will not affect how the tail lights on your vehicle operate.

118325 Tow Ready T-1 T-Connector - 4 Wire

118325 Installation InstructionsInstallation Details 118325 Installation instructions

Video of T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector

Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

Video Transcript for Tow Ready Custom Fit Vehicle Wiring 118325 Review

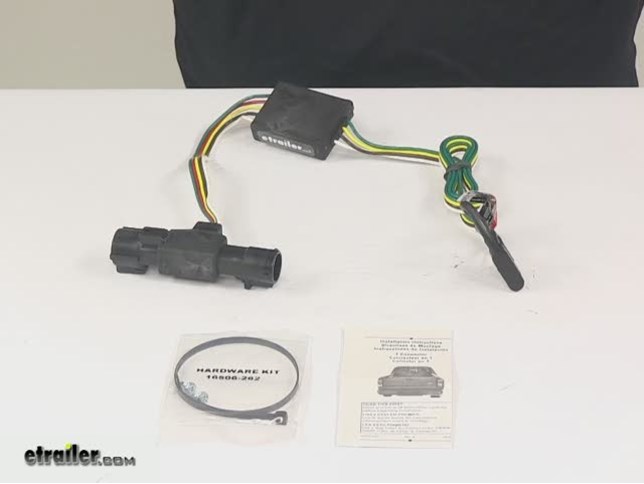

Today we're going to be taking a look at the T1 Vehicle Wiring Harness with four pull flat trailer connector. This product fits a 1994 to 2008 Mazda B Series Pickup, as well as a 1993 to 1999 Ford Ranger. It's going to provide your four way flat trailer connector at the back of your vehicle. It's going to power your trailer signal lights. This is compatible with 5 pull, 6 pull, and 7 pull adapters. The adapters are sold separately, and it's going to come with a dust cap for the for way flat connector. That way you can cover up the connection points when your plug's not being used.

The black box is going to be the included taillight converter, this is going to insure that you . Excuse me. That your vehicle's wiring matches that of your trailer's. The unit's designed to connect quickly and easily. All you have to do is locate the connection point, along the frame rail, and plug in your T connector.

The ports on the connector are going to match up perfectly with the ports on the vehicle, and they're going to snap lock together for a nice tight secure fit. Once you have that plugged in, you'll need to mount your converter box to a nice clean alloy wheel location. It's going to come with some double sided adhesive tape on it, that way you can easily get that mounted. Some other options includes includes a mount hole right here, so that way you can use one of the included screws to get it mounted that way, or it includes one large zip tie, that way you can get it mounted with a zip tie. Multiple options to get that converter box mounted, but you want to get that mounted to a nice clean out of the way location. Then you can secure your excess wires if you have any slack in your wiring. You can use that zip tie or you can provide your own.

Once your installation's complete, the four way connector's going to be stowed beneath the vehicle near the trailer hitch, you can loop it around the safety chain loop, or you can purchase a mounting bracket. Mounting bracket is sold separately, but it is recommended to help keep the connector secure. It's also recommended that you use a small amount of dielectric grease on all of your electrical connections, like the plugs on the vehicle and the four pull connector itself. That grease is going to help prevent corrosion, so if you need some of that, you can find it here as well. It's going to be sold separately also. When it comes to the maximum amperage for the stop and turn lights, we're looking at 2.1 amps per circuit, and for the taillights we're looking at 4 amps per circuit.

It's going to come with your detailed installation instructions, those are going to walk you through the whole process step by step. That's going to do it for today's look at the T1 Vehicle Wiring Harness with four pull flat trailer connector.

Customer Reviews

T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector - 118325

Average Customer Rating:  4.9 out of 5 stars   (148 Customer Reviews)

Quickly and easily install a 4-way trailer connector on your vehicle with this custom wiring harness. T-One connector plugs directly into existing wiring - no cutting, splicing or tapping required. Includes tail light converter.
- 118325

by: Tom N.05/27/2014

I installed this on a 1996 Ranger. I removed the rearmost bumper mounting bolt on each side and then loosened the other two. This allowed the bumper to drop down far enough to easily access the wiring. At that point you unplug the factor harness and plug in the trailer wiring. I drilled one hole behind the license plate to hold the wiring harness in place and the installation was complete. 132588


No problems. Easy installation.

Tom N - 05/28/2015

- 118325

by: Scott11/29/2015

Product was as described. It plugged right into the original harness everything thing is great. I went cheap on shipping and still had the harness in 4 days. I will not go anywhere else for trailer parts. Awesome job 232702


It still works just like it did when I installed it.

Scott - 11/29/2016

- 118325

by: T for Texas06/22/2017

Plug and play. Can't beat it. I bought one of these for my 92 Ford Ranger and one for my 96 Ford Ranger. 2 different part numbers. Simple as unplugging the harness where the bed attaches to the frame at the rear and plug this in between the two plug halves. EZ-PZ. I have used etrailer before and i will use them again if i need to. 400185

- 118325

by: Jim R.05/25/2015

Couldn't be happier with the wiring harness. It plugged directly into the wiring harness on the truck and had enough length to route it along the frame and secure it with wire ties in several places. The converter came with self-stick adhesive which made mounting a breeze, although I also secured it with a small bolt through the mounting hole on the converter. During the installation, I used 1/2 inch plastic ribbed wire conduit to protect the wiring harness from chaffing, although it is not necessary. I installed it on a 1999 Ford Ranger, which has separate turn signal lamps from the tail/brake lamps. If you have a similar vehicle, I highly recommend this product. Also shipping was extremely fast. 196632

- 118325

by: phillip09/12/2015

the product was as described, fit well no problems, needs a better way to attach connector to bumper. still plug and play. 225212


still satisfied with the product, no problems.

phillip - 09/14/2016

- 118325

by: Dan M11/09/2012

Arrived quickly and was the easiest wiring harness I have ever installed 59115


Works, but even with the protective cap on the plug recepical I get corrosion inside the connector

Dan M - 05/11/2014


The cap is good for keeping debris out, but it's far from a water tight seal. Best thing to do at this point would be to clean the contacts with electrical de-greaser or cleaner that you can find at an auto parts store. With the contacts clean, apply a healthy glob of di-electric grease like part # 11755
Dielectric Grease for Electrical Connectors, 2 oz.
. You can do the same on the trailer side connector. The grease will slow corrosion quite a bit by keeping those contacts coated.

-- Patrick B - 5/19/2014

- 118325

by: Rayday05/31/2015

The etrailer was a great experience and I got exactly what I wanted thanks again etrailer 199287


Excellent. No problems at all

Rayday - 05/31/2016

- 118325

by: Eldon09/22/2014

This is a excellent product! It was easy to install and works great. 152385


After one year still working perfectly!

Eldon - 09/22/2015

- 118325

by: ODJ06/17/2016

Great product thus far. The installation was simple (the connector is right above the back of the bumper), and between the supplied zip tie and the adhesive backing on the plastic box, it was easy to mount securely to the back of the bumper mount structure. Now I just need to figure out how to securely and cleanly hide away the wiring while it's not in use. The whole experience with etrailer has been great so far, btw. Everything I ordered shipped in sturdy boxes, was well packaged, and shipped quickly. 262127

- 118325

by: Joe R05/18/2017

As a seasoned auto repair tech I can tell you that the fact that this harness just connects inline to the rear taillight harness is priceless! No exposed splices to corrode and damage the vehicle harness. The flat 4 wire standard trailer connector connects to any trailer without brakes, perfect for my utility trailer. I may have to repair damaged wires on customer cars & trucks but I'll never have to fix them on my truck! Thanks ETRAILER 382255

- 118325

by: JOE V03/30/2013

I am not real good doing things but I decided to try this and it was so fast and easy that anyone could do it--you just lay under the left rear side of the truck like they say and look up---theres a plug right there --you just plug into the existing plug and fish the wire to the rear bumper---your done it takes a few minutes--great investment---Thanks E-Trailer 73458

- 118325

by: Michael B.07/28/2014

I ordered a trailer wiring harness for my Ford Ranger. It arrived several days earlier than scheduled, which is always appreciated! Installation was very easy, took only about 10 minutes. It plugged right into the factory wiring harness. A quick check with the voltmeter to verify everything works, which it does, and I'm ready to tow! Thanks e-trailer! 143271

- 118325

by: Robert03/29/2017

The t-one harness for my Mazda pu truck was just what I needed to haul a 4 point trailer.The transistion wire harness from a 4 point to a 7 point made it a lot easier to haul a trailer with a 7 point hookup.The installation was very easy for both.I have no doubt this way will solve easy hookup from 4 or 7 point hookup.I am well covered for either. 360142

- 118325

by: Bob S.09/17/2015

Good quality product! No cutting/splicing required, just pull apart the OEM connector, then plug in the T-One. Use the tie wrap or double back tape to secure the converter. Actually took all of two minutes for total install on a 1993 Ford Ranger 4X4. As always, several choices for delivery, great customer service, and their email follow-up. 226061

- 118325

by: Jon02/07/2013

I'll tell ya what, this made wiring for my trailer a no-brainer. I found the connection on the rear underside of my truck, separated, and inserted the wiring harness, and i was off and running! (just had to make sure everything was secure). thanks guys, custom harness makes this easy for someone who is not so truck or wire savvy. 65231

- 118325

by: Lance M11/08/2011

This wiring harness saved me both time and money. I f you use a generic harness you will risk poor conections & corroded wires. This solves both with a plug & play type conection, plus eliminates that pesky choice between tail lights or turn signals caused by the independant turn signals on a 1993-2000 ranger. 26690

- 118325

by: Richard C.08/24/2012

Received the T-One Vehicle harness with four pole trailer connector for my 1997 Mazda B Series pickup. Very easy to install as you just unplug the quick disconnect connector and install the T-One between the connectors and re-connect. A couple of zip ties and you are done. Less than 15 minutes. Works great!! 52937

- 118325

by: Ben G.02/12/2012

Bought the T-One connector and the 4 pole to 7 pole connector. Regular Shipping service was ok, alittle slow, but not's fault. Installed them in about 5 minutes and they work perfect together. Going hunting in a week with my "new" used pop up trailer, lights and everything work great! 31629

- 118325

by: Randall07/15/2017

Awesome hitch wiring for my ford ranger. I only had to unplug current wiring and plug in this adaptor and that was all. I would like to let everyone know that if your ford ranger (mine is 1994) needs wiring harness for a hitch this is the exact fit and is still working 1 year later. 406235

- 118325

by: Ralph D.06/25/2012

Easy "Snap" installation. Recommend if installing a trailer hitch along with the trailer wiring install the wiring first. It's much easier to install the wiring before the trailer hitch as the hitch makes it a little more difficult to get to the wiring.harness after its installed. 45507

- 118325

by: Ray F.09/02/2016

Product arrived on-time and thanks to the helpful instructions, I was able to install this wiring harness in a matter of minutes. My son is out using the truck w/trailer to mow lawns or I would take a picture of the installed harness. I am very satisfied with the product. 290401

- 118325

by: Jay H.03/12/2013

Easiest way to wire a trailer. Don't be cheap and try to do it yourself with splicing kits. This takes 60 SECONDS to install and it works perfectly on the first try. No cutting or taping. It just plugs right into your vehicle's existing plugs. How simple is that? 70380

- 118325

by: Corey M.08/19/2011

The etrailer site was easy to find the right wiring harness for my truck. Price was very reasonable, and shipping only took 3 days!!. Installation was a snap. I can now haul my vintage motocross bikes around with my trailer.Thanks etrailer.....Corey 22264

- 118325

by: M. Moss06/28/2013

Plugged it into the existing harness, and it worked perfect. The only suggestion would be to add a second attachment ear on the conversion box for the self drilling screws. One is minimally adequate, a second would hold much more secure. 86604

- 118325

by: Tim W05/01/2015

Ordered a wiring harness made specially for my vehicle. I had lights on my trailer in 2 minutes. No laying on ground...cutting...tape. Just plug into existing and go. Excellent service and i received it sooner than told. Recommend to all 189165

- 118325

by: Scott K07/06/2012

We needed a trailer harness four days before vacation and etrailer came through with flying colors! The correct part arrived a day earlier than promised and we are fixed and ready for summer vacation... Definitely recommend etrailer!!! 46901

- 118325

by: Z. Raber01/05/2011

94 Ford Ranger Trailer Wiring This could not be easier to install. I unplugged one connector and plugged this in its place. The only time consuming part was tying the wires up out of the way. Great product, no experience needed! 5023

- 118325

by: Kyle01/14/2013

Shipping said 3-5 days and we got it in 3. Everything came as described, haven't hooked it up yet but it looks as if I can just plug it in as shown. Great product and service would definitely buy from here again. 63050

- 118325

by: For the hauler on the go!06/28/2014

Plug & play & Go! That's how this was, no tools needed except if ur gonna do a fancy wiring, and u can easily unplug it and keep it in the cab if ur not using it, which means less weather exposure, longer life. 138181

- 118325

by: Todd M08/11/2012

Installed in about 5 minutes. Everything tested perfect the first time. My harness was actually toward the very rear of the vehicle not the side frame rail. I recommend waiting till bumper is off to plug it in. 51412

- 118325

by: Ed K.12/09/2015

Customer Service Representative was very helpful during the ordering process. The part was just like I needed to replace the cheesy wiring on my pickup. This finally gives me turn signal lights. Great job! 233461

- 118325

by: HOWELL AUTO REPAIR03/18/2014

The product was perfect easy to install. Saved cust money with fast plug and play. We were done in less than 5 min. I would highly recomend this company and product line. Thanks again, Howell Auto. 121136

- 118325

by: don03/19/2015

one thing i liked was it told you the location where the harness went was looking in wrong place. .have been putting this off thanks to your advise made it simple . more or less plug and play . 179666

- 118325

by: Terry A05/08/2017

Great product for a great price. Very very easy install, done in less then 15min. I think this product should come with a mount for the 4 way connector, that way it doesn't just hang there. 378048

- 118325

by: Matt M06/27/2012

Wire Harness was exactly what I needed to get trailer lights working!!! Outstanding communication and fast shipping!! Will definitely use for any additional needs!!! 45788

- 118325

by: Max05/21/2017

The experience with etrailer was great. I bought the right part the first time thanks to the web site. Theyfound the right part and it was the perfect fit. Great job guys. Thanks 383352

- 118325

by: Charles M09/24/2016

The trailer wiring adaptor i purchased was exactly as advertised. Delivery was fast with very reasonable shipping rates. I would definitely buy from etrailer again 299357

- 118325

by: Kevin06/13/2016

The T One adapter worked great . Just what I needed and was looking for . It took about 5 minutes to install with no issues . We were hauling the boat in no time . 261058

- 118325

by: Sir John08/16/2012

Amazing. Simply amazing. You just plug it in, pull the wires through to where you want them, zip tie if you wish......and start towin'. It's as simple as that! :oD 51853

- 118325

by: eric o03/07/2014

great product, very easy installation, with helpful tips and hints. plug and play no cutting or splicing needed. I will be ordering from again. 119815

- 118325

by: Nick06/12/2017

This product completely failed a few weeks ago then I just happen to get the email after owning it for awhile they wanted to know how I liked it. I don't. 392368

- 118325

by: Stephen05/24/2016

Easy installation perfect fit. But the wring corroded and one wire has managed to pull itself out of the conversion box. So i am forced to buy again... 251397

- 118325

by: Ken K06/23/2016

Purchased a new trailer light T connecter for my 97 ranger to replace the defective one installed on it. Correct part, fit perfectly and is working. 264320

- 118325

by: Herman Archer06/01/2017

EXACTLY as advertised, fit perfectly. A very efficient place to buy things. Another order going out today for lights and accessories!! Thanks. 387755

- 118325

by: Rob K06/28/2012

The T-One wiring harness was easy to install and worked as promised, transforming my '97 Ranger into a useful bumper-pull light towing vehicle. 46036

- 118325

by: Andy H.05/20/2011

Works exactly as expected. Wear safety glasses since doing this work will dislodge crud from the truck chassis and it can fall in your eyes. 14930

- 118325

by: Patrick G.06/29/2011

Installation was quick and simple. I would highly recommend this t-connector to anyone. This connector is reasonably priced and well made. 18209

- 118325

by: Roger Butler06/19/2012

Product was delivered quickly and promptly.Easy to install.Will use for my business.Could not find it at local auto parts store.Thanks 44872

- 118325

by: Terry R.05/17/2012

Fits my truck to a tee and was installed in just a couple of minutes. Pretty much self explanatory on the installation. Works great. 40798

- 118325

by: Brian W.06/17/2017

The harness fit my 99 Ranger fairly easy. The lead was plenty long enough after routing it through bumper mounts. Well made product. 395561

Show More Reviews

Ask the Experts about this Tekonsha Custom Fit Vehicle Wiring
Do you have a question about this Custom Fit Vehicle Wiring?

  • How to Wire a Towed Vehicle With Seperate Turn and Brake Cicuits on Towing Vehicle
  • If the vehicle you are towing with has separate stop and turn signals then it will need to be wired with a Modulite converter so that it can run the lights on the vehicle you are towing that does not have separate turn signals and stop lights. If the vehicle you are towing with is already setup to tow a trailer then the Modulite converter is most likely already installed. If you are towing with the 1994 Ford Ranger mentioned above then you will need to wire it with a 4-way connector...
    view full answer...

  • How to Install a 4-Way Trailer Connector on a 1994 Ford Ranger Truck
  • If your 1994 Ford Ranger does not currently have any trailer connector, the simplest way to install a 4-Way plug would be to use custom plug-in wiring harness # 118325. This harness would be installed at the factory connector that is located underneath the rear of the vehicle, along the inside of the left rear frame rail. I have included a link to the instructions below, if needed. The # 37185 adapter would convert an existing 4-Way plug to a 7-Way. If you need to adapt to a 7-Way...
    view full answer...

  • Trailer Wiring Harness Troubleshooting and Recommendation for a 1994 Mazda B-4000
  • The Tow Ready T-One Vehicle Wiring Harness, # 118325, is the correct wiring harness for the 1994 Mazda B-4000. It provides a 4-pole flat trailer connector for your vehicle. It connects to the taillight wiring harness along the inside of the left rear frame rail. This harness will have a connection point with connectors matching the ends of the T-connector adapter. You might want to also check the yellow wire going into the converter to see if you are getting power going into the...
    view full answer...

  • Hitch Recommendation for a 1998 Mazda B Series Truck
  • The hitch that is on your 2007 Honda Accord is not compatible with your 1998 Mazda B Series Pickup. You would need to get a hitch that is custom fit for your Mazda truck. For that I would recommend the Curt Trailer Hitch # 13138. Check out the install video I attached for this hitch as well. For trailer wiring I would recommend the Tow Ready Harness # 118325. For ball mounts I recommend the etrailer Ball Mount Kit # 989900. It comes with 2 ball mounts, 2 balls, a hitch pin with clip,...
    view full answer...

  • Recommended Trailer Hitch For 1999 Ford Ranger Flareside Truck
  • The trailer hitch I recommend for your 1999 Ford Ranger with the flareside is the Draw-Tite trailer Hitch, part # 75082. This is a Class lll hitch with a 2 inch receiver opening. If you plan on doing some towing you might be interested in etrailer ball mount kit # 989900. It comes with 2 ball mounts; one with a 3/4 inch rise or 2 inch drop and one with a 2-3/4 inch rise or 4 inch drop. It also includes a 1-7/8 inch ball, 2 inch ball, hitch pin with clip, and a storage bag. If you...
    view full answer...

  • Troubleshooting Broken Ground Pin on Trailer Wiring Harness for a 1994 Ford Ranger
  • The only wiring harness we carry for the 1994 Ford Ranger is the T-One Vehicle Wiring Harness, # 118325, that you have referenced. The black converter box does contain some electrical components that could potentially go bad. But if you are consistently having a trouble with the same wiring harness, it may be a symptom of another problem. You did mention the ground post breaking off. This could occur if there is corrosion build up in either connector, making it difficult to connect and...
    view full answer...

  • Recommended Brake Controller for 1999 Ford Ranger Towing a Tandem Axle Car Hauler
  • I would recommend a proportional-type brake controller for the smoothest and most reliable braking. The Tekonsha Prodigy P2, part # 90885 is very easy to use and is our best selling brake controller. To install the controller, you will need a 4-pole trailer connector if you do not already have one. If your Ranger has the factory Tow Package, use part # 118241 or part # 118325 for no tow package. You will then need our Brake Controller Install Kit, part # ETBC7. The kit contains everything...
    view full answer...

  • Trailer Tail Lights and Running Lights Do Not Work When Connected to 1994 Ford Ranger
  • This is a strange situation because on a trailer, the brake lights and turn signals are on the same circuit. Unless your trailer has turn signals that are separate, it should be a standard 2 wire system. What may be occurring is a bad ground, a alternative wiring situation on the trailer, or a bad converter box. First, testing the converter is simple. Start by disconnecting the trailer. Next, use a circuit tester like # 3808 to first test the signals going into the converter and then...
    view full answer...

  • Tail Lights and/or Brake Lights On and Use Turn Signal One side Brightens-Other Side Light Goes Dim
  • It sounds like you have one of two problems. Either the wiring on the 1995 Ford Ranger is not converted as it should be to allow the brake and turn signals to work on the same circuit correctly, or there is a ground issue on the trailer that is showing up when the brakes and turn signals are applied at the same time. If your trailer wiring does not have an inline converter, like the black box on the # 118325 T-One Harness, then you will need to purchase one and install it. The #118325...
    view full answer...

  • Using Trailer Lights on a 1997 Ford Ranger with Separate Turn Signals and Brake Lights
  • The 1997 Ford Ranger has separate turn signals and brake lights. Trailer lights have combined brake lights and turn signals. What you will need to do is use trailer wiring harness # 118325 which plugs into the factory tail light connectors on the truck (or if those are gone you can cut off the end that plugs into the vehicle and hard wire it in). If you have to cut off the end that plugs into the vehicle tail light connectors then hardwire it as follows: brown connects to vehicle running...
    view full answer...

  • Trailer Hitch to Fit with Full Size Spare Tire on a 1995 Ford Ranger
  • Customers have found that Curt trailer hitch # 13019 fits without having to remove the spare tire. More customers actually commented on this for hitch # 13138 with several of the reviews stating that that the hitch fits with the spare without any problems. Based on the customer information I would go with # 13138 for your 1995 Ford Ranger. I have linked a video showing installation for you. I also recommend etrailer ball mount kit # 989900. It includes 2 ball mounts, 2 balls, a hitch...
    view full answer...

  • Troubleshooting Turn Signals Not Working On Trailer Pulled by 1999 Ford Ranger
  • The Tow Ready Custom Fit Vehicle Wiring, # 118325, is the correct wiring harness for your 1999 Ford Ranger, and it does have a converter. Your trucks turn signals are separate from the brake light circuit on your Ranger. If the lighting kit you installed on your trailer had a lot of lights, like extra lights on the side, the amperage draw might be too much for your vehicles wiring system. If this is the case, you will need to upgrade to a Upgraded Circuit Protected Modulite, # 119179KIT....
    view full answer...

  • Trailer Right Turn Signal Does Not Work When Connected to 3 Different Vehicles
  • It certainly does sound like a short on the trailer that caused some problems, but I would not rule out the possibility that it is just coincidence and that there is an issue with all the vehicles in some way, shape, or form. If the trailer draws more that 2.1 amps per side for turn/brake lights then that would cause the converter to blow. On the trailer, make sure its connector is free of corrosion. Then you will want to trace the wiring leading back from the 4-Way to determine if there...
    view full answer...

  • Trailer Wiring Harness for a 1993 Ford Ranger
  • The separate brake lights and turn signals on your 1993 Ford Ranger is called a 3-wire or separate system. These systems require a converter, which is not uncommon, to make them compatible with the 2-wire or combined system used by trailers. The wiring harnesses for your Ranger have converters built in. You can use # 118325 which will tee in line with the truck's tail light wiring. I have included a link to the instructions for you.
    view full answer...

  • Trailer Hitch Recommendation for a 1998 Ford Ranger
  • The Curt Hitch part # 13138 that you referenced has been confirmed as a fit for your 1998 Ford Ranger so it would be the hitch for you to go with. There will be some drilling required for installation of this hitch. I attached an install video for you to check out that shows the hitch being installed on a similar 1999 Ranger. If you wanted to do some towing you might be interested in etrailer ball mount kit # 989900. It comes with 2 ball mounts; one with a 3/4 inch rise or 2 inch drop...
    view full answer...

  • Troubleshooting Wire Harness Short Circuit on a T-One Trailer Wiring Harness with Converter
  • It sounds like the converter on the T-One Wiring Harness, item # 118325, is shorted. There are many reasons which could cause the converter to go bad. Most often connecting to a trailer that has a short in the wiring is the cause. The only solution in this case is to replace the wiring harness and then making sure the wiring on any trailer you may be towing is correct.
    view full answer...

  • Trailer Lights Not Working with Wiring Harness Installed on a 1995 Ford Ranger
  • To determine definitively if the converter is bad use a circuit tester like # 3808 to test the wires going into the converter box. If the signals are correct going in, test the 4-Way end. If they are not correct coming out of the box then the converter is bad and it will need to be replaced. You will not be able to just eliminate the box. The issue is that the vehicle has what is called a separate 3-wire system meaning that all the functions are on separate circuits (brake lights, turn...
    view full answer...

  • Trailer Has Turn Signals and Running Lights but No Brake Lights Towed by 1997 Ford Ranger
  • This is strange because on a trailer, the blinker and brake lights share the same circuit. If you used a wiring harness like # 18002, on your 1997 Ford Ranger, that could explain the problem. This harness does not have a converter box included that converts the signal down to the 2 wire signal used by the trailer. You will need to install Tow Ready Custom Fit Vehicle Wiring, # 118325. I have included a link to the installation instructions for you to view. If you are using this type...
    view full answer...

  • Trailer Hitch Recommendation for a 1996 Ford Ranger
  • The hitch part # E-3S that you referenced would not bolt up the bottom of the Westin Bumper part # 66000-97200 without a lot of modification that I can't recommend. Instead I have a much better option for you for a hitch for your 1996 Ford Ranger. You would want the Curt hitch part # C12012 that will attach directly to the frame of your truck and would be a much better hitch setup. If you wanted to do some towing you might be interested in etrailer ball mount kit # 989900. It comes...
    view full answer...

  • Adding a Brake Controller to a 1996 Ford Ranger
  • First, if your 1996 Ford Ranger came with a factory 4-Way trailer connector or you installed an aftermarket 4-Way, you will need to add an # ETBC7, if the trailer has a 7-Way blade style connector, or an # ETBC6, if the trailer has 6 pole connector. If you need to add a 4-Way, you would use # 118325. If you add a trailer connector or it already has one, the signals for the tail lights on the trailer are already converted down to the correct signals. In order to operate the electric brakes...
    view full answer...

  • Adding a 7-Way Trailer Connector and Brake Controller to a 1998 Ford Ranger
  • I do have a solution to add a 7-Way trailer connector and brake controller to your 1998 Ford Ranger. Since there isn't a plug-in 7-Way available for your truck, one will need to be partially hardwired. First, if the truck already has a 4-Way flat connector then all you would need is kit # ETBC7 which includes all the parts needed to install the 7-Way and provisions for installing a brake controller. If the truck does not have any trailer connector then before you can install the...
    view full answer...

  • Differences in Tow Ready and Hopkins Wiring Harnesses for Mazda B Series Pickup
  • The main difference between the Tow Ready # 118325 and the Hopkins # 40215 wiring harnesses is that the Hopkins # 40215 requires the harness to be grounded to the vehicle with the included self-tapping screw. The wiring harness needs to be grounded at a location where the sheet metal is doubled. I recommend the Tow Ready T-One Vehicle Wiring Harness # 118325. This harness will have a much simpler installation since there it is a true plug-and-play wiring harness. Since the ground wire...
    view full answer...

  • Will Curt Trailer Hitch 13138 Fit a 1999 Ford Ranger With Dual Exhaust
  • The Curt trailer hitch # 13138 bolts to the bottom of the frame rails so provided no part of the exhaust is in between the frame rails where the hitch will be present (see instructions and video I have linked for you) having dual exhaust that exits straight from the back of the truck should not be an issue. If you plan on doing some towing I recommend the etrailer ball mount kit # 989900. It comes with 2 ball mounts, 2 balls, a hitch pin with clip, and a storage bag. For wiring use #...
    view full answer...

  • Mounting Hole Dimensions for the Hidden Hitch Trailer Hitch on a 1998 Ford Ranger
  • I went out to the warehouse to measure the hitch for you. The distance between the holes on center from front to back is 5-3/4 inches and the side to side measurement is 31 inches on center for both the most forward and most rearward bolt holes. Some items you may want to consider to complete your towing setup are listed below. Wiring # 118325 Drawbar # 2923 Hitch Ball # 19260 or # 19247 Hitch Lock # 7683
    view full answer...

  • Trailer Hitch and Wiring for a 1997 Ford Ranger
  • We have several trailer hitches for your 1997 Ford Ranger but # 75082 will fit.Please note it will not fit GT models. If you plan on doing some towing you might be interested in etrailer ball mount kit # 989900. It comes with 2 ball mounts; one with a 3/4 inch rise or 2 inch drop and one with a 2-3/4 inch rise or 4 inch drop. It also includes a 1-7/8 inch ball, 2 inch ball, hitch pin with clip, and a storage bag. If the ball mount kit does not have the right rise or drop to tow the...
    view full answer...

  • Trailer Wiring Harness Recommendation and Functions for a 1993 Ford Ranger
  • On a vehicle that has turn signals that are separate from the brake lights, a converter, # 118325 in this case, is required. The converter takes the separate signals on the vehicle and combines them to turn/brake lights on the same circuit which is what trailers use. Your trailer has what is called a wishbone harness. Normally, yellow is the driver side and green is the passenger side. When there is 2 brown wires this means that the running light signal is split at the connector so you...
    view full answer...

  • Is Drilling Required to Install the Hidden Hitch Trailer Hitch # 70181 on a 1999 Ford Ranger
  • Yes, the Hidden Hitch Class III Trailer Hitch, # 70181, will install on your 1999 Ford Ranger assuming all of the factory bolt holes were pre-drilled into your vehicles frame rails. All of the bolt holes for this hitch are pre-drilled during assembly, so the holes should be present. It is not common for a hole to be missing. If you want to verify that you will not have to do any drilling, then I would recommend checking your frame rails for the necessary holes. I have attached an installation...
    view full answer...

  • Hitch Recommendation for a 1998 Ford Ranger
  • For a trailer hitch for your 1998 Ford Ranger you would want the Curt Hitch part # 13138 as it is a Class III hitch confirmed to fit your vehicle that is the most popular with our customers. This is a round tube hitch with plenty of capacity that would work well for you. I attached an install video for you to check out as well. If you wanted to do some towing you might be interested in etrailer ball mount kit # 989900. It comes with 2 ball mounts; one with a 3/4 inch rise or 2 inch drop...
    view full answer...

  • Troubleshooting a Shorted Out T-One Vehicle Wiring Harness # 118325 on a 1996 Ford Ranger
  • It sounds like the # 118325 might be bad since you checked the voltage before the unit and there was power but after there is not. However, since this is the second one of these you have gone through it sounds like you might have a short somewhere on the trailer that is causing the # 118325 to short out and quit working. I would recommend you go over your trailer wiring and check for any bad grounds, loose wires or corrosion and fix as necessary. I attached installation instructions...
    view full answer...

  • Parts Required to Install Prodigy P3 Brake Controller # 90195 in 1995 Ford Ranger XLT
  • We have everything you'll need to install the excellent Prodigy P3 brake controller # 90195 in your 1995 Ford Ranger. Aside from the controller itself you will need a 4-pole wiring harness # 118325, which is a simple plug-in installation, and a trailer brake controller install kit, part # ETBC7. These two parts give you everything you need to install a functional 7-way for use with a trailer equipped with electric brakes. I have linked an install video for the # ETBC7 kit as well...
    view full answer...

Do you have a question about this Custom Fit Vehicle Wiring?

  • Why

    At we guarantee:

  • Highest quality custom fit vehicle wiring for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate custom fit vehicle wiring information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? Read our Returns Policy. Please note that we cannot exchange items. You can also cancel unshipped items. Contact our Customer Service team at 800-298-8924 to find out more about how to cancel your order.

Info for this part was:

Expert Research:
Robert G

Expert Research:
Michael H

Expert Research:
Jameson C

Video by:
Joshua S

Test Fit:
Nicholas E

Expert Research:
John H

Updated by:
Laura H

Photos by:
Jim W

Installed by:
Cole B

Updated by:
Sarah W

At we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.

About Us
photos and videos

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.


Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
