Price: $20.19

Erickson O-Track Tie Down Anchors - 18" Long - Straight Pull: 733 lbs - Side Pull: 583 lbs

Item # EM59133

lowest price pledge

Our Price: $20.19

Orders above $99 qualify for Free Shipping

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

erickson tie down anchors o-track bar - 18 inch long straight pull: 733 lbs side 583
erickson tie down anchors o-track parts bar
erickson tie down anchors trailer tie-down track systems and o-track bar - 18 inch long straight pull: 733 lbs side 583
erickson tie down anchors o-track parts bar em59133
erickson tie down anchors trailer tie-down track systems and o-track bar em59133

Videos


  • O-Track Parts
  • O-Track Bar
  • Trailer Tie-Down Anchors
  • Track Systems and Anchors
  • 583 lbs
  • 733 lbs
  • 18 Inch Long
  • Erickson
Mount this adjustable track to the floor or wall of your trailer, pickup or SUV for easily accessible, secure tie-down points. Spring-loaded O-ring clips move anywhere along the track, and more can be added for ultimate customization. Lowest Prices for the best tie down anchors from Erickson. Erickson O-Track Tie Down Anchors - 18" Long - Straight Pull: 733 lbs - Side Pull: 583 lbs part number EM59133 can be ordered online at etrailer.com or call 800-298-8924 for expert service.



Erickson Tie Down Anchors - EM59133

Mount this adjustable track to the floor or wall of your trailer, pickup or SUV for easily accessible, secure tie-down points. Spring-loaded O-ring clips move anywhere along the track, and more can be added for ultimate customization.


Features:

  • O-ring attachment points let you easily secure your cargo
  • Adjustable track mounts to the wall or floor of your trailer, pickup or SUV
  • Spring-loaded lock clips can be inserted into any hole along the track for easy adjustment
    • Additional clips may be added to fit your application (EM59132)
  • O-Track system includes aluminum track, 2 movable anchor rings and mounting hardware


Specs:

  • Track length: 18"
  • Capacities:
    • Straight pull - 2,200 lbs breaking strength / 733 lbs working load
    • Side pull - 1,750 lbs breaking strength / 583 lbs working load


O-Track

Note: Tie-down anchors must be chosen according to their safe working load limit (WLL). The weight of the secured cargo must not exceed the combined WLL of the anchors being used. For example, if you are using anchors with a WLL of 100 lbs each to tie down a load weighing 400 lbs, then you need at least 4 anchors to safely secure that load. It is recommended that you always use anchors in pairs.



59133 Erickson 18" O-Track Cargo Control System







Economy - This item

Erickson O-Track Tie Down Anchors - 18" Long - Straight Pull: 733 lbs - Side Pull: 583 lbs


Erickson O-Track Tie Down Anchors - 18" Long - Straight Pull: 733 lbs - Side Pull: 583 lbs
Erickson Tie Down Anchors

5 reviews

Code: EM59133

In Stock

Our Price: $20.19


  • Tie Down Anchors
  • Trailer Tie-Down Anchors
  • Track Systems and Anchors
  • O-Track Parts
  • 583 lbs
  • 733 lbs
  • O-Track Bar
  • 18 Inch Long
  • Erickson


Mount this adjustable track to the floor or wall of your trailer, pickup or SUV for easily accessible, secure tie-down points. Spring-loaded O-ring clips move anywhere along the track, and more can be added for ultimate customization.

more information →
Compare Similar Products
Economy
Price: $20.71
$0.52 More

Erickson Vertical E-Track - Zinc Coated Steel - 2,000 lbs - 4' Long - Qty 1


Erickson Vertical E-Track - Zinc Coated Steel - 2,000 lbs - 4' Long - Qty 1
Erickson Tie Down Anchors

116 reviews

Code: E19146

In Stock

Our Price: $20.71


  • E-Track Parts
  • 3-1/2 Inch Wide
  • 2000 lbs
  • E-Track Track
  • 4 Feet Long


4' E-track with vertical slots is perfect for installation in truck or trailer beds or on enclosed trailer walls. Multiple slots for securing E-track straps and tie-down anchors. Bolt-on installation (hardware not included). 6,000 lbs Max load.

more information →
Value
Price: $28.00
$7.81 More

Erickson Horizontal E-Track - Zinc Coated Steel - 2,000 lbs - 5' Long - Qty 1


Erickson Horizontal E-Track - Zinc Coated Steel - 2,000 lbs - 5' Long - Qty 1
Erickson Tie Down Anchors

284 reviews

Code: E19148

In Stock

Our Price: $28.00


  • E-Track Parts
  • 5 Inch Wide
  • 2000 lbs
  • E-Track Track
  • 5 Feet Long


5' E-track with horizontal slots is perfect for installation in truck or trailer beds or on enclosed trailer walls. Multiple slots for securing E-track straps and tie-down anchors. Bolt-on installation (hardware not included). 6,000 lbs Max load.

more information →
Premium
Price: $48.19
$28.00 More

Tow-Rax Low-Profile Floor Track for Tie-Down Anchors - Aluminum - 6' Long - Machined - Qty 1


Tow-Rax Low-Profile Floor Track for Tie-Down Anchors - Aluminum - 6' Long - Machined - Qty 1
Tow-Rax Tie Down Anchors

5 reviews

Code: TWSP72TA

In Stock

Our Price: $48.19


  • 6 Feet Long
  • Tow-Rax


Mount this sturdy aluminum track to the floor or wall of your trailer and hook in tie-down points (sold separately) so that you can quickly and easily secure all kinds of cargo. Low-profile design does not hinder loading or unloading.

more information →

Related Products



Customers compare EM59133 to these similar products





Customers Who Purchased This Tie Down Anchors Also Bought...

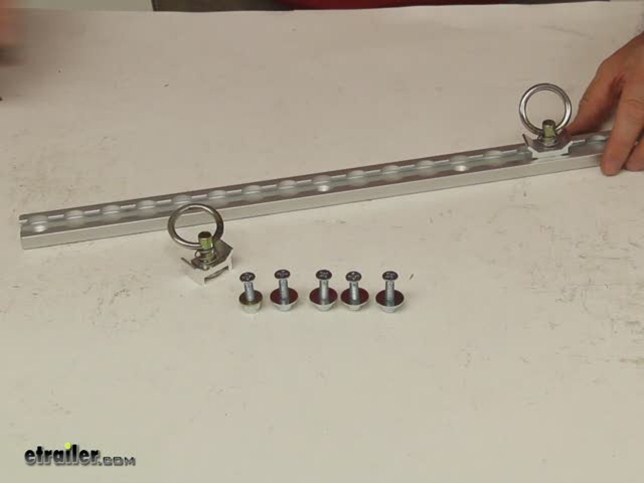

Video of Erickson O-Track Tie Down Anchors - 18" Long - Straight Pull: 733 lbs - Side Pull: 583 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Erickson Enclosed Trailer Parts EM59133 Review

Today were going to review part number EM59133. This is the Ericsson 18-inch O-Track Cargo Control System. The system will allow you to mount this adjustable track to the floor or wall of your trailer, pick-up or SUV for easily accessible secure tie down points. The spring loaded o-ring clips right here can move anywhere along the track and more can be added for ultimate customization. The o-ring attachment points lets you easily secure your cargo and the adjustable track will mount to the wall or floor of your trailer. The spring loaded clips can be inserted into any one of the holes along the track for easy adjustment.

Now, you can add additional clips those would be sold separately. They are part number EM59132. This part will include the aluminum track, the two movable anchor rings and the mounting hardware for attaching it to the trailer. As you can see this track we have five pre-drilled holes. Now the track length on this is 18 inches and the holes that are on the track are 1 inch apart on center.

Now, the capacities on this would be the straight-pull capacity which would be if the load you are tying down is pulling on the ring directly at the top that would give you a capacity of 2200 pounds breaking strength or 733 pounds working load strength. Now, if the load youre going to be tying down will be pulling on the side which would be a side-pool capacity then it drops down to 1750 pounds breaking strength or 580 pounds working load strength. Basically just to show you how these clips would work, you can see theyre spring loaded so when you push down on it you can see the round surface which would fit in any one of these holes. So if you just line it up with the hole, push it down, oops lets do this again. Here you go and then itll clip into place and the if you need to move it you can just push down on it, slide it along till the net locks down in place and if you want to remove it just pull it out through one of the holes.

And that should do it for a review on part number EM59133.


Customer Reviews

Erickson O-Track Tie Down Anchors - 18" Long - Straight Pull: 733 lbs - Side Pull: 583 lbs - EM59133

Average Customer Rating:  4.8 out of 5 stars   (5 Customer Reviews)

Mount this adjustable track to the floor or wall of your trailer, pickup or SUV for easily accessible, secure tie-down points. Spring-loaded O-ring clips move anywhere along the track, and more can be added for ultimate customization.

- EM59133

by: Dan S.08/13/2017


Good Quality and comes with bolts, washers, and lock nuts making installation easier. This is the second time I've purchased this very product. I also have a pair of their 6' version. Recommended! 419779



- EM59133

by: Mycargotrailer10/21/2017


Well designed and high quality at a good price. 444689



- EM59133

by: Steven08/02/2016


Nice quality product that is easy to in stall. 278228



- EM59133

by: GeoC07/31/2016


Just what I needed for tiedown on trail er 277792


Comments

Works fine. Many uses on my trailer

GeoC - 07/31/2017

26737

- EM59133

by: Kevin G.09/03/2017


Easy to install and worked perfect. 429254


5
5

Ask the Experts about this Erickson Tie Down Anchors
Do you have a question about this Tie Down Anchor?


  • Comparing O-Track Cargo Control System And L-Track System
  • I did some research and found that the Erickson O-Track Cargo Control System like part # EM59133 is very similar to the L-Track systems you referenced. The Erickson O-Track is 18 inches long and includes 2 Spring-loaded O-ring clips and mounting hardware. These can be mounted on a wall or on the floor giving you versatility for securing cargo. I have attached a photo that shows what the weight capacities of the clips are when installed. I have attached a product review video for the...
    view full answer...

  • Dimensions of Erickson O-Track Truck Bed Tie-Down Anchors
  • The track of the Erickson O-Track tie-down anchors measure 2 inches wide and 1/2 inch tall by 18 inches long. This product would be a great choice for securing items in your truck bed. The anchors have a straight pull capacity of 733 lbs apiece and a side pull capacity of 583 lbs each. I'll link you to a product video featuring the tie-down anchor system.
    view full answer...

  • Thickness of Erickson # EM59133 O track
  • The Erickson O Track # EM59133 is 1/2 inch thick by 2 inches wide by 18 inches long.
