Bulldog Velocity Series Electric Landing Gear Jack - 24" Lift - 12,000 lbs

Bulldog Velocity Series Electric Landing Gear Jack - 24" Lift - 12,000 lbs

Item # BD185400

lowest price pledge

Retail:$1,540.11

Our Price: $946.95

You Save: $593.16
Camper Jack

This item qualifies for Free Shipping

Shipping Weight: 101 lbs

Arrives before Christmas with Ground or Free Shipping.
Quantity:
In Stock, Ships Today
BD185400 - 4 Inch Bulldog Camper Jack
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Videos

The sealed, maintenance-free, 12V motor on this electric jack maintains high speeds, even with heavy loads. Extra-large, articulating footplate prevents sinking. Remote control has a 10' long cord so you can operate the jack from a safe distance. Call 800-298-8924 to order Bulldog camper jack part number BD185400 or order online at etrailer.com. Free expert support on all Bulldog products. Guaranteed Lowest Price and Fastest Shipping for Bulldog Velocity Series Electric Landing Gear Jack - 24" Lift - 12,000 lbs. Camper Jack reviews from real customers.
  • All Info
  • Reviews (10)
  • Q & A (34)
  • Videos (1)
  • Photos
  • Why etrailer?

Bulldog Camper Jack - BD185400

  • Landing Gear
  • 12000 lbs
  • Bulldog
  • Electric Jack
  • 24 Inch Lift
  • Bolt-On
  • 4 Inch

The sealed, maintenance-free, 12V motor on this electric jack maintains high speeds, even with heavy loads. Extra-large, articulating footplate prevents sinking. Remote control has a 10' long cord so you can operate the jack from a safe distance.


Features:

  • Electric landing gear jack lets you quickly and easily level and stabilize your trailer when used as part of a set
  • Single-speed, 12V DC motor maintains a high speed, even with heavy loads
    • Sealed and requires no maintenance
    • No need for pump, oil, or hoses, unlike with hydraulic jacks
  • Built-in clutch prevents damage from overextension
  • Extra-large, articulating footplate provides excellent stability
    • Prevents sinking and tilting
  • Remote control makes operating easy
    • Plugs into side of jack with 10' long cord
    • Plug port is covered to prevent damage when remote is not in use
  • Integrated mounting bracket fits multiple trailer heights
    • Bolts onto front of trailer - no welding required
  • Powder coated steel resists corrosion
  • Manual override crank (sold separately) allows you to operate jack without electricity


Specs:

  • Bracket height:
    • 44.8" Retracted
    • 69.1" Extended
  • Lift: 24"
  • Lift capacity: 12,000 lbs
  • Motor attributes:
    • 12 Volts
    • 20" Lift in 60 seconds
  • Outer tube width: 4"
  • Footplate dimensions: 10" wide x 10" long
  • 5-Year limited warranty


Note: Landing gear is designed to stabilize a portion of your trailer's weight, not to support the full GVWR of your trailer. Do not use landing gear to lift your trailer or RV during tire changes or service work because doing so will exceed the capacity of the landing leg.



185400 Bulldog Motorized Landing Gear Jack - 24" Lift - 12,000 lbs



BD185400 Installation InstructionsInstallation Details BD185400 Installation instructions


California residents: click here

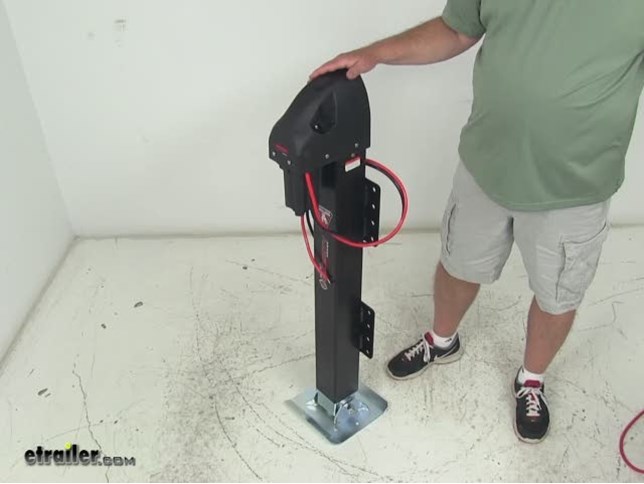

Video of Bulldog Velocity Series Electric Landing Gear Jack - 24" Lift - 12,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Bulldog Camper Jack - Landing Gear - BD185400 Review

Today we're gonna review part number B D one eight five four zero zero. This is the Bulldog Velocity Series electric landing gear jack. It has a twenty-four inch lift and a twelve thousand pound weight capacity. Now this heavy duty electric jack features a nice powerful twelve volt motor that can handle heavy loads while maintaining speed. The electric landing gear jack will let you quickly and easily level and stabilize your trailer. Also, this part is for one jack. An additional jack can be purchased so you can level your trailer in tandem.

This has a single speed twelve volt D C motor which maintains a high speed, even with heavy loads. It is a sealed motor and requires no maintenance. It has a built in clutch which will prevent damage from over extension. It does also come with this remote control with a five foot long cord. Plug it into the side here.

It makes it very easy to operate from a distance. You can see it has the mounting brackets. There's two mounting brackets here with different rows of holes, so it's an adjustable bolt on mounting bracket which will fit multiple trailer heights. It bolts on to the trailer. There's no welding required. On the very bottom right down here you can see it has an extra large articulating foot plate which provides excellent stability and prevents sinking and tilting.

Everything has a nice powder coated steel to help resist corrosion. Now, at the very top here, if you pull this plug off, you will have access to a bolt, and that's where you can put a manual override crank which will allow you to operate this jack without electricity. Now the crank is not included. It is sold separately on our website, but I also found out that you could use a three quarter inch socket with about a six inch extension that'll fit right in there and do the same thing. Now a few specs on this. The bracket height, in other words, I'm gonna hook this up in a minute just to show you how it operates, but basically, when it's fully retracted like it is now in the retracted position, the bracket height is gonna be about forty five inches. When we hook up the remote and extend it all the way, fully extended, it's about sixty-nine inches, so that gives you a total travel of twenty-four inches. The lift capacity again is about twelve thousand pounds.

Again, it's a twelve volt motor. It's a single speed motor. It gives you about twenty inches of lift per minute at full capacity. The outer tube width is four inches by four inches and the foot plate dimension is gonna be ten inches by ten inches. Now one note just to mention to you, that landing gear is designed to stabilize a portion of your trailer's weight. It is not to support the full gross vehicle weight rating of your trailer and you do not want to use landing gear to lift your trailer or RV during tire changes or service work because doing so will exceed the capacity of the landing leg. So, just to show you real quick what we're gonna do, you can see the power and the ground wire is about four foot long, and what we're gonna do is I've got a twelve volt power supply here, so we're gonna hook it up, and I'm gonna try to show you how the jack will operate with the remote hooked to it. Once we've got it all hooked up and the power is on, you take your remote and you notice the plug is a three pin plug, so if we just pull off our cap, you'll see the three pins and then what you'll see is a little slot there. So you just line that up. Once you've lined that up you plug it in. There we go. We're all plugged in and it gives you again five foot of cord with your remote, so your mode will say extend, retract, so basically, with the power on, I'm gonna push extend and you can see how it will extend open, and as soon as you leave off the toggle switch it'll go to the middle, which is off. Then, if you want to retract it, you can see how it'll retract all the way down. Once you get to the bottom, you can see that it's fully retracted so it's as simple as that. Then, all is have to do is just pull out your cable and your remote, put your cap back on, and then you'd be all ready to go. That should do it for the review on part number B D one eight five four zero zero, the Bulldog Velocity Series electric landing gear jack, the twenty-four inch lift, and a twelve thousand pound weight capacity.


Customer Reviews

Bulldog Velocity Series Electric Landing Gear Jack - 24" Lift - 12,000 lbs - BD185400

Average Customer Rating:  4.9 out of 5 stars   (10 Customer Reviews)

The sealed, maintenance-free, 12V motor on this electric jack maintains high speeds, even with heavy loads. Extra-large, articulating footplate prevents sinking. Remote control has a 10' long cord so you can operate the jack from a safe distance.

- BD185400
by:

Replaced the single Jack on our 1994 featherlite 4 horse trailer 24ft on the floor. Why did we wait so long? Works Like a dream, bought the mounting plate and cut off 3 inches and made 2 new mounting pads on it and done in less than 4 hrs. Jack came with a cracked motor cover,no problem in less than a week I was sent o replacement etrailer rocks in my book. Sent them a picture and no jacking around Ha ha, new cover at my doorstep. 691103



- BD185400
by:

The jack works as noted. I did have to replace the leads, because they were way to short for my problem 450463



- BD185400
by:

Had to adapt jack to an earlier model horse trailer. Worked great, plenty of strength and power. 564460



- BD185400
by:

Hooked to the trailers deep cycle battery. Solar charged. My wife loves it 398044



- BD185400
by:

Love it 697162



- BD185400
by:

Looks good and we got it fast 689974



- BD185400
by:

Fantastic product, my second one 682191



- BD185400
by:

Awesome jack love the push of a button up and down. It is very strong and so far is holding up well. 598671



- BD185400
by:

I really have had great luck with the jack as far as the operation and reliability. It would be great if there was more options for other applications, such as shorter overall height and a adjustable foot. 563943



- BD185400
by:

Works great wouldn’t hesitate to buy another if needed put it on 30ft livestock trailer you guys are great never an issue and I’ve bought a lot from etrailer you make buying easy great products great people fast shipping 496416


10
10

Ask the Experts about this Bulldog Camper Jack

Do you have a question about this Camper Jack?


  • Recommended Electric Jack For Goose Neck Horse Trailer
  • For an electric jack with the 10,000 lb capacity of your Ram 12000 Series manual jack, I recommend the Electric 5th Wheel Landing Gear Set # RP500708. This kit will give you the 2 independently motorized jacks with drop legs and the switches needed. I've attached a photo giving you the dimensions so you can determine fit. Another option is the Bulldog Velocity Series Electric Landing Gear Jack - 24" Lift - 12,000 lbs # BD185400. This is an external unit that is sealed and maintenance...
    view full answer...

  • Recommended Replacement Landing Gear for 2007 Pilgrim 40 Foot 5th Wheel Trailer
  • On your 2007 Pilgrim 40 foot 5th wheel trailer, I recommend using the Ultra-Fab Deluxe Electric Landing Gear Set - 38" Lift - 12,000 lbs # UF17-943010. This landing gear will allow you to adjust independently for easy and quick leveling. The leg will travel 1 inch every 15 seconds and has drop legs for even faster compatibility. I've attached a diagram for you to see the connection points based on the weld stops so you can determine if it will bolt right in or if modifications to your...
    view full answer...

  • Replacement Electric Landing Gear for Horse Trailer
  • Sorry to hear your system broke and there aren't replacement parts available for your horse trailer. The Bulldog Velocity Series Electric Landing Gear Jack - 24" Lift - 12,000 lbs # BD185400 is a good replacement for your discontinued and broken system. It will simply bolt right on to your trailer so it can utilize the 12V power you already have run. It is able to lift 12,000 lbs and lifts 20 inches in 60 seconds. Another great option for you is the Bulldog Square Jack - Drop Leg...
    view full answer...

  • Electric Landing Gear Legs for a 2017 Sundowner 3H GN Super Sport Horse Trailer
  • For starters, the Bulldog Powered-Drive Kit part # BD1824200100 for single speed or part # BD1824180100 for two speed is only designed to work with Bulldog landing gear legs that have a 12,000 lb support capacity. If you do not have these legs than I cannot confirm the conversion kit will work for you. If you do have the above legs then there would be no reason to purchase a new system assuming the old one is in working order. You will have a fresh set of gears and wired remote if you...
    view full answer...

  • Electric Conversion Compatibility for Holland Binkley Model 48000 Series Jack on Horse Trailer
  • The Holland Binkley model 48,000 series jacks are very similar to the Bulldog Square Jack - Drop Leg w/ Spring Return # BD182815 which can utilize the Bulldog Powered-Drive Kit for Single-Speed Jacks w/ 12,000-lb Capacity # BD1824200100. Your current jacks are not compatible with the kit to my knowledge so you would need to replace the jacks in order to upgrade to the motor kit. Another option is to use the Bulldog Velocity Series Electric Landing Gear Jack - 24" Lift - 12,000 lbs...
    view full answer...

  • Is there a Switch that Can be Used Instead of the Remote for the Buldog Velocity Jack BD185400
  • There are a couple of options if you do not want to use the wired remote that comes with the Bulldog Velocity jack # BD185400. First, you could use 3-Pin connector # BD500380 with a switch such as # LC387874. The connector will plug into the same socket the wired remote uses. The switch wires will need to be wired to the connector. The other option is to use the wireless remote kit # BD500527. This will allow you to store the remote where it will be safe.
    view full answer...

  • Wireless Remote Control for Bulldog Velocity Series Landing Gear Jacks
  • The Wireless Remote Control for Bulldog Velocity Series Electric Landing Gear Jack part # BD500527 is designed to work with the Bulldog Velocity Series Electric Landing Gear Jack part # BD185400. As long as you have these jacks on your dump trailer then yes the wireless remote will work for you. If you have a different set of landing gear jacks on your trailer then you will need to seek alternative solutions as this remote is only designed to work with the Bulldog jack. I have attached...
    view full answer...

  • Can an Electric Motor be Added to the Bulldog Square Jack # BD182701
  • The Bulldog Square Jack # BD182701 that you referenced can have an electric motor added to it using the Bulldog Powered-Drive Kit for Single-Speed Jacks w/ 12,000-lb Capacity # BD1824200100. Since the powered-drive kit is rated for 12,000 lbs that will be your weight capacity. This is a weld-on jack that works well for heavy-duty trailers such as a horse trailer. We do not have access to specs on every trailer so I couldn't tell you if it is a direct replacement, but since it is a weld-on...
    view full answer...

  • How To Wire Up a Pair of Bulldog Velocity Jacks part # BD185400
  • What you'd need is the part # BD500379 which is the kit designed to allow you to operate a pair of the Bulldog Velocity jacks part # BD185400. To make the remote wireless you can also use the part # BD500527 too.
    view full answer...

  • Dimensions of the Bulldog Velocity Series Electric Landing Gear Jack
  • On the Bulldog jack # BD185400 the mounting holes require 1/2 inch hardware. I was able to determine that when fully retracted the overall height is 44.8 inches. It is about 33 inches to the top of the top bracket. The distance from the top of the top bracket to the top of the motor is approximately 11-3/4 inches. The distance from the top of the bracket to the base of the motor at the back is approximately 3-3/4 inches tall. And the motor at the front hangs down approximately 4-1/2...
    view full answer...

  • Landing Gear Recommendations for a 2010 Forest River Cardinal 3450
  • The Bulldog Velocity series jack, # BD185400, would give you the least problems because of its use of a ball-bearing design and not regular screw and nut like other jacks. The result is less friction, less wear and tear, and faster operation. This jack is sold as a single jack only so you would have to get 2 of them and the control box to control the 2 jacks is sold separately as # BD500379. The next best thing would be a Lippert set such as # LC333964. Lippert makes the majority of...
    view full answer...

  • Why Does Remote Control on Bulldog Jack Need to be Unplugged?
  • It is recommended you unplug the remote from your Bulldog Velocity Series Jack # BD185400 because with the remote plugged in, the port will not be fully covered and will be more susceptible to damage. The cover on the remote port is there as a way to keep the jack from avoidable damage due to exposure. It's also possible the remote constantly being plugged in will cause its connection to the jack to be looser than it otherwise would be over time, necessitating a new remote.
    view full answer...

  • What Jacks Does BullDog Spring Loaded Pull Pin BD500388 Fit
  • We can only guarantee that the Replacement Spring Loaded Pull Pin # BD500388 would work with Bulldog brand jacks like the Bulldog Velocity powered jack part # BD185400 or the powered a-frame jack # BD500199.
    view full answer...

  • Amperage Draw for the Bulldog Landing Gear Jack part # BD185400
  • I checked with Bulldog and for the 12k jack part # BD185400 they list this for amperage draw: Approximate Travel Speed and Current Draw 31 Inches per minute at no load, 15 amps 30 Inches per minute at 4,000 lbs., 40 amps 26 Inches per minute at 8,000 lbs., 65 amps 21 Inches per minute at 12,000 lbs., 100 amps
    view full answer...

  • Powered Landing Gear Recommendation to Replace 10k Landing Gear
  • Your trailer uses standard style landing gear so for a powered set that would work better and has a 12k capacity you would want the part # UF17-943010. This would be a great option for your trailer.
    view full answer...

  • Isolation Pads for Aluminum Trailers When Installing Bulldog Velocity Series Jack
  • Rubber is a great material to use as an isolation pad to prevent galvanic corrosion from dissimilar metals like if you were installing the Bulldog Jack part # BD185400 on an aluminum frame trailer.
    view full answer...

  • High Capacity Powered Jack Recommendation for a Boat Trailer
  • Since your boat trailer would not have an A-frame for a powered jack you would need to go with a landing gear type powered jack like the part # BD185400. This jack has two mounting brackets, but most likely you would need to have a qualified fabricator weld this jack to your trailer. Since this is an electric jack you will need to make sure you mount it somewhere where it would not come into any contact with water.
    view full answer...

  • How is Manual Override of Bulldog Velocity Series Electric Landing Gear Jack Operated
  • All that's needed for the manual override of the Bulldog Velocity Series Electric Landing Gear Jack # BD185400 is a 3/4 inch hex socket. A tool isn't available but I did attach a link to the install instructions for this for you to check out as well.
    view full answer...

  • Would Bulldog Velocity Electric Landing Gear # BD185400 Fit Trailer Welded to 4 inch Wide Frame
  • The Bulldog Velocity Series Electric Landing Gear Jack # BD185400 would work on your trailer. Since where you current jack is mounted is the same width as your current jack you would just have to have the brackets of the # BD185400 welded directly to the same section. A qualified welder in your area would have no problem securely welding the # BD185400 to the frame of the trailer. Thanks for sending us a picture of your trailer.
    view full answer...

  • Electric Jack Without A-Frame Mount
  • There is one side mount electric jack we currently carry and it is intended for very large trailers like 5th wheel or travel trailers. It is the Bulldog Velocity Series Electric Landing Gear Jack - 24" Lift - 12,000 lbs # BD185400. It is a bolt on installation and a very nice jack with a high weight capacity of about 4 times that of most a-frame electric jacks. The only other electric jack options are landing gear for the larger trailers. There is not a pole tongue electric jack...
    view full answer...

  • Wireless Landing Gear Jack Recommendation for Fifth Wheel Trailer with 24 inches of Travel
  • If you went with Bulldog Landing Gear # BD185400 on your fifth wheel you can then use the wireless remote kit part # BD500527 and you'll have a 24 inch travel landing gear jack with a 12k capacity.
    view full answer...

  • What is the Overall Height of the Bulldog Velocity Series Electric Landing Gear Jack
  • The Bulldog jack, # BD185400, has an overall height of 44-13/16 inches. This measurement is from the top of the jack motor housing to the foot pad when the jack is completely retracted. The attached photo displays other dimension information on this Bulldog jack for you to review.
    view full answer...

  • Stabilizer Jack Recommendation for 2005 Lexington 255 Forest River Motorhome Class C
  • Sounds like you are looking for stabilizer jacks for your Class C motorhome. For an electric set we have the part # UF39-941705 which will fit trailer frames of 48" to 80" wide and has a stabilizing capacity of up to 6,000 lbs. I attached an install video for you to check out for this as well.
    view full answer...

  • Repair Parts and Replacement Jack for 2000 Sundowner 2-Horse Gooseneck Trailer
  • We do offer repair kits for many jack types, brands and models but we do not have a way to look up the specific brand and model of jack on your 2000 Sundowner gooseneck. From my research it appears most of the 2-horse gooseneck trailers from Sundowner used a single square jack, like the Bulldog 10K square jack # BD182804. This is a weld-on jack. We also have a Bulldog bolt-on 12V electric jack, part # BD185400 rated for 12K. If you can find brand and specific jack model information...
    view full answer...

  • Recommendation to Replace Holland 4800SL Gooseneck Jack with Electric Model
  • Based on my research your existing Holland 4800SL jack is very similar to the Bulldog Square Jacks like # BD182815. This particular jack can be used with the Bulldog Powered-Drive Kit # BD1824200100 to convert it to a quiet, electrical system that allows for easy lifting. The upgrade kit isn't compatible with your Holland unit so you would need to first replace your jack with the Bulldog Square Jack and then add the Powered Drive Kit. The only issue is that this is a weld-on jack...
    view full answer...

  • Does Wireless Jack Remote BD500527 Work with Bulldog Velocity 12k Jack BD185400
  • Yes, the remote part # BD500527 that you referenced is designed to work with the 12k Bulldog Velocity Jack part # BD185400 that you referenced.
    view full answer...

  • Available Types and Weight Capacities of Trailer Jacks
  • We carry all types of trailer jacks, from powered A-frame tongue jacks like # HT87247 to weld-on side-mount jacks like # PS1400950376 to 5th wheel trailer landing gear like # BD500161. On the linked page you can see all jacks; click on the type you need and then click on the weight capacity required. For instance, in a 12K rating we have side-mount jack # BD182513 and powered jack # BD185400. We also have jacks like the weld-on # BD1823050383 and the bolt-on # BD1839060383, both...
    view full answer...

  • Recommended Bulldog Electric Lift For 2014 Featherlite LQ Horse Trailer
  • If you have a two leg manual lift like the Bulldog Square Jack # BD182400, then you simply can add the Bulldog Powered-Drive Kit for Single-Speed Jacks w/ 12,000-lb Capacity # BD1824200100 to give you the electric lift. You will simply add the Fixed Cross Shaft Extension Tube for Bulldog Tandem Landing Gear - 72-3/4" Long # BDCS730300 for that application. You can alternatively use the Bulldog Velocity Series Electric Landing Gear Jack - 24" Lift - 12,000 lbs # BD185400 if you prefer....
