Bulldog Square Jack - Drop Leg w/ Spring Return - Sidewind - 26" Lift - 10,000 lbs

Bulldog Square Jack - Drop Leg w/ Spring Return - Sidewind - 26" Lift - 10,000 lbs

Item # BD182815

lowest price pledge

Retail:$225.67

Our Price: $158.80

You Save: $66.87
Camper Jack

This item qualifies for Free Shipping

Shipping Weight: 63 lbs

Quantity:
In Stock, Ships Today
Bulldog Landing Gear - BD182815
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Videos


  • Landing Gear
  • 10000 lbs
  • Sidewind Jack
  • Bulldog
  • 26 Inch Lift
  • Weld-On
Heavy-duty, square, drop-leg jack has a front-facing plunger pin, an easy-to-access gearbox and 28-1/2" retracted height. Perfect for agricultural, construction, livestock or heavy-duty utility applications. Crank sold separately. Call 800-298-8924 to order Bulldog camper jack part number BD182815 or order online at etrailer.com. Free expert support on all Bulldog products. Guaranteed Lowest Price and Fastest Shipping for Bulldog Square Jack - Drop Leg w/ Spring Return - Sidewind - 26" Lift - 10,000 lbs. Camper Jack reviews from real customers.


  • All Info
  • Reviews (11)
  • Q & A (23)
  • Videos (1)
  • Photos
  • Why etrailer?

Bulldog Camper Jack - BD182815

Heavy-duty, square, drop-leg jack has a front-facing plunger pin, an easy-to-access gearbox and 28-1/2" retracted height. Perfect for agricultural, construction, livestock or heavy-duty utility applications. Crank sold separately.


Features:

  • 7-Gauge alloy steel offers superior strength and durability
  • Painted inner and outer tubes are weather resistant
  • Gearbox is easy to access for routine maintenance
    • Includes grease fitting
  • Drop leg with spring return increases overall extension for maximum adjustability
    • Plunger pin positioned to the front
  • Direct-weld design
  • Jack can be paired with BD183816 or BD183903 for tandem applications
  • Sidewind crank sold separately
  • Standard footplate included


Specs:

  • Bracket height:
    • 28-5/8" Retracted
    • 41-1/8" Extended
  • Total lift: 26"
    • Travel: 12-1/2"
    • Drop leg: 13-1/2"
  • Tubing width: 4"
  • Connecting rod shaft diameter: 13/32"
  • Lift capacity: 10,000 lbs
  • Static capacity: 12,000 lbs
  • Limited 5-year warranty


182815 Bulldog Heavy Duty Square Direct Weld Jack with Spring Return Drop Leg, Sidewind, 12-1/2" Travel, 10,000 lbs - SWQ 180 DL-BX






California residents: click here

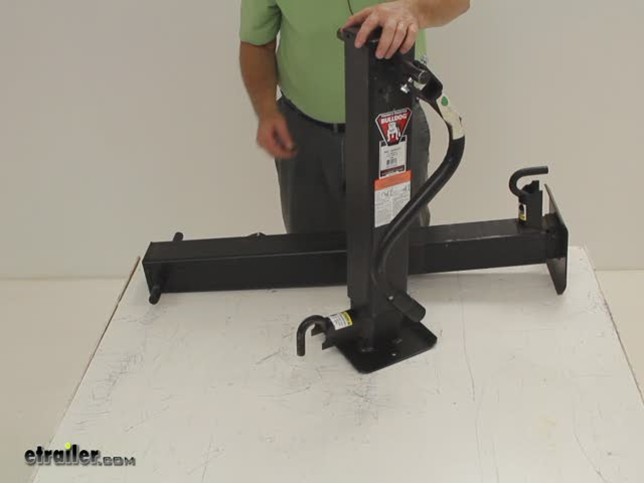

Video of Bulldog Square Jack - Drop Leg w/ Spring Return - Sidewind - 26" Lift - 10,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Bulldog Camper Jack - Landing Gear - BD182815 Review

Today were going to review part number bd182815. This is the Bulldog Square Jack, the side-wide crank and the drop leg with the spring return. This heavy duty square drop leg jack has a front facing plunger pin. Has an easy access gear box. Its perfect for agricultural, construction, livestock, or heavy duty utility applications. The side-wide crank is sold separately.

This jack is constructed of a seven gauge alloy steel which will offer superior strength and durability. The inner tube and the outer tube are painted to make them weather resistant. Again this gear box, by removing a couple of screws, is easy accessible for routine maintenance. On the front here there are two zerk fittings which will make it easy to grease the gear box. The drop leg does have a spring return.

It does increase the overall extensive for maximum adjustability. The plunger pin is position in the front. This jack is a direct weld design. Now this jack can be paired with either part number bd183816 or bd183903 for use in a tandem application. The standard foot plate is included.

Just to show you theres the side-wide crank. Cranking it clockwise would raise it and cranking it counter-clockwise would lower it. To adjust the spring return you have a plunger pin here on the side that if you pull it out, lock it into place you can pull down your spring loaded drop leg. Therell be adjustments holes in it. When you find the right adjustment you need it at just release the pin and it would insert into the hole and keep it at that height you need it.

Once youre done you need to raise it back up you just pull it out and lock it. It has a spring return so it will automatically spring all the way up to the up position I do want to give you a few dimensions on this. This jack right here is in the fully retracted height. We measure that fully retracted is 28 and a half inches. Right here I pull another same exact jack and to save time I already cranked it out. Its at the fully extended position. If we measure that would be 41 inches. That means your maximum lift on this jack would be 12 and a half inches. Now the drop leg on this jack will give you an extra travel of 13 and a half inches. The square tubing width on this is four inches. This jack does have a static weight capacity of 12,000 pounds and a lift weight capacity of 10,000 pounds. It does come with a limited five year warranty. That should do it for a review on part number bd182815.


Customer Reviews

Bulldog Square Jack - Drop Leg w/ Spring Return - Sidewind - 26" Lift - 10,000 lbs - BD182815

Average Customer Rating:  5.0 out of 5 stars   (11 Customer Reviews)

Heavy-duty, square, drop-leg jack has a front-facing plunger pin, an easy-to-access gearbox and 28-1/2" retracted height. Perfect for agricultural, construction, livestock or heavy-duty utility applications. Crank sold separately.

- BD182815
by:

Worked well and were priced fairly. 248621


Comments

Trailer sold, new jacks helped.

George - 01/30/2018

34062

- BD182815
by:

Great product and customer service made me aware of free shipping when I purchased enough so I shopped more! Will definitely do alot more business in the future! 56722



- BD182815
by:

The price was the best I found and delivery was quick. Thanks 611206



- BD182815
by:

Exellent product 480164



- BD182815
by:

Excellent prices fast delivery will deal with them again 238265



- BD182815
by:

We have been propping up the goose neck flatbed for years. The Bulldog hitch was easily installed, makes hooking up and dropping our trailer a lot easier and safer, and seems better built than the original. Wish we had done this a long time ago! 174737


Comments

Still easy to use and holding up well, great purchase!

Pam D - 02/16/2016

16799

- BD182815
by:

Great product. Have seen lots of them in use. 131970



- BD182815
by:

This is a replacement for the original jack that came with my trailer. I am hard on equipment as I build fences and have to drag across terraces and through stream crossings. I carry a skid steer, four wheelers and attachments. This jack is lower geared than the previous one on the trailer and is much easier to raise with weight still on the trailer...slower, but a great improvement. It's nice to be able to unhook without having to unload all the time! 77396


Comments

Still working great! No problems. Great product. Thanks for the follow up

Eric C - 05/16/2014

4222

- BD182815
by:

Product was just as described and is a quality replacement. After shopping around this was the best price I could find. Shipping was quick. 63608



- BD182815
by:

Product arrived yesterday. It was not packed very good and the box was torn all to pieces. Not damage to jack except for some scratched up paint. Otherwise the service was great. Jack is already on trailer and getting ready to install the electric motor. Thanks 46222



- BD182815
by:

Excellent product, I searched locally and on the internet for this product and nobody even came close to etrailer's price. And it shipped the same day! Thanks much! 8205


11
11

Ask the Experts about this Bulldog Camper Jack
Do you have a question about this Camper Jack?


  • Electric Conversion Compatibility for Holland Binkley Model 48000 Series Jack on Horse Trailer
  • The Holland Binkley model 48,000 series jacks are very similar to the Bulldog Square Jack - Drop Leg w/ Spring Return # BD182815 which can utilize the Bulldog Powered-Drive Kit for Single-Speed Jacks w/ 12,000-lb Capacity # BD1824200100. Your current jacks are not compatible with the kit to my knowledge so you would need to replace the jacks in order to upgrade to the motor kit. Another option is to use the Bulldog Velocity Series Electric Landing Gear Jack - 24" Lift - 12,000 lbs...
    view full answer...

  • Bulldog 12000 lb Powered Electric Jack Replacement Motor
  • To replace just the motor for your 12000 lb Bulldog single-speed jack (like # BD182815) you will just need motor # BD1046130-00. I've attached a video of the motor being installed for your convenience. To replace the dual-output motor for Bulldog electric 5th-wheel landing gear (like # BD500161), use part # BD500359.
    view full answer...

  • Differences Among Square Drop Leg Jacks # BD182800, # BD182804, and # BD182815
  • The difference between Bulldog Square Jack - Drop Leg with Spring Return - Sidewind, # BD182800 and # BD182804 is that the latter comes with a handle. Both of these jacks can be used in tandem with BD182805. They all have the same: Bracket height: 27-2/5 inches Retracted, 39-9/10 inches Extended Drop-leg travel: 13-1/2 inches Lift: 12-1/2 inches Tubing width: 4 inches Plunger pin is positioned to the side Bulldog Square Jack - Drop Leg with Spring Return - Sidewind, # BD182815...
    view full answer...

  • Does the Bulldog Square Jack # BD182815 Come with a Handle
  • The crank for the Bulldog Square Jack # BD182815 is sold separately. You would want a Replacement Bulldog Sidewind Jack Crank Assembly w/ Horizontal Clevis # BD800090 if you would like a horizontal clevis or a Replacement Bulldog Sidewind Jack Crank Assembly w/ Vertical Clevis # BD015181 if you want a vertical clevis. The difference between the clevis designs is in how you plan to store the handle when it is not in use. The difference is in the how the handle hinges to allow it to be...
    view full answer...

  • What Jack Can Bulldog Powered Motor Kit part # BD1824200100 Fit
  • I wish it was that easy, but the only jack set you could use the Bulldog Powered-Drive Kit for Single-Speed Jacks w/ 12,000-lb Capacity, Item # BD1824200100 with is a Bulldog jack set like # BD182815. Only option we have would be to replace your jack with the # BD1824200100.
    view full answer...

  • Can I Replace Just One Jack on 2012 PJ Flatbed Trailer With Bulldog 2-Speed Jack, Part # BD183816
  • In order for your existing single-speed trailer jack to work with the Bulldog 2-Speed Jack - Drop Leg w/ Spring Return, part # BD183816, it is essential that the existing jack have a cranking ratio (the number of handle turns that moves the jack one inch) that is the same as the 9-turns-per-inch high gear ratio of the Bulldog. If the two jacks do not have the same turns ratio, then the trailer will elevate unevenly, creating a safety hazard. My contact at Bulldog tells me that if the...
    view full answer...

  • Difference Between Bulldog Square Sidewind 10,000 Lb Weld-On Landing Gear Trailer Jacks
  • The Bulldog Square Jack, part # BD182800 and part # BD182815 are very similar but have just a couple of slight differences. They are both 26 inch lift jacks with a 10,000 lb weight capacity, and are sidewind jacks. The # BD182800 has a side-facing plunger pin and has a 27-2/5 inch retracted height. The # BD182815 features a front-facing plunger pin and when retracted has a height of 28-1/2 inches. As you can see there are a couple of differences.
    view full answer...

  • Replacement Motor for Bulldog Powered-Drive Kit for 12,000 Pound Bulldog Trailer Jacks
  • If you have a single speed, Bulldog jack rated for 12,000 pounds, like # BD182815, and/or powered drive kit, # BD1824200100, then this is the correct motor. The motor by itself does not include anything else like gears. For that you would need the complete powered drive kit, # BD1824200100. If you have a 2-speed jack, the correct powered drive kit is # BD1824180100. The 2 speed motor and single speed motor are not identical so you would need to select the correct one based on your Bulldog...
    view full answer...

  • How to Manually Operate a Bulldog Landing Gear Jack with Powered-Drive Kit # BD1824200100
  • What he will need to do is to use an appropriate sized socket and wrench on the end of the rod located above the electric motor on Bulldog Powered-Drive Kit for Single-Speed Jacks, # BD1824200100. He will also most likely need an extension in order to be able to turn the wrench a full 360 degrees and not make contact with the electric motor.
    view full answer...

  • Options for Installing Powered-Drive Kit with Bulldog Landing Gear Jacks
  • The Bulldog Powered-Drive Kit # BD1824180100 that you referenced is not compatible with landing gear like the Bulldog 2-Speed Jack, Traditional, 10,000 pounds # BD183901. My contact at Bulldog confirmed that there is not a motor kit available for the jacks with the triangular gear housing, like that on the # BD183901 landing gear jack. To be compatible with a powered-drive kit, you will want to update your existing landing gear with either single speed landing gear or 2-speed landing...
    view full answer...

  • Position of Footplate Handles and Plunger Pins on Landing Gear Trailer Jacks
  • From what I have seen, there are 2 different configurations for landing gear jacks like # BD182815. First is like the jack you have referenced that has the foot release is perpendicular to the rod through the top center of the jack. The other configuration is like # BD182411, with the release parallel with the top rod. Jack # BD182411 is a companion to the Bulldog Square Jack # BD182400. The Bulldog Square Jack, # BD182404 and can be used in tandem operations with either of the first...
    view full answer...

  • Can Two Bulldog Square Jacks be Used in Tandem for use on a Trailer
  • According to my contact at Bulldog, you can use two of the Bulldog Square Jacks # BD182815 for your trailer. Please make sure that you do mount both of these jacks in the same position and it should work for you. You will need a connecting rod and a crank handle like the Bulldog Replacement Side Wind Jack # BD800090. I have included links to the parts listed above as well as a video for your reference.
    view full answer...

  • Power Drive Jack Recommendation for a 1987 4 Star 6 Horse Slant 13,500 lb GVWR Trailer
  • I would recommend going with the Bulldog Square Jack, # BD182815, or the Bulldog Square Jack, # BD182805. These jacks will both work with the Bulldog Powered-Drive Kit, # BD1824200100, that you referenced and feature 10,000 lbs of lift capacity. These are the best heavy duty jacks we carry at this time, and we do not have a hydraulic trailer jack option available. The main difference between these two jacks is that one has a side facing plunger pin at the base and the other has a forward...
    view full answer...

  • Powered Drive Kit Availability for a 12k Bulldog Landing Gear Jack
  • If you have a single speed, Bulldog jack rated for 12,000 pounds, like # BD182815, you would need the complete powered drive kit, # BD1824200100. If you have a 2-speed jack, the correct powered drive kit is # BD1824180100. The 2 speed motor and single speed motor are not identical so you would need to select the correct one based on your Bulldog jack. There will be some welding required that a qualified welder in your area would have no problem with.
    view full answer...

  • Whats the Difference Between Spring Return Jack and a Non-Spring Return Jack
  • A spring return in this regard is a mechanism that helps when you are lowering or raising a trailer onto a gooseneck ball. Due to the slow jack speed and the far distance that the foot of a jack has to go when you are raising a trailer there is a pin you can pull in the leg of the jack that will lower the inner section of the jack to take up the majority of the distance that the jack foot has to cover. Well, when it comes time to lower your trailer onto your truck and drive off you...
    view full answer...

  • Would Bulldog Jacks # BD182815 and # BD183816 Work Well on 24k Trailer
  • If you ran the Bulldog Jacks part # BD182815 and # BD183816 on a trailer that weighed a max of 24k you'd be good. Each of these jacks has a 10k lifting capacity so you'd have 20k of lifting capacity which is more than enough for the front of a 24k trailer. The jacks are not rated for the total trailer weight and are instead just rated for the amount they can lift vertically.
    view full answer...

  • How Many Cranks Per Inch Does it Take to Raise the Single Speed Bulldog Landing Gear Jacks
  • I spoke to my contact at Bulldog and he informed me that the Bulldog Square Jack # BD182815 that you referenced will take 9 turns to move 1 inch in either direction. I attached a review video for this jack for you to check out as well.
    view full answer...

  • Recommended Motor Kit for Square Jack on Sundowner 2 Horse Trailer with Living Quarters
  • The Sundowner 2 horse trailers with living quarters usually use a weld on square jack like the Bulldog Square Jack - Drop Leg w/ Spring Return - Sidewind - 12-1/2" Lift - 10,000 lbs # BD182815. To add a motor to this style of jack, I recommend the Bulldog Powered-Drive Kit for Single-Speed Jacks w/ 12,000-lb Capacity # BD1824200100. This will include the wiring harness, motor, circuit breaker, and rocker switch in weatherproof box. This will allow you to simply connect to a 12V battery....
    view full answer...

  • Recommendation to Replace Holland 4800SL Gooseneck Jack with Electric Model
  • Based on my research your existing Holland 4800SL jack is very similar to the Bulldog Square Jacks like # BD182815. This particular jack can be used with the Bulldog Powered-Drive Kit # BD1824200100 to convert it to a quiet, electrical system that allows for easy lifting. The upgrade kit isn't compatible with your Holland unit so you would need to first replace your jack with the Bulldog Square Jack and then add the Powered Drive Kit. The only issue is that this is a weld-on jack...
    view full answer...

  • How to Tell if a Bulldog 10K/12K Jack is a Single Speed or 2-Speed
  • The Bulldog 10K/12K jacks with 2-speeds will have a gear box on them such as # BD183816 and so for it you would use powered drive kit # BD1824180100. The single speed jacks will not have a gear box like # BD182815 so you would use kit # BD1824200100.
    view full answer...

  • What Follow Leg to Use with the Bulldog 2-Speed Jack Part # BD183903
  • The Bulldog 2-Speed Jack part # BD183903 is a lead leg for a landing gear set. If you will be using the jack in tandem then you can use the Bulldog Square Jack part # BD182815 for the follow leg. Only one of the landing gear legs will have a gearbox in this particular application. For the handle you can use the Replacement Bulldog Sidewind Jack Crank Assembly part # BD800090.
    view full answer...

  • Will Bulldog Powered-Drive Kit Work With Bulldog Square Jack
  • The Bulldog Powered-Drive Kit, part # BD1824200100, is designed to be able to work with the Bulldog Square Jack, part # BD182815. This has a lift capacity of 10,000 lbs and has a static weight capacity of 12,000 lbs. I have attached links to product review videos for both of these products you can check out.
    view full answer...

  • Power Drive Unit For Bulldog Landing Gear
  • The Replacement Bulldog Gear Motor part # BD1046130-00 replaces the powered-drive kit in Bulldog electric single-speed jacks. There are not any powered-drive kits available for the landing gear with the traditional triangular gear box. You would need to upgrade the landing gear to a planetary 2-speed jack part # BD183816 and part # BD182815 with 4 inch tubing. Then add a powered drive kit gear motor part # BD1046130-00. You can use your existing wiring and switch.
    view full answer...
