Camper Jack

/

Bulldog

/

Landing Gear

/

10000 lbs

/

Sidewind Jack

/

12-1/2 Inch Lift

Bulldog Square Jack w/ Round Pipe Mount - Fixed Leg - Sidewind - 12-1/2" Lift - 10,000 lbs

Bulldog Square Jack w/ Round Pipe Mount - Fixed Leg - Sidewind - 12-1/2" Lift - 10,000 lbs

Item # BD182524

lowest price pledge

Retail:$282.76

Our Price: $179.87

You Save: $102.89
Camper Jack

This item qualifies for Free Shipping

Shipping Weight: 57 lbs

Arrives before Christmas with Ground or 3 Day Shipping.
Quantity:
In Stock, Ships Today
BD182524 - Weld-On Bulldog Landing Gear
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Videos

Heavy-duty, square swivel jack has an easy-to-access gearbox, standard footplate and 17" retracted height. Measures 10-1/8" from mounting bracket to top of jack. Crank included. Trailer-side pipe mount sold separately. Call 800-298-8924 to order Bulldog camper jack part number BD182524 or order online at etrailer.com. Free expert support on all Bulldog products. Guaranteed Lowest Price and Fastest Shipping for Bulldog Square Jack w/ Round Pipe Mount - Fixed Leg - Sidewind - 12-1/2" Lift - 10,000 lbs. Camper Jack reviews from real customers.
  • All Info
  • Reviews (6)
  • Q & A (0)
  • Videos (1)
  • Photos
  • Why etrailer?

Bulldog Camper Jack - BD182524

  • Landing Gear
  • 10000 lbs
  • Bulldog
  • Sidewind Jack
  • 12-1/2 Inch Lift
  • Weld-On

Heavy-duty, square swivel jack has an easy-to-access gearbox, standard footplate and 17" retracted height. Measures 10-1/8" from mounting bracket to top of jack. Crank included. Trailer-side pipe mount sold separately.


Features:

  • 7-Gauge alloy steel offers superior strength and durability
  • Fixed-leg jack easily swivels into position
  • Tubular mount includes pin and chain
    • Mating mount for trailer side (BD005122) sold separately
  • Painted inner and outer tubes are weather resistant
  • Gearbox is easy to access for routine maintenance
    • Includes grease fitting
  • Sidewind crank included
  • Standard footplate included


Specs:

  • Bracket height:
    • 17" Retracted
    • 29-1/2" Extended
  • Lift: 12-1/2"
  • Clearance: 10-1/8" from mounting bracket to top of jack
  • Tubing width: 4"
  • Pipe mount diameter:
    • Outside diameter: 3-1/4"
    • Inside diameter: 2-9/16"
  • Handle radius: 13-1/2"
  • Lift capacity: 10,000 lbs
  • Static capacity: 12,000 lbs
  • Limited 5-year warranty


182524 Bulldog Heavy Duty Square Tubular Swivel, Fixed-Leg Jack, Sidewind, 12-1/2" Travel, 10,000 lbs - SWQ 180 TS-FL-BCX






California residents: click here


Video of Bulldog Square Jack w/ Round Pipe Mount - Fixed Leg - Sidewind - 12-1/2" Lift - 10,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Bulldog Camper Jack - Landing Gear - BD182524 Review

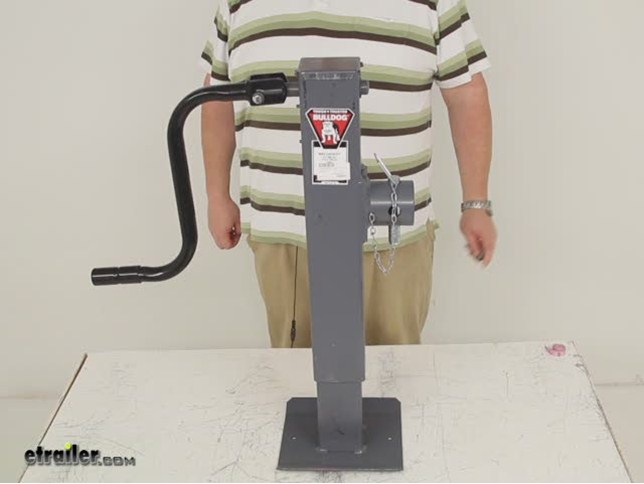

Today we're going to take a look at the Bulldog Square Jack with Round Pipe Mount #BD182524. This 7-gauge alloy steel jack offers superior strength and durability. This is a fixed leg jack that easily swivels into position. It has a tubular point that features a pin and chain. See the ball bearing there at the bottom Just pop that in there. The mount for the trailer side, the Bulldog Long Weld-on Jack Pipe Mount BD005122 is sold separately and that is an item you must have to use this jack. It has a painted inner and outer tube, and those are weather resistant.

The gear box is easy to access for routine maintenance. It includes a grease fitting. The sidewide crank is included. Whenever you want to raise it, you just turn clockwise. Whenever you want to low it, you'll go counterclockwise.

Whenever you wan to store the jack, you'll just pull the handle like that and that will get the crank out of the way, and whenever you want to use that again, just slide that into your notch and you're good to go. The standard foot plate is also included. Taking a look at some specs for this item, when it's fully retracted, when the inner tube is all the way inside the outer tube, the height is 17 inches. When it's fully extended, it is 29 1/2inches for a lift of 12 1/2 inches. The clearances from the center of the mounting bracket to the top of the jack is 10 1/8 inches. The tubing width is 4 inches.

The pipe mount diameter from outer edge to outer edge is 3 1/4 inches. The handle radius is 13 1/2 inches. This jack has a lift capacity of 10,000lbs and a static capacity of 12,000lbs, and it comes with a limited five-year warranty. That should about do it for our Bulldog Square Jack with Round Pipe Mount #BD182524.


Customer Reviews

Bulldog Square Jack w/ Round Pipe Mount - Fixed Leg - Sidewind - 12-1/2" Lift - 10,000 lbs - BD182524

Average Customer Rating:  5.0 out of 5 stars   (6 Customer Reviews)

Heavy-duty, square swivel jack has an easy-to-access gearbox, standard footplate and 17" retracted height. Measures 10-1/8" from mounting bracket to top of jack. Crank included. Trailer-side pipe mount sold separately.

- BD182524
by:

Thanks etrailer for following through on my request to replace a missing piece of the the jack #BD182524. This was done in an expeditious manner and arrived in great shape. Will definitely do further business with your company. 596170



- BD182524
by:

Product came in as ordered and in a timely manner. I appreciate the step by step notification of where my order was located. I purchase these jacks for a customer. I will let you know any feedback that is given to me. Thanks Jesse for making this easy. 593460



- BD182524
by:

Just what they said it was heavy duty. 348215



- bd182524
by:

I recently had the occasion to find your website and found the trailer jack I needed to satisfy my customer at the right price but did have some questions and called before placing my order .Brenden C. was most helpful and answered all my concerns quite knowledgeably and placed my order for me then and there .Brenden also gave me an approximate time it should arrive and he was dead on . Thank you Brenden for all your help and quick service. 292393



- BD182524
by:

Excellant jack for our nurse tank that carries fertilizer! 253099



- BD182524
by:

Awesome Customer Service. They got everything right and on time. 168300
