Bulldog Square Jack - Drop Leg w/ Non-Spring Return - Sidewind - 12-1/2" Lift - 10,000 lbs

Item # BD182411

lowest price pledge

Retail:$274.44

Our Price: $136.25

Camper Jack

This item qualifies for Free Shipping

Shipping Weight: 62 lbs

Estimated Delivery: Friday, October 26

Enter a zip code for a more accurate estimate.

Quantity:

In Stock
Bulldog Square Jack - Drop Leg w/ Non-Spring Return - Sidewind - 12-1/2" Lift - 10,000 lbs 10000 lbs BD182411
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

Bulldog Square Jack - Drop Leg w/ Non-Spring Return - Sidewind - 12-1/2" Lift - 10,000 lbs 10000 lbs BD182411
Bulldog Square Jack - Drop Leg w/ Non-Spring Return - Sidewind - 12-1/2" Lift - 10,000 lbs 10000 lbs BD182411
BD182411 - 10000 lbs Bulldog Landing Gear

Videos


  • Landing Gear
  • 10000 lbs
  • Sidewind Jack
  • Bulldog
  • 26 Inch Lift
  • Weld-On
Heavy-duty, square, drop-leg jack has a side-facing plunger pin, an easy-to-access gearbox and 27-1/2" retracted height. Perfect for agricultural, construction, livestock or heavy-duty utility applications. Crank sold separately. Call 800-298-8924 to order Bulldog camper jack part number BD182411 or order online at etrailer.com. Free expert support on all Bulldog products. Guaranteed Lowest Price and Fastest Shipping for Bulldog Square Jack - Drop Leg w/ Non-Spring Return - Sidewind - 12-1/2" Lift - 10,000 lbs. Camper Jack reviews from real customers.


  • All Info
  • Reviews (4)
  • Q & A (9)
  • Videos (1)
  • Photos
  • Why etrailer?

Bulldog Camper Jack - BD182411

Heavy-duty, square, drop-leg jack has a side-facing plunger pin, an easy-to-access gearbox and 27-1/2" retracted height. Perfect for agricultural, construction, livestock or heavy-duty utility applications. Crank sold separately.


Features:

  • 7-Gauge alloy steel offers superior strength and durability
  • Painted inner and outer tubes are weather resistant
  • Gearbox is easy to access for routine maintenance
    • Includes grease fitting
  • Drop leg with non-spring return increases overall extension for maximum adjustability
    • "Non-spring return" means user will need to physically lift jack at the foot to return to up position
    • Plunger pin positioned to the side
  • Direct-weld design
  • Jack can be paired with BD182400 or BD182404 for tandem applications
  • Sidewind crank sold separately
  • Standard footplate included


Specs:

  • Bracket height:
    • 27-3/8" Retracted
    • 39-7/8" Extended
  • Drop-leg travel: 13-1/2"
  • Lift: 12-1/2"
  • Tubing width: 4"
  • Lift capacity: 10,000 lbs
  • Static capacity: 12,000 lbs
  • Limited 5-year warranty


This jack is a companion to the Bulldog Square Jack - Drop Leg w/ Non-Spring Return - Sidewind - 12-1/2" Lift (BD182400) and the Bulldog Square Jack - Drop Leg w/ Non-Spring Return - Sidewind - 12-1/2" Lift (BD182404) and can be used in tandem operations with either. When used in tandem, a user-made connecting rod is required. Both jacks are designed so that their plunger pins and footplate handles are in easily accessible positions from either side of your trailer.

182411 Bulldog Heavy Duty Square Direct Weld Jack with Non-Spring Return Drop Leg, Sidewind, 12-1/2" Travel, 10,000 lbs - SWQ 180 DL-B






Video of Bulldog Square Jack - Drop Leg w/ Non-Spring Return - Sidewind - 12-1/2" Lift - 10,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

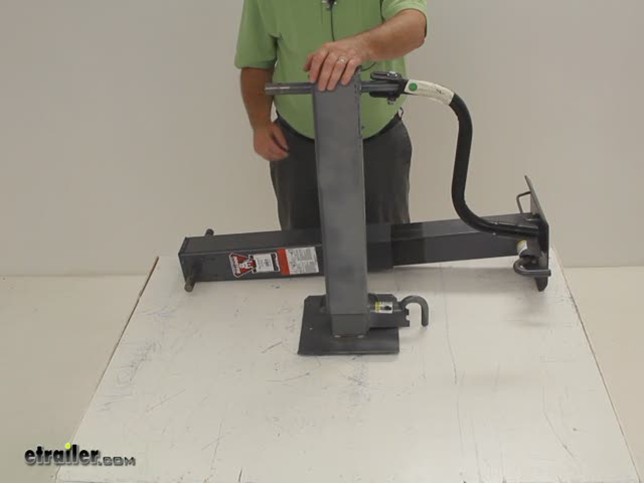

Video Transcript for Bulldog Trailer Jack BD182411 Review

Today were going to review part number bd182411. This is the Bulldog Square Jack, side-wide handle, and the non-spring return drop leg. This heavy duty square drop leg jack has a side facing plunger pin and an easy to access gear box on top. This is perfect for agricultural, construction, livestock, or heavy duty utility applications. The side-wide crank is sold separately. This jack is constructed of a seven gauge alloy steel which offers superior strength and durability.

The inner tube and the outer tube are painted to make them weather resistant. The gear box atop here has screws that can be unscrewed and you have easy access for routine maintenance. It does also have two zerk fittings over here to grease the gear box. Now the drop leg on this is a non-spring return. It will increase the overall extensive of the jack for maximum adjustability.

The non-spring return basically means that the user will need to physically lift the jack at the foot to return it to the up position. Thats why over here they do have a handle that is welded on to aide in pulling up the drop leg. Again the plunger pin over here is on the side of the jack not the front. This jack is a direct weld design. The side-wind crank is sold separately.

If you go to the product page for this part number on the right hand side will be a box that shows related products and itll list the correct side-wide crank for this jack. The foot plate is included. Now this jack can be paired with part number bd182400 or a bd182404 for tandem applications. I do want to give you some dimensions on this. This jack right here I have in the fully retracted position.

The overall height fully retracted would be 27 and a half inches. Then what I did to save time is I pulled the same jack and put it in the fully extended position. To give you measurement fully extended would be 40 inches. Thatll give you total lift on this jack of 12 and a half inches. Now this drop leg when its released will have a maximum travel of 13 and a half inches. The tubing width is four inches. This jack does have a static weight capacity of 12,000 pounds and a lift weight capacity of 10,000 pounds. It does come with a five year warranty. Just to show you this is the side-wide crank. If you crank counter-clockwise it would lower it. If you crank clockwise it would raise it. Again the plunger pin which Ill show you when that would be pulled out and put in the lock position. That will allow the plate to drop down and therell be adjustments holes along the drop leg. When you find the right height you want you just release the plunger pin and it will insert into the hole and keep that drop leg at the right height. When youre ready to raise it back up you just pull the spring loaded plunger pin back out, lift up your drop leg and let the plunger pin go in and hold it up. That should do it for a review on part number bd182411.


Customer Reviews

Bulldog Square Jack - Drop Leg w/ Non-Spring Return - Sidewind - 12-1/2" Lift - 10,000 lbs - BD182411

Average Customer Rating:  4.8 out of 5 stars   (4 Customer Reviews)

Heavy-duty, square, drop-leg jack has a side-facing plunger pin, an easy-to-access gearbox and 27-1/2" retracted height. Perfect for agricultural, construction, livestock or heavy-duty utility applications. Crank sold separately.

- BD182411

by:


The product was as described, price was real reasonable, quick shipping. I would recommend etrailer.com for all your trailer needs. 75787



- BD182411

by:


Very satisfied with the product and the service!! 359789



- BD182411

by:


Delivered as advertised and is working well. 292895



- BD182411

by:


Everything seems great. 56622


4
4

Ask the Experts about this Bulldog Camper Jack
Do you have a question about this Camper Jack?


  • Position of Footplate Handles and Plunger Pins on Landing Gear Trailer Jacks
  • From what I have seen, there are 2 different configurations for landing gear jacks like # BD182815. First is like the jack you have referenced that has the foot release is perpendicular to the rod through the top center of the jack. The other configuration is like # BD182411, with the release parallel with the top rod. Jack # BD182411 is a companion to the Bulldog Square Jack # BD182400. The Bulldog Square Jack, # BD182404 and can be used in tandem operations with either of the first...
    view full answer...

  • Powered Jack Recommendation to Replace the Bulldog Square Leg Jack part # BD182304
  • Unfortunately no, your only option would be to replace your Bulldog Square Leg Jack part # BD182304 with a Bulldog Square Jack # BD182411 and then install the Bulldog Powered-Drive Kit for Single-Speed Jacks # BD1824200100. The issue with the BD182304 is that it is a top-wind jack.
    view full answer...

  • Replacement Electric Landing Gear for Horse Trailer
  • Sorry to hear your system broke and there aren't replacement parts available for your horse trailer. The Bulldog Velocity Series Electric Landing Gear Jack - 24" Lift - 12,000 lbs # BD185400 is a good replacement for your discontinued and broken system. It will simply bolt right on to your trailer so it can utilize the 12V power you already have run. It is able to lift 12,000 lbs and lifts 20 inches in 60 seconds. Another great option for you is the Bulldog Square Jack - Drop Leg...
    view full answer...

  • Recommended Gooseneck Trailer Powered Landing Gear for Completely Weather Exposed System on Trailer
  • When landing gear like # LG-1 is used on exposed trailers the electric component needs to be covered. Most of the time this is done with a custom sheet metal box as it doesn't take much just to shield the motor from the elements. The legs are powder coated and the gear box is aluminum, so you won't have issues with them being exposed, but the motor is another story. Your other option is to use a jack like the Bulldog Velocity Series Electric Landing Gear Jack # BD185400 or for a...
    view full answer...

  • 10k Gooseneck Trailer Jack Recommendation with Handle and Non-Spring Return
  • I have a great solution for you. The Bulldog Jack part # BD182411 is a 10k jack that can be attached to your gooseneck trailer and does not have a spring return. To add a handle you'd then want the part # BD015181.
    view full answer...

  • Can a Powered Drive Kit be Added to a Trailers Landing Gear
  • The Bulldog Powered-Drive Kit # BD1824200100 that you referenced is designed to fit Bulldog single speed landing gear jacks with a 12k capacity. If that is what you have on your trailer this would work well for you. There isn't a universal motor kit that will work with most landing gear sets. You will need to determine who made the jacks of your trailer so that you can see if there is a powered drive kit available for it. Otherwise you will need to upgrade your jacks to a Bulldog...
    view full answer...

  • Recommendation to Replace Discontinued Bulldog Sidewind Trailer Jack
  • Since the screw kit on your existing Bulldog jack is no longer available, you can either replace the entire jack with the Bulldog # BD182411 that you referenced or simply install the internal components of this jack on your existing unit. To do this, you will just need to purchase the Bulldog # BD182411 and simply remove its internal components to install them in your jack. If your current jack is welded to the trailer, this may be a good option. Otherwise it will be easier to just...
    view full answer...

  • Solution for Broken Bulldog Jack on 1999 Cherokee Trailer
  • Due to the age of your jack the repair parts aren't available for it. I wish there was a solution I could recommend for you but Bulldog doesn't offer the parts for you jack anymore so you would have to replace the set. I spoke to my contact at Bulldog andhe said that in March 2003 they upgraded the screw kit in all of the Bulldog jacks and that what you have has been discontinued. There are no screw and nut kits available that will replace what you have in your jack. Your only real solution...
    view full answer...

  • Option for a Damaged Nut and Screw in a 10k Bulldog Landing Gear Jack
  • I spoke to my contact at Bulldog and showed him the picture you submitted and he said that in March 2003 they upgraded the screw kit in all of the Bulldog jacks and that what you have has been discontinued. There are no screw and nut kits available that will replace what you have in your jack. Your only real solution at this point would be to remove your jack and install a new one like part # BD182411. Another option you would have would be to leave the outer leg installed on your trailer...
    view full answer...


Do you have a question about this Camper Jack?
