Bulldog Square Jack - Drop Leg w/ Non-Spring Return - Sidewind - 12-1/2" Lift - 10,000 lbs

Bulldog Square Jack - Drop Leg w/ Non-Spring Return - Sidewind - 12-1/2" Lift - 10,000 lbs

Item # BD182404

lowest price pledge

Retail:$233.40

Our Price: $176.08

You Save: $57.32
Camper Jack

This item qualifies for Free Shipping

Shipping Weight: 64 lbs

Quantity:
In Stock
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Videos


  • Landing Gear
  • 10000 lbs
  • Sidewind Jack
  • Bulldog
  • 26 Inch Lift
  • Weld-On
Heavy-duty, square, drop-leg jack includes a sidewind crank and has a side-facing plunger pin, an easy-to-access gearbox and 27-2/5" retracted height. Perfect for agricultural, construction, livestock or heavy-duty utility applications. Call 800-298-8924 to order Bulldog camper jack part number BD182404 or order online at etrailer.com. Free expert support on all Bulldog products. Guaranteed Lowest Price and Fastest Shipping for Bulldog Square Jack - Drop Leg w/ Non-Spring Return - Sidewind - 12-1/2" Lift - 10,000 lbs. Camper Jack reviews from real customers.


  • All Info
  • Reviews (5)
  • Q & A (3)
  • Videos (1)
  • Photos
  • Why etrailer?

Bulldog Camper Jack - BD182404

Heavy-duty, square, drop-leg jack includes a sidewind crank and has a side-facing plunger pin, an easy-to-access gearbox and 27-2/5" retracted height. Perfect for agricultural, construction, livestock or heavy-duty utility applications.


Features:

  • 7-Gauge alloy steel offers superior strength and durability
  • Painted inner and outer tubes are weather resistant
  • Gearbox is easy to access for routine maintenance
    • Includes grease fitting
  • Drop leg with non-spring return increases overall extension for maximum adjustability
    • "Non-spring return" means user will need to physically lift jack at the foot to return to up position
    • Plunger pin positioned to the side
  • Direct-weld design
  • Jack can be paired with BD182411 for tandem applications
  • Sidewind crank included
  • Standard footplate included


Specs:

  • Bracket height:
    • 27-3/8" Retracted
    • 39-7/8" Extended
  • Drop-leg travel: 13-1/2"
  • Lift: 12-1/2"
  • Tubing width: 4"
  • Lift capacity: 10,000 lbs
  • Static capacity: 12,000 lbs
  • Limited 5-year warranty


This jack can be used in tandem operations with Bulldog Square Jack - Drop Leg w/ Non-Spring Return - Sidewind - 12-1/2" Lift (BD182411). When used in tandem, a user-made connecting rod is required. Both jacks are designed so that their plunger pins and footplate handles are in easily accessible positions from either side of your trailer.

182404 Bulldog Heavy Duty Square Direct Weld Jack with Non-Spring Return Drop Leg, Sidewind, 12-1/2" Travel, 10,000 lbs - SWQ 180 DL-BC






California residents: click here

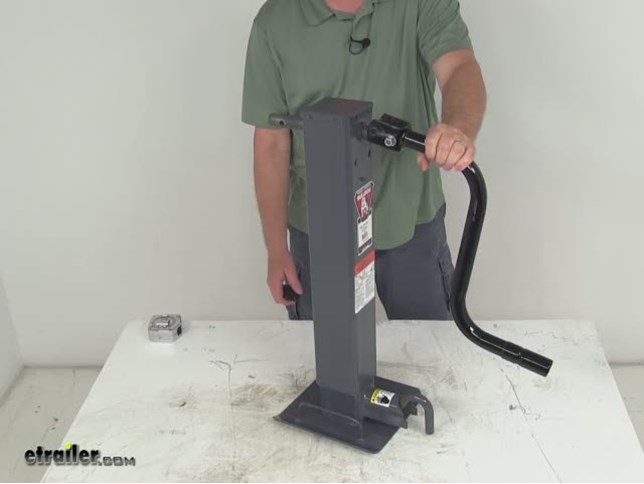

Video of Bulldog Square Jack - Drop Leg w/ Non-Spring Return - Sidewind - 12-1/2" Lift - 10,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Bulldog Camper Jack - Landing Gear - BD182404 Review

Today we're going to take a look at the Bulldog side wind square jack, with the non-spring return drop leg, 12 1/2 inch lift, and a 10,000 pound lift capacity. Now, this jack is perfect for agricultural, construction, live stock, or heavy duty utility application. It is a 4 inch square tubing. It's made of a 7 gauge alloy steel, gives you superior strength and durability. It has the painted inner and outer tubes, that are weather resistant, along with the drop leg, is painted. Now, the gear box right here, for the top, is very easy to access for routine maintenance. Over here, you can see it has the two greased inaudible 00:00:35 fittings for easy lubrication.

Now, this is a drop leg, with a non-spring return, which will increase the overall extension for maximum adjustability. Now, when we say non-spring return, it basically means that you will have to physically lift the jack at the foot to return it to the up position, does use the side facing drop leg plunger pin to hold the drop leg in place. This is a direct weld design. The side wind crank, as you can see, is included. The standard foot plate is all included. Now, this jack can be paired with the Bulldog Jack, part number BD182411, to give you a tandem application.

I do want to give you a few specs on this. The overall bracket height on this, which will be measured from the ground up to the top, here, you put a ruler on that, can see it's going to be right at 27 and 3/8 inches, retract it. Now, this does have a lift of 12 1/2 inches. If we fully crank this out and extended it all the way it would measure from the ground to the top, 39 7/8 inches. The drop leg travel, when you pull the pin out, it will travel the maximum of 13 1/2 inches. Again, this is a four inch square tubing.

Again, the lift capacity on this is 10,000 pounds, and the static load capacity on this is 12,000. Basically, just store your handle like that, when you put it back into place, then you're able to crank it. That should do it for the review on the Bulldog side wind, square jack with the non-spring return drop leg, 12 1/2 inch lift, and a 10,000 pound lift capacity.


Customer Reviews

Bulldog Square Jack - Drop Leg w/ Non-Spring Return - Sidewind - 12-1/2" Lift - 10,000 lbs - BD182404

Average Customer Rating:  4.6 out of 5 stars   (5 Customer Reviews)

Heavy-duty, square, drop-leg jack includes a sidewind crank and has a side-facing plunger pin, an easy-to-access gearbox and 27-2/5" retracted height. Perfect for agricultural, construction, livestock or heavy-duty utility applications.

- BD182404
by:

We use the jack for farm use. It supports the hitch on a grain wagon when we unhook it from the tractor. It supports the heavy tongue weight just fine. 374159



- BD182404
by:

yes seems to be fine. I thought I ordered the one with the spring return but I must have clicked the wrong item on the website. 437107



- BD182404
by:

Nice jack never used it because it was a lot bigger than I need. Ordered the wrong one so its just sitting getting rusty. sucks to be me. Cost more to send it back. I need a jack for a 14000 lb trailer this one is for a tractor trailer. 368727



- BD182404
by:

Very good service and fast . I will recommend this place for all your trailer parts . I will order everything that I will need for my trailers on the future 481043



- BD182404
by:

Good Product for the cost 224753


5
5

Ask the Experts about this Bulldog Camper Jack
Do you have a question about this Camper Jack?


  • Position of Footplate Handles and Plunger Pins on Landing Gear Trailer Jacks
  • From what I have seen, there are 2 different configurations for landing gear jacks like # BD182815. First is like the jack you have referenced that has the foot release is perpendicular to the rod through the top center of the jack. The other configuration is like # BD182411, with the release parallel with the top rod. Jack # BD182411 is a companion to the Bulldog Square Jack # BD182400. The Bulldog Square Jack, # BD182404 and can be used in tandem operations with either of the first...
    view full answer...

  • Looking for Jacks to Stabilize a Slide Out on an Older Travel Trailer Camper
  • To support your slide out of your older camper, I recommend an Ultra-Fab Slide-Out Support instead of heavy duty jacks. The Ultra-Fab supports are sold in sets of two and come in three sizes depending on your trailers ground clearance when the slide out is extended. The difference in the three sets we have is the height. The # UF19-9600001 has a range from 16 to 28 inches, the # UF19-960002 has a range from 21 to 37 inches, and the # UF19-960003 has a range from 26 to 47 inches. All...
    view full answer...

  • Can a Powered Drive Kit be Added to a Trailers Landing Gear
  • The Bulldog Powered-Drive Kit # BD1824200100 that you referenced is designed to fit Bulldog single speed landing gear jacks with a 12k capacity. If that is what you have on your trailer this would work well for you. There isn't a universal motor kit that will work with most landing gear sets. You will need to determine who made the jacks of your trailer so that you can see if there is a powered drive kit available for it. Otherwise you will need to upgrade your jacks to a Bulldog...
    view full answer...
