2002 Jeep Liberty - Tuson DirecLink Network Enhanced Trailer Brake Controller - 1 to 4 Axles - Proportional

Brake controller activates trailer brakes in proportion to deceleration. Plug-and-play design automatically syncs to your Jeep Liberty's computer network for precise braking. Pair with Tuson ActuLink actuator system for enhanced network monitoring.


Features:

  • Brake controller activates trailer brakes in proportion to your tow vehicle's speed, deceleration, and braking action
    • Automatically adjusts braking based on real-time data provided by your tow vehicle's computer network
    • Activates immediately - no pausing like with time-delayed brake controllers
    • Activates faster than accelerometer based brake controllers
  • Pair with Tuson RV Brakes' ActuLink electric hydraulic brake actuator system (sold separately) to create a digital, 2-way network for enhanced brake system monitoring and diagnostics
  • Automatic leveling ability - module can be mounted in any orientation without affecting operation
  • 20 Braking levels let you adjust initial braking power and aggressiveness
  • Large color display acts as a diagnostic tool for your towable brake system
    • User-friendly, 1-7/8" color display is easy to read
    • Diagnostics include trailer connection, tow vehicle battery voltage, OBD-II network connection, brake controller ground and power connections, brake switch voltage, blue wire power output, engine RPM, low-speed brake adjustment, and transmission temperature (Ford & GM vehicles using VPW/PWM network protocols)
  • Spring-loaded manual override lever allows you to manually apply 0-100% of your trailer's brakes
  • Easy plug-and-play installation
    • Automatically configures to your tow vehicle and trailer brake system
    • No drilling required
  • Application: trailers with up to 4 axles (8 brake assemblies)
    • Designed for use with electric or electric-over-hydraulic trailer brakes
    • Compatible with ActuLink electric hydraulic brake actuators (335ACT-1000 and 335ACT-1600) and Tuson ActuLink ABS systems (335ABS-DLNE-1000 and 335ABS-DLNE-1600)
  • Limited 2-year warranty


DL-200NE Tuson Direct Link NE Enhanced Proportional Trailer Brake Controller - 1 to 4 Axles



335DL-200NE Installation InstructionsInstallation Details 335DL-200NE Installation instructions

Video of Tuson DirecLink Network Enhanced Trailer Brake Controller - 1 to 4 Axles - Proportional


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

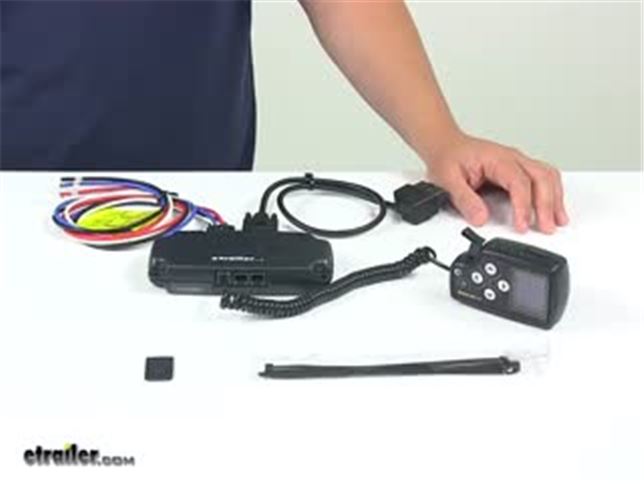

Video Transcript for Tuson RV Brakes Brake Controller 335DL-200NE Review

Speaker 1: Today, we're taking a look at the DirectLink Trailer Brake Controller. This brake controller activates your trailer brakes in proportion to your vehicle's braking action. It actually plugs into OBD2 port on your vehicle, and automatically adjusts braking based on realtime data provided by your tow vehicle's network. It activates immediately so there's no pausing like with time delayed brake controllers. This can be paired with the Tucson RV Brakes Acculink System to create a digital two-way network for enhanced brake system monitoring and diagnostics. The unit also features automatic leveling ability, so that means that the module can actually be mounted in any orientation without effecting the operation.

This allows you to mount the unit completely out of the way, under the dash of your vehicle, or in a location that works best for you.It offers 20 braking level, so that's going to let you adjust the initial braking power as well as the aggressiveness. It comes with a large color display that acts as a diagnostic tool for your towable brake system. This is a user friendly unit that has a color display. It's very easy to read. Diagnostics include, trailer connection, tow vehicle battery voltage, OBD2 network connection, brake controller, ground, and power connection, and brake switch voltage, blue wire power output, and engine RPM.

It also has this spring loaded, manual override lever that allows you to manually apply 0 to 100% of your trailer's brakes. It's an easy plug and play installation. You can use a custom vehicle wiring harness, if your vehicle is equipped with that port. If it's not equipped with that port, then you can use the included harness to make your connections. These would hard-wire into your vehicle's wiring.

And then, this harness right here, plugs into the OBD2 connection port on your vehicle.The command modules, which is this unit right here, it connects to the control module with the included spiral cable. This is a standard telephone cable connection. Plug it into one of three ports here on the front of the unit. The unit is designed to automatically configure to your tow vehicle and trailer brake system. There's no drilling required.

It comes with a flush dash mount, which is right here. It's got adhesive backing on the backside, and it also comes with a swivel dash mount. It fits into the T slot here on the back. That has the thumb knob on there, so you can control the angle that the disk plate sits at. It also comes with some cable ties to secure the control module. This is designed for trailers with up to six axles or 12 brake assemblies. It's designed for use with electric or electric over hydrotic trailer brakes. It is compatible with the Acculink Actuator and actuator ABS systems.Last thing I want to mention are the dimensions right here of this unit. So this measures about six and one quarter inches long by three inches wide by one and one eighth inches tall or thick. That's going to do it for today's look at the DirectLink Trailer Brake Controller.

0
0

Ask the Experts about this Tuson RV Brakes Brake Controller
Do you have a question about this Brake Controller?


  • Difference Between Tuson DirecLink Lite and Enhanced Brake Controller
  • The Tuson DirecLink brake controllers are incredibly nice brake controllers, but the biggest difference between the Lite version part # 335DL-50 and the Enhanced part # 335DL-200NE is that the Enhanced can turn your trailer into an anti-lock brake system and has a more in-depth diagnostic setup. Here's full list of features from Tuson: For 1-6 Axle Trailer Proportional Brake Control, Trailer Size Adjustable The Most Extensive Towing Diagnostics Ever Optimized when paired with the...
