Hayes Blackbird Trailer Brake Controller - 1 to 4 Axles - Time Delayed

Item # HA81726

lowest price pledge

Retail:$59.95

Our Price: $45.34

Orders above $99 qualify for Free Shipping

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
hayes brake controller time delayed 360 degrees
hayes brake controller electric 2 - 8 brakes ha81726
hayes brake controller time delayed 2 - 8 brakes ha81726
hayes brake controller 2 - 8 brakes 360 degrees ha81726
hayes brake controller electric 2 - 8 brakes
hayes brake controller time delayed electric
hayes brake controller time delayed electric blackbird trailer - 1 to 4 axles
hayes brake controller time delayed 2 - 8 brakes blackbird trailer 1 to 4 axles
hayes brake controller electric 2 - 8 brakes ha81726
hayes brake controller time delayed 360 degrees blackbird trailer - 1 to 4 axles
hayes brake controller electric 360 degrees ha81726

In Use/Installed

2014 jeep grand cherokee brake controller hayes time delayed 2 - 8 brakes blackbird trailer 1 to 4 axles
2014 jeep grand cherokee brake controller hayes time delayed 2 - 8 brakes ha81726

  • Time Delayed Controller
  • Hayes
  • Electric
  • 2 - 8 Brakes
  • Manual Leveling
  • Digital Display
  • Vehicle Mount
  • 360 Degrees
Palm-size brake controller engages your trailer's brakes with a preset intensity when you apply the brakes in your vehicle. Adjustable power output and braking aggressiveness. Includes digital display and manual override. Call 800-298-8924 to order Hayes brake controller part number HA81726 or order online at etrailer.com. Free expert support on all Hayes products. Guaranteed Lowest Price and Fastest Shipping for Hayes Blackbird Trailer Brake Controller - 1 to 4 Axles - Time Delayed. Brake Controller reviews from real customers.



Hayes Brake Controller - HA81726

Palm-size brake controller engages your trailer's brakes with a preset intensity when you apply the brakes in your vehicle. Adjustable power output and braking aggressiveness. Includes digital display and manual override.


Features:

  • Brake controller activates trailer brakes with preset intensity
    • Signal is sent to trailer brakes when tow vehicle's brakes are activated
  • Adjustable power output lets you determine the amount of power sent to the trailer's brakes
    • Set to higher output when towing in hilly terrain or with a fully loaded trailer
    • Back off power when towing a lightweight or empty trailer
  • Power ramp time setting lets you adjust the aggressiveness with which the brakes are activated
    • Get full power output faster by moving the switch forward to increase activation speed
    • Achieve smoother braking by moving switch in opposite direction to supply power gradually
  • Easy-to-read LED display communicates brake power output, ramp setting, and error codes
  • Built-in safeguards protect your vehicle and trailer
    • Manual override illuminates brake lights on tow vehicle and trailer
    • Current limiter protects vehicle from shorts in the trailer wiring
    • Hazard flasher immunity prevents pulsing of the brakes when flashers are activated
  • Slide-bar manual override
  • Dependable solid-state construction
  • Quick and easy installation
    • Can be mounted at any angle in any plane, and in any direction
    • Mounting bracket and hardware included
    • Plug-in, vehicle-specific brake control adapter (sold separately) can be used for certain applications to reduce installation time
  • Made in the USA


Specs:

  • Application: trailers with up to 4 axles (8 brake assemblies)
    • Designed for use with electric and electric over hydraulic brakes
  • Dimensions: 3-3/4" long x 3" wide x 1" tall
  • Limited lifetime warranty


Time-Delayed Braking

The Blackbird applies your trailer's brakes when the brake pedal in your tow vehicle is engaged. Every time you apply the brakes in your vehicle, a signal is sent - via the brake switch - to the Blackbird. The controller then sends power out to your trailer brakes to activate them with an intensity set by you, at a rate determined by you. Both the amount of braking power (output) and rate of application (ramp time) can be adjusted to suit your preference, the road conditions, type of trailer, and size of the load. To determine which levels are best for your application, you must test out your towing setup and choose what feels best.


A time-delay controller is so named because there is a delay between the time that you initially apply the brakes in your tow vehicle and the time that the controller reaches the set maximum power output. Unlike a proportional brake controller, which activates your trailer's brakes based on the deceleration of your tow vehicle, the Blackbird sends power out in the same way, with the same user-set delay, no matter the braking situation. Although this delay always exists, it can be adjusted by changing the ramp time setting. The controller will continue to send out power to the trailer brakes as long as your foot is on the brake pedal, even when your truck and trailer have come to a stop.


Built-In Controls on the Blackbird


Blackbird Controls

The diagram above shows the controls and components of the Hayes Blackbird electric trailer brake controller.


Power Output Control

The power output control lets you set the maximum amount of power that will be applied to your trailer's brakes. Typically, the power output is only readjusted if you switch from a heavy, loaded trailer to a much lighter, empty trailer - or vice versa.


During the initial setup process, use the thumbwheel on top of the Blackbird to adjust the output. To get more power to your brakes, rotate the dial to the right. To decrease the power output, move it to the left.


The output setting will appear on the digital display when you press the brake pedal or activate the manual override. This setting ranges from 5 percent to 99 percent, with 99 percent indicating maximum output.


Power Ramp Time Setting

Power ramp time is the elapsed time from the point that the brakes are first applied to the point that the set power output reaches its maximum. This setting is responsible for determining the aggressiveness of the braking action.


To adjust the ramp time, use the control on the side of the Blackbird. If you want to reach maximum power output faster, move the control forward. To get smoother braking action, slide the control backward, thus supplying power to the trailer brakes more gradually. You can alter this setting to suit your driving preferences or to improve handling based on changing road conditions or varied trailer loads.


The digital display will only show the ramp setting as you adjust it. After a few seconds, it will revert back to display mode.


Digital Display

The Blackbird features an easy-to-read LED screen that displays the power settings as you adjust them.


While braking, the display shows the amount of power going to the trailer brakes as a percentage of the total power available. When the brake pedal is released, the unit will go into standby mode.


The display will also show trouble codes to alert you to any potential problems, such as a short circuit or an open circuit. A code will also appear if the brake controller surpasses its rated power limit.


Slide-Bar Manual Override

The manual slide lever overrides the preset power output and allows the operator to engage the trailer brakes without using the vehicle's brakes. In addition to being a necessary safety feature, this option helps to control trailer sway by slowing the trailer to put it back solidly behind the tow vehicle.


You can also engage the manual override to help you move a sliding 5th-wheel hitch closer to your truck's tailgate for tight maneuvering during slow speed turns. Just apply the manual override to hold the trailer in place while slowly moving the tow vehicle forward.


Quick, Simple Installation

Because inertia plays no role in the functioning of this controller, you do not have to mount the unit at any particular angle or position it in any particular direction. As a result, mounting options are limitless, so long as you can still easily access the manual override.


Installation of the Blackbird requires that you either purchase a custom wiring adapter designed to plug into the controller or that you hardwire the controller directly into your vehicle. To hardwire the Blackbird, you must remove the plug at the end of the integrated wiring harness.


Installation Accessories

The Hayes vehicle-specific, dual-mated wiring adapter is available for most newer trucks and SUVs with tow packages. One end of the custom adapter plugs into your vehicle's brake controller port, and the other end plugs into the controller - no hardwiring required.


Hayes also offers a universal wiring harness (HA81789-HBC - sold separately) that plugs into any Hayes brake controller. The 4 leads on the universal harness can then be hardwired into your vehicle. By splicing the universal adapter into your wiring instead of directly connecting the brake controller to your wiring, you gain the ability to unplug and remove the controller from your vehicle should the need arise.


Notes:

  • If a custom brake-control wiring adapter is not available for your vehicle, one of the following will be required:
    • 20-Amp circuit breaker (9506P - sold separately) for 2-brake applications
    • 30-Amp circuit breaker (38630 - sold separately) for 4- to 6-brake applications
    • 40-Amp circuit breaker (9510 - sold separately) for 6- to 8-brake applications
  • If you're hardwiring the controller, it is also suggested that you install an in-line fuse between the controller and the stop light switch (required on 1999 and newer Fords).

See also etrailer.com's exclusive 7- and 4-way brake control installation kit (ETBC7 - sold separately) if you don't already have a 7-way plug at the back of your vehicle.



81726 Hayes Blackbird Electric Brake Controller - Time Based







Related Products



Customers Who Purchased This Brake Controller Also Bought...

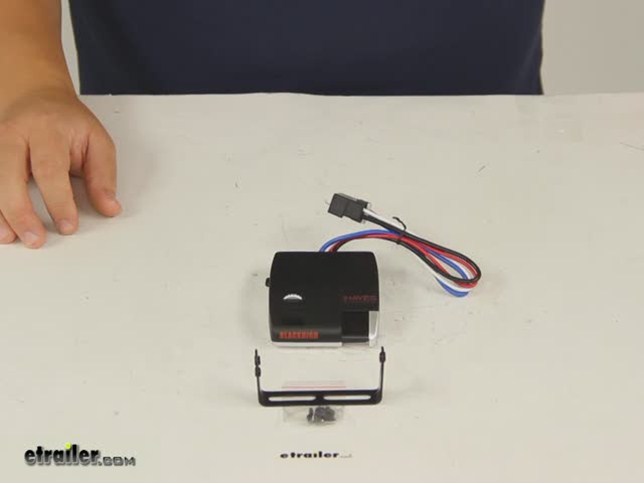

Video of Hayes Blackbird Trailer Brake Controller - 1 to 4 Axles - Time Delayed


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Hayes Brake Controller HA81726 Review

Today we'll be reviewing part number HA81726. This is the Hayes Blackbird Trailer Brake Controller for 1 to 4 Axles. This is a time delayed brake controller. The brake controller is going to activate your trailer's brakes with preset intensity levels. The signal is then sent to the trailer brakes when the tow vehicle's brakes are activated. It does have adjustable power output that's going to let you determine the amount of power sent to the brakes of the trailer. You can set it to a higher output when towing in a hilly terrain or with a fully loaded trailer or you can back off the power when towing a lightweight or empty trailer. Over on this side we have the power ramp time setting that lets you adjust the aggressiveness with which the brakes are activated.

You can get full power or faster by moving the switch forward to increase activation speed or you can achieve a smoother braking by moving the switch in the opposite direction to supply power gradually. On the front it's going to feature an easy-to-read LED display that's going to communicate the brake power output, ramp setting and also error codes. This system does feature built-in safeguards that are designed to protect your vehicle and your trailer. As a manual override this is going to illuminate the brake lights on the tow vehicle and your trailer. As a current limiter that's going to protect the vehicle from shorts in the trailer wiring and it also has a hazard flasher immunity that's going to prevent pulsing of the brakes when the flashers on the vehicle are activated. Here on the front it also features and easy-to-access slide-bar manual override. It's made from a solid-state construction.

It's a quick and easy installation with the quick attachment. This can be mounted at any angle in any plane and in any direction. The mounting bracket and the hardware are all included. Hayes offers plug-in, vehicle-specific brake control adapters, which are sold separately, and those can be used for certain applications to help reduce the installation time. This is designed to be used with trailers with up to 4 axles or 8 brake assemblies. It's designed for use with the electric brakes or electric over hydraulic braking systems. This is going to give us a measurement of 3-3/4" in length, 3" in width and it's going to stand about 1" in height. That's going to do it for today's review of part number HA81726.

This is the Hayes Blackbird Trailer Brake Controller. .


Customer Reviews

Hayes Blackbird Trailer Brake Controller - 1 to 4 Axles - Time Delayed - HA81726

Average Customer Rating:  5.0 out of 5 stars   (7 Customer Reviews)

Palm-size brake controller engages your trailer's brakes with a preset intensity when you apply the brakes in your vehicle. Adjustable power output and braking aggressiveness. Includes digital display and manual override.

- HA81726

by: Mel F09/23/2017


This is the second one I have purchased. I like the size and operation of the Hayes Blackbird brake controller. Very easy to install. The Girl that helped me was outstanding! Will use etrailer again. 435704



- HA81726

by: Tim P.06/26/2016


I installed this on a 2002 F150. Installing was easy. The additional harness made for this truck worked great! I didn't have to pay anyone to do it! It was so easy I was amazed. 265388



- HA81726

by: Ryan S. Peterson05/04/2017


Very good products and very good about the amount of time it took to get to my house. Will definitely order in the near future!! 376247



- HA81726

by: BDM09/30/2016


Good features, quality made. like its com pack size, fits under dash out of way. 301883



- HA81726

by: Andy07/20/2014


Kit and online video made it an easy jo b. 142318



- HA81726

by: keith02/11/2016


Delivered fast. Everything i ordered. 237533



- HA81726

by: jim t.12/29/2016


plug and play took only 10 mins. 330302


7
7

Ask the Experts about this Hayes Brake Controller
Do you have a question about this Brake Controller?


  • Smallest Time Delayed Brake Controller for Installing on Motorcycle
  • The smallest time delayed brake controller that we offer is the Hayes Blackbird Trailer Brake Controller # HA81726. The Blackbird measures 3-3/4 inches long x 3 inches wide x 1 inch thick. To install this brake controller on your motorcycle, you will want to use the universal wiring adapter # HA81789-HBC. I have attached a review video of this brake controller for you.
    view full answer...

  • Recommended Brake Controller For 2016 Ram 1500
  • The Hayes Brake Controller, part # HA81726 you asked about is a time-delayed controller. A time-delayed controller has a preset intensity and is activated when the brake pedal is pressed on the towing vehicle. The brake controller also has a manual override, and can be mounted at any angle or direction. For your Ram 1500 you will also need the plug-in adapter, part # HA81795-HBC. I recommend the Tekonsha P3, part # 90195. This is one of our most popular brake controllers because it is...
    view full answer...

  • Brake Controller Fit and Compatibility for a 2016 Jeep Grand Cherokee with Factory 7-Way
  • Yes the Hayes Blackbird Brake Controller # HA81726 will work for your 2016 Jeep Grand Cherokee, but you will need to use the adapter # HA81796-HBC to plug into your vehicles wiring. Can I offer one bit of advice? Instead of going with a Time Delayed Brake Controller I would instead suggest a Proportional Controller like the P2 # 90885 with adapter # 3045-P. The P2 is a proportional brake controller which means it senses how the tow vehicle is slowing or stopping and applies the trailer's...
    view full answer...

  • Parts Needed to Install Hitch, Brake Controller, 7 Way and 4 Way on a 2002 Chevrolet Express Van
  • First we will start off with the hitch. I recommend going with the Curt Class III Receiver Hitch, # 13040, for your 2002 Chevrolet Express Van. This hitch receiver bolts directly to the frame of the van with no welding or drilling required. For a t-connector we have the T-One Wiring Harness, # 118377, that plugs directly into your existing taillight wiring without any cutting or splicing. In order to obtain a 7 way at the back of the van, you will need to install a Universal Installation...
    view full answer...

  • Troubleshooting OC Error Message on Hayes Blackbird Trailer Brake Controller HA81726
  • When the Hayes Blackbird Time-Delayed brake controller # HA81726 displays the error code OC this means that the controller senses that it has lost its electrical connection to the trailer's brake circuit. This code could be caused by many things: trapped water, dirt or corrosion inside the vehicle socket or trailer plug, or it could be due to a loose physical connection at the 7-way or at the blue wire at the back of the controller. The blue wire carries the output signal from the controller...
    view full answer...

  • What is the Correct Harness for a Hayes Blackbird Brake Controller on a 2014 Jeep Grand Cherokee
  • For the Blackbird brake controller # HA81726 and your 2014 Jeep Grand Cherokee you will need Hayes harness # HA81796-HBC.
    view full answer...

  • How to Wire the Hayes Blackbird Brake Controller to a 2009 GMC Sierra
  • I attached a picture that has a diagram that details which wire from your 2009 GMC Sierra gets wired to the Hayes Blackbird Brake Controller part # HA81726 that you referenced. You will also need the universal install harness part # HA81789-HBC that you also referenced. The red wire of your truck goes to the black wire of the controller. The dark blue wire of truck goes to blue of controller. The light blue or orange wire goes to the red wire of the controller. The white wire of...
    view full answer...

  • Parts Needed to Install Hayes Blackbird Trailer Brake Controller # HA81726 in 1994 Chevrolet Blazer
  • To install the Hayes Blackbird Trailer Brake Controller # HA81726 in your 1994 Chevrolet S-10 Blazer you will use the following items in addition to the controller itself. You will need Universal Wiring Adapter # HA81789-HBC that plugs in to the back of the Blackbird and provides 4 leads for hardwired installation. You will also use our brake controller install kit # ETBC7 which includes a 7-way socket, wiring, connectors, circuit breakers, etc. - everything you need to install the...
    view full answer...

  • How to Set the Right Power Output on a Brake Controller when Towing a Trailer
  • For any brake controller, including the Hayes Blackbird # HA81726, the set up process is basically the same. You start by setting the controller to the mid point for power output. Then with the truck and trailer coupled together on level, dry ground, tow at about 20 miles per hour or so. Then apply the manual override on full (not the truck's brake pedal). If the trailer brakes lock up and skid, adjust the power down and do the test again. If braking is insufficient then adjust the power...
    view full answer...

  • Does Hayes Blackbird Brake Control Wiring Harness Need Extra Ground Wire on 2014 Toyota Tundra
  • I think what you mean is does wiring harness # HA81785-HBC require a separate and additional ground wire for a 2014 Toyota Tundra. Good news! It doesn't. Only the Tekonsha brake controller wiring harness, # 3040-P, has that additional ground wire since the ground in the factory connection point is insufficient for the Tekonsha controllers. The Hayes harness # HA81785-HBC only uses the factory ground so no additional ground is needed for the controller to operate effectively and properly.
    view full answer...

  • With Hayes Blackbird Brake Controller Installed theres a Ringing in Truck When Truck is Turned Off
  • I spoke with my contact at Hayes about the issue you are having with the Blackbird brake controller # HA81726. The problem you are having is not something they have come across before. I do have some recommendations though that you can follow to hopefully find where the issue is coming from. First to determine if it is the controller disconnect it from the tow vehicle. If the issue stops then it is the brake controller. If it is the brake controller then it is either a bad controller...
    view full answer...

  • Parts Needed to Install Brake Controller in a 2008 Dodge Ram
  • To install the Hayes Blackbird Trailer Brake Controller # HA81726 in your 2008 Dodge Ram 1500 all you need is the install harness part # HA81782-HBC which will plug into the port under the dash. If your truck has a 7-way you would be set with just those two things. If your 2008 Dodge Ram pickup does not have a factory trailer connector (4-pole or 7-way) at the back bumper then for brake controller installation you will do a hardwired installation using our Brake Controller Installation...
    view full answer...

  • Available Brake Controller to Fit a Honda Goldwing Towing a Tent Trailer.
  • I found a brake controller for your Honda Goldwing and tent trailer application. The Hayes Blackbird Brake Controller , # HA81726, and Universal Wiring Adapter, # HA81789-HBC, are the controller and harness I recommend for your application. The Hayes controller is a time-delayed controller that will allow set and adjust the power output to a preset intensity. You will use the Universal Wiring Harness to wire the controller to your bike and trailer. I have attached an article that will...
    view full answer...

  • Will the Hayes Quik-Receiver Work to Mount the Hayes Blackbird Brake Controller
  • The Hayes Quik-Receiver Mounting Bracket # HA81793B is designed to accommodate brakes controllers up to 3-1/4 inches wide x 5 inches long x 1-1/4 inches tall. Since the Hayes Blackbird Trailer Brake # HA81726 controller is smaller than these dimensions, it will fit inside the Quik-Receiver Mounting Bracket. The Quik-Receiver Mounting Brackets is also available in gray with part # HA81793.
    view full answer...

  • Troubleshooting Brake Controller that Powers Off and On Constantly
  • It sounds like you have an intermittent short on either the power or ground wire of your Blackbird brake controller part # HA81726 and it is constantly shutting off and powering on. Check the attachment point for the black and white wires of the controller to see if they are making a secure connection as it sounds like one of the wires is loose. I also attached a help article on brake controller installs for you to check out as well.
    view full answer...

  • Recommended Stoplight Circuit to Install a Brake Controller in a 1979 Ford F150
  • You should be totally fine installing a brake controller in your 1979 Ford F150 by using the brake pedal switch as the stoplight switch for the controller. You will just want to find the circuit that only sees voltage when the brakes are applied and none when not and you would be fine. You would want to use a circuit tester like part # 3808. I attached an FAQ article on installing a brake controller from scratch that should be very helpful for you.
    view full answer...

  • Brake Controller Wiring Needed to Move Hayes Blackbird Brake Controller From 2002 to 2004 Silverado
  • Trailer Brake Controllers aren't vehicle specific, so they can be used on just about any vehicle. The brake controller wiring adapters are vehicle specific. The 2002 and the 2004 Chevy Silverado use a different wiring adapter, so the adapter you currently have wouldn't work in the 2004 Silverado. In order to install your # HA81726 Hayes Blackbird brake controller into your 2004 Silverado, you'll need the correct brake controller wiring adapter which is part # HA81780-HBC. I've linked...
    view full answer...

  • Installing a Brake Controller in a 2008 Lincoln Mark LT
  • The Hayes Blackbird Trailer Brake Controller - 1 to 4 Axles - Time Delayed # HA81726 is absolutely something you can install yourself and won't look out of place in your 2008 Lincoln Mark LT. If you have a factory 7-way, then you only need to add the custom wiring harness # HA81783-HBC to plug into your factory port beneath the dash. If you have the factory 4-way, then you can use that harness along with the # ETBC7. If you don't have factory wiring, you will need the Universal Wiring...
    view full answer...
