The best technical support and full brake controller installation instructions. Lowest price Sierra brake controller guarantee and expert service. GMC Sierra, 2012 brake controller by Hopkins are available from etrailer.com. For expert service call 800-298-8924 to order your Hopkins Agility Trailer Brake Controller - Hardwire - 1 to 4 Axles - Proportional part number HM47295, or order online at etrailer.com.



2012 GMC Sierra - Hopkins Agility Trailer Brake Controller - Hardwire - 1 to 4 Axles - Proportional

Proportional brake controller can be easily mounted. Digital display indicates braking action of trailer. Fine-tune power adjustment has 5 levels so that you can set braking intensity to suit your towing needs.


Features:

  • Brake controller activates trailer brakes in proportion to your GMC Sierra's braking action
    • Automatically adjusts trailer's braking based on deceleration of tow vehicle
    • Activates immediately - no pausing like with time-delayed brake controllers
  • Multiple mounting options
    • Position at any angle up or down in the vertical plane
      • Recommended mounting is between -20 degrees and 70 degrees
  • 5 Sensitivity levels let you adjust initial braking power and aggressiveness
  • Digital display is easy to read
  • Built-in, slide manual override lever
  • Pigtail harness hardwires into your GMC Sierra


Specs:

  • Application: trailers with up to 4 axles (8 brake assemblies)
    • Designed for use with electric brakes only
  • Dimensions: 3" wide x 5" long x 1-1/4" tall
  • Limited lifetime warranty


Proportional Braking

With a proportional brake controller, you can get heavy-duty emergency braking, general braking or slow-to-an-idle braking for your trailer automatically. The intensity with which your trailer brakes are activated and the rate at which they are applied are dependent on the deceleration of your tow vehicle. This means that, unlike time-delay controllers - which send the same amount of preset power to your trailer brakes every time - proportional controllers are able to adapt to every braking situation differently. So, if you slam on the brakes in your truck, your trailer brakes will activate with that same extreme intensity. And if you merely slow down as you approach a red light, your trailer will gradually brake in the same manner.


As long as the Agility controller sits level on a horizontal plane and is pointed in the direction of travel, it will sense - via an internal inertia sensor - how your tow vehicle brakes. This inertia-based sensor responds to the deceleration of your tow vehicle as you brake by signaling the controller to send out enough power to your trailer brakes so that they are activated with an intensity that matches. The result is uniform braking across your towing setup. No push-pull action - just smooth, proportional braking every time.


Power and Sensitivity Adjustment

Getting the braking power you need for your application is simple with the Agility. First, set the overall power so that you can achieve maximum braking without locking up your trailer brakes.


Once you have the overall power set, you can fine-tune the power output by adjusting the sensitivity of the internal sensor. Use the adjustment buttons on the top of the controller to achieve your desired degree of intensity. There are 5 levels to choose from. The first level offers the least amount of sensitivity, making it ideal for lightweight setups. The heavier your load, the higher you will want to take the sensitivity. At level 5, the sensitivity of the internal sensor is as high as it can go. This level provides the most aggressive braking and is ideal for heavy loads.


Digital Display

On the front of the Agility there is a digital display that is designed to keep you aware of the braking action of your trailer. This screen shows your sensitivity level, overall power percentage and error codes for issues such as a short circuit.


Simple Installation

The Hopkins Agility is recommended to be mounted in your cab at an angle that is between -20 degrees and 70 degrees to make it easier to access.


Correct Agility mounting90-Degree Agility mounting

Note: The Agility must be mounted on a level horizontal (side-to-side) plane and must be lined up with the direction of travel for the internal sensor to function properly.


This brake controller is designed to be hardwired into your GMC Sierra.


Installation Accessories

See etrailer.com's exclusive 7- and 4-way brake-control installation kit (ETBC7 - sold separately) if you don't already have a 7-way plug at the back of your GMC Sierra.


Note: One of the following will be required to ensure proper installation:

20-Amp circuit breaker (9506P - sold separately) for 2- to 4-brake applications

30-Amp circuit breaker (38630 - sold separately) for 6- to 8-brake applications

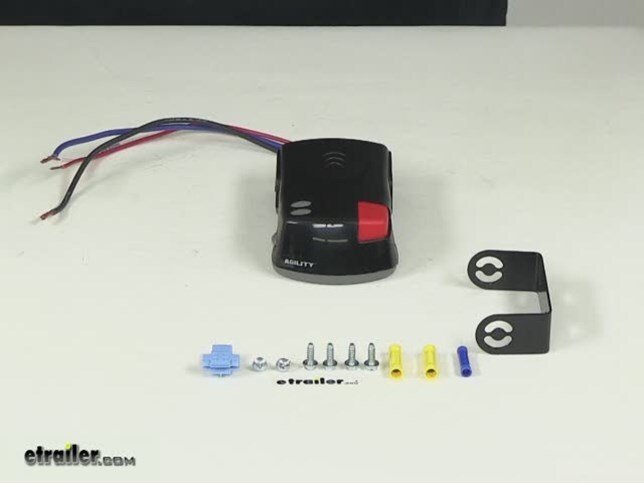

47295 Hopkins Agility Proportional Trailer Brake Control - Hardwire



HM47295 Installation InstructionsInstallation Details HM47295 Installation instructions
