Titan Brake Actuator - Drum - Primed - 3" Lunette Ring - 5 Position Adjustable Channel - 20K

Titan Brake Actuator - Drum - Primed - 3" Lunette Ring - 5 Position Adjustable Channel - 20K

Item # T4848600
lowest price pledge
Retail:$863.03
Our Price: $602.99
You Save: $260.04
Brake Actuator
This item qualifies for Free Shipping
Shipping Weight: 87 lbs
Quantity:
In Stock
Titan 20000 lbs GTW Brake Actuator - T4848600
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Videos

Need help with installation?
Locate installers near me
Weld-on, drop-channel, surge brake actuator has a lunette ring that can be mounted in 1 of 5 positions to match your application. Features primed finish and an efficient roller design that reduces resistance. For use with drum brakes. Call 800-298-1624 to order Titan brake actuator part number T4848600 or order online at etrailer.com. Free expert support on all Titan products. Guaranteed Lowest Price and Fastest Shipping for Titan Brake Actuator - Drum - Primed - 3" Lunette Ring - 5 Position Adjustable Channel - 20K. Brake Actuator reviews from real customers.
  • All Info
  • Reviews (2)
  • Q & A (1)
  • Videos (1)
  • Photos
  • Why etrailer?

Titan Brake Actuator - T4848600

  • Surge Brake Actuator
  • Drum Brakes
  • Lunette Ring
  • 20000 lbs GTW
  • Weld-On
  • No Lockout
  • Straight Tongue Coupler
  • Titan

Weld-on, drop-channel, surge brake actuator has a lunette ring that can be mounted in 1 of 5 positions to match your application. Features primed finish and an efficient roller design that reduces resistance. For use with drum brakes.


Features:

  • Hydraulic actuator activates trailer's brakes when tow vehicle slows or stops
  • Offset adjustable channel has 5 different mounting positions for coupler
    • Built-in drop is great for tall trailers
  • Lunette ring couples with a pintle hitch
  • Unique roller design reduces resistance during telescoping to create straight-line movement
  • Sturdy, durable steel construction resists bending in jackknife situations
  • Primed finish on outer casing
    • Painted inner slide
  • Breakaway kit included
  • Weld-on installation


Specs:

  • Application: trailers with hydraulic drum brakes
  • Gross towing weight: 20,000 lbs
  • Maximum tongue weight: 2,000 lbs
  • Lunette ring diameter: 3"
  • Mounting: straight, 3" wide trailer tongue
  • 1-Year warranty


Note: Because this actuator does not include a reverse lockout, it is recommended that you equip your trailer with free-backing brakes so that you can drive in reverse without the actuator triggering your trailer's brakes.


When you apply the brakes in your tow vehicle, deceleration occurs and momentum pushes your trailer toward the rear of your vehicle. With surge brake systems, the actuator is triggered as your trailer moves forward, once your tow vehicle starts to slow down. When this happens, the actuator contracts, applying force to its master cylinder. This in turn supplies the necessary hydraulic pressure to engage the trailer's brakes.


Adjustable Channel Design

The adjustable channel on this trailer brake actuator allows for ultimate versatility. Mount almost any type of coupler (sold separately) - from a standard ball coupler to a lunette ring or clevis attachment - to fit your specific application. In addition, the 3 mounting positions on the channel let you adjust the height of the coupler. Just place the coupler so that it matches the height of the ball mount or other hitch attachment on your tow vehicle and you will be able to tow your trailer levelly.


This actuator is great for tall trailers. This is because the adjustable channel is positioned so that the mounted coupler can sit below the actuator tube, allowing for a greater drop than with a standard center-mounted channel. As a result, you can line up your tall trailer with your tow vehicle's hitch for a level setup.



4848600 Titan Model 20 Brake Actuator with 3" Lunette Ring and 5-Postion Leveler Channel - Drum - Weld On - 20,000 lbs





Video of Titan Brake Actuator - Drum - Primed - 3" Lunette Ring - 5 Position Adjustable Channel - 20K

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

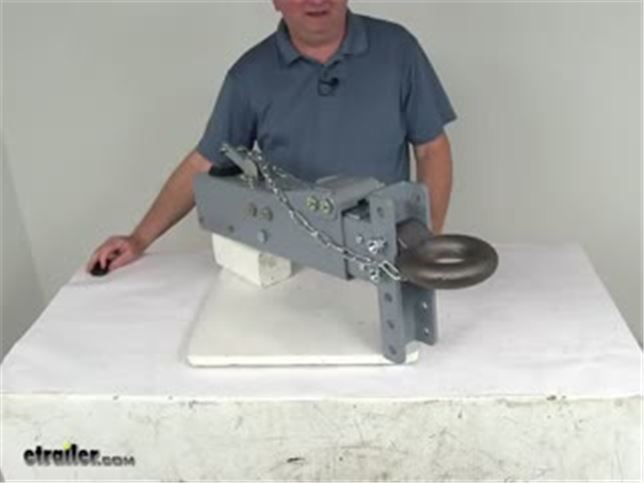

Video Transcript for Titan Brake Actuator - Surge Brake Actuator - T4848600 Review

Today we're going to be taking a look at the tightened drum break actuator with the five position adjustable channel and the three inch lunette ring. It has a 20,000 lb weight capacity. This hydraulic actuator will activate your trailer brakes when the tow vehicle slows or stops. This one happens to have a nice offset adjustable channel. It has five different mounting positions for the coupler that you install in it. It does have this built-in drop which is great for tall trailers.

The reason that is is because the adjustable channel's positioned so that the mounted coupler can sit below the actuator tube, allowing for a nice greater drop than with the standard center-mounted channel. As a result, you can line your tall trailer with your tow vehicle's hitch for a nice level setup. This one comes with a lunette ring. This will couple to the pintle hitch. The adjustable channel can also be used with almost any type of coupler, including a standard ball coupler or a clove attachment to fit your specific application. Now, this has a nice unique roller design which will reduce resistance during the telescoping of the inner tube into the other outer tube.

Creates a nice straight line movement. You notice there's rollers up here and then there's lower rollers. They all have grease circ 00:01:05 fittings on them for lubrication. This actuator's a sturdy, durable steel construction, resists bending in any jackknife situations. The finish on it is a nice prying finish on the outer casing, and on the inner slide it's a painted finish.

It does come with this breakaway kit. This breakaway kit would be used to . hook this chain to your tow vehicle, and then if the trailer ever comes detached from the tow vehicle, that chain would pull and activate the brake system to keep the trailer from a runaway situation. Now, this is a well done installation. Application again is for trailers with hydraulic drum breaks. The mounting is designed to mount on straight, three-inch wide trailer tongues.

Gross towing weight capacity is 20,000 lbs. Maximum towing weight capacity is 2,000 lbs. The size of the the lunette is a 3-inch diameter. One last note on this, because this actuator does not include a reverse lockout, it is recommended that you equip your trailer with free backing brake, so that you can drive in reverse without this actuator triggering your trailer brakes. That should do it for the review on the tightened drum break actuator with the five position adjustable channel and the three inch lunette ring. It has a 20,000 lb weight capacity.


Customer Reviews

Titan Brake Actuator - Drum - Primed - 3" Lunette Ring - 5 Position Adjustable Channel - 20K - T4848600

Average Customer Rating:  5.0 out of 5 stars   (2 Customer Reviews)

Weld-on, drop-channel, surge brake actuator has a lunette ring that can be mounted in 1 of 5 positions to match your application. Features primed finish and an efficient roller design that reduces resistance. For use with drum brakes.

- T4848600
by:

Great price and great product it worked just the way we wanted it too, we have 100% brake now on the car hauling trailer. Thank you etrailer for all your help



- T4848600
by:


2
2

Ask the Experts about this Titan Brake Actuator

  • Titan Model 20 Weld On Surge Brake Actuator With Reverse Lockout and Lunette Ring
    The Titan Brake Actuator # T4848600 does not offer any type of reverse lockout and would require the installation of Free Backing Brake Assemblies # AKFBBRK-7-D on your trailer. If you choose this route I can help you find the correct size dependent on your axle capacity and brake assemblies currently on your trailer. The Titan Brake Actuator # T4856900 does use an electric reverse lockout. You would be able to attach the Titan Lunette Ring # T1613700 to it as well. To do this you will...
