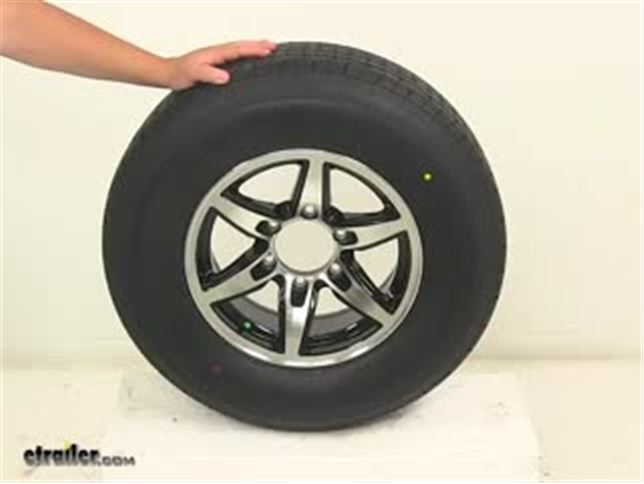

Westlake ST225/75R15 Radial Tire w 15" Bobcat Aluminum Wheel - 6 on 5-1/2 - LR E - Black

Westlake Tires and Wheels - LHAWSO311B

Radial tire has 10-ply rating and 2,830-lb max load at 80 psi. 15" x 6" Aluminum wheel has 6 on 5-1/2 bolt pattern. Nitrogen fill maintains tire pressure. 1-Year No Excuses Guarantee on tire. Complimentary roadside assistance included.

Features:

• Tire-and-wheel assembly is ideal for RVs, campers, and trailers
• Nitrogen fill is indicated by a green valve cap
  • Maintains tire pressure longer than standard air
  • Helps prolong the life of the tire and wheel
• Aluminum wheel is durable, lightweight, and rustproof
  • Attractive Bobcat Series design with black interior
  • Automotive-grade clear coat finish on the front protects the wheel from scuffs and scratches
• Steel inserts in lug nut wells help to keep wheel securely in place on trailer hub
  • Prevent holes from wearing down
  • Eliminate the need for constant retightening of lug nuts
• Westlake radial tire is constructed with double steel belts and double polyester plies for a long life
  • Nylon tread-firming belt overlays help prevent tread separation
  • Tread wear indicator (TWI) makes it easy to see tread depth
  • Radial ply tire is great for highway use
• Special trailer (ST) tire has sturdy sidewalls so that it can handle heavy loads
  • Created specifically for trailers and not intended for use on other vehicles
• Complimentary roadside assistance for 2 years
  • Flat tire service available 24/7 anywhere in the United States, Canada, or Puerto Rico
• Assembly meets DOT specifications
  • Tire meets FMVSS specifications
  • Wheel meets SAE J1204 standards
• Center cap sold separately

Specs:

• Rim dimensions: 15" diameter x 6" wide
• Bolt pattern: 6 on 5-1/2"
• Wheel bolt size: 1/2"-20
• Wheel capacity: 2,830 lbs
• Pilot diameter: 4.25"
• Offset: 0
• Tire size: ST225/75R15
  • Section width: 8.8"
  • Outer diameter: 28.3"
• Tire capacity:
  • Load range: E
  • Ply rating: 10
  • Maximum load: 2,830 lbs at 80 psi
• Tread depth: 10/32"
• Maximum speed: 75 mph (speed rating L)
• Warranty:
  • 5-Year on tire
  • 1-Year on wheel
• 1-Year No Excuses Guarantee on tire

Lionshead Roadside Assistance Program

This tire-and-wheel assembly comes with complimentary roadside assistance for 2 years. If your RV or trailer has a flat tire, call the help line and a technician will come change the flat for you. You can call 24 hours a day, 7 days a week, and 365 days a year from anywhere in the United States, Canada, or Puerto Rico.

1-Year No Excuses Guarantee

This tire has a 1-year No Excuses Guarantee. If within the first 12 months the tire is damaged in any way that's not covered by warranty, it will be replaced at no charge. You will also be compensated a flat labor rate for the cost of mounting the replacement tire.

The Nitrogen Advantage

The NitroFill inflation process filters out oxygen to ensure that this tire-and-wheel assembly is filled with 95 to 99.9 percent pure nitrogen. Nitrogen-inflated tires maintain pressure better than tires inflated with standard air. This makes them ideal for RVs and trailers that are driven infrequently or sit in storage for long periods of time. Other benefits of consistent tire pressure are better fuel economy, improved braking and handling, decreased chance of tire failure, and longer tire life.

A tire inflated with standard air, which contains oxygen, is prone to fluctuations in pressure due to loss of air over time and ambient temperature changes. Nitrogen-inflated tires don't experience these fluctuations for a couple reasons. First, nitrogen molecules are larger than oxygen molecules, so they are less likely to permeate a rubber tire. Second, nitrogen is a dry gas, so it won't allow condensation to build inside the tire. A tire inflated with standard air may have moisture in it, which means it is more likely to be affected by ambient temperature.

In addition, the moisture that can collect in a tire inflated with standard air will contribute to corrosion of the wheel and deterioration of the rubber tire from the inside out. A nitrogen-inflated tire-and-wheel assembly is less likely to experience this type of decay. Less moisture in the tire also means reduced running temperatures.

If necessary, you can top off the tire with standard compressed air. But to maintain the benefits of nitrogen, the tire must be refilled with nitrogen.

Steel Lug Nut Inserts

This aluminum wheel comes with steel inserts in the lug nut wells. The inserts are pressed into the aluminum, and they help prevent the holes from wearing down over time. This ensures that the wheel stays secured to your trailer hub and that you won't have to constantly retorque the lug nuts.

Westlake Radials

This radial ply tire from Westlake is constructed with double steel belts and double polyester cords for increased durability. A protective layer of nylon is wrapped around the steel belts to help prevent tread separation.

The standard tread on this tire has solid, continuous ribs, and there are very few sipes (or thin grooves) cut into the rubber. This tire is designed for use on trailers, so it doesn't require the level of traction that would be needed on a vehicle that is braking or steering.

Radial Tires vs. Bias Tires

Radial ply tires are designed for trailers that are towed on the highway. The cords on a radial tire are positioned at a 90-degree angle to the direction of travel so that they lay across the width of the tire from wheel lip to wheel lip. This construction prevents the cords from rubbing against one another when the tire flexes, unlike the cords on a bias ply tire. As a result, radial tires have less rolling resistance and heat buildup, which leads to a longer tread life and improved steering at higher speeds.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

• If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
• If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
• If D = 3", then the bolt pattern is 5 on 5"
• If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
