Castle Rock ST185/80R13 Radial Tire w/ 13" Jaguar Aluminum Wheel - 5 on 4-1/2 - LR D - Gray

Castle Rock ST185/80R13 Radial Tire w/ 13" Jaguar Aluminum Wheel - 5 on 4-1/2 - LR D - Gray

Item # LHACXSJ101G

lowest price pledge

Our Price: $144.95

Tires and Wheels

This item qualifies for Free Shipping

Shipping Weight: 30 lbs

Quantity:
In Stock
Lionshead Tires and Wheels - LHACXSJ101G
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images


  • Tire with Wheel
  • 13 Inch
  • 5 on 4-1/2 Inch
  • 185/80-13
  • Load Range D
  • Aluminum Wheels
  • Boat Trailer Wheels
  • Radial Tire
  • Best Rust Resistance
  • Lionshead
Radial tire has 8-ply rating and a 1,710-lb max load at 65 psi. 13" x 5" Aluminum wheel has a 5 on 4-1/2 bolt pattern. Nitrogen fill maintains tire pressure. 1-Year No Excuses Guarantee on tire. Complimentary roadside assistance included. Lowest Prices for the best tires and wheels from Lionshead. Castle Rock ST185/80R13 Radial Tire w/ 13" Jaguar Aluminum Wheel - 5 on 4-1/2 - LR D - Gray part number LHACXSJ101G can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (4)
  • Q & A (3)
  • Videos (1)
  • Photos
  • Why etrailer?

Lionshead Tires and Wheels - LHACXSJ101G

Radial tire has 8-ply rating and a 1,710-lb max load at 65 psi. 13" x 5" Aluminum wheel has a 5 on 4-1/2 bolt pattern. Nitrogen fill maintains tire pressure. 1-Year No Excuses Guarantee on tire. Complimentary roadside assistance included.


Features:

  • Tire-and-wheel assembly is ideal for RVs, campers, and trailers
  • Nitrogen fill is indicated by a green valve cap
    • Maintains tire pressure longer than standard air
    • Helps prolong the life of the tire and wheel
  • Aluminum wheel is durable, lightweight, and rustproof
    • Jaguar Series split-spoke design with gunmetal gray interior
    • Automotive-grade clear coat finish on the front protects the wheel from scuffs and scratches
  • Steel inserts in lug nut wells help to keep wheel securely in place on trailer hub
    • Prevent holes from wearing down
    • Eliminate the need for constant retightening of lug nuts
  • Castle Rock radial tire is constructed with double steel belts and double nylon plies
    • Nylon tread-firming belt overlays help prevent tread separation
    • Tread wear indicator (TWI) makes it easy to see tread depth
    • Radial ply tire is great for highway use
  • Siping on the tire tread channels water away from the tire to improve traction during wet, snowy, or icy conditions
  • Special trailer (ST) tire has sturdy sidewalls so that it can handle heavy loads
    • Created specifically for trailers and not intended for use on other vehicles
  • Complimentary roadside assistance for 2 years
    • Flat tire service available 24/7 anywhere in the United States, Canada, or Puerto Rico
  • Assembly meets DOT specifications
    • Tire meets FMVSS specifications
    • Wheel meets SAE J1204 standards
  • Center cap sold separately


Specs:

  • Rim dimensions: 13" diameter x 5" wide
  • Bolt pattern: 5 on 4-1/2"
  • Wheel bolt size: 1/2"-20
  • Wheel capacity: 1,650 lbs
  • Pilot diameter: 3.19"
  • Offset: 0
  • Tire size: ST185/80R13
    • Section width: 7.24"
    • Outer diameter: 24.64"
  • Tire capacity:
    • Load range: D
    • Ply rating: 8
    • Maximum load: 1,710 lbs at 65 psi
  • Tread depth: 9/32"
  • Maximum speed: 75 mph (speed rating L)
  • Warranty:
    • 5-Year on tire
    • 1-Year on wheel
  • 1-Year No Excuses Guarantee on tire


Lionshead Roadside Assistance Program

This tire-and-wheel assembly comes with complimentary roadside assistance for 2 years. If your RV or trailer has a flat tire, call the help line and a technician will come change the flat for you. You can call 24 hours a day, 7 days a week, and 365 days a year from anywhere in the United States, Canada, or Puerto Rico.


1-Year No Excuses Guarantee

This tire has a 1-year No Excuses Guarantee. If within the first 12 months the tire is damaged in any way that's not covered by warranty, it will be replaced at no charge. You will also be compensated a flat labor rate for the cost of mounting the replacement tire.


The Nitrogen Advantage

Nitro Fill Logo

The NitroFill inflation process filters out oxygen to ensure that this tire-and-wheel assembly is filled with 95 to 99.9 percent pure nitrogen. Nitrogen-inflated tires maintain pressure better than tires inflated with standard air. This makes them ideal for RVs and trailers that are driven infrequently or sit in storage for long periods of time. Other benefits of consistent tire pressure are better fuel economy, improved braking and handling, decreased chance of tire failure, and longer tire life.


A tire inflated with standard air, which contains oxygen, is prone to fluctuations in pressure due to loss of air over time and ambient temperature changes. Nitrogen-inflated tires don't experience these fluctuations for a couple reasons. First, nitrogen molecules are larger than oxygen molecules, so they are less likely to permeate a rubber tire. Second, nitrogen is a dry gas, so it won't allow condensation to build inside the tire. A tire inflated with standard air may have moisture in it, which means it is more likely to be affected by ambient temperature.


In addition, the moisture that can collect in a tire inflated with standard air will contribute to corrosion of the wheel and deterioration of the rubber tire from the inside out. A nitrogen-inflated tire-and-wheel assembly is less likely to experience this type of decay. Less moisture in the tire also means reduced running temperatures.


If necessary, you can top off the tire with standard compressed air. But to maintain the benefits of nitrogen, the tire must be refilled with nitrogen.


Steel Lug Nut Inserts

Lionshead Aluminum Wheels with Steel Lug-Nut Inserts

This aluminum wheel comes with steel inserts in the lug nut wells. The inserts are pressed into the aluminum, and they help prevent the holes from wearing down over time. This ensures that the wheel stays secured to your trailer hub and that you won't have to constantly retorque the lug nuts.


Castle Rock Radials

Unlike standard trailer tire tread, which has solid, continuous ribs, the tread on these Castle Rock radials has ribs with breaks. These breaks allow water to run off to the sides. The Castle Rock tread also has sipes. Siping is a process in which thin grooves (or sipes) are cut into the rubber of the tire. The grooves channel water away from the tread so that the tire makes better contact with the road. Both of these features greatly improve traction during wet, snowy, or icy conditions.


Castle Rock radials are constructed with double steel belts and double nylon cords. A protective layer of nylon is wrapped around the steel belts to help prevent tread separation.


Radial Tires vs. Bias Tires

Radial tire vs bias tire graphic

Radial ply tires are designed for trailers that are towed on the highway. The cords on a radial tire are positioned at a 90-degree angle to the direction of travel so that they lay across the width of the tire from wheel lip to wheel lip. This construction prevents the cords from rubbing against one another when the tire flexes, unlike the cords on a bias ply tire. As a result, radial tires have less rolling resistance and heat buildup, which leads to a longer tread life and improved steering at higher speeds.


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.


Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)


Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)


Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"


ACXSJ101G Lionshead Castle Rock ST185/80R13 Radial ST Tire with 13" Jaguar Gun Metal Grey Aluminum Rim - 5 on 4.5 - Load Range D

A-HZCR-185RD-SUJA-130-500-5GMF

Replaces A-HZCR-185RD-SUJA-130-450-5GMF






Video of Castle Rock ST185/80R13 Radial Tire w/ 13" Jaguar Aluminum Wheel - 5 on 4-1/2 - LR D - Gray


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Lionshead Tires and Wheels - Tire with Wheel - LHACXSJ101G Review

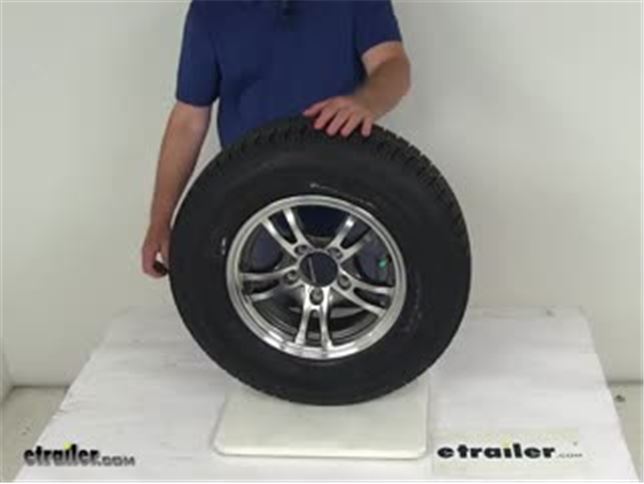

Speaker 1: Today we're gonna take a look at the Castle Rock ST 185-80 R13 radial tire in a load range D, mounted on this 13 inch Jaguar gray aluminum wheel with the five on four and a half inch bolt pattern. Now, this tire and wheel assembly is ideal for RV's, campers, and trailers. The wheel is an aluminum wheel. It's a very durable, light weight, and rust proof. It is a Jaguar series wheel, which it is a five spoke, five split spoke design. Has a nice machine face to it, and machine look.

Then, they use a gun metal gray accent on the interior of the wheel.They also use an automotive gray clear coat finish on the front to protect the wheel from any scuffs and scratches. Also on this wheel, the lug holes, they do use the steel inserts in the lug nut wells. Helps keep the wheel securely in place on your trailer hub. Those inserts will help prevent the holes from wearing down, helps eliminate the need for constant re tightening of your lug nuts.The tire is a Castle Rock radial tire. It's constructed with double steel belts, double nylon plies.

Uses a nylon tread firming belt overlay to help prevent tread separation. And, it is a radial ply tire, so it's great for highway use.You'll notice on the tread, they do use the cuts on the tread blocks. That's called siping. That siping will help channel water away from underneath the tire to improve traction during wet, snowy, or icy conditions. Also, they fill this with nitrogen.

So, when you receive this tire it'll be nitrogen filled. You can tell that by the green valve cap that they put on the valve stem. Nitrogen will help maintain your tire pressure longer than standard air, and it helps prolong the life of your tire and wheel.The tire is a ST, which means special trailer tire. Has sturdy side walls so they can handle heavy loads. It's created specifically for trailers, not intended for use on any other vehicles.

This whole assembly does come with a complimentary road side assistants for two years. They offer flat tire service, which is available 24 hours, seven days a week. Anywhere in the US, Canda, or Porta Rico.This assembly does meet the DOT, department of transportation, specifications. The tire does meet the federal motor vehicle safety standard specifications. It does, if you want to use a center cap, they do sell those separately. They are listed on our website.Few specs on this: the diameter on this wheel, the wheel is always measured bead seat to bead seat. So, this will measure 13 inches in diameter. The width on just the wheel is five inches wide. Bolt pattern on this wheel is a five on four and a half inch bolt pattern. If you ever want to measure that, a wheel that's an odd number of lugs, in this case five lugs, what you do is pick any hole, measure from the center of that hole directly across to either hole to the outer edge. So, it's center of the starting hole to the outer edge of the hole you measure to. It'll measure four and a half inches. So, five lug, four and a half inch bolt pattern.Those use a wheel lug size of a half inch by 20. Weight capacity on just the wheel is 1,660 pounds. Pilot hole diameter, which is the large hole here in the center of the wheel, goes over the hub on the trailer, is 3.19 inches. The tire size, which will be stamped on the tire, is going to be . let's find where it is. ST, for special trailer, 185-80 R13. The R means it's a radial design tire.Section width on this tire is 7.24 inches. Overall diameter from the bottom to the top when it's inflated is 24.6 inches. This tire is a load range D, which means it's an eight ply rated tire. Has a maximum load capacity of 1,710 pounds at 65 PSI.The last thing I do want to mention is most all the new trailer tires are coming through with speeding ratings on them. The speed rating is always designated by a letter designation on the tire. Usually, it's right around where the size is. So, right here, if there's your size. If you right around, you'll see speed rating L. Speed rating L will mean 75 miles per hour.But, that should do it on the review of the Castle Rock ST 185-80 R13 radial tire in a load range D, on this 13 inch Jaguar gray aluminum wheel, with a five on four and a half inch bolt pattern.
