Aluminum HWT Series S5 Trailer Wheel - 16" x 6-1/2" Rim - 8 on 6-1/2 - Black

Aluminum HWT Series S5 Trailer Wheel - 16" x 6-1/2" Rim - 8 on 6-1/2 - Black

Item # AM22659HWTB

lowest price pledge

Our Price: $121.81

Tires and Wheels

This item qualifies for Free Shipping

Shipping Weight: 24 lbs

Quantity:
In Stock, Ships Today
HWT Aluminum Wheels,Boat Trailer Wheels Tires and Wheels - AM22659HWTB
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Videos


  • Wheel Only
  • 16 Inch
  • 8 on 6-1/2 Inch
  • Aluminum Wheels
  • Boat Trailer Wheels
  • Best Rust Resistance
  • HWT
Sturdy, rustproof trailer wheel features stylish black detailing and meets Department of Transportation standards. Improved clamp force (ICF) technology ensures that it stays in place once properly mounted. Lowest Prices for the best tires and wheels from HWT. Aluminum HWT Series S5 Trailer Wheel - 16" x 6-1/2" Rim - 8 on 6-1/2 - Black part number AM22659HWTB can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (227)
  • Q & A (8)
  • Videos (1)
  • Photos
  • Used (3)
  • Why etrailer?

HWT Tires and Wheels - AM22659HWTB

Sturdy, rustproof trailer wheel features stylish black detailing and meets Department of Transportation standards. Improved clamp force (ICF) technology ensures that it stays in place once properly mounted.


Features:

  • Durable, corrosion-resistant aluminum construction
  • Split-spoke design with black interior is unique and appealing
  • Front and back of wheel are clear coated
  • Improved clamp force (ICF) technology helps to keep wheel securely in place
    • Bulletproof joint created between wheel and hub when properly installed
    • No need to retorque after initial installation
  • High-quality wheel meets DOT specifications


Specs:

  • Rim dimensions: 16" diameter x 6-1/2" wide
  • Bolt pattern: 8 on 6-1/2"
  • Wheel bolt size: 1/2"-20 or 9/16"-18
  • Pilot diameter: 4.9"
  • Capacity: 3,640 lbs
  • Lifetime warranty against structural defects


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.


Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)


Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)


Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"


22659HWTB Split-Spoke Aluminum Wheel - Hi-Spec HWT Series S5 - Black

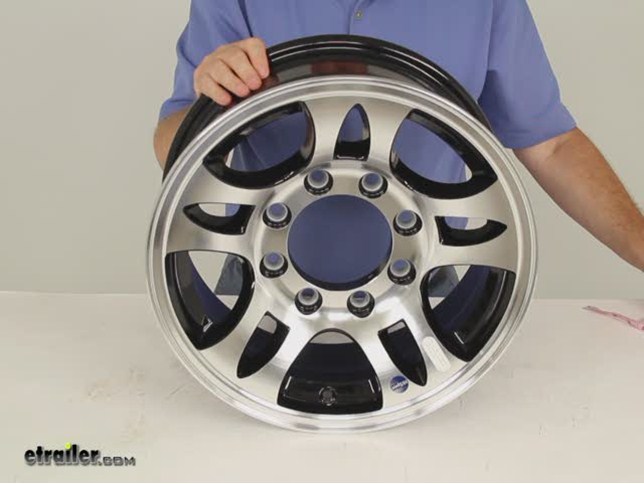

Video of Aluminum HWT Series S5 Trailer Wheel - 16" x 6-1/2" Rim - 8 on 6-1/2 - Black


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for HWT Tires and Wheels - Wheel Only - AM22659HWTB Review

Today, we're going to review part number AM22659HWTB. This is the Americana Aluminum HWT Series S5 Trailer Wheel. This is a 5-spoke split-spoke design as you can see the split spoke right here. And it is a durable corrosion-resistant aluminum construction wheel. The finish on it, it has a machine polish finish on this top of the wheel and the sideslip of the wheel and then inside, it is accented in black. The whole wheel is clear coated to protect it.Now, this is an HWT design wheel.

An HWT promotes a technology called ICF which is Improved Clamp Force. This will help keep your wheel securely in place. Basically what that consists of is they make the connection right here between the wheel and the hub very close. They also a special design of steel insert that are in each lug hole. The special design will allow a tire clamping load when torquing them down for less distortion.

Basically there's no need to re-torque after the initial installation. This wheel is a high-quality wheel which needs DOT specifications.Now, a few specs on this, the rim dimension is a 16-inch diameter by 6 1/2-inch wide. Basically, the wheel, when you measure a diameter of a wheel, it's not the overall from lip to lip. It's from the bead seat to the bead seat. If we measure that, the diameter on this is 16 inches and same way on the width of the wheel.

We don't measure the overall width. It's actually measured the inside bead seat to bead seat. Again, this would be 6 1/2 inches so it's 16 by 6 1/2.Now this does have a bolt pattern on eight on six and a half. There's eight lugs and then the six an a half measurement would be if you drew a circle between the center of all those lug holes and measure that diameter of the circle, the 6 1/2 inches. If we take this and measure directly across from center of one lug and go across to the center of the other lug, you could see it's 6 1/2 inches.

This is an eight on 6 1/2-inch wheel.This does use a wheel bolt size of 1/2 inch by 20. The hub pilot diameter which is this large hole that goes over the hub on your trailer is 4.9 inches. As you can see, 4.9 inches.It does have a load rating of 3,640 pounds at 80 psi and it does have a limited 1-year warranty.That should do it for the review on part number AM22659HWTB, The Americana Aluminum HWT Series S5 Trailer Wheel.


Customer Reviews

Aluminum HWT Series S5 Trailer Wheel - 16" x 6-1/2" Rim - 8 on 6-1/2 - Black - AM22659HWTB

Average Customer Rating:  4.9 out of 5 stars   (227 Customer Reviews)

Sturdy, rustproof trailer wheel features stylish black detailing and meets Department of Transportation standards. Improved clamp force (ICF) technology ensures that it stays in place once properly mounted.

- AM22659HWTB
by:

Excellent fit and the wheels look great! Customer is very pleased. There was very slight scuffing on the front edge of the wheels probably due to rough handling during shipping. Maybe a little better padding would help this issue. 557294



- AM22659HWTB
by:

Order was correct and fit just right. Adam was great to work with. It was a pleasure to do business with etrailer. 500138



- AM22659HWTB
by:

Found a crack in one of my camper aluminum wheels! this was a perfect match at a reasonable price. Received in a very timely matter! Very satisfied!!!! 499071



- AM22659HWTB
by:

Product was good but customer service the best!! Helen was great!! She needs a raise!!! 474425



- AM22659HWTB
by:

Beautiful product period 390570



- AM22659HWTB
by:

Wow perfect match and beautiful product 389237


Comments

I need the centers replaced the center caps

Wheel I - 06/05/2018

39257

The entire center cap assembly for this wheel is available as part # AM90156C
Americana Trailer Wheel Center Cap - Stainless Steel - 4.88" to 4.90" Pilot
$15.13
, and the center portion of this cap is # AM90081
Trailer Wheel Center Cap Plug - Black
$1.21
for the black version and # AM90082
Trailer Wheel Center Cap Plug - Chrome
$1.63
for the chrome finish.

-- Rachael H - 6/5/2018


- AM22659HWTB
by:

Really nice wheel. 330843



- AM22659HWTB
by:

they are really great looking and were in perfect cond 161594



- TTWALS5156545B
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Great looking, but also higher strength rating than most wheels this size for extra dependability. They were delivered on time and in great shape, and still look great after a years use. Love them, even got one for the spare to save weight, and should it be needed the trailer still looks good. 430105



- TTWALS5167865HD
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


We purchased 4 of these wheels and paired them with the Taskmaster Provider tires for our Montana 5th wheel. We needed a 6.5 inch wheel with 110psi specification in order to use the new tires. We haven't had any issues with the wheels or the valve stems which were included with the wheels. Since installing them, we have put 5,000 miles on them, they have performed flawlessly. Perfect fit, function, and nice style. If you had the 4.10 inch chrome center caps from your old wheels like I did, they fit perfectly on these wheels. 414358


Comments

Still no issues after 12,000 miles

Bob W - 08/03/2018

41843

- AM22658HWT
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Great wheels. The old 15" wheels have a zero offset as do these. Now that they are on the RV, I could actually have used ones with a slight offset to move the center of the wheel toward the frame. This would have given a little more clearance to the wheel well trim pieces. 402932



- AM22658HWTB
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Delivered on time. Correct product. First time to order from etrailer but won't be the last. Thanks for great service. R.Jowers 375722



- AM22318HWTB
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


excellent online purchase. i called to get some details on this wheel and Bridget was more than helpful with my questions. the shipping was fast and the online tracking tool was most convenient. the wheel is top quality and very well made. etrailer.com is a pleasure to do business with. thanks to all... 77444


Comments

i have no complaints after a year.would definitely buy again if need be.highly recommend.

stewart - 04/23/2014

3704

- TTWALS5156545B
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Wheels look great... Other parts are as expected although the cotter pins were a little smaller than the ones used on the surge controller. Only problem with my order was that the wheel caps were nested but not individually protected. One of them has some scrapes on it from rubbing inside the other and a couple of the black plastic caps have abrasions from rubbing together. 461924



- AM22658HWTB
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


I was so impressed with the selection of wheels available from Etrailer. I am am very happy with my selection. The transaction was perfect. The slightest of problems was solved immediately, one wrong lugnut out of twelve. Will be doing more shopping at Etrailer. 243922


Comments

The wheels are awsome. Just what I wanted. They are on a trailer mount concrete pump. I got several compliments on them.

Rodney B - 02/11/2018

34602

- TTWALS5167865HD
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


I replaced my original rims with these because I wanted to upgrade to tires that allowed a 110# inflation pressure. My original rims were 85# max. I liked the looks of the original rims but needed to carry additional pressure. Funny thing is, they are almost identical to my original rims. The difference is very subtle. After a year I’ve put 7000-8000 miles on them and they have been trouble free. They also came with metal stems. etrailer had the best price I found. Have bought several things from them and have always been pleased. 506437



- TTWALS5156545B
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Great product ...I would highly recommend. Fit & Finish is done very professionally. Just a great looking wheel. Would highly recommend 189513



- AM22658HWTB
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Ordered 5 new aluminum alloy 16" wheels with a 6 x 5-1/2" bolt pattern for my 33' 5th wheel RV from etrailer three days ago and they arrived at my house today. They arrived 2 big boxes and 1 smaller box and everything looked very good upon inspection. Will be mounting Goodyear Endurance ST235/80R16 load range E tires on these wheels soon using metal valve stems I also purchased from etrailer that are good to 100psi. Very satisfied with etrailer and their excellent customer service! 461478



- TTWALS556655B
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


I bought these for my 2010 29ft Travel Trailer, it originally had white spoke steel wheels. These wheels are excellent qaulity and made the trailer look much better. When i had them mounted only one wheel needed any weight to balance it, my tire guy couldnt believe it. I have bought a lot of products over the last couple of years from E Trailer and these guys deliver, very fast shipping, knowledgable staff to answer any questions you have. The prices are the lowest around with free shipping. I dont even look anywhere else anymore. Thanks e Trailer, keep up the good work!!! 168417



- AM22318HWTB
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


To start, these wheels are beautiful. Upon receiving my two wheels, I first tested them to make sure they fit the 4 on 4 lugs on the Hub I also received from etrailer, they did fit perfectly. Shipping was immediate, receiving them across the country in perfect condition. I must comment on several reviews I have read concerning etrailer.com. Their service is excellent. I di order a part that is manufactured in Canada, and it was shipped in the original cartons that they were placed in from Canada. Upon receiving my order, half of the product was missing, yet I received a duplicate of the other half of the order. I immediately notified etrailer.com about the mix up and explained I was facing critical time restraints because I was building a Pull-Behind motorcycle trailer and needed to complete my build by the 18th of June when I am leaving for a 3 week motorcycle tour across our Great Country. etrailer came through fantastically. They immediately emailed me a prepaid UPS label to return the mis-sent products and located the crucial parts I needed to complete my build. The correct parts were located in another state, so etrailer had those parts Drop Shipped straight to my residence. I received those parts today, May 30, 2017 in plenty of time to complete my build to begin my journey I have been planning for over two years. etrailer.com really went above and beyond the norm for your typical Customer Service received from what seems to be most retailers. I will admit I was concerned my trip would be ruined because of the reviews I had read about etrailer.com. However, I have since ordered custom aluminum wheels, cap, fenders and several other parts having full confidence they will arrive in short order. Even over Memorial Day weekend I order the fenders I needed and received notification they had shipped on Saturday, right in the middle of the First major holiday of the summer. I have been writing reviews for a major retailer for several years now and depend on honest people to write honest reviews about experiences they have had with any type of retailer. However, my first experience with etrailer has totally and completely shut down anything negative, I will NOT HESITATE a single second to order from etrailer.com in the future. They took great care in getting my order right. I realize that with my hundreds, if not thousands of orders I have made over the years from just about every online retailer, this experience that could have very easily turned ugly, was handled with extreme urgency and professionalism. etrailer.com made and uncontrollable error, but corrected it like a Great Company should, stood up at the plate, took responsibility and handled it to my Complete and utter Satisfaction! 5-Stras from me to you etrailer.com, you have earned my complete respect as an honest business with excellent Customer Service as equally important as making a profit! Thank You!! 386793



- TTWALS5167865HDB
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


The First wheel showed up quickly. Too bad it had a large gouge in the rim area. The box was in perfect condition, telling me that the damage was done at the factory, not during shipping. I snapped a picture and sent it to Etrailer. Got an e-mail the next morning informing me that a replacement was being shipped out. Now Thats Service :-) The Wheel: Well, it's round and heavy built. The fit and finish is perfect. It's the same manufacturer as the wheel that came on our 5th wheel (14,780 lbs) but different design. It will work great as a 2nd spare. Will look much better if used than the white steel wheel's that scream "Look at me, I'm having a bad day". 186920



- AM22319HWT
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Liked the AM22319HWT wheel so much I bought a third one to mount a spare on my Whaler trailer. Super fast delivery too. 543110



- TTWALS5156545B
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


I received my wheels yesterday when the people at the tire shop opened the box there was scratches all around one and pieces cut out of other does know one inspect the product before sending it did not happen in transit you can see that when I called there comment was send pics will send new ones mail bad ones back so move my trailer again and pay again to mount no thanks I'll have to live with my purchase thanks 404601



- TTWALS5156545B
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


These are great wheels at the best price I could find. I upgraded my OE 14 inch wheel with these and am very pleased. Also bought lug nuts and center cap all look great together. 468479



- TTWALS5167865HDB
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Excellent. The 8 year old wheels had worn out. Replaced them with these. In just a few minutes on the phone with Debora, we identified what we needed and they were on their way to Yuma AZ. I had been pacing while the tire dealer was trying to find replacements. After an hour I got on the phone and the solution was found in short order. Thank you ETrailer and Debora. Wayne S. 168849



- TTWALS514545B
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Wheels look great. These are an excellent upgrade for my boat trailer. I really do appreciate the professional and courteous help I received from etrailer. As with my other purchases, it was fast easy and delivery was as promised. Both Deborah H. and Wayne H. were a big help with my order. Thanks again! 122305



- AM22658HWTB
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


First, etrailer customer service is excellent. This is 3rd time working with etrailer and they do not disappoint. Wheels arrived less than two days after placing order. Visually wheels / rims appear to be a well manufactured product. Far better than the original wheels / rims on my 5th wheel. Casting quality appears very good with cast in markings easily readable and no visual signs of voids or porosity. Machining also appears to be very good. Machining marks were visible at the rim tire flange indicating the rims were machined and therefore are probably true although no indicator measurements were made. HWT wheels / rims are designed in US and manufactured in China. Based on visual inspection the manufacturing quality appears very good. Wheels / tires are being changed from 15" to 16" ST235/85R16 gaining 1.5" height. This is necessary because new 2018 F-250 is 3.8" taller at box rail than 2013 F-350. Will also be adding a 2" block between axle spring seat and springs to accommodate much higher truck bed rail to maintain trailer overhang clearance to bed rail. 472369



- AM22659HWT
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Good match and perfect wheel for my rig. Came as expected in perfect condition. 571010



- TTWALS514545B
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Awesome product 632038



- TTWALS514545B
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


The rims run true & straight. they solved my problems with uneven wearing to tires. No more flat spots or cupping. 629445



- AM22659HWT
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Perfect fit.. 621764



- TTWALS514545B
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Excellent service . I will not hesitate to recommend this company to any looking for tires and rims . Thanks Doug Rooks 620425



- TTWALS514545B
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


The wheel is exactly as my damaged trailer . Never thought I would be able to get a new one. 617273



- AM22318HWT
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Love the looks of them. I think they really dress up the looks of my trailer. 615829



- TTWALS514545
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Good wheels, finish scratches easy, just washing and drying stretched the surface. 610427



- TTWALS5156545B
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Great Product 603134



- TTWALS51345
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Excellent product; very happy with the purchase. Actually arrived early and in perfect condition. Etrailer.com service is outstanding. 602087



- TTWALS514545B
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Excellent service!! 601340



- AM22660HWT
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Great product, great web site 588775



- TTWALS514545B
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


No issues working out great! 587886



- TTWALS5156545B
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


I have had the wheels, hubs, and bearings for a year now and they have worked perfectly. Still no sign of wear. 578095



- TTWALS514545B
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Great service very fast shipping!! Thank you! 567796



- AM22319HWT
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


A+ 567222



- AM22658HWTB
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


The wheels have worked out look good on the trailer. 566581



- AM22319HWTB
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


This rim was better than expected. This rim was recommended to me by etrailer to fit with my tire which has a 1520 psi rating. I couldn’t find a black steel rim with this psi rating in a 12”. I had it mounted (with the tire I also purchased at etrailer) at Costco. No problem. You must keep in mind that if you are buying a tire with a 1520psi rating, your rim must also be rated for same. Don’t make the mistake of getting a 1250psi rated rim. This was purchased as a spare, but now, because of how good it looks, we are looking to replace the other two original black rims with these on our camper. 565437



- TTWALS51345
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Very happy with the service from etrailer. They ship promptly and always notify me of the status of my order. I can always get in touch with someone quickly if I have questions as well and they follow up after the sale. A very fine internet company. 565012



- TTWALS514545B
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Wheels look great. Can't wait to get them mounted. Very quick turnaround. etrailer has great service and follow up. Best people to deal with. Thanks 562150



- AM22658HWTB
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Product is awesome. Fits perfect and looks great. Shipping was great. The only issue I have is pricing. Other online sellers have it cheaper even with shipping. etrailer needs to work on that. 553717



- TTWALS556655B
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


The wheels I ordered were the correct items as described. They arrived in perfect condition. I would have given a 5 star rating but the tires I ordered on the same day from a different vendor arrived 2 days later. When I didn't receive the wheels on that day I called to find out that my order had not been processed yet. They did their best to expedite my order which arrived 7 days from the date I placed my initial order. All in all I'm happy with my purchase from etrailer. 552955



- TTWALS5167865HD
by:

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Very fast and friendly service. Would recommend to anyone 551852


55
239
Show More Reviews

Ask the Experts about this HWT Tires and Wheels
Do you have a question about this Tires and Wheel?


  • Maximum PSI Supported by Aluminum HWT Wheel # AM22659HWTB with Steel Valve Stem
  • The psi rating for an HWT wheel and tire assembly is only limited by the valve stem and tire. It is okay to use tires with a 110 psi rating—even on an HWT wheel rated lower than 110 psi—as long as you are using a metal valve stem that can handle 110 psi. We offer the Americana Metal Valve Stem, # AM20906, which will fit the HWT wheel # AM22659HWTB and is rated for tire pressure of 100 psi or greater. Keep in mind that you should not exceed the weight capacity of the wheels, tires,...
    view full answer...

  • Availability Of 8 Inch Aluminum Trailer Wheels
  • I have attached a link to our product page for the 8 inch wheels we offer that you can check out. We currently do not offer an 8 inch wheel with the split spoke feature. All of the 8 inch wheels we carry are either painted steel or galvanized steel.
    view full answer...

  • Wheel Center Cap Needed for the Aluminum HWT Series S5 Trailer Wheel # AM22659HWTB
  • The Aluminum HWT Series S5 Trailer Wheel # AM22659HWTB that you purchased doesn't come with a center cap, as you found. We do, however, have center caps that you can purchase to fit the 4.9" pilot hole on your wheels. For a stainless steel option we have the Americana # AM90156C. We also have this available from Lionshead with part # LHCS109-SI60C or in black with part # 274-000004-005.
    view full answer...

  • Will HWT Series Wheel Fit 2004 Montana Big Sky Fifth Wheel Trailer?
  • The HWT Series S5 Trailer Wheel # AM22659HWTB has an 8 on 6-1/2" bolt pattern but is 16" x 6-1/2" and not 16" x 6" so you need to make sure the additional 1/2" of width won't cause any interference. If it doesn't then the wheel would be a fit for you. I've added a link to a video review of this product for you to take a look at as well.
    view full answer...

  • Replacement Wheel for 16x6 Aluminum Wheel
  • The wheel numbers you gave are not giving me anything to help you find the replacement you need. The D60 refers to the axle which is a Dexter 6,000 lb round axle and the 8 refers to the hubs being 8 stud. I can't find anything on the other info. We do not have this exact wheel, but do have similar options if you like the look. The very closest option we have is the Aluminum Sendel Series T02 Machined Trailer Wheel - 16" x 6" Rim - 8 on 6-1/2 # AM22662 rated for 3,750 lbs. We...
    view full answer...

  • 16 Inch Modular Wheel Recommendation and Other Weight Saving Ideas
  • The Lion's Head Aluminum Modular Trailer Wheel - 16" x 7" Rim - 8 on 6-1/2 # LHJM513 are 25 lbs. There are other non modular style aluminum wheels like # AM22659HWTB that weigh just 21 lbs . This is compared to the steel modular options that are around 33 lbs each. 8-12 lbs here and there will definitely make a difference. What other areas are you open to looking at? Axles? You may want to consider the Timbren Axle-Less Trailer Suspension System - Spindle w/ Brake Flange - Regular...
    view full answer...

  • Availability of Aluminum Split Spoke Trailer Wheel in Silver
  • Yes, the Aluminum HWT Series S5 Trailer Wheel # AM22659HWTB does come in silver; it is part # AM22659HWT. This wheel has an 8 on 6-1/2" bolt pattern, measures 16" diameter x 6-1/2" wide and will support a tire with a load range of G so long as the tire is a fit for 16" wheels such as the Provider # TTWPRG235R16. I've added a link to a video review of this wheel for you to take a look at.
    view full answer...

  • Difference Between Aluminum Split Spoke Trailer Wheel # AM22659HWT and # AM22659HWTB
  • Yes, they are the same wheel with just a different paint job! The Aluminum Split Spoke Trailer Wheel # AM22659HWT is all silver and the part # AM22659HWTB has black sections. Neither come with valve stems but they can be ordered with part # AM20906.
    view full answer...


Do you have a question about this Tires and Wheel?


Used Items Available
RU-19-AB-00201085

Condition: Surface Scratches

Notes: Outer edge of rim has cosmetic damage, light scuffs and scratches, will not affect the function of rim. Otherwise new and unused

Our Price: $87.41

Secure Checkout
RU-19-AB-00201098

Condition: Surface Scratches

Notes: Rim has light cosmetic damage to outer edge. It has no affect on the function of rim. New and unusd

Our Price: $87.41

Secure Checkout
RU-19-AB-00201099

Condition: Surface Scratches

Notes: Rim has slight cosmetic damage to outer edge of rim. It will not affect function of rim. New and unused

Our Price: $87.41

Secure Checkout


  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality tires and wheels for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate tires and wheel information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Expert Research:
Jameson C
Updated by:
Laura H
Photos by:
Jim W
Updated by:
Mary E
Updated by:
Sarah W

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.


Product Experts Available Now!

Call 800-298-8924
