Steel Spoke Trailer Wheel - 16" x 6" Rim - 8 on 6-1/2 - Galvanized Finish

Steel Spoke Trailer Wheel - 16" x 6" Rim - 8 on 6-1/2 - Galvanized Finish

Item # AM20781

lowest price pledge

Retail:$75.03

Our Price: $51.98

You Save: 31%
Tires and Wheels

Orders above $99 qualify for Free Shipping

Shipping Weight: 27 lbs

Quantity:
Americana Steel Wheels - Galvanized,Boat Trailer Wheels Tires and Wheels - AM20781
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Videos


  • Wheel Only
  • 16 Inch
  • 8 on 6-1/2 Inch
  • Steel Wheels - Galvanized
  • Boat Trailer Wheels
  • Good Rust Resistance
  • Americana
Corrosion-resistant, 16" steel wheel features an 8 on 6-1/2 bolt pattern and meets Department of Transportation standards. Lowest Prices for the best tires and wheels from Americana. Steel Spoke Trailer Wheel - 16" x 6" Rim - 8 on 6-1/2 - Galvanized Finish part number AM20781 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (8)
  • Q & A (7)
  • Videos (1)
  • Photos
  • Why etrailer?

Americana Tires and Wheels - AM20781

Corrosion-resistant, 16" steel wheel features an 8 on 6-1/2 bolt pattern and meets Department of Transportation standards.


Features:

  • Sturdy steel construction
  • Galvanized finish provides superior protection from rust and corrosion
  • 8-Spoke pattern
  • High-quality wheel meets DOT specifications


Specs:

  • Rim dimensions: 16" diameter x 6" wide
  • Bolt pattern: 8 on 6-1/2"
  • Wheel bolt size: 1/2"-20 and/or 9/16"-18
  • Pilot diameter: 4.9"
  • Capacity: 3,750 lbs
  • Limited 2-year warranty


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"




20781 8-Spoke Galvanized Wheel - 16"

017-162-30

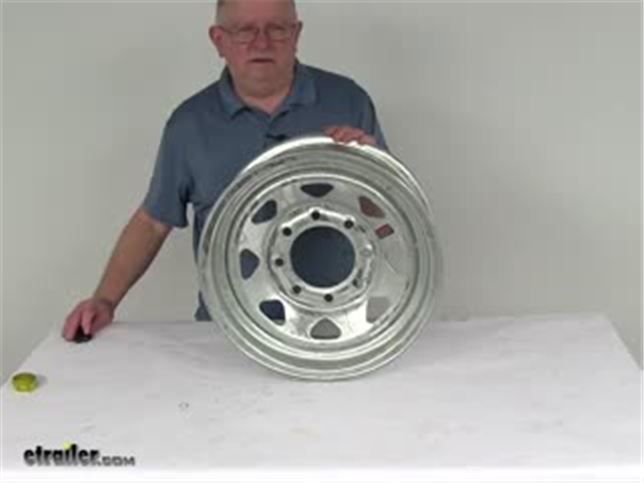

Video of Steel Spoke Trailer Wheel - 16" x 6" Rim - 8 on 6-1/2 - Galvanized Finish


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Americana Tires and Wheels - Wheel Only - AM20781 Review


Customer Reviews

Steel Spoke Trailer Wheel - 16" x 6" Rim - 8 on 6-1/2 - Galvanized Finish - AM20781

Average Customer Rating:  4.6 out of 5 stars   (8 Customer Reviews)

Corrosion-resistant, 16" steel wheel features an 8 on 6-1/2 bolt pattern and meets Department of Transportation standards.

- AM20781
by:

We have 12 2500 HD. We pull a lot of heavyweight tr. Rvery day . There tuff. Never a problem. 450967



- AM20781
by:

Description talked about 3750 pound rating with a 110 psi tire and the valve supplied with the wheel is a rubber snap in valve only rated for 100 psi. 442608



- AM20781
by:

These rims were above my expectation. My order was shipped out quickly and arrived sooner than expected. I would recommend etrailer to anyone needing trailer parts and supplies. 425662



- AM20781
by:

Great galvanizing on the rims. Fast shi pping 155314



- AM20781
by:

Looks like the original only a lot less road weary. Shipped when they said it would ship, arrived when they said it would arrive. Very easy to work with. 65501



- AM20781
by:

The item is a perfect match for the wheels on my trailer. I'm mounting a spare for my tri-axle boat trailer. 54687



- AM20781
by:

Excellent product 42578



- AM20781
by:

Packed well. 10878
