BoatBuckle Stainless Steel Kwik-Lok Gunwale Tie-Down Strap - 2" x 20' - 333 lbs

BoatBuckle Stainless Steel Kwik-Lok Gunwale Tie-Down Strap - 2" x 20' - 333 lbs

Item # IMF12072

lowest price pledge

Retail:$27.99

Our Price: $22.92

You Save: 18%
Tie Down Straps

Orders above $99 qualify for Free Shipping

Shipping Weight: 1.71 lbs

Quantity:
In Stock, Ships Today
Tie Down Straps IMF12072 - Standard Strap - BoatBuckle
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images


  • Trailer
  • Boat
  • 18 - 20 Feet Long
  • Gunwale Strap
  • BoatBuckle
  • Standard Strap
  • 2 Inch Wide
  • S-Hooks
  • 200 - 350 lbs
Stainless steel S-hooks and buckle components give this gunwale strap added protection against the elements - even in salt spray. Kwik-Lok buckle has easy one-hand operation and helps maintain tension on strap. Polyester webbing. 1,000 lbs Max load. Lowest Prices for the best tie down straps from BoatBuckle. BoatBuckle Stainless Steel Kwik-Lok Gunwale Tie-Down Strap - 2" x 20' - 333 lbs part number IMF12072 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (13)
  • Q & A (0)
  • Videos (3)
  • Photos
  • Why etrailer?

BoatBuckle Tie Down Straps - IMF12072

Stainless steel S-hooks and buckle components give this gunwale strap added protection against the elements - even in salt spray. Kwik-Lok buckle has easy one-hand operation and helps maintain tension on strap. Polyester webbing. 1,000 lbs Max load.


Features:

  • Tie-down strap lets you firmly secure your boat's gunwale (side edge) to your trailer
  • Stainless steel buckle and S-hooks provide maximum corrosion resistance
    • Great for saltwater applications
  • Kwik-Lok over-center buckle is easy to use and holds your strap tight with weave-through design
    • Opens and closes with just one hand
    • Maintains tension on strap for a better hold than standard cam buckles
    • Holds strap over your gear
  • Strong polyester webbing is flexible and weather resistant


Specs:

  • Strap dimensions: 2" wide x 20' long
  • Safe working load limit (WLL): 333 lbs
  • Maximum load (break strength): 1,000 lbs
  • Quantity: 1 gunwale strap
  • 1-Year limited warranty


Note: Tie-down straps must be chosen according to their safe working load limit (WLL). The weight of the secured cargo must not exceed the combined WLL of the straps being used. For example, if you are using straps with a WLL of 500 lbs each to tie down a load weighing 1,000 lbs, then you need at least 2 straps to safely secure that load.


The gunwale (side edge around the boat) provides important tie-down points for securing your boat to your trailer, usually just aft of the midsection. This gunwale strap is intended to be part of a boat tie-down system, and it should always be used along with a bow strap and a set of transom straps, for safe trailering.


A tie-down system is only as strong as its weakest link. Heat, humidity, and salt from road treatments or ocean spray all contribute to rust, which causes the hooks and buckles in most tie-downs to weaken, seize, and possibly break. The stainless steel components in this Kwik-Lok gunwale tie-down provide maximum corrosion resistance. No more hard-to-open buckles or rusted hooks. In other words, no more weak links.


The Kwik-Lok buckle on this gunwale strap can be easily opened and closed with one hand, which simplifies the process of tightening the strap down. To release the strap, simply pop open its buckle. Then pull the strap through and snap the buckle down to close it. The sturdy polyester strap is woven through the over-center buckle. So once the buckle is closed, it will help maintain tension on the strap, keeping your boat more firmly secured than a strap with a standard cam buckle.



F12072 IMMI Boat Buckle Stainless Steel Side Boat Tie-Down Strap with Quick-Lock Over-Center Buckle - 2 Inch x 20 Foot - 1,000 lbs

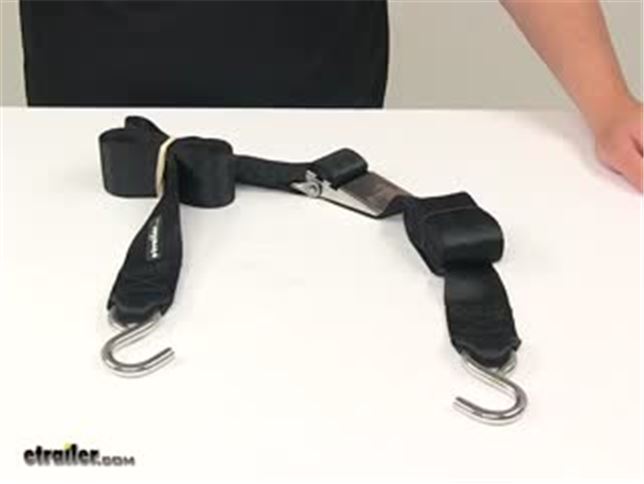

Video of BoatBuckle Stainless Steel Kwik-Lok Gunwale Tie-Down Strap - 2" x 20' - 333 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for BoatBuckle Tie Down Straps - Trailer - IMF12072 Review

Speaker 1: Today we're taking a look at the Boat Buckle Quick Lock Gun Weld 00:04 tie down strap. This tie down strap lets you firmly secure your boat to your trailer. The unit does feature stainless steel construction when it comes to the S-hooks, as well as the actual buckle. That's going to provide maximum corrosion resistance. So it's very strong and durable. It's corrosion resistant, which makes it great for salt water applications, and it's just an overall nice design.

It's very easy to use. It looks good.Now when it comes to the quick lock over-center buckle, this is easy to use as well, and it holds your strap tight with a weave through design. Now with these types of straps you're going to notice a couple different designs. So usually you have your ratcheting mechanism, or your standard cam buckle. The quick lock is a little bit different.

Again the over-center buckle, it's easy to use. Opens and closes with just one hand, and it's designed to maintain tension on your strap for a better hold. Especially when compared to standard cam buckles.So when you're ready to use this, when you're ready to secure your boat you'll take the hooks and you'll fasten the hooks securely to the frame of your trailer. Then with the fastener open you'll take the free end of the strap and you'll pull on it until the strap is tight over the boat. Then you simply close the fastener or the buckle to the locked position, and it has this break over point in it, which you can feel it and you can hear it kind of snap.

That means that it's secure.Once you have that done you can secure any of your excess strap or tie it off to the frame of the trailer. Then when you're ready to release, or release the tension and take the strap off all you have to do is pull up on the free end of the strap, and it'll take the buckle and it'll open it up. Then that's going to loosen everything so you can release the tension, and remove the strap, and unload your boat.The strap itself is made from a strong polyester webbing. Very similar to seat belt material. So it's very strong and durable.

It's flexible and it's weather resistant. This strap is black in color. It measures 2" wide. It's available in 16' and 20' lengths. For the 16' strap you can find that at etrailer.com with part number IMF12071. For the 20' strap, IMF12072. Safe working load limit is 333 pounds. Maximum load or break strength is 1,000 pounds, and just always keep in mind that tie down straps must be chosen according to their safe working load limit. The weight of the secured cargo must not exceed the combined working load limit of the straps being used. That's going to do it for today's look at the Boat Buckle Quick Lock Gun Weld Tie Down Strap.
