etrailer.com Ball Mount Kit for 2" Hitches - 7,500 lbs

etrailer.com Ball Mount Kit for 2" Hitches - 7,500 lbs

Item # 989900

lowest price pledge

Our Price: $56.51

Ball Mounts

Orders above $99 qualify for Free Shipping

Shipping Weight: 21 lbs

Quantity:
In Stock, Ships Today
etrailer.com Ball Mount Kit for 2" Hitches - 7,500 lbs Class III,7500 lbs GTW 989900
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed

Customer Photos


  • Fixed Ball Mount
  • Fits 2 Inch Hitch
  • Class III
  • 7500 lbs GTW
  • Drop - 2 Inch
  • Drop - 4 Inch
  • Rise - 1 Inch
  • Rise - 3 Inch
  • etrailer
  • Two Balls
  • Ball Mount Kit
  • Steel Shank
  • Steel Ball
Call 800-298-8924 to order etrailer ball mounts part number 989900 or order online at etrailer.com. Free expert support on all etrailer products. Guaranteed Lowest Price and Fastest Shipping for etrailer.com Ball Mount Kit for 2" Hitches - 7,500 lbs. Ball Mounts reviews from real customers.


  • All Info
  • Reviews (470)
  • Q & A (3036)
  • Videos (2)
  • Photos
  • Why etrailer?

etrailer Ball Mounts - 989900


Features:

  • Includes everything needed to tow multiple trailers, even of different heights
  • Works with 2" x 2" trailer hitch receivers (Class III)
  • Kit includes:
    • (1) Ball mount with 3/4" rise or 2" drop (# 2923)
      • Capacity: 7,500 lbs GTW and 750 lbs TW
    • (1) Ball mount with 2-3/4" rise or 4" drop (# 2753)
      • Capacity: 7,500 lbs GTW and 750 lbs TW
    • (1) 1-7/8" x 1" x 2-1/8" trailer hitch ball (# 19260)
      • Capacity: 2,000 lbs GTW
    • (1) 2" x 1" x 2-1/8" trailer hitch ball (# 63845)
      • Capacity: 7,500 lbs GTW
    • (2) Pin and clip (# PC3)
    • (1) etrailer.com ball mount bag (# ETBMB)


989900 etrailer.com Ball Mount Kit - 7,500 lbs







Video of etrailer.com Ball Mount Kit for 2" Hitches - 7,500 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

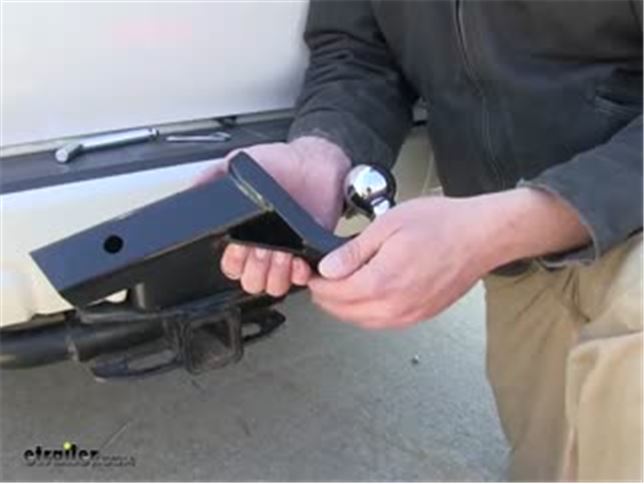

Video Transcript for etrailer.com Ball Mount Kit Review

Speaker 1: Today, we're going to be taking a look at the etrailer ball mount kit for two inch hitches. Part number is 989900. Now the etrailer ball mount kit's going to be the perfect solution for hauling multiple trailers with multiple vehicles. It gives us a variety of rise and drop configurations, so we can get our trailer as level as possible while we head down the road. The kit's going to have both the ball mounts, the inch and seven-eighths ball, the two inch ball, and two pins and clips, so we can get these secured to separate vehicles if we like. The bag to contain it, it's a nice bag, it's lined here, that's going to help keep the rust and the grease that you get on the ball, from getting on the carpet in your vehicle, or in the bed of your truck.

See, these store in here pretty easily. It can be a good way to keep everything contained.Now, the ball mount kit's been designed to work with class three, four, or class five hitches, that have the two inch by two inch receiver tube opening or some of the class five hitches, you'll have to use that adapter to bring it down to a two inch by two inch receiver tube opening. Now, the ball mounts are measured from the top of the receiver tube opening here. This is the two inch drop version, or three quarter inch rise, as you can see from that receiver tube opening edge to our ball platform, we have about three-quarters of an inch raise. If we we're to flip that over, it's going to give us two inches of drop.

Now, this ball mount from the center of the hitch pin hole to the center of the ball is about eight and a half inches. That's really only going to matter to you if your hitch is set in, underneath the vehicle, and you want to ensure that you're going to be able to get your trailer connected. The ball mount itself it's going to have a weight rating of 7,500 pounds as far as gross trailer weight goes. That's the total weight of your trailer and anything that you load up on it. It's going to have a maximum tongue weight rating of 750 pounds.

That's the maximum downward force we can put on the ball mount.Here's the other included ball mount. This is going to give us four inches of drop and then if we we're to rotate it over, it gives us two and three-quarters of rise, so that really helps us cover the gamut. This of course is going to be better suited for trailers lower to the ground. The other one better suited for trailers higher. Now, as we said, all other components are rated for 750 pounds of tongue weight, 7,500 pounds of gross trailer weight.

Then from the center of the pinhole to the center of our ball in this configuration, we've got nine inches. Now both ball mounts are going to have the hollow shank, that's going to help us out with weight, they're not quite as heavy as a solid shank would, but this is also going to work out really well if you want to add an anti-rattle device that maybe has a nut that goes inside. Shouldn't be an issue at all getting that secured. Now, both of our ball mounts are also going to have the black powder coat finish. This is going to help to resist rust and corrosion. Of course this finish like any other ball mount on the market, after years of service, they typically develop a little bit of rust or something like that, which is where that bag comes in really handy.Now, each ball is provided with the nut, and the lock washer. You're going to need to secure it to the ball mount. The shank length is going to be two and one-eighth of an inch long on both of them. It's one inch in diameter, so if you already have some ball mounts at home, and you're thinking you might want to add them to it, just want to make sure that size is going to work for you. That'll complete our look at the etrailer ball mount kit, part number 989900.
