Weigh Safe 2-Ball Mount w/ Built-In Scale - 2-1/2" Hitch - 10" Drop, 11" Rise - 14.5K
Save Up To 15 Percent on Weigh Safe Ball Mounts WS6-25, WS10-2, and WS10-25

Weigh Safe 2-Ball Mount w/ Built-In Scale - 2-1/2" Hitch - 10" Drop, 11" Rise - 14.5K

Item # WS10-25

lowest price pledge

Retail:$309.00

Our Price: $262.65

After Instant Rebate
Ball Mounts

This item qualifies for Free Shipping

Shipping Weight: 21 lbs

Quantity:
In Stock, Ships Today
Weigh Safe 2-Ball Mount w/ Built-In Scale - 2-1/2" Hitch - 10" Drop, 11" Rise - 14.5K Stainless Steel Ball WS10-25
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed

Customer Photos


  • Adjustable Ball Mount
  • Fits 2-1/2 Inch Hitch
  • Class V
  • 14500 lbs GTW
  • Drop - 10 Inch
  • Rise - 11 Inch
  • Weigh Safe
  • Two Balls
  • Built-In TW Scale
  • Aluminum Shank
  • Stainless Steel Ball
Measure your tongue weight to determine if you can safely tow by simply coupling your trailer to this ball mount. Ball platform locks to shank. Tow up to 8,000 lbs with the 2" ball and up to 14,500 lbs with the 2-5/16" ball. Call 800-298-8924 to order Weigh Safe ball mounts part number WS10-25 or order online at etrailer.com. Free expert support on all Weigh Safe products. Guaranteed Lowest Price and Fastest Shipping for Weigh Safe 2-Ball Mount w/ Built-In Scale - 2-1/2" Hitch - 10" Drop, 11" Rise - 14.5K. Ball Mounts reviews from real customers.


  • All Info
  • Reviews (573)
  • Q & A (35)
  • Videos (2)
  • Photos
  • Why etrailer?

Weigh Safe Ball Mounts - WS10-25

Measure your tongue weight to determine if you can safely tow by simply coupling your trailer to this ball mount. Ball platform locks to shank. Tow up to 8,000 lbs with the 2" ball and up to 14,500 lbs with the 2-5/16" ball.


Features:

  • Ball mount with included hitch balls lets you hook up your trailer to your tow vehicle
    • Shank slides into hitch receiver
    • Ball provides connection point for trailer coupler
  • Tongue weight scale built into the ball mount platform helps you balance your trailer
    • Promotes safe towing - lets you know if your load needs to be adjusted before you tow
    • Simple operation - automatically provides a measurement every time you couple your trailer
    • Efficient and hassle-free - eliminates the need for separate or commercial scales
  • Adjustable height lets you tow trailers of different heights with the same vehicle
    • Slide ball mount platform up or down shank and secure in place with included dual locking pins
      • 2 Keys are included
  • 2 Different-size hitch balls let you tow trailers with different coupler sizes
    • To switch ball, simply remove the ball-retaining lock pin from the platform, insert ball, and reinsert pin
  • 6061 T6 billet aluminum shank and mounting platform provide superior strength and durability
    • Solid block construction provides greater strength than hollow steel competitors while also maintaining a light weight
    • Rustproof for a clean finish that stands the test of time
  • Stainless steel hitch balls are corrosion resistant
  • Hitch pin and clip or hitch lock sold separately
  • SAE J684 certified and VESC Regulations V-5 compliant
  • Made in the USA


Specs:

  • Application: 2-1/2" x 2-1/2" trailer hitch receivers
  • Gross towing weight:
    • 2-5/16" Diameter hitch ball: 14,500 lbs
    • 2" Diameter hitch ball: 8,000 lbs
  • Tongue weight: 2,200 lbs
  • Distance from center of hitch pin hole to center of hitch ball: 8-3/4"
  • Maximum drop: 10"
  • Maximum rise: 11"
  • Incremental height adjustment: 1"
  • Scale gauge diameter: 1-1/2"
  • Warranty:
    • Limited lifetime for ball mount
    • 1-Year limited for scale gauge


Weigh Safe ball mount coupled to a trailer

This Weigh Safe ball mount has an easy-to-use, built-in scale that measures your trailer's tongue weight every time you tow. If the scale indicates that your tongue weight is too low or too high, you can adjust it before you head out so that you can complete your journey with the peace of mind that your setup is safe.


What is Tongue Weight?

Tongue weight (TW) refers to the weight that the fully loaded trailer exerts downward on the hitch ball of the tow vehicle. Tongue weight is typically 10 percent - and should not exceed 15 percent - of your gross trailer weight. For example, a 10,000-lb trailer should have a tongue weight between 1,000 lbs and 1,500 lbs. You can adjust the tongue weight of your trailer by removing or adding cargo, or redistributing the load on the trailer. The tongue weight should not exceed the capacity of your tow vehicle, your hitch, or any of your towing components.


Why is Tongue Weight So Important?

Weigh Safe helps ensure proper trailer tongue weight

Simply put, too little tongue weight can cause trailer sway and too much tongue weight can cause the tow vehicle to perform poorly. You may have difficulty steering, gaining traction, or braking when driving a setup that has too much weight pushing down on the rear of the vehicle. Ultimately, towing with an improper tongue weight can cause you to lose control of your vehicle or cause your trailer to separate from the vehicle.


Built-In Tongue Weight Scale


The gauge of the Weigh Safe built-in tongue weight scale

The Weigh Safe ball mount's built-in scale signals you to adjust your load before you hit the road, resulting in a much safer and enjoyable towing experience. Before this ball mount, gauging your trailer's tongue weight was a hassle. You had to rely on inefficient bathroom scales, make a trip to the weigh station, or purchase a separate tongue weight scale. But with the Weigh Safe's built-in scale, measuring your tongue weight is as easy as coupling your trailer to your ball mount. Simply hook-up your trailer to the Weigh Safe ball mount just as you would any other ball mount. The weight of your trailer will push down on the hitch ball, which in turn pushes down on an internal hydraulic piston that sits on a bed of oil. When the piston drops into the oil, the pressure reading is sent out to the scale.


Easily Adjusts to Fit Your Setup

Weigh Safe ball mount has adjustable height

Adjusting and setting up the Weigh Safe ball mount to work with your specific trailer is easy. First, unlock and pull out the dual pins and remove the platform from the shank. Next, pull out the hitch ball retaining pin from the back of the platform and insert either the 2" or 2-5/16" hitch ball. A 1-7/8" hitch ball (WSB-L - sold separately) is also available. Then reinsert the retaining pin to secure the ball to the platform. Replace the platform and slide it along the shank to the desired height. Insert the dual pins and use one of the included keys to lock the pins in place.


Weigh Safe ball mounts installed in drop and rise positions

The Weigh Safe ball mount can be used in either the drop or rise position to best suit your application.


Superior Aluminum and Stainless Steel Construction

From the first moment that you lay eyes on the Weigh Safe ball mount you'll see that you're getting a superior, well-made product. The Weigh Safe's shank and ball mount platform are made entirely of 6061 T6 billet aluminum, which is the same material that is used to build aircraft components, automobile frames, and freight liners. This type of aluminum is known for having superior strength while maintaining its light weight, which makes it highly desirable over hollow steel components. 6061 T6 aluminum is also rustproof, which means the Weigh Safe hitch will maintain its clean, shiny, and impressive appearance for years to come. And the hitch balls are made of solid stainless steel, offering far greater protection against rust and corrosion than other steel hitch balls that are only painted or plated on the surface.


The Weigh Safe ball mount meets VESC V-5 regulations and is SAE J684 certified. These regulatory bodies - the Vehicle Equipment Safety Commission and the Society for Automotive Engineers - create standards for the design, construction, and performance of automotive and towing accessories. Weigh Safe has had this ball mount thoroughly tested in simulation to ensure that it complies with these standards. The result is a strong, safe, sturdy product that is built to last.



WS10-2.5 Weigh-Safe Trailer Hitches with Tongue Weight Gauge - 2" x 2-5/16" Ball Combo - 10 Inch Drop - 2-1/2 Inch Hitches

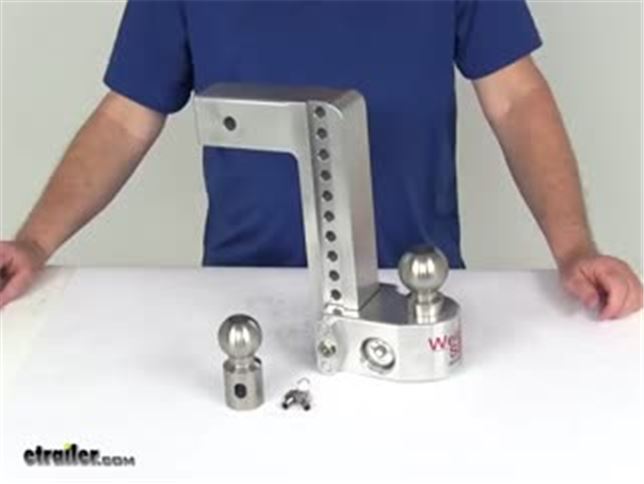

Video of Weigh Safe 2-Ball Mount w/ Built-In Scale - 2-1/2" Hitch - 10" Drop, 11" Rise - 14.5K


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Weigh Safe 2-Ball Mount with Built-In Scale Review

Today we're going to be taking a look at the Weigh-Safe line of adjustable aluminum ball mounts with built-in tongue weight scale, available in multiple configurations right here at Etrailer.com. Now a very common problem that we have that can sometimes make trailering unsafe is not having a proper load-out on our trailer or not having the appropriate tongue weight on the front. This gives us a really good example of it. We just picked this equipment up from the rental company, kind of tested it out to see how they load their trailer. This is a 9,000 pound combined load and it only has 350 pounds worth of tongue weight. Essentially what that means is that we've got too much weight too far back on the trailer. You can even see it here in the wheel wells with just a little bit of area here and you can see there's a lot more here in the front. That's putting a lot of excess strain and a lot of excess pressure on the tire and the rear axle.

That will cause this axle to wear out prematurely. Also if we don't have the appropriate amount of tongue weight pushing down on the rear of the vehicle it's not going to handle properly. We're not going to have the weight down on those rear tires to help us come to a stop quickly and safely. Another side affect of tongue weight not being heavy enough or not having enough downward pressure on that front end is that we can sometimes have sway behind our trailer. If you've ever seen a camper or a trailer going down the road improperly loaded you'll see it bouncing side to side. It's just not a safe situation. Weigh-Safe's got a great solution for that.

That's going to be our Weigh-Safe ball mount with built-in tongue weight scale. We've got a ball here. These are going to come in 2 or 2-5/16". It's going to press down on the hydraulic scale which is then going to register right here and let us know exactly how much tongue weight we have. As you can see this rental company gave us this trailer exactly how it sits and it's only at 350 pounds. To safely haul this any kind of distance at all we would need to reload this trailer and get appropriate tongue weight up here to the front.

Now the goal that you're looking for with tongue weight is going to be 10 to 15% of the total trailer weight. With this being 9,000 pounds worth of trailer we need to be somewhere between 900 pounds and 1,350 pounds. Now you'll see as we load up our trailer we'll just have somebody to keep on eye on our scale. As soon as it gets within the range that we're looking for, in that 10 to 15% mark, we'll know we've got our trailer loaded properly, we're ready to secure that load we'll head down the road much more safely than what it was before. Here you'll see our trailer properly loaded. You can see we've got about equal gaps with this front and this rear tire. It's going to help extend the life of all the components on our trailer and really going to improve the handling of that truck as we head down the highway. Now another common problem that we often see with trailering is when we have too much tongue weight.

It's going to give us kind of the opposite reaction of what we had before, putting a lot of that stress on this front axle now, going to do unnecessary wear on the tire, also build up a lot of friction in those springs, but where it transfers and where it's going to be apparent the most is when we have too much tongue weight on our trailer and we look at the truck. We're going to have a lot of squat here in the rear end, puts a lot of strain on that rear suspension on those rear tires, and it also draws the front end of the truck up. As it does that we're going to change the angle of our headlights so they're not going to be pointing exactly where we want them. Also it takes some of the weight off those fronts tires so steering and stability are going to be changed a little bit, also braking performance. Another issue we'll have a we had too much tongue weight is the tire wear. The suspension geometry is going to change and the outer edge of those tires is going to wear out much quicker than they should. This one we we're looking at is the 4" compared to the 6" drop that we looked at before, but it's going to tell us we've got approximately a 3,000 pound trailer load here so we want to be somewhere between 300 and 450 pounds of tongue weight. Now we can load up our UTV and know that we're safely going to be with him the right specifications of our ball mount. The shank portion itself here, this is going to be aluminum machined out of one solid piece. We're not going to have to worry about wells or any areas where we might have fatiguing or cracks. The main body of the ball mount itself, or the, actually, area the ball's going to ride in, that's again machined out of one solid piece of aluminum. Each of our pins are going to be constructed out of high-grade aluminum as well as the plate surrounding the lock. Then we've got our lock core. That's constructed out of stainless steel. That's going to keep it working good for a long time to come. We've got our pins here. We just want to slide these out. The nice thing about the pins is they're one unit. We don't have to worry about two different pins trying to get them in, trying to get them out. Makes it much simpler to adjust this up and down, and then you can see right inside there we're going to have the pin that actually holds our ball mount in. Then you'll see right down there there's going to be a plunger. That plunger is designed so when we have our ball in place our ball can push down on that. That's then going to register on the scale for us. The hitch balls are a solid one-piece stainless steel construction. That's going to give us superior corrosion resistance. Also the plunger at the base is made of the same material. You might have a little bit of a concern with the mix of stainless steel and aluminum. Weigh-Safe has thought about that and on the aluminum they've put a galvanic coating on there. That's going to prevent our stainless steel and our aluminum from causing each other to corrode. It's really nice. As you can see they've really put a lot of energy into giving us the highest grade materials that are available, giving us a very strong yet lightweight corrosion-resistant product. That's why they're going to offer you the limited lifetime warranty regardless of where the point of failure might be, which we haven't seen yet but if it does happen send it right back to them. Another great thing, these are made right here in the United States so you know that you're having somebody that takes pride in their work, they're doing a good job to get you something to work that's going to work very effectively. Now regardless of the size in drop or in shank that we decide on, the ball mount's going to come with both the 2" and the 2-5/16" ball mounts. Now if you decide that you need 1-7/8", this is part number WSBL. Now as we go up in size the weight capacities are going to become greater. Now for the 1-7/8" we're going to have a 7,500 pound maximum gross trailer weight capacity whether we're using the 2" shank or the 2-1/2" shank. When we move into the 2" ball that's going to go up to 8,000 pounds on either the 2" or a 2-1/2. Now the only slight difference that we have is going to be on the 2-5/16" ball. It's stamped at 14,500 pounds. That's going to be for use with the 2-1/2" shank. If you go to the 2" shank that capacity's going to be limited to 10,000. Now depending on which size shank you're going to use, if you're using the 2-1/2" you'll see the scale's customized for that. Once it gets up to 2,200 pounds, which is the maximum tongue weight rating of the 2-1/2" design it's going to give you that red area. That way you'll know too much tongue weight, we're exceeding the limit of the ball mount. Same thing for our 2" version here. You can see though it's going to be a little bit lower. That's at the 1,500 pound mark. That's the maximum tongue weight rating for the 2" configuration. We don't want to exceed that and it's nice that it's going to give us a visual cue if we do. Now as we put this together what we're going to do is lineup that oblong hole with our pinhole. We can slide that pin in and through. Now we've got, you can see around the ball, just the slightest bit of a tolerance that's been built in right here. That's going to be sure that that ball has room to move up and down and it won't get bound up inside of there. You can see it's a little bit of wiggle room. That's going to allow that scale to work. We'll side the ball mount portion up and on the shank, pick whatever drop it is that you require, simply slide that in and turn it. That's going to keep everything nice and secure. Now a locking hitch pin that we recommend is part number WS06. This comes with both the locking hitch pin and the dual locking pin assembly. This is going to give you a second dual locking pin assembly but this is the perfect solution for having both of your locks keyed alike so you don't have to search for multiple keys. You're making an investment in safety with these and we don't want them to disappear. Now we're going to get a couple quick measurements for you so you know the distance from the center of our pinholes to the center of our ball. This is going to help ensure that this is going to work for your application. We'll start with the 2" shank model. It's going to have two pinholes. The first one here is going to be about 8-3/8" to the center of our ball. The other is going to be around 9-1/2". Now onto the 2-1/2" version. We're going to have about 8-3/4" from the center of our pinhole to the center of our ball. Regardless of the ball size that you're going to use this will not change. Now when it comes time to adjust our drop or our rise it's a very simple process. You'll just take your included key, placed that in, turn it 90 degrees. At that point you'll see our double pin kit. It's going to come right out. We don't have to wrestle with pulling multiple pins or trying to get multiple clips undone like we have to with most adjustable ball mounts. With the pin set up the way it is, the dual pin and all the options that we have, we'll be able to adjust this incrementally all the way from its highest setting here, which would be just about dead even with the receiver tube all the way down to that 4" drop. Once we get the selection in there that we want that pin's just going to slide back in and we can lock it back up. Now for storage of your Weigh-Safe ball mount if you don't want it in the position that you have it here to where it's out, we can also store this underneath the vehicle. With the 4" drop we'll have to invert the ball or have the ball face down. With the 6, 8, or 10 it can be stored in its upright position but essentially we just bring that around to the back side. Get that raised up. Slide our pin in just like that and re-lock it. That's going to really reduce the chance that we're going to knock our leg on it or bump our shin as we're walking by. That's going to complete our look at the Weigh-Safe line of adjustable aluminum ball mounts with built-in tongue weight scale.


Customer Reviews

Weigh Safe 2-Ball Mount w/ Built-In Scale - 2-1/2" Hitch - 10" Drop, 11" Rise - 14.5K - WS10-25

Average Customer Rating:  4.8 out of 5 stars   (573 Customer Reviews)

Measure your tongue weight to determine if you can safely tow by simply coupling your trailer to this ball mount. Ball platform locks to shank. Tow up to 8,000 lbs with the 2" ball and up to 14,500 lbs with the 2-5/16" ball.

- WS10-25
by:

This ball mount works great in that it is adjustable for multiple trailer tongue heights, and can set the tongue weight properly. I will no longer need to carry around 3 ball mounts in a box. 385175



- WS10-25
by:

One of the best ball mount I've purchased. Works great with camper and multiple trailer I pull. It's easy to use and the weight gauge is very convenient. Plus the look of it is very nice too. I would say it is well worth the money. 418164


Comments

This is the best ball mount I have purchased. Its held up very well and looks brand new even being used all summer long hauling our camper.

BPL - 08/09/2018

42079

- WS10-25
by:

After one 500 mile trip I took the hitch off and will never use it again. It did not fit snug enough on my receiver hitch and with an 8 inch drop it caused terrible trailer sway. I would love to return it if you could help for any refund you could offer. Thank you for the follow up, your customer has been great. 543826



- WS10-25
by:

Great product. Can even handle my gooseneck car hauling trailer if I have to get over a tuff area and need to lower the front of the trailer. Do no make any sharp turn or you will damage your vehicle. Can hit on steep inclines so it's better if your truck has at least a 3 inch lift. Great quality and durable. Swapping ball sizes is a breeze. 378552



- WS10-25
by:

I have owned this product for over a year now and it has performed perfectly. It is lighter and much easier to use than my last adjustable hitch. I am a very satisfied customer. 334897



- WS10-25
by:

Using this hitch on a Ram 2500 to pull a 22' closed trailer. Works extremely well- easy to adjust ball size and height. Like the gauge as it gives an indication of tongue weight. Caution - be absolutely positive you have locked the pin holding the ball unit to hitch bar. If not locked, pin will back out, ball assembly drops, and you will lose trailer. I regularly spray pin locking mechanism with lubricant to wash out road grit, sand, etc. 338264



- WS10-25
by:

I purchased the heavy duty (2 1/2") Weigh Safe drop hitch from etrailer.com to pull my new enclosed 16' dual axle cargo/toy trailer and whatever else I need to give tow too. The confidence that my trailer load is distributed correctly and secure is priceless. The appearance and functionality when mounted on my 2015 Ford F250 King Ranch is great due to the super fit and finish. Someone told me that it looked expensive, my reply: as it should, mounted on a new truck. LOL!. I really like how the ball mount can be positioned under the truck and not be a hazard when not in-use. With the 10" adjustable drop, probably the last hitch I will need.. :-) 179871



- WS10-25
by:

I use this with on my 2015 Chevy 2500 with a 4 inch lift. I pull a 7x12 dual axle dump trailer, 16 foot enclosed trailer along with some smaller trailers. The ease of adjustment with this hitch is terrific, I like the weight scale on the side especially when I'm hauling heavy loads, gives me an idea how my load is sitting. It's definitely a heavy duty unit, solid aluminum however fairly light, and i like how the double locking pins allow for NO play at all in the ball on the mount slide. Very well made and I would Highly Recommend it. If I remember when I ordered this from trailer it was delivered within a few days. All in all everything went fine from ordering to the hitch itself. 248689



- WS10-25
by:

I really like this hitch so far. It is really easy to adjust the height and change the ball size. Being all aluminum makes it easy to handle too. The built in scales is a nice feature to see how much tongue weight is on your truck. With all the different adjustments there's more slop then I would've liked but dosent seem to affect towing in any way. I would definitely recommend this hitch to anyone. 320344



- WS10-25
by:

This is a very high quality product, you get what you pay for. If you have ever carried a 2.5" steel drop hitch to the back of your truck you will appreciate this hitch. I can store it in the floor storage well of my truck and carry it one handed to the back of the truck. I have towed my 3000 lb trailer for a year on paved and unpaved roads and I have noticed a bit of stress where the hitch exits the receiver and where the ball mount locks onto the drop neck, and a bit of slack when I stop and start, not sure it has any affect on the performance but I am still reluctant to use it for my 7000 lb RV. All in All I am very pleased with this product. 301560



- WS10-25
by:

Great product. This hitch was exactly what I needed. We do a lot of off-roading, and I bring different machines depending on what type of trip we are taking. Being able to dial in my tongue weight when I run different set ups on my trailer is worth its weight in gold. It is HEAVY DUTY, quality is top notch, and it looks great. Everyone notices it, and asks about it. Now that I've used for a year, I don't know that I could go back to using a hitch without a scale in it. It is that useful. 344331



- WS10-25
by:

Great looking hitch. Way too much slop in my opinion. Don't like the set screws holding the lock and pins in either definitely needs to be revised. 510765



- WS10-25
by:

Better than I expected. Great quality, good looking on the back of my new Ram Laramie 2500 diesel. The best part of the whole purchase was the top shelf service I received from etrailer's George J. I have been ( retired now) in the sales/customer service business for over 45 years and would have loved to have hired a person like him to be on my team. Thanks George !!! 229657


Comments

All have worked well for me. Great products and extremely good service.

Doug O - 10/15/2016

21531

- WS10-25
by:

Beautifully made but the aluminum could be harder. I have a hard time getting the ball hitches in and out of the socket now that I've used it half a dozen times or so. It seems like the hole has ob longed a bit, also the square hitch material has worn from moving back and forth / up and down in the receiver. I'd buy one in SS if it was available next time around hoping the machined fits would last longer. I love the scale and have moved my load around several times to make sure I had the correct tongue weight. I've also notices discoloration on the hitch ball turning black but maybe that's normal. I do like it a lot even though its not a pretty hitch anymore. 465000



- WS10-25
by:

i looked at a lot of different ball mounts for my F250 trying to find one as heavy duty as the truck with the correct amount of drop and didn't look like a 60 pound steel anval hanging from the rear bumper when I came across the WS10-25 with 14500# towing capability in stylish aluminum construction 10" drop (which is just what I needed for my enclosed motorcycle trailer) 11" rise reversible so that it stores under the bumper out of the way when not in use and The tongue weight gauge built right in I couldn't wait to get it on my truck!! 262421



- WS10-25
by:

I am very pleased with my new hitch from Etrailer. It exceeded my expectations. Fit my lifted 2015 GMC 2500 perfectly. I've used it several times and my trailer pulls very well now. Almost forgot it was back there. You know quality when you see it. This hitch was made with attention to quality and detail. Well worth the investment I made. 424755



- WS10-25
by:

I purchased this to mate with he 25-10 hitch. It rounds out the set that includes that 2 inch and 2 5/16 ball. The combo is a perfect fit for my stock Ram 3500 4x4 (man are these trucks tall). I have the 6.4 gas engine so the 14,000 capacity of the hitch (when paired with the large ball) matches perfectly with my truck's towing capacity. I still have to watch the hitch weight though as this hitch is way more capable than the 1400 lb tongue weight on my bumper. My weight gauge differs slightly in graduation and color (mine has no green color indications to indicate a safe range or red for overload. The gauge has black and white graduations). Its not an issue, just thought buyers should know. This is a manly set of gear. Im positive that this will be the last hitch I ever purchase. 323653


Comments

Ive now used this hitch for two trips from the east coast to the midwest. This hitch is everything I hoped it would be. Im perfectly happy with this purchase. Its the Swiss Army Knife of trailer hitches. There is nothing that requires a ball hitch that I.m not ready to tow at the of a hat.

Bruce N - 12/05/2017

31440

- WS10-25
by:

Ordered the Weigh Safe drop ball mount WS10-25. Product I received looks used. The Weigh Safe sticker was missing and the hitch had gouge marks on the shaft and ball mount. This was probably a return item that was shipped to me. I'm very disappointed. For $309 I expect a new product, not a returned restock or used item in poor quality. First time buying at etrailer. Most likely my last. 419083


Comments

David, I just checked your order notes and see that Christina arranged to have another ball mount shipped to you. I hope that you will continue to use etrailer.com in the future.

-- Laura E - 08/21/2017

27445

- WS10-25
by:

Wanted a Class V adjustable hitch for my F350. The aluminum Weigh Safe 2-1/2" Hitch is just what I needed for my 2 trailers. Easy to adjust the ball height for each trailer. The 12,500 lb towing capacity is 2x over what I normally tow for a comfortable safety margin. 180176


Comments

Looks great! Do you have any issues with the drawbar scraping the ground? How many inches of clearance do you have below it? I have a stock 4x4 F250, with about a 21.5 hitch height, and debating whether to go for the 10 or the 8 . I could use the 10 for a couple of low trailers, but worry about scraping it and weakening it when towing my big trailers that dont need as much . Thanks.

-- comment by: MotoKrome - 10/05/2015

15445
Comments

For MotoKrome, I previously owned an F250 and it does not sit as high in the rear, about 3-4 difference. I would suggest going with the 8 . I checked the clearance on a couple of curbs with my F350 and have several inches of clearance. I especially like the tongue weight readout on the hitch.

-- comment by: James C - 10/09/2015

15496

- WS10-25
by:

I also have a WS 8 inch drop. I ordered the WS10-25 to fit in my trucks 2.5inch inch for bigger loads and larger weight towing capability. I have not used my WS10-25 yet as I just got it in the mail, but I have used my WS 8 Inch Drop and absolutely love it. So easy to use and I can now use just one hitch for all my needs in towing and do not have to have multiple hitches as the WS has both the 2 and 2 5/16 ball and they are very easy to swap out. I would recommend the WS hitch to anyone. 655718



- WS10-25
by:

The ws10-25 works Great ,I would recommend it to Everybody !! 643935



- WS10-25
by:

Very nice looking product and packaged well for the shipment. 642107



- WS10-25
by:

Amazing hitch. Well made and well designed. Delivered quickly and came well packaged. Hitch fit perfect and gives me the ability to use one hitch for all my trailers. Always so easy to do business with Etrailers. 640286



- WS10-25
by:

An awesome hitch I highly recommend it. 635933



- WS10-25
by:

Great product and fast shipping definitely 5 star company! 634587



- WS10-25
by:

Very happy with quality. Easy to switch out balls and change drop heights. 614920



- WS10-25
by:

I love it!!!! 599928



- WS10-25
by:

Product arrived in great shape and very quickly. Looks amazing and fits my Ram 2500 4x4 perfectly. Love the scale. 596932



- WS10-25
by:

Looks great, can not wait to use it 594548



- WS10-25
by:

Excellent hitch. Easy to adjust to different trailer tong heights. Easy to secure. The tongue weight gauge is wonderful! It will allow me to easily make adjustments for safer trailering. 590741



- WS10-25
by:

This hitch is top notch. Seeing your tongue weight is a great tool. Easy to use and durable. I would definitely recommend. 580887



- WS10-25
by:

Have not used the hitch yet, looks like good quality and workmanship.etrailer is a good company to deal with fast and helpful. 580765



- WS10-25
by:

The hitch is everything i expected. I would recommend it for sure. 579026



- WS10-25
by:

Takes the guess out of tongue weight. 571495



- WS10-25
by:

Finally! Perfection - if there is such a thing. Purchasing this ball mount kit, with the addition of the 1 7/8" ball, will allow me to sell two fixed height mounts and about 6 balls. I drive a 2017 Ram 3500 4x4 which, straight out of the box, stands very tall. I also have four different tow behind trailers of various heights. The 10" drop works well with my little 4'x6' trailer and handles all of the other trailers including the 7'x16'. 505542


Comments

The hitch is working as designed. It is very easy to adjust the height and swap out balls of different sizes when needed.

Steve W - 05/09/2019

55067

- WS10-25
by:

Quick shipping! Very tight tolerance on the machining and easy to set up. 489083



- WS10-25
by:

Works perfect 485491



- WS10-25
by:

while i don't use everyday, when i do use it. it has worked perfect and having both sizes of ball has been helpful 455010



- WS10-25
by:

The hitch is what I expected however I had to file the one side down because it would only go down 1 inch and bind up. Did that from both ends. Took me about 15 minutes of work to get it to slide. I would suggest each unit be checked before shipping. 454559



- WS10-25
by:

works awesome and looks awesome. bought another one for a friend 437881


Comments

No problems and works and looks like new

chris - 09/30/2018

44155

- WS10-25
by:

Works greatgoing to have to see if they make a pintle hook set up 431691



- WS10-25
by:

Great customer support from Heather A!!! Product is as advertised.....high quality manufacturing!!! 410354



- WS10-25
by:

Hitch is working very well, thanks for asking! 394698



- WS10-25
by:

The product is great except..... after a single winter, the key no longer works and I am unable to change ball size or position. 393043



- WS10-25
by:

Great product and would recommend 100%! Easy to use and tow's with ease. 381824



- WS10-25
by:

This is a great mount. I love the built in scale so we know what our tongue weight is without guessing. I only wish I would have bought a 2" and a 2.5" receiver so I can use it on both of my trucks. 356748



- WS10-25
by:

The first one shipped to me was defective. But Shawn with etrailer made the return hassle free and I recieved the replacement super fast. As a matter of fact it arrived before I was able to ship the defective one back. I was very impressed. The replacement works like a champ and I would highly recommend it to anyone. It adjusts easily to fit my boat trailer, equipment trailer or super small utility trailer in a matter of seconds. My Dodge Ram 2500 sets up high naturally due to the larger factory tires that came with the snow package. The 10 inch drop was the answer to accommodate all my trailers. 347588



- WS10-25
by:

I received my order quickly, and it appears as advertised. I haven't had a chance to use it yet, so I can't accurately review it. All I can say is, read the product description carefully, so you don't do what I did, and order the wrong size! Now I'm going to have to build an adapter to make the 2 1/2 inch hitch fit my 2 inch receiver. I've been wanting to build a little hitch step anyway, so I guess now is a good time. It'll still be cheaper than trying to ship this heavy thing back. 342706



- WS10-25
by:

Love the ballmount. Easy to swap balls, nice to know the tongue weight. Nice to have the extra clearance by not having the other ball on the other side of the mount. My only issue is it flops around a bit in my receiver. 342082



- WS10-25
by:

This is a high quality product that works exactly as described. Also is light enough to remove and store easily when needed. 327913


61
603
Show More Reviews

Ask the Experts about this Weigh Safe Ball Mounts
Do you have a question about this Ball Mount?


  • Comparing B&W Tow & Stow 2-Ball Mount BWTS20040B and Weigh Safe 2-Ball Mount WS10-25
  • Yes, when you are choosing a ball mount to keep your hitched trailer level it is a good idea to account for the normal rear-end squat in the truck from the trailer tongue weight. It is okay for the ball height on the truck to be up to an inch higher than the coupler before you hitch the trailer. This helps account for the squat in the truck. Between the two adjustable ball mounts you referenced, the B&W Tow & Stow 2-Ball Mount # BWTS20040B and the Weigh Safe 2-Ball Mount # WS10-25, I...
    view full answer...

  • 8 inch Drop Ball Mount Recommendation for 2018 RAM 2500 with 2-1/2 inch Hitch
  • We have the Draw Tite ball mount part # 45291 that fits a 2-1/2 inch hitch like what you have and has an 8 inch drop which is the closest fixed ball mount we have to 10 inches of drop. This has a capacity of 12,000 lbs too. Otherwise you'd have to look into an adjustable ball mount like the part # WS10-25 which does have 10 inches of drop.
    view full answer...

  • Adjustable 2-1/2-Inch Ball Mount for 2013 GMC Sierra HD
  • Thank you for your photo showing that the top of the receiver opening on your 2013 Sierra's 2-1/2-inch hitch is at 21-inches above ground level. I cannot see the height of the level trailer but I would guesstimate it is roughly 6 to 8-inches lower than the truck based on what I can see of your ball mount. You can check out our range of 2-1/2-inch adjustable ball mounts on the page I linked for you. The linked help article will show you how to determine how much drop you need. If you'd...
    view full answer...

  • How to Pick Out Weigh Safe Adjustable Ball Mount for 2-1/2 inch Hitch for Ground Clearance
  • When we installed the Curt hitch # C15810 on a similar 2007 Ford F-250 to your 2006 Ford F-350 we found that from the top of the hitch opening down to the ground measured 20 inches. The Weigh Safe Ball Mount part # WS10-25 is a great ball mount but it would hang down 13 inches from the top of your hitch opening putting it about 7 inches off the ground. A better option for ground clearance would be the same ball mount but with less drop part # WS6-25 as this would sit 4 inch taller....
    view full answer...

  • Recommended Ball Mount With 2.5 Inch Shank And 14,500 lb Capacity
  • Other than the Weigh Safe options of # LTB10-25 and # WS10-25, I have one more option available for you. The Fastway Flash E Series HD Adjustable 2-Ball Mount - 2-1/2" Hitch - 10" Drop, 10" Rise - 18K # FA42-00-2925 will give you an 8-7/8 inch distance from the center of the hitch pin hole to the center of the hitch ball. If you go with the Weigh Safe option, I recommend the Locking Dual Pin Assembly and Hitch Pin Set for 180 Hitch and Weigh Safe 2-Ball Mounts - Keyed Alike # WS06 to...
    view full answer...

  • Aluminum Adjustable Ball Mount Needed with 2" and 2-5/16" Stainless Hitch Balls for 2017 Ford F-250
  • If we take 14 away from the 23-1/2 inches that you measured the height of the inside of your 2-1/2 inch receiver to be on your 2017 Ford F-250, that leaves you with 9-1/2 inches. This means that you need an adjustable ball mount with a drop of about 9-1/2 inches for your trailer to ride level. I do have a few options for you to choose from when it comes to an aluminum ball mount with a 2 inch and a 2-5/16 inch hitch ball that are stainless steel. The Weigh Safe 2-Ball Mount # WS10-25...
    view full answer...

  • Measurements Of Weigh Safe 2-Ball Mount w/ Built-In Scale - 2-1/2" Hitch
  • On the Weigh Safe 2-Ball Mount w/ Built-In Scale # WS10-25, the measurement from the top of the shank to the end point of the actual hitch ball, (not the ball holder) is 9". The Weigh Safe 2-Ball Mount w/ Built-In Scale # WS8-25, the measurement from the top of the shank to the end point of the actual hitch ball, (not the ball holder) is 7".
    view full answer...

  • Replacement Key and Lock Core Recommendation for Weigh Safe Ball Mount
  • Sorry to hear about your keys getting stolen. What you can do is use the Locking Dual Pin Assembly # WS03 to rekey your Weigh Safe Ball Mount part # WS10-25 and you will get a new set of keys to match the new locks.
    view full answer...

  • Recommended Ball Mount for Toyota Tundra with 6 Inch Lift
  • With your Toyota Tundra rated to tow 11,000 lbs, you can get a ball mount that meets or exceeds that weight, but you will also be limited by whatever your trailer hitch receiver is rated for. The lesser of those 3 numbers is what your gross towing capacity will be. Based on your 6 inch lift, I'd recommend an adjustable ball mount with at least an 8 inch drop. If you have a 2 inch receiver, then I'd suggest the EZ Heavy Duty Adjustable Hitch with Combo Ball, # AM3298. This hitch has...
    view full answer...

  • Adjustable Ball Mount Recommendation for 2.5 inch Hitch that Doesnt Carry Lower Ball Below Platform
  • I have a great solution for you. Check out the Weigh Safe Adjustable Ball Mount for 2-1/2 inch hitches part # WS10-25. This gives you the same drop as the Fastway kit, and fits the same hitch size, but since it does not carry the extra ball below the ball mount platform you have much better ground clearance. It also comes with a tongue weight scale built into it as well. This comes with two ball sizes of 2 inch and 2-5/16 inch as well. It's not possible to remove the lower ball from...
    view full answer...

  • Adjustable Ball Mount that Reduces Rattle In 2-1/2 Inch Receiver
  • All ball mounts will rattle a little or you would not be able to fit them inside the receiver. I recommend part # DTSTBM6625. It has an adjustable pin in the top of the shank that protrudes through the adapter that prevents rattling. The attached balls measure 2 inches and 2-5/16 inches. I have attached a photo that shows where the adjustment is made to tighten the ball mount once it has been installed in the receiver opening. However this ball mount has a 6 inch drop and 7 inch rise...
    view full answer...

  • Ball Mount Recommendation for 2-1/2 Inch Hitch on 2019 Ford F-250 Super Duty
  • The ball mount I highly recommend for your 2019 Ford F-250 Super Duty that has a 2-1/2 inch trailer hitch receiver like the Curt # C15802 is the B&W Tow & Stow because of its high quality, stow-away design, and the fact it protects the ball mount platform from theft. The hitch ball platform of this mount actually flips underneath the shank to face your truck, saving you from accidentally slamming your leg into it when walking behind your F-250. Additionally, when the Tow & Stow is in your...
    view full answer...

  • How to Choose Correct Ball Mount for 2017 Ram 2500
  • The amount of drop you need on a ball mount with your 2017 Ram 2500 will depend on the height of the trailer you plan on towing. In order to choose the correct ball mount for your truck, you will need to take two measurements. First, with your Ram parked on level ground, take a measurement from the ground to the top of the hitch receiver. Then with your trailer on level ground, measure from the ground to the bottom of the coupler. You will simply need a ball mount that features a drop...
    view full answer...

  • Weigh Safe Ball Mount Recommendations for a 2015 Ram 1500
  • If the 10 inch drop version of the Weigh Safe ball mount is too much then I recommend the 8 inch model, # WS8-2 for a 2 inch hitch or # WS8-25 for a 2-1/2 inch hitch. It will provide more vertical adjustment than the 6 inch model but won't hang down quite as low as the 10. If you have multiple trailers now then you can measure the coupler height by making them level and measuring from the ground to the bottoms of the couplers. Compare that to the hitch measurement from the ground to...
    view full answer...

  • Adjustable Ball Mount Recommendation for 2017 Ram 2500 with 2-1/2 inch Hitch
  • For what you are looking for the best option is going to be the Weight Safe Ball Mount part # WS10-25 that you referenced. It fits a 2-1/2 inch hitch, can do a drop of 10 inches, and even has a couple ball sizes to give you even more flexibility.
    view full answer...

  • Dimensions Of Weight-Safe 2-Ball Mount With Built-In Scale
  • I went to the warehouse and measured a Weigh-Safe Ball Mount, part # WS10-25 for you. I have attached a photo of the ball mount and noted the dimensions you can check out. The distance from the bottom of the shank that fits in the receiver to the bottom of the ball mount is 10-1/2 inches and the overall length is 13 inches.
    view full answer...

  • Can Ball Mount from Weigh Safe # WS10-25 be Used with Weigh Safe Compatible with 2 inch Receiver
  • The ball mount that is included with the Weigh Safe 2-Ball Mount w/ Built-In Scale # WS10-25 that you referenced is found as part # WS01-5 on our site and is compatible with a Weigh Safe shank for a 2 inch hitch receiver like part # DB10-2.
    view full answer...

  • Concern with Wear of Aluminum Ball Mount in Steel Hitch Receiver
  • You don't have to worry about wear of the aluminum shank on the Weigh Safe 2-Ball Mount with Built-In Scale # WS10-25. Although the steel receiver tube material of your hitch is harder than aluminum, because the weigh safe is milled from solid billet aluminum - meaning it is free of microscopic stress fractures - it is extremely strong and will stand up just fine to use in your hitch. If you care to lock the ball mount to your hitch you can use lock # RH5-XL.
    view full answer...

  • 1-7/8 inch Hitch Ball Recommendation for Weigh Safe Adjustable Ball Mount WS10-25
  • The 1-7/8 inch ball that fits the Weigh Safe 2-Ball Mount w/ Built-In Scale # WS10-25 that you referenced is the part # WSB-L.
    view full answer...

  • 1 7/8" Ball for Weigh Safe Ball Mount
  • Thank you for your purchase! I see that you bought the Weigh Safe 2.5" Ball Mount w/Scale, # WS10-25, which comes standard with a 2" ball. You are in luck, we offer a 1 7/8" ball that can be used with your Weigh Safe ball mount. You'll want to order Weigh Safe Ball, # WSB-L, which has a weight capacity of 7500 lb and is perfect for smaller utility trailers like yours. I also recommend getting a hitch ball cover like # 42250 that will work with 1 7/8" and 2" balls. If you ever need to...
    view full answer...

  • Adjustable Ball Mount for 2-1/2 Inch Trailer Hitch and Rock Tamers Mud Flaps
  • I agree with your assessment; ball mount # DTSTBM7025 is not a good option for Rock tamers for 2-1/2 inch ball mounts # ERT00110. Weigh Safe ball mount # WS10-25 would be a better option since it has a 2-1/2 inch shank the entire length of the shank. Out of the available 2-1/2 inch adjustable ball mounts this Weigh Safe mount would be the best option.
    view full answer...

  • Recommendation for Choosing Adjustable Ball Mount for 2017 Chevy Silverado
  • When determining the rise or drop needed for a ball mount, there are two measurements you will want to take. Starting with your 2017 Chevy Silverado, you will want to take a measurement from the ground to the top of the trailer hitch receiver when the truck is on level ground. Then on your trailer, you will measure from the ground to the bottom of the coupler. If the hitch height on your truck is higher, you will need a ball mount with a rise, if the coupler measurement is higher, you...
    view full answer...

  • Has Weight Safe 2 Ball Mount with Built in Scale Been Durability Tested
  • I spoke with my contact at Weigh Safe and he said the Weigh Safe 2-Ball Mount w/ Built-In Scale # WS10-25 has been cycle and fatigue tested and is guaranteed to endure more than 75000 loads. The scale manufacturer guarantees the scale will never be more than 50 lbs off but Weight Safe testing found it was never more than 5 lbs off.
    view full answer...

  • Recommendation for 10 Inch Drop Ball Mount for 2-1/2 Inch Receiver on a 2013 Dodge Ram 2500 Pickup
  • I have a few solutions for your ball mount needs. I recommend the Weight Safe # WS10-25, is a 2-Ball ball mount that has a 10 inch drop and an 11 inch rise. What is really neat about this product is that it comes with a built-in scale and two common coupler size balls (2 inch and 2-5/16 inches). If you happen to need a 1-7/8 inches ball # WSB-L is sold separately. I've linked all the ball mounts with the 10 inch drop for your 2-1/2 receiver and a video of the WS10-25 for your convenience...
    view full answer...


Do you have a question about this Ball Mount?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality ball mounts for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate ball mount information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Expert Research:
Michael L
Edited by:
Lindsey S
Expert Research:
Michael H
Installed by:
Jeff D
Expert Research:
Jameson C
Video Edited:
Jacob T
Expert Research:
Adam R
Video by:
Kathleen M
Video Edited:
Dustin K
Installed by:
Cole B
Expert Research:
Jeffrey L
Photos by:
Sam P
Written by:
Chelsea B
Installed by:
Randy B
Photos by:
Zach O
Updated by:
Shelly K
Updated by:
Sarah W
Updated by:
Alexander C

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.


Product Experts Available Now!

Call 800-298-8924
