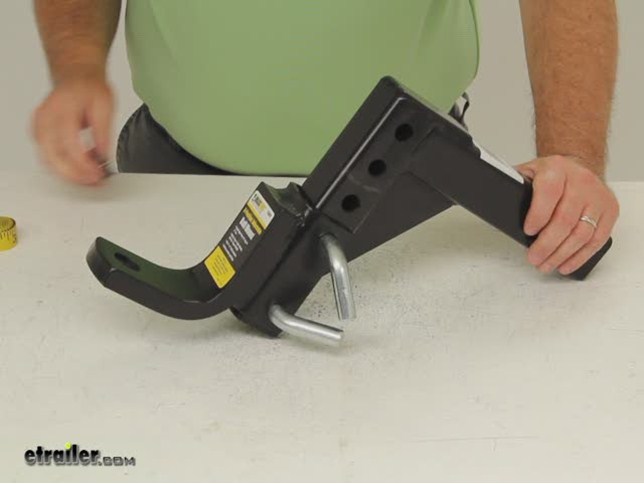

MaxxTow Adjustable-Height Ball Mount - 2" Hitch - 10" Drop, 8" Rise - 5,000 lbs

Ask the Experts about this MaxxTow Ball Mounts

Do you have a question about this Ball Mount?

• How To Tow A Trailer Without Measuring for Rise/Drop

• The only true way to determine what ball mount you need is to measure from the ground to the top inside edge of the receiver tube on the vehicle and then subtract the difference from the ground to the bottom of the coupler on the trailer while level. However, if you do not have access to the trailer then the best option for you is an adjustable ball mount as this will not only more than likely allow you to tow your boat trailer level without measuring beforehand but will also accommodate...
  view full answer...


• Comparing 6,000 lb Curt Adjustable Style Ball Mount to Maxxtow 5,000 lb Adjustable Options

• The Curt Channel Style Adjustable Ballmount - 5-1/4" Rise, 6-3/4" Drop - 6,000 lbs # C45901 has a shipping weight of 15 lbs whereas the MaxxTow Adjustable-Height Ball Mount - 2" Hitch - 10" Drop, 8" Rise - 5,000 lbs # MT70067 has more adjustability but less capacity and has a shipping weight of 14 lbs. Finally, the MaxxTow Adjustable-Height Ball Mount - 2" Hitch - 7-1/2" Drop, 6-1/4" Rise - 5,000 lb # MT70068 falls between these two with adjustment ability but still has a 5,000 lb capacity....
  view full answer...


• Recommended Adjustable Ball Mount Similar To Master Lock EZ

• The MasterLock 2841AT has been discontinued. For a similar ball mount, you may be interested in the MaxxTow Adjustable-Height Ball Mount - 2" Hitch - 7-1/2" Drop, 6-1/4" Rise - 5,000 lb, # MT70068, the MaxxTow Adjustable-Height Ball Mount - 2" Hitch - 10" Drop, 8" Rise - 5,000 lbs, # MT70067, or the Reese Adjustable Ball Mount - 5,000 lb which includes the pin and clip, # RP21141. The MaxxTow options require the pin and clip # PC3 or a locking option like the Deadbolt Trailer Hitch Reciever...
  view full answer...


• Anti-Rattle Device Recommendation for MaxxTow Adjustable Ball Mount # MT70067

• The clearances are actually pretty tight between the adjustable channel, shank, and pins of the MaxxTow Adjustable-Height Ball Mount # MT70067 which means it would move a little bit but would not be a super obnoxious rattle. To get rid of the movement between the hitch and the shank of this ball mount though we have the # 63232 which would work well. This doubles as a hitch lock too.
  view full answer...


• Determining Correct Ball Mount for 2007 Honda Odyssey to Tow Pop Up Camper

• The way to determine the correct amount of rise (or drop) needed to tow a trailer level there are a couple of measurements needed. First you would measure from the ground up to the top of the receiver opening on the trailer hitch. Then, with the trailer level, measure from the ground to the bottom of the coupler. If the trailer is higher the difference is the amount of rise you will need. And if the vehicle is higher the difference is the amount of drop you would need. On the 2007 Honda...
  view full answer...


• Dimensions of the Bolt Holes to Mount the Replacement 2" Receiver # C45802

• The distance between the bolt holes for the Replacement 2" Receiver for Curt Multi-Ball Adjustable Ball Mount # C45802 is 2-5/8" on center. Since that same measurement for the MaxxTow Adjustable-Height Ball Mount # MT70067 is 1-1/2" on center (3" for every other bolt hole) they are not compatible with each other. This receiver is actually the replacement for the Curt Multi-Ball Adjustable Ball Mount # D900 so for the shank you will need part # C45059 instead.
  view full answer...


• Best Towing Setup for a 2018 Volvo XC90

• For your 2018 Volvo XC90, I recommend using the Draw-Tite Max-Frame Trailer Hitch Receiver part # 76194 because this trailer hitch unlike the Curt Trailer Hitch Receiver part # C13233 will not require any drilling into the frame which is not exactly something most want to do on a brand new vehicle. The install process will be a bit more challenging but the limited vehicle modifications makes it well worth your while. We also have an install video of this hitch which I have attached for...
  view full answer...


• Ballmount Rise/Drop Needed for Towing Rental Car Dolly with 2015 Dodge Charger

• The closer you can get the hitch ball height to the level height of the trailer (tow dolly in your case), the better. Towing the trailer nose up or down can cause trailer sway, which you'll want to avoid. For best results, you'll want to get the coupler and ball height within 1-1/2 to 2 inches, and it's better to have the coupler slightly lower than the trailer ball than vice versa. A ballmount with a 7-inch rise like # C45338 would put you right where you need to be, height wise. If...
  view full answer...


• Recommended Hitch Receiver and Ball Mount for John Deere X590 to Tow Log Splitter

• For your John Deere x590, I recommend the Reese Towpower 3-Way ATV Hitch w/ Ball Mount Adapter - 2,000 lbs # RP7065100. This will give you a 2 inch receiver that will allow you to use a ball mount like # C45112 in the rise position to get you at the right height for your hitch ball and coupler to meet. This will allow your current jack to work and save your back. I've attached an article to assist with finding the correct ball mount for your trailer. Then you will just need the matching...
  view full answer...


• Ball Mount Recommendation for a 2017 Kia Sedona LX to Tow a Pop-up Camper

• For a fixed ball mount you really do need to know the height difference between the top of the receiver opening on the hitch and the distance from the ground to the bottom of the coupler in order to get a ball mount with the right amount of rise or drop to tow the trailer level. You can get around that by instead using an adjustable ball mount such as # MT70067. This ball mount offers up to an 8 inch rise or 10 inch drop. It is rated for 5,000 pounds gross trailer weight (so it will...
  view full answer...


• What is the Towing Capacity of a 2015 Jeep Cherokee

• If you are ever in doubt about the towing capacity of the vehicle then there is a sure fire way to tell and you will not need to know any of the options the vehicle is equipped with in order to do so. This process includes opening the driver door and looking for a white sticker. This sticker will have a gross combined weight rating (GCWR) and a gross vehicle weight rating (GVWR) figure. If you take the GVWR and subtract that from the GCWR then that will give you the maximum gross trailer...
  view full answer...


• Rise or Drop of Ball Mount Needed for 2016 Dodge Grand Caravan

• There is no specific 'best' rise or length of ball mount for a given vehicle. Since the hitch and coupler height of every vehicle and every trailer is different, you'll need to take some measurements. To determine the rise/drop of ball mount needed, you'd want to measure the distance from the inside top of the hitch receiver tube to the ground. Then with the trailer level, measure the distance from the underside of the trailer coupler to the ground. The difference between the measurements...
  view full answer...


• Adjustable Ball Mount Recommendation that Can be Used with Cruisemaster DO35 Coupler

• Since the Cruisemaster DO35 requires a ball mount platform with a 1 inch diameter ball hole you'd need an adjustable ball mount that uses a traditional style of ball mount platform like the MaxxTow Adjustable-Height Ball Mount # MT70067 which would work well. This can do up to 10 inches of drop or 8 inches of rise. I attached a review video for this ball mount for you to check out as well.
  view full answer...


• Recommended Ball Mount for 2013 Honda Pilot

• On average, the coupler height of a trailer that is jacked up so that it is level is between 17-19 inches high. To determine the rise or drop your ballmount needs, jack the trailer so that the frame is level to the ground. Measure from the underside of the coupler down to the ground. Then measure from the top inside edge of the receiver opening to the ground. The difference between these two measurements is the rise or drop needed. If the receiver height of the Pilot is greater than...
  view full answer...


• Parts Needed to Flat Tow a 2014 Ford Focus Behind Different RVs

• Most state laws require supplemental braking on a vehicle that is being flat towed and they do check. The fines are steep so you are better off getting one not to mention it really is the safest approach. We can save you money in other areas of a flat towing set up to offset the cost of a braking system. First you will need base plates for the 2014 Ford Focus. Blue Ox base plates # BX2633 fit non-ST models that do not have adaptive cruise control. For ST models use # BX2640. For a...
  view full answer...


• Coupler Height of Roadmaster Tow Dolly # RM-2000-1

• On Roadmaster tow dolly # RM-2000-1 the ball height is 18 inches. I have included a picture showing this for you. If you need a ball mount with the right rise or drop I recommend using an adjustable ball mount. I have included a link to the adjustable ball mounts we carry. Ball mount # MT70067 for example is rated for 5,000 pounds and offers up to 8 inches of rise of 10 inches of drop. For a 2 inch ball that will fit the ball mount I recommend # 63845 which is a basic chrome ball.
  view full answer...


• Locking Hitch Pins For The MaxxTow Adjustable-Height Ball Mount Part # MT70067

• The MaxxTow Adjustable-Height Ball Mount part # MT70067 has a hollow shank therefore, all of our locking hitch pins designed to work with hollow shanks and 2" hitch receivers will work. I have attached a list of all our locking hitch pins with these specifications for you. For a set of locking hitch pins compatible with your MaxxTow adjustable ball mount, I recommend using 2 of our Trailer Hitch Receiver Lock part # e98881 and 1 of part # e98880 as they can be keyed alike to eliminate...
  view full answer...


• Can a Trailer Ride With the Tongue at an Upward or Downward Angle

• Yes, a trailer that is nose up can cause big problems. A level trailer is ideal and worth working toward for safety. The good news is that you can get the trailer almost exactly level with switching ball mounts. This is where an adjustable ball mount like MaxxTow # 70067 comes in handy. If you are unable to achieve level even with an adjustable ball mount, it is better for the trailer to be slightly nose down so long as the tongue weight capacity of the hitch and vehicle is not exceeded....
  view full answer...


• Recommendation For A Hidden Hitch For A 1986 C-10 Shortbed Truck With a Regular Bumper

• The Draw-Tite Class III Max Frame Hitch # 75034 that you referenced will work for your 1986 Chevy C-10. The hitch is designed for the 6 foot shortbed C-10 with the the standard or step bumper and is the replacement for the HIdden Hitch Brand which is no longer available. The Draw-Tite hitch is a Class III hitch with 5,000 lbs towing capacity and 500 lbs tongue weight capacity. However, your vehicle's tow and tongue weight capacity might rate lower than this hitch's capacity. Make sure you...
  view full answer...


• Recommended Ball Mount for 2015 Ford Escape OEM Hitch

• Your 2015 Ford Escape has a Class II Trailer hitch but it looks to have a 2 inch receiver opening if you have the OEM hitch. If this is the case, then the MaxxTow Adjustable-Height Ball Mount - 2" Hitch - 10" Drop, 8" Rise - 5,000 lbs # MT70067 with hitch ball # 63845 and pin # PC3 is a great option that is also economical. A fixed hitch like the Draw-Tite Ball Mount # 2923 is another option when using # PC3 and # 63845. It has a 2 inch drop. To confirm the correct drop needed for...
  view full answer...


• Ball Mount Recommendation for a 2014 Audi Q5 with Factory Trailer Hitch

• I prefer the S8 myself. On your 2014 Audi Q5 it is likely going to come with a 2 inch trailer hitch receiver. This means that it is a Class III or IV trailer hitch and you can use any ball mount you want. You will want one that has the proper rise or drop needed to tow the trailer level. I have included a link to our help article that shows how to measure to get a ball mount with the right rise or drop. I have also included a link to our fixed ball mount main page. Another option is...
  view full answer...


• Ball Mount to Tow a Jayco Trailer with Coupler 16 Inches From Ground with a 2012 Audi Q7

• We have yet to install Curt trailer hitch # 13220 on a 2012 Audi Q7 but on another vehicle that uses this same hitch it measured 18-1/2 inches from the ground to the top of the receiver opening. In that case you would use a ball mount with a 2-1/2 inch drop, or as close to that as possible, for a level coupler height of 16 inches. The tongue weight of the trailer will pull down some at the ball so I recommend a ball mount with a 2 inch drop such as # 2923 or a model with a 2-1/4 inch...
  view full answer...


• How Close Does Trailer Ball Height Need to be to the Height of the Trailer Coupler

• The trick here is to get as close as possible. If you are talking about less than 2 inches or so, there is nothing to worry about. Having the trailer tongue a bit too high is preferable to it being too low. You may be a good candidate for an adjustable ball mount. I would recommend the MaxxTow Adjustable Ball Mount, part # MT70067 which adjusts between a 10 inch drop to a 8 inch rise. I am including a link to a demonstration video showing the features of the # MT70067 ballmount,...
  view full answer...


• Recommended Ball Mount and Hitch Ball for European Trailers

• Thank you for your service. I would be happy to make some recommendations for you. An American style ball mount will work fine when we pair it with a 50mm Hitch Ball on a local trailer in Germany as long as you have a U.S. style trailer hitch on your vehicle with a 2 inch by 2 inch receiver. The look is different, but the function is the same. I'd suggest the MaxxTow Adjustable-Height Ball Mount, # MT70067. This will give you up to a 10 inch drop or a 8 inch rise to allow you to...
  view full answer...


• Most Cost Effective Trailer Hitch and Wiring for a 2016 Jeep Cherokee Latitude

• The least expensive trailer hitch option for your 2016 Jeep Latitude is the Curt Trailer Hitch Receiver Class III - 2" # C13172. It is a solid choice as well. I have attached our Best 2016 Jeep Cherokee Trailer Hitch Video where this part is reviewed. The Curt T-Connector Vehicle Wiring Harness with 4-Pole Flat Trailer Connector # C56208 is your most economical wiring harness option. I attached an installation video. If you plan on doing some towing, I recommend the cost effective...
  view full answer...


• Trailer Hitch Recommendation for a 1999 Ford F-150 XLT 4x4 Towing a Boat Trailer

• There are a few factors that you will need to consider when choosing a trailer hitch for your 1999 Ford F-150 XLT 4x4. First, you will need to know the weight of the trailer or trailers that you intend to pull and the towing capacity of your truck. Class III trailer hitches like the Draw-Tite Hitch Trailer Hitch, # 75065, are common trailer hitches for customers that tow boats. This hitch will fit stepside or styleside models and has a tongue weight capacity of 500 lbs and a towing...
  view full answer...


• Will a Sway-Control Bracket Work with the MaxxTow Adjustable-Height Ball Mount Part # MT70067

• Yes, the Reese Sway-Control Bracket part # RP26003 will work with the MaxxTow Adjustable-Height Ball Mount part # MT70067. The only thing I suggest is using a hitch ball with an extended shank like part # 40038 for 2" or part # C40007 for 2-5/16". If you are also looking for the friction sway bar to attach to this bracket then I recommend the Reese Friction Sway Control Kit part # 83660. I have attached a review/install video of this system for you as well.
  view full answer...


• Can a High/Low Adapter be Used to Tow Pintle Hook Trailer With Standard 2-Inch Hitch

• Since the height of your pintle-equipped military trailer is so much greater than the height of the hitch on your Honda Pilot (possibly as much as 2 feet) I am not sure there is any way to keep the trailer level when hitched. We do not offer an adapter that can make up this substantial height difference. I suggest you check your Honda Pilot owners manual to confirm the vehicle tow rating. Tow ratings can vary by model year and based on the specific equipment set in your Pilot. You want...
  view full answer...


• 2017 Jeep Grand Cherokee Options Needed To Tow a Trailer

• On your 2017 Jeep Grand Cherokee, if you do not already have a 4-flat trailer plug installed, then you will need to install wiring harness to allow you to use the lights on the Detail K2 trailer, # K2MMT5X7. The wiring harness that I recommend is the Tekonsha 4-Pole Flat Connector, # 118384. This harness is designed to plug in to the existing wiring of your Jeep with no cutting or splicing. The harness will allow you to run the trailer lights off your vehicle's lights. Next, you...
  view full answer...


• Class 3 Hitch Compatibility Between 2002 Ford Explorer and 2002 Ford Explorer Sport Trac

• We offer Class III hitches for both the Ford Explorer and the Ford Explorer Sport Trac, but unfortunately the Class III hitches advertised for the Ford Explorer are not compatible for the Sport Trac. However, we offer two Class III hitches that will fit a 2002 Ford Explorer Sport Trac. The Curt Class III Round Tube Hitch # 13407 and the Draw-Tite Max Frame Round Tube Hitch # 75112. I recommend the Curt Trailer Hitch Class III - 2" # 13407.This hitch is made in the USA and is a little...
  view full answer...

Do you have a question about this Ball Mount?
