Ball Mounts

/

Draw-Tite

/

Fixed Ball Mount

/

Fits 1-1/4 Inch Hitch

/

Class II

/

3500 lbs GTW

Draw-Tite Drawbar for 1-1/4" Hitches - 5" Rise - 10" Long - 3,500 lbs

Draw-Tite Drawbar for 1-1/4" Hitches - 5" Rise - 10" Long - 3,500 lbs

Item # 36065

lowest price pledge

Retail:$40.11

Our Price: $27.95

You Save: 30%
Ball Mounts

Orders above $50 qualify for Free Shipping

Shipping Weight: 8 lbs

Arrives before Christmas with Ground or 3 Day Shipping.
Quantity:
In Stock, Ships Today
Draw-Tite Fixed Ball Mount - 36065
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos

Sturdy steel ball mount with solid shank measures 10" from center of hitch pin hole to center of ball hole. Drawbar is Class II compatible only. Powder coat finish over a-coat base provides excellent rust protection. Call 800-298-8924 to order Draw-Tite ball mounts part number 36065 or order online at etrailer.com. Free expert support on all Draw-Tite products. Guaranteed Lowest Price and Fastest Shipping for Draw-Tite Drawbar for 1-1/4" Hitches - 5" Rise - 10" Long - 3,500 lbs. Ball Mounts reviews from real customers.
  • All Info
  • Reviews (77)
  • Q & A (43)
  • Videos (1)
  • Photos
  • Why etrailer?

Draw-Tite Ball Mounts - 36065

  • Fixed Ball Mount
  • Fits 1-1/4 Inch Hitch
  • Class II
  • 3500 lbs GTW
  • Drop - None
  • Rise - 5 Inch
  • Draw-Tite
  • No Ball
  • Steel Shank

Sturdy steel ball mount with solid shank measures 10" from center of hitch pin hole to center of ball hole. Drawbar is Class II compatible only. Powder coat finish over a-coat base provides excellent rust protection.


Features:

  • Ball mount lets you hook up your trailer to your tow vehicle
    • Shank slides into your vehicle's hitch receiver
    • Ball platform provides mounting point for hitch ball (sold separately)
  • Drawbar can be used in rise position only
  • Sturdy steel construction with solid shank
  • Black powder coat finish covers a-coat base for superior rust protection
  • Hitch pin and clip included - hitch lock sold separately


Specs:

  • Application: 1-1/4" x 1-1/4" trailer hitch receivers
    • Class II compatible only
  • Gross towing weight: 3,500 lbs
  • Tongue weight: 300 lbs
  • Length: 10" from center of hitch pin hole to center of ball hole
  • Rise: 5" from top of inside of hitch opening
  • Ball hole diameter: 3/4"
  • Pin hole diameter: 1/2"
  • Limited lifetime warranty


36065 Draw-Tite Drawbar for 1-1/4" Hitches - 5" Rise - 10" Long - 3,500 lbs

Replaces 90009






California residents: click here


Video of Draw-Tite Drawbar for 1-1/4" Hitches - 5" Rise - 10" Long - 3,500 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

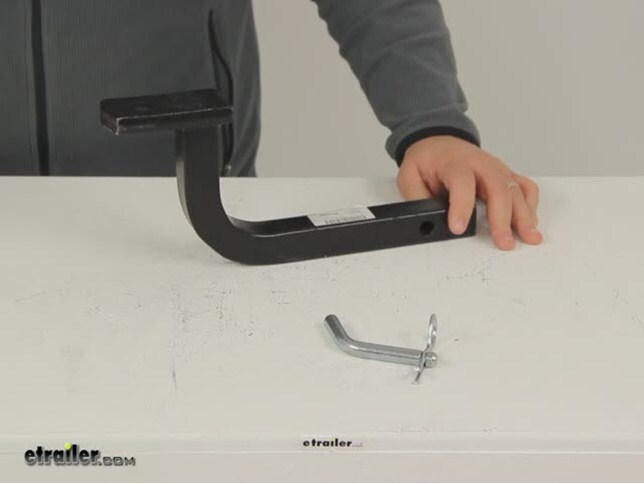

Video Transcript for Draw-Tite Ball Mounts - Fixed Ball Mount - 36065 Review

Today we'll be reviewing part number 36065. This is the Class II Drawbar from Draw-Tite. It's rated for up to 3500 pounds of gross trailer weight and up to 300 pounds of tongue weight. It is designed to fit 1-1/4" by 1-1/4" trailer hitch receivers, class II. It's a nice solid piece. You can see here that on the back side the shank is a solid shank.

It's not going to let in any dirt or moisture or material that can build up inside the shank. It also comes with this nice 1/2" pin and clip, so that's always handy to have. We do recommend that you use this in only the rise position, and that's going to provide us with a rise of 5". It has a really nice black powder coat finish on it, which is really going to help it stand up well against rust and corrosion. When choosing a hitch ball, you want to make sure that the shank of your hitch ball does not exceed the ball hole diameter, which for this mount measured 3/4". We'll measure from the center of hitch pin hole to the center of the ball hole.

We're going to get a measurement of right around 10". The distance from the center of the hitch pin hole to the start of the curve, so this point here, is going to measure about 6-3/4". I give you that measurement because you want to make sure that when you install this, that you have plenty of clearance between this portion here and your rear bumper. You don't need a ton of clearance, but you do want to make sure that this is actually going to install on your vehicle and not interfere with the outermost portion at the rear of your car or truck, vehicle, whatever you're using. The distance from the center of the hitch pin hole to the back of mount is going to measure right around 2". Again, it does include the pin and clip. This portion here is the portion that slides into the receiver tube of your hitch.

You would then line up your pin hole and insert your 1/2" pin that comes with the clip. That's going to complete today's review of part number 36065. It's the Class II Drawbar from Draw-Tite. .


Customer Reviews

Draw-Tite Drawbar for 1-1/4" Hitches - 5" Rise - 10" Long - 3,500 lbs - 36065

Average Customer Rating:  4.8 out of 5 stars   (77 Customer Reviews)

Sturdy steel ball mount with solid shank measures 10" from center of hitch pin hole to center of ball hole. Drawbar is Class II compatible only. Powder coat finish over a-coat base provides excellent rust protection.

- 36065
by:

Ordered the hitch, wiring harness and drawbar for my 2011 Malibu. E-trailer was very good over all in the transaction, they communicated well, got the order out very quick and upgraded my shipping so I got the parts faster and the directions and video clips on their site were great and I had everything installed in just over 2 hours by myself - although a second person would have helped. the bolt wires they included with the hitch made getting the bolts through the frame so easy :) Have already used the hitch with a trailer and it worked great. I would definitely use them again! 20569



- 36065
by:

There is, what seems to be an excessive amount of play between this drawbar and my hitch resulting in a lot of rattling. I will investigate using shims of some kind to alleviate the matter. 236207


Comments

Using still shims has helped, not ideal but no other solution short of welding.

Regis - 01/24/2017

22287

- 36065
by:

The hitch was easy to install, and etrailer easily added the drawbar, ball, and wiring that I needed. Overall this was a fast, inexpensive solution. 285490


Comments

Thank you for following up. Other than a few bumps getting out of driveways, the hitch has been satisfactory. The Aura has such a low-riding bumper!*

Mike M - 03/12/2017

22701

- 36065
by:

Great item works great 525500



- 36065
by:

As advertised quality paint and welding . 705197



- 36065
by:

This is what you call customer service. She noticed that some things I ordered were not going to work together and immediately placed my order on hold and called me 3 times. I had to post this. Etrailer.com has definitely earned my business 692821



- 36065
by:

This hitch has been great to use with my VW Golf. It had accurate measurements on the description. When it came it fit with my car and trailer exactly how I thought it was going to. It is also solid metal and much more durable than what a little car needs. This hitch is definitely not the weak link in my car/trailer setup. It is a hitch I’d recommend to my friends in a similar situation. If you have a small car, this is a great hitch. 644360



- 36065
by:

Positions just right for this bumper. 636933



- 36065
by:

High-quality product quick delivery. 629768



- 36065
by:

Everything still works a year later and quality is holding up. I am BEYOND impressed with etrailer's customer service. Both at the date of purchase and now reaching out a year later. I’ll never buy anything for a trailer anywhere but etrailer. 633684



- 36065
by:

Works great. Use it on a golf cart to move trailer around. Good quality. 617238



- 36065
by:

looks very good and well made 607591



- 36065
by:

The hitch and brake light harness installed without issue and works flawlessly. 604332



- 36065
by:

Fit perfect on my 2009 Toyota Yaris Sadan it took about 45 min. to install also bought 5in. Receiver with 2in. ball perfect height 589932



- 36065
by:

Good product, works well, good price. 568154


Comments

It is a great product, it is well built and had with stood the weather for a year. I would buy it again if needed.

David - 09/24/2019

61455

- 36065
by:

Am satisfied with the mount as it gave me needed height for a level trailer Received quickly and $$$’s were reasonable 554201


Comments

Very well. I only use it twice a year, hauling my Harley from NH to FL on my diesel VW. but am satisfied with the unit,,,

Dave - 08/16/2019

60076

- 36065
by:

Rather than review the product (which is excellent), I wanted to complement the pricing, communications and level of service. Delivery was fast. I am very pleased with the attention and response from the folks at etrailer! 539742



- 36065
by:

Excellent service, pricing and fast delivery thank you 517558



- 36065
by:

Works as advertised. Levels out my trailer, makes it much easier to launch. 474127



- 36065
by:

I would like to say thank you for the fast service. The product is exactly what I ordered. Tell everyone thanks for there" A "game service. 454513



- 36065
by:

My car is not a low rider, but it's too low for a standard height ball mount. I ordered the 5" rise ball mount and it is perfect. The price was great and it arrived one full day ahead of the estimated arrival date. Thank you! 449661



- 36065
by:

This my second hitch. First bought for Camry 2007, the second for Camry 2017. it perfectly saved my back in few rear collisions, and help parking in NYC. Thank you guys... 432481



- 36065
by:

Awesome as always 422217



- 36065
by:

On line purchase very helpful, delivery on time, and the product was exactly what I needed. Great first time experience. 417486



- 36065
by:

This is my second purchase from etrailer, once again this hitch is perfect to use on the John Deere Gators, I bought this one for my dad who just recently got a new- used Gator. Thanks again Greg 417090



- 36065
by:

As you can see your product was 100% perfect for getting my one legged friend and former Marine back to enjoying the open road. He's allowed to easily load his wheelchair by himself and with the added strength and length it gives him great stability and ease. Thanks again definitely recommend etrailer to all I run into, the price also greatly appreciated. 410437



- 36065
by:

Just what I needed and got here quickly. Put it on in just a few minutes. Scratch that one off the list. 404488



- 36065
by:

Very excellent 398737



- 36065
by:

Just what I needed, but they forgot to tell me that the hitch pin and clip were not in clouded. 392650



- 36065
by:

Exactly as described and quickly shippe d. 346560



- 36065
by:

My order went very smooth and shipping was quick. Ordered this drawbar for my 4 wheeler and it worked great to tow my brush cutter to clear trails. Etrailer.com has a very user friendly website and fast shipping. I will definitely shop here first for all my trailer needs. 343487



- 36065
by:

easy to install looks good 329781



- 36065
by:

excellent 323516



- 36065
by:

Exactly as advertised. No problems. I used it on a Toyota Sienna, which has a very low hitch receiver. I'm pulling a small utility trailer. 309470



- 36065
by:

Fits in my receiver just fine. Puts the hitch in the right place behind my Malibu. 299793



- 36065
by:

Great product, it does what it's supposed to do and does it well. 296627



- 36065
by:

All products as advertised. Packaging was very good and shipping was quick. 296959



- 36065
by:

Great service and good selection of products. On line videos make things easier to preview. Prompt shipping actually received before anticipated date. A ball mount was difficult to find for my HHR but etrailer solved the problem. 285077



- 36065
by:

Sold metal, strong with gloss black pai nt. 241420



- 36065
by:

Just what I was looking for, but when it got here it was half out of the box but it looks like it is all there!! Thank you!! 231490



- 36065
by:

Exactly what I needed and shipped quicker than anticipated. Thanks. 227214



- 36065
by:

Very sturdy and does the trick on a Hyundai Genesis sedan 201121



- 36065
by:

point, click and it comes to you. perfect rise for a subaru outback. 199645



- 36065
by:

I ordered the hitch attachment on Monday and Thursday I received it. Excellent quality. 159894



- 36065
by:

Product is exactly as described. Seems really sturdy. 158639



- 36065
by:

All of the products that I bought for Camry the hitch and rise kit work great as well as the wireing. 124261



- 36065
by:

Good quality product. Fast shipping. Easy company to deal with. The customer service will make up for any discrepancies you may find with this company. My transaction was without issues. I have to bookmark this company for future purchases. 98158



- 36065
by:

I've got a lowered 1995 VW Jetta with a 1.25" receiver. I had to use a 6" extension along with a long, straight drawbar so any steep incline had me going at an angle and even then I would sometimes scrape. Some one had this drawbar on their Jetta and it looked good. With the measurements provided on this site I determined it would sit far enough away from my bumper and elevate the ball so my trailer wouldn't be angled down so much. Very glad I ordered this unit, it fits the car and works perfectly! Much better than my previous fix. 86785


Comments

Okay, a year later and not a single complaint regarding this ball mount. It dutifully does its job to allow me the crazy looks people throw at me when hauling my motorcycle or my wifes latest furniture purchase. I dont know why Americans think trucks are the only vehicle to haul things.

Toby - 07/03/2014

5288

- 36065
by:

Excellent product. It met my needs of extending the ball out from my bumper and raising the height to the level necessary for the trailer. 81807



- 36065
by:

It is what it is....Couldn't ask for much more for what I'm using it for!! 75537


54
81
Show More Reviews

Ask the Experts about this Draw-Tite Ball Mounts

Do you have a question about this Ball Mount?


  • Ball Mount Recommendation for a 2017 Chrysler Pacifica with Draw-Tite Trailer Hitch 36798
  • Your assumption is correct. If the distance from the ground to the top of the receiver opening on trailer hitch # 36798 is 12 inches, and the distance from the ground to the bottom of a level trailer coupler is 17 inches, you would need a ball mount with a 5 inch rise. Ball mount # 36065 is a good option. It takes a ball with a 3/4 inch diameter shank. For a compatible 1-7/8 inch ball you can use # 19256. For a 2 inch ball use # 19258. For trailer wiring if your 2017 Chrysler Pacifica...
    view full answer...

  • Class II Ball Mount with 1-1/4" Shank Needed that has a 5" or 6" Rise/Drop
  • I am attaching a link to all of our Class II ball mounts that fit a 1-1/4" receiver opening. Since adjustable ball mounts are geared towards vehicles that tow regularly, like pickups, they don't make any that fit a 1-1/4" receiver. Among the linked ball mounts we have the Draw-Tite # 36078 which has a 5" drop or the Draw-Tite # 36065 which has a 5" rise, both of which are rated for 3,500 lbs. Either of these ball mounts are compatible with the 1-7/8" Hitch Ball # 19256 rated at 2,000...
    view full answer...

  • Trailer Hitch Recommendation for 2009 Hyundai Genesis Sedan
  • The Class III and IV trailer hitches are designed for higher capacity, larger vehicles like SUVs and trucks that have higher towing capacities. The hitches we have for your 2009 Hyundai Genesis are lower in capacity like the Draw Tite Class II part # 36486 which has a 300 lb tongue weight capacity. Best option would be to go with a small trailer if this is the only tow vehicle you have. I attached an install video for this hitch for you to check out as well. You'll want to check your owners...
    view full answer...

  • Can Hitch Ball with Short Shank be Used with 1-1/4 Inch Ball Mount 36065
  • Yes, you could use a short shank. For a 2 inch ball with short shank that fits ball mount # 36065 you can use # 19258. And for a 1-7/8 inch ball use # 19256.
    view full answer...

  • Ball Mount and Hitch Balls for Use with Draw-Tite Hitch 36479 for 2007 Saturn Aura
  • Draw-Tite's 1-1/4-inch Class II hitch # 36479 is a confirmed fit for your 2007 Saturn Aura. This hitch is rated to tow up to 3500-lbs but your car's rating may be different so be sure to check your owner's manual. The Aura's towing capacity will depend on all of the specific equipment in it. The recommended ball mount # 36065 that fits this hitch can be used with a 1-7/8-inch hitch ball such as # 19256 and also with a 2-inch ball such as # 19258. It just depends on the coupler size on...
    view full answer...

  • Hitch and Accessories Recommended for 2006 Pontiac G6 GTP Copue
  • There is no reason why you could not use a hitch on your G6 GTP. The Draw-Tite Class II Receiver Hitch, part # 36426 is a fit for either the coupe or the sedan. The hitch has a towing capacity of 3500 lbs, and a tongue weight capacity of 300 lbs. I would recommend checking your owners manual for information regarding the vehicle towing capacity, you will not want to exceed this capacity. You will also need a the recommended draw bar for this hitch, part # 36065, a pin and clip part...
    view full answer...

  • Procedure and Hardware for Trailer Hitch Installation on a 2012 Chevy Malibu
  • The frame is hollow so there is nothing for self-tapping hardware to grip. Also, frame steel is generally very strong and can even require a special drill bit (rotabroach) so self-tapping hardware would have an even harder time installing. I have linked a video showing a typical installation for you and a link to the instructions. If you plan on doing some towing then the correct ball mount is # 36065. For a 1-7/8 inch ball use # 19256 and for a 2 inch use # 19258. For trailer wiring...
    view full answer...

  • Trailer Hitch Recommendation for a 1999 Pontiac Grand Prix GT Coupe
  • We do have trailer hitches that are specifically designed to fit the GT model of the 1999 Pontiac Grand Prix, but # 24659 is for the SE model only. Instead, you can use # 36241. If you click on the last picture on the product page, you will see a picture of the hitch installed on a similar vehicle. I have included a link to the installation details for reference. If you plan on doing some towing, the recommended ball mount is # 36065 for use in the rise position only. For a pin and clip,...
    view full answer...

  • Will Draw Bar 36065 fit a 2012 Nisssan Sentra
  • There is a drawbar with 5" of rise that will work for you, but Draw-Tite # 36065 is for use with Class II hitches only, and is not compatible with your Class I hitch, # 24794. Instead, you could use the Curt # C45024, a Class I draw bar which also gives you 5" of rise and will have no problems clearing your bumper with a length of 9-9/16". For a hitch pin you would want # F-4, and the hitch ball you want would either be 1-7/8" ball # C40001 or 2" ball # C40018.
    view full answer...

  • Trailer Hitch Recommendation for a 2008 Dodge Avenger R/T
  • The Draw-Tite Trailer Hitch # 36448 is a confirmed fit for your 2008 Avenger R/T and is a great fit for your light-duty towing and hitch rack needs. The hitch exceeds industry strength standards. The recommended wiring for your vehicle is the T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector # 118445. I have added a link to that part. The recommended ball mount is # 36065 and I have added a link to that part too. If you require a 2" diameter hitch ball we recommend...
    view full answer...

  • What is the Correct Ball Mount for a 2005 Toyota Camry
  • Because all of the trailer hitches for the 2005 Toyota Camry are Class II hitches, see link, you must use the ball mount specified by the trailer hitch manufacturer. Using a different ball mount voids the warranty because only the recommended ball mount has been tested and approved for each respective trailer hitch. For a Draw-Tite or Hidden Hitch trailer hitch, use # 36061. It has a 3-1/8 inch rise measures from the top of the receiver opening on the hitch. For the Curt hitch, the...
    view full answer...

  • Recommended Trailer Hitch and Wiring for 2010 Hyundai Accent
  • Starting with the trailer hitch for your 2010 Hyundai Accent, I do recommend the Draw-Tite Class I Sport Frame Receiver Hitch # 24795 referenced in your question. This is a Class I hitch that will provide a towing weight capacity of 2,000 pounds. I like this model over the Curt alternative also confirmed to fit your vehicle because unlike Curt, Draw-Tite does not require the use of stabilizing straps like # 18050 with non-trailer loads such as bike racks and cargo carriers. After your move...
    view full answer...

  • What Trailer Hitch Will Fit A 2009 Chevrolet Malibu LTZ And Is Any Cutting Of The Bumper Needed
  • The Draw-Tite Class II 1-1/4 Inch Hitch, # 36479, will work on both the the 2009 Chevy Malibu and the Chevy Malibu LTZ. The difference is the LTZ model uses a different wiring harness since it has LED taillights. On our website, there is a drop down box at the top for vehicle style once you have looked up the year, make, and model. It gives you a choice of All models, except LTZ or LTZ model only. The # 36479 hitch is listed for both of the vehicles, but under the LTZ model only option,...
    view full answer...

  • Trailer Hitch Fit and Towing Capacity for 2009 Pontiac G6
  • The Draw-Tite Class II hitch # 36426 is a confirmed fit for your 2009 Pontiac G6 and the hitch itself offers a maximum towing capacity of 3500-lbs. If your trailer has a 2K-rated axle then the hitch will have plenty of capacity to tow it, but you'll also want to check the G9 owner's manual since the car itself may have a different towing capacity than the hitch. The lower-rated item determines overall capacity. A hitch installation video is linked for you. Towing also requires a ball,...
    view full answer...

  • What is the Towing Capacity of a 2009 Chevy Malibu
  • I checked an online copy of the owners manual for the 2009 Chevy Malibu and the vehicle is rated for 1,000 pounds. I cannot recommend towing anything heavier than that. I would take what you have been told with a grain of salt. What you should do is follow the procedures specified in the owners manual. Paddle shifters on an automatic rarely work like you would want them to. Often times they result in a hard shift or delayed shift which can negatively affect ride quality plus it is one...
    view full answer...

  • What is the Recommended Ball Mount for a 2005 Toyota Sienna with a 1-1/4 Inch Trailer Hitch
  • For a Class I or II trailer hitch with a 1-1/4 inch trailer hitch, you must use the ball mount that is recommended by the trailer hitch manufacturer. The reason is that the hitch has been tested with a specific ball mount and it is deemed to be the safest and best option for that vehicle and hitch combination. The only 1-1/4 inch hitch we carry for your 2005 Toyota Sienna is # C12065. The correct ball mount for this hitch is # C45016, and it must be used in the rise position only. It...
    view full answer...

  • Hitch Recommendation for 2002 Pontiac Grand Prix for Towing Small Rental Trailer
  • The most popular hitch for your 2002 Pontiac Grand Prix is the Draw-Tite Class II hitch # 36241. This hitch has a 1-1/4-inch receiver opening and a maximum trailer weight rating of 3500-lbs, which should be plenty for a small rental trailer. This hitch fits several versions of the Grand Prix, the GT Coupe, the sedan and the GTP. Many of our customer choose to tackle hitch installation on their own, but in the case of your vehicle some drilling is required. You also need a torque wrench...
    view full answer...

  • What Size Trailer Can Be Towed With The Draw-Tite Hitch # 36479 On A 2008 Chevrolet Malibu
  • The Draw-Tite Class II 1-1/4 Inch Hitch, part # 36479, will fit a 2008 Chevrolet Malibu. It is a 1-1/4 inch hitch with a gross towing weight capacity of 3500 lbs. The 2008 Malibu will only have a towing capacity of 1000 lbs. So the vehicles towing capacity is what will limit you to how much you can tow. A towing systems capacity is limited by the lowest capacity in the whole system, in your case it is the vehicle at 1000 lbs. I am including a link to the installation instructions on...
    view full answer...

  • Hitch and Trailer Recommendation for a 2011 Chevy HHR
  • The only way you could transport a 500 handicap scooter with your 2011 Chevy HHR would be for you to install a hitch like part # 24756 and then use a small trailer. A cargo carrier setup wouldn't work because your vehicle wouldn't have the tongue weight rating to suspend the weight of your 500 lb wheel chair off the ground unsupported. To complete your towing setup you would also want a ball mount, the # 118407 for trailer wiring, # 19256 for a 1-7/8 inch hitch ball, and # 19258 for...
    view full answer...

  • What is the Height With and Without Rise on Ball Mount for 2016 Ford Fusion
  • For your 2016 Ford Fusion, the Curt Trailer Hitch Receiver - Custom Fit - Class II - 1-1/4" # C12091 is a confirmed fit. This hitch will be 10-3/4 inches from the ground to the inside top of the receiver opening. When using a ball mount like # C45016, this will give you a 2-5/8 inch rise from that location giving you 13-5/8 inches from the ground in that rise position. In the drop position, the top of the mount or bottom of the actual hitch ball will be at 7-3/8 inches from the ground....
    view full answer...

  • Ball Mount Recommendation for 2012 Chevrolet Cruze With 1-1/4 Inch Trailer Hitch
  • We have a couple different style ball mounts that will work with the hitch on your Cruze. For a standard ball mount I recommend the Curt, part # C45522. This ball mount has a 3-7/8 inch rise to help provide a bit more ground clearance. For a 1-7/8 inch hitch ball I recommend part # C40001, and for a 2-inch ball I recommend part # C40018. If you like the looks of the Euro ball mounts I recommend part # C45592 that comes with a 2-inch hitch ball and I recommend part # C45591 for a...
    view full answer...

  • Could a 2004 Pontiac Grand Prix Tow a Wave Runner with a Trailer Hitch
  • That depends on the weight of your wave runner and trailer. The Draw-Tite Sportframe Trailer Hitch # 24660 that you referenced has a towing capacity of 2,000 lbs and 200 lbs tongue weight. If your trailer falls under those figures then yes this hitch would work for you. You will need to also check your owners manual to determine what your vehicle's towing capacity is as hitches for vehicles do not always have the same capacities. If you need more hitch capacity I would recommend the...
    view full answer...

  • Is the Material of Curt Class II 1-1/4 Inch Hitch # C45015, Solid Steel or Tubular Steel
  • The Curt Class II 1-1/4 Inch Ball Mount, part # C45015 has a solid steel shank. It has a 5 inch rise and measures 11-5/8 inches from the center of the hitch pin hole to the center of the ball hole. The other choices I have for a 1-1/4 inch ball mount with a 5 inch rise is the Curt Class II 1-1/4 Inch Ball Mount, part # C45014 which is 9-5/8 inches long and the Draw-Tite Class II 1-1/4 Inch Ball Mount, part # 36065 which is 10 inches long. Both of those ball mounts will also have solid...
    view full answer...

  • Sport Trailer With 15 Inch Hitch Ball Height
  • I have a great option that is going to work for you, though I checked with Yakima, and to use the Rack and Roll Trailer # Y08107 the top of the hitch ball must be 22" off the ground. An inch or two in either direction would work, but the seven inch difference you have would make the trailer susceptible to fishtailing due to the uneven tongue height. With that said, there is a similar trailer that is going to work very well for you, the Malone MicroSportXT Trailer # MPG460XT, which requires...
    view full answer...

  • What Is Needed To Tow A Pop-Up Camper With A 2004 Pontiac Grand Prix GT1
  • Yes, you can tow a small pop-up camper with your 2004 Pontiac Grand Prix GT1, as long as the camper does not weigh more than 3,500 lbs. loaded. But, you will always want to check the owners manual or with the dealer for the gross towing weight capacity of your 2004 Pontiac Grand Prix GT1 to make sure the towing capacity is not exceeded. The Draw-Tite 1-1/4 Inch Class II Hitch, # 36241, would be a recommended hitch for your vehicle. It is a Class II hitch which has a 3,500 lbs. towing...
    view full answer...

  • Can The Draw-Tite Ball Mount, # 36065, Be Turned Over And Used As A Drop On a Mercury Mountaineer
  • A 1-1/4 inch hitch receiver is either a Class I or Class II hitch. All Class I and Class II can only use the ball mounts that are recommended for that vehicle. For safety reasons, if you have to change the rise or drop from the recommended ball mount, then the manufacturer does not recommend to tow that trailer with the Class I or Class II hitch on your vehicle. We have Class III hitches available for Mercury Mountaineers that will bolt on underneath the OEM 1-1/4 hitch. The Class...
    view full answer...

  • Using a 36078 Class II Drop Drawbar as a Rise Instead of a Drop
  • The drawbar you mentioned is not intended to be used in the rise position and would only create a 3-1/2 inch rise. We do carry a 5 inch and a 3-1/8 inch rise drawbar (see links below) that will fit the Class II hitch. These drawbars all have a tongue weight capacity of 300 lbs and a towing capacity of 3500 lbs. Keep in mind that if you need a significantly higher or lower drawbar to tow (you are not able to use the manufacturer's recommended drawbar for the hitch), you will void the manufacturer's...
    view full answer...

  • Ball Mount for Trailer Hitch 24890 on a 2015 Dodge Dart Towing Detail K2 Trailer K2MMT4X6
  • When we installed Draw-Tite trailer hitch # 24890 on a 2015 Dodge Dart the distance from the ground to the top of the receiver opening was 9-1/2 inches, see video link. That means you will need a ball mount with a rise of 6-1/2 inches to get to a height of 16 inches. We can get you close with ball mount # 36065 which has a 5 inch rise. For a compatible ball use # 19258.
    view full answer...

  • Trailer Hitch and Towing Recommendation for a 2010 Chevy Malibu LT
  • First you would need to start with a trailer hitch for your 2010 Chevy Malibu LT. For that you would want the Draw Tite # 36479 which is a confirmed fit. For a ball mount # 36065 would be the correct one to use. For a 1-7/8 inch ball use # 19256 and for a 2 inch ball use # 19258. For trailer wiring you can use # 118450. I checked an online copy of the owners manual for the 2010 Chevy Malibu and the vehicle is rated for 1,000 pounds. I cannot recommend towing anything heavier...
    view full answer...

  • Trailer Hitch and Wiring Recommendation for 2008 Chevy Malibu
  • Due to the weight of the jazzy mobility scooter and that your 2008 Chevy Malibu is a lighter duty vehicle you wouldnt be able to carry it on a carrier but could use a small trailer and tow it with a trailer hitch installed. For that we have the Draw Tite part # 36479 which is a confirmed fit and would work well. For trailer wiring you'd then want the part # 118540 which is a custom fit and would work well. For a ball mount you'd then want the # 36065 and then for a 2 inch ball # 19258...
    view full answer...


Do you have a question about this Ball Mount?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality ball mounts for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate ball mount information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Expert Research:
Mike L
Expert Research:
Sarah L
Expert Research:
Robert G
Expert Research:
Michael H
Expert Research:
Jeff D
Expert Research:
Jeffrey L
Updated by:
Laura H
Updated by:
Sarah W
Updated by:
Alexander C
Updated by:
Brian T
Installed by:
Cole B

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.
