Ball Mounts

/

Draw-Tite

/

Fixed Ball Mount

/

Fits 2 Inch Hitch

/

Class III

/

7500 lbs GTW

Draw-Tite Ball Mount for 2" Hitches - 2-3/4" Rise, 4" Drop - 9" Long - 7.5K

Draw-Tite Ball Mount for 2" Hitches - 2-3/4" Rise, 4" Drop - 9" Long - 7.5K

Item # 2753

lowest price pledge

Our Price: $17.73

Ball Mounts

Orders above $50 qualify for Free Shipping

Shipping Weight: 9 lbs

Arrives before Christmas with Ground or 3 Day Shipping.
Quantity:
In Stock
Draw-Tite Ball Mounts - 2753
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Sturdy steel ball mount with hollow shank measures 9" from center of hitch pin hole to center of ball hole. Angle-cut shank slides easily into your hitch. Powder coat finish over a-coat base provides excellent rust protection. Call 800-298-8924 to order Draw-Tite ball mounts part number 2753 or order online at etrailer.com. Free expert support on all Draw-Tite products. Guaranteed Lowest Price and Fastest Shipping for Draw-Tite Ball Mount for 2" Hitches - 2-3/4" Rise, 4" Drop - 9" Long - 7.5K. Ball Mounts reviews from real customers.
  • All Info
  • Reviews (291)
  • Q & A (212)
  • Videos (2)
  • Photos
  • Why etrailer?

Draw-Tite Ball Mounts - 2753

  • Fixed Ball Mount
  • Fits 2 Inch Hitch
  • Class III
  • 7500 lbs GTW
  • Drop - 4 Inch
  • Rise - 3 Inch
  • Draw-Tite
  • No Ball
  • Steel Shank

Sturdy steel ball mount with hollow shank measures 9" from center of hitch pin hole to center of ball hole. Angle-cut shank slides easily into your hitch. Powder coat finish over a-coat base provides excellent rust protection.


Features:

  • Ball mount lets you hook up your trailer to your tow vehicle
    • Shank slides into your vehicle's hitch receiver
    • Ball platform provides mounting point for hitch ball (sold separately)
  • Angle-cut end on shank allows for easy installation and removal
  • Both drop and rise positions available to ensure level towing
  • Sturdy steel construction with a hollow shank
  • Black powder coat finish covers a-coat base for superior rust protection
  • Hitch pin and clip included


Specs:

  • Application: 2" x 2" trailer hitch receivers
  • Gross towing weight: 7,500 lbs
  • Tongue weight: 750 lbs
  • Length: 9" from center of hitch pin hole to center of ball hole
    • 4-1/2" From center of hitch pin hole to closest edge of ball platform
  • Rise: 2-3/4" from top of inside of hitch opening
  • Drop: 4" from top of inside of hitch opening
  • Ball hole diameter: 1"
  • Pin hole diameter: 5/8"
  • Limited lifetime warranty


2953 Draw-Tite Ball Mount 2-3/4" Rise or 4" Drop - 7,500 lbs






California residents: click here

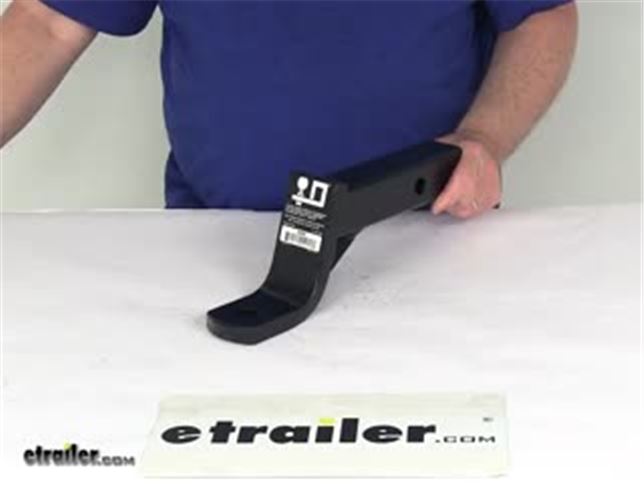

Video of Draw-Tite Ball Mount for 2" Hitches - 2-3/4" Rise, 4" Drop - 9" Long - 7.5K


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Draw-Tite Ball Mount Review

Today, we're going to be taking a look at the Draw-Tite 4 inch drop or 2 3/4 inch rise ball mount. Part number is 2753. We've got a 4 inch drop where you can rotate it over into a 2 3/4 inch rise to help you cover different bases. This is a hollow shank, so we're not so worried about it being really heavy, and a 3/4 inch wide ball mount platform, and the hole for the ball shank itself, that's going to be 1 inch. The ball mount itself is rated for 750 pounds of tongue weight, so that's the maximum downward force we can put down on top of the ball, and it's 7,500 pound gross trailer weight rating, so that's going to be the total weight of your trailer and anything that you load up. You'll want to go off the 7,500 pounds as a maximum unless your car is rated lower. Check your owner's manual, see what your car's tow rating is, and follow whichever of those numbers would be the lowest. The ball mount will be ideal for lots of different applications, your medium and light duty trucks, SUVs, vans, cars.

The only real requirement you're going to have is a 2 inch x 2 inch receiver tube opening on your hitch. It will line up this pinhole with the pinhole in our hitch, slide through our pin, secure it with the clip. Now we'll be ready to grab whichever ball we need at the time. The materials of the kit, of course, are ball mount. We've got heavy duty steel.

It'll be black powder coat finished. Let's hook up our trailer, and we'll be able to hit the road. That's going to complete our look at the Draw-Tite ball mount, part number 2753.


Customer Reviews

Draw-Tite Ball Mount for 2" Hitches - 2-3/4" Rise, 4" Drop - 9" Long - 7.5K - 2753

Average Customer Rating:  4.9 out of 5 stars   (291 Customer Reviews)

Sturdy steel ball mount with hollow shank measures 9" from center of hitch pin hole to center of ball hole. Angle-cut shank slides easily into your hitch. Powder coat finish over a-coat base provides excellent rust protection.

- 2753
by:

Fast delivery good fit on a 10 yr old H onda 479188



- 2753
by:

A year later we still love it. Sturdy and paint is staying on nicely 689966



- 2753
by:

Working in the sand and grass of my driveway my wife and I installed our new etrailer receiver hitch. Great fit and finish! Went right on as described in the online guide. Hitch required a spacer washer on top back bolt attachment point. Taped it on so it would not move while lifting in place and it stayed right there! Used a car jack to raise up and hold the hitch into the underside of the trunk tighten the bolts and reattached the tail pipe done. Now we can pull our Sunfish Sailboat any where the car will go. 154242


Comments

Works great.

Tom W - 11/13/2015

15875

- 2753
by:

My F150 had an OEM 4 pin trailer plug and hitch. The 118242 - 7 pin connector with wiring harness is the ticket. The hardest part of the install was dropping the spare tire. The plugs connect directly to the factory plugs and the harness length is the correct length. The 3035-P brake controller connector harness was just as easy. Plugs right in to the OEM plug next to the ECM connector and the other end into the brake controller. The PK12711U-26 - 7 pin bracket and hardware kit fastens directly the OEM bracket that is on the hitch. My truck had an OEM 4 pin trailer towing set up with the hitch. The OEM hitch had the bracket welded on it to attach the 7 pin mounting bracket to it. These kits make this install very easy and professional looking. If I have one complaint, the hardware kit to attach the 7 pin connector bracket is set up to fasten the bracket directly to the bumper with 2 - self tapping screws provided in the kit. The kit also includes 4 #12 machine screws with toothed washer nuts to attached the 7 pin connector to the bracket. This is fine if your truck hitch doesn't have an attaching bracket welded to it. The kit should included in it 6 #12 machine screws and nuts along with the 2 self tapping screws. Since my OEM hitch actually had a bracket welded to it to attach the 7 pin bracket to it, I had to use two other #12 screws and nuts to attach the 7 pin bracket to the OEM bracket on the hitch. Not a big deal, just a thought. It took me about 2 hours, start to finish to install the 7 pin connector, trailer controller, and add the two relays in the OEM relay/fuse box under the hood. I highly recommend these kits. 322338



- 2753
by:

I'm impressed with the timely delivery and it fit my vehicle perfectly. Thanks for the good experience. 93848



- 2753
by:

Well made 2 inch drawbar. The only shortcoming is that the 2 inch ball shank has no drilled hole to fit a cotter pin. 730070


Comments

It looks like you paired the Curt 2 Inch Ball # 40038
2" Hitch Ball - 1" Diameter x 2-1/4" Long Shank - Chrome - 12,000 lbs
$11.19
with this ball mount - great option. That hitch ball, and none of our other hitch ball options, feature a hole in the shank to fit a cotter pin. The hitch ball should be installed and torqued to the specifications provided by the manufacturer with the hitch ball.

-- Victoria B - 12/12/2019

63774

- 2753
by:

Great drop receiver. Does what is expected. No problems here. 727453



- 2753
by:

Works exactly as hoped, no rust or wear after a year of use. 711449



- 2753
by:

Arrived quickly. 705588



- 2753
by:

Pleasure to shop with this company.....well informed employees to speak with if needed! 693836



- 2753
by:

I could not be more please with service from Kaylyn. I placed an order and before it arrived I realized I order the wrong part #. I talked to Kaylyn on the phone and we ordered the right part and it arrived the same day as the original order. etrailer is the place to shop!!! 688659



- 2753
by:

Just what I needed. Had to chase the treads with a tap. Wire brushing just wasn't adequate. Great job on your website and the videos on the electrical hookup hardware was very helpful. I actually purchased a different one than i had in the shopping cart after watching the video. Thanks Ken 682416



- 2753
by:

Product was just as it was described. It will work well with the application I needed. 663264



- 2753
by:

Solid product. No issues 634736



- 2753
by:

Worked as expected 628467



- 2753
by:

Great price, fast shipping. All good 619558



- 2753
by:

Great customer service, delivered quick 613938



- 2753
by:

Feels like a sturdy hitch and has a good finish on the metal. 602911



- 2753
by:

Does its job. Nice mix of drop and rise. Use on 2015 Toyota Sienna 579802



- 2753
by:

Great 574138



- 2753
by:

This product has arrived in excellent condition, but has not been installed yet. Thank you for such great customer service, and sending it in such a timely manner. 567133



- 2753
by:

This product has arrived in excellent condition, but has not been installed yet. Thank you for such great customer service, and sending it in such a timely manner. 567132



- 2753
by:

This has the right rise for my Honda Od yssey. 566810



- 2753
by:

Very sturdy!! 560903



- 2753
by:

Just the thing I needed to complete my hitch installation. 560269



- 2753
by:

Well built and just as shown, pleased with it. 544876



- 2753
by:

I wasn't sure what exact parts I needed. After calling the help number I quickly had my order completed. Great customer service! 543387



- 2753
by:

i installed it "upside down" making for the 2-3/4 rise and it works perfectly. it does not have the shallow recess where the ball meets the hitch so i had to use two giant wrenches to sinch it down tight; but i have a giant lock washer on the nut side to keep it from moving. 541935



- 2753
by:

Came on time ball mount was just what I expected I have ordered from a trailer several times always satisfied 541641



- 2753
by:

Good company to work with. A really fast shipper. Shipped same day in my c ase. 528444



- 2753
by:

It works fine 516729



- 2753
by:

Easy install and looks bombproof. 515786



- 2753
by:

This worked great with my Curt hitch for Subaru Outback 2016. It was a right height for the uhaual trailer as I had to use this as a raise rather than drop. Also, the staff at etrailer was very helpful. 512777


Comments

Still doing great!

Kevin - 07/26/2019

58244

- 2753
by:

You have a great website the product was easy to find and well-defined your price with shipping beat the local prices in my area. The shipping was fast and delivered right to my door. Oh yeah the online tracking of the package was really great. Thank you etrailer. 511262



- 2753
by:

I chose the Draw tight Max Frame Trailer Hitch for its known quality, i like it comes powder coated to reduce unsightly rust and to keep that fresh look. I chose the this hitch for my all around light and heavy duty needs. The Draw Tight Ball Mount is a quality enhancement to this hitch. I chose the 2" chrome ball for its quality and appearance. The Curt C55515 wire connector was the best choice for my lighting needs. 506284



- 2753
by:

This ball mount is built with quality. Thank you etrailer for a great product. 505062



- 2753
by:

This ball mount has worked just fine for my application. No complaints 503012



- 2753
by:

Works as advertised. 490374



- 2753
by:

Great price! 490106



- 2753
by:

Worked great with my new hitch. Perfect height, built to last. 489988



- 2753
by:

The etrailer.com site was easy to navigate and I found the right draw bar for my new Rav4. The order was processed very quickly and delivery was within just a few days of the order. Prices are fair and customer service was great. Thanks for a great online experience! 481966



- 2753
by:

Easy install. 478667



- 2753
by:

Easy to order, quick shipping, great product! Every order experience is Outstanding! etrailer is Always my First stop for my towing needs. Thanks Guys!! 469273



- 2753
by:

This is the second, or third order I have placed with this company. Previously to placing these orders I had telephone contacts with their representative to confirm that the product(s) I was ordering would take care of my issues. In every case, I was handled with professionalism, the orders were delivered as promptly as possible after and the items were all top notch. 466182



- 2753
by:

Great customer service very helpful!! 463751



- 2753
by:

excellent 460650



- 2753
by:

The 2" receiver hitch fit perfect on my 2004 Ford Explorer XLT. I could not be more pleased with the product and most of all the professional and polite manner that etrailer handled the sale. Plus etrailer is the most affordable site I could find. I received the hitch in only two days...WOW. I will recommend you to everybody. Thank you. Freddie 458688



- 2753
by:

The quality looks great. Excellent fini sh. 451681



- 2753
by:

Great product easy to use Easy to install would use you again 450180



- 2753
by:

I haven't used this ball mount yet, but it appears to be very good quality and was packed well. 447955


50
