Curt Class I Drawbar - 2-5/8" Rise, 3-1/4" Drop - 9-3/8" Long - 2,000 lbs

Curt Class I Drawbar - 2-5/8" Rise, 3-1/4" Drop - 9-3/8" Long - 2,000 lbs

Item # C45026

lowest price pledge

Retail:$23.08

Our Price: $18.68

You Save: 19%
Ball Mounts

Orders above $99 qualify for Free Shipping

Shipping Weight: 4 lbs

Quantity:
In Stock, Ships Today
Curt Class I Drawbar - 2-5/8" Rise, 3-1/4" Drop - 9-3/8" Long - 2,000 lbs Fits 1-1/4 Inch Hitch C45026
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Videos


  • Fixed Ball Mount
  • Fits 1-1/4 Inch Hitch
  • Class I
  • 2000 lbs GTW
  • Drop - 3 Inch
  • Rise - 2 Inch
  • Curt
  • No Ball
  • Steel Shank
Corrosion-resistant ball mount is 9-3/8" long and fits 1-1/4" x 1-1/4" trailer hitch receivers. Call 800-298-8924 to order Curt ball mounts part number C45026 or order online at etrailer.com. Free expert support on all Curt products. Guaranteed Lowest Price and Fastest Shipping for Curt Class I Drawbar - 2-5/8" Rise, 3-1/4" Drop - 9-3/8" Long - 2,000 lbs. Ball Mounts reviews from real customers.


  • All Info
  • Reviews (13)
  • Q & A (3)
  • Videos (1)
  • Photos
  • Why etrailer?

Curt Ball Mounts - C45026

Corrosion-resistant ball mount is 9-3/8" long and fits 1-1/4" x 1-1/4" trailer hitch receivers.


Features:

  • Sturdy, steel construction
  • Corrosion-resistant, black gloss powder coat finish
  • High-quality manufacturing process
    • CNC machined for strong, consistent cuts and welds
    • 7-Stage washing method delivers smooth, clean surface
  • Both drop and rise positions available to ensure level towing
  • Hitch pin and clip or hitch lock sold separately
  • Made in USA


Specs:

  • Application: 1-1/4" x 1-1/4" trailer hitch receivers
  • Gross towing weight: 2,000 lbs
  • Tongue weight: 200 lbs
  • Ball hole diameter: 3/4"
  • Length: 9-3/8" from center of hitch pin hole to center of ball hole
  • Rise: 2-5/8" from top of inside of hitch opening
  • Drop: 3-1/4" from top of inside of hitch opening


D-234 45026 Curt Ball Mount - 1-1/4" - Class I

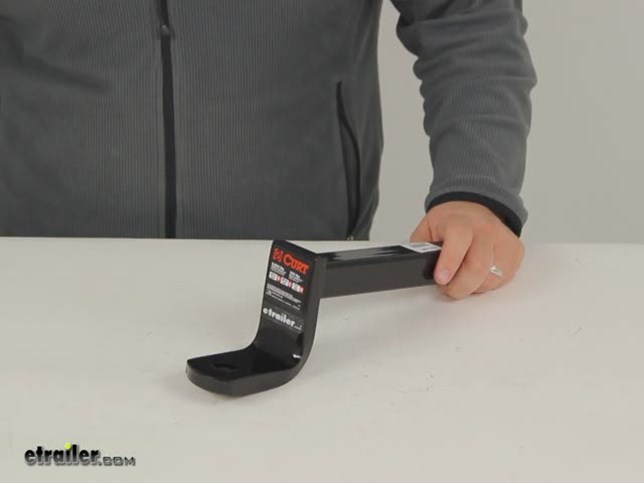

Video of Curt Class I Drawbar - 2-5/8" Rise, 3-1/4" Drop - 9-3/8" Long - 2,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Curt Ball Mounts - Fixed Ball Mount - C45026 Review

Today we'll be reviewing part number C45026. This is the Curt Class-I Draw Bar made from a sturdy steel construction. It has a black gloss powder coat finish so it is going to stand up well against rust and corrosion. This mount goes through a high-quality manufacturing process, a CNC machine for consistent cuts and welds and it goes through a 7-stage washing method to help deliver a nice clean, smooth surface. Both the drop and rise positions are available to help ensure a more level tow. You see here that it does have a hollow shank here on the back side. When choosing a hitch ball, you want to make sure that shank of the hitch ball does not exceed the ball hole diameter which, for this mount, is going to measure right at 3/4". This is the portion here that's going to slide into the receiver tube of the hitch.

This is the shank of the mount. What you'd do is you'd slide this portion in, line up your pin holes and then, you're going to need a hitch pin and clip or a hitch pin and lock. These items are sold separately. You can refer to the Mounts product page in the Related Items to view those products or you can go to our website and type in part number PC2 and it will refer you to this 1/2" pin that comes with a clip. When it's installed in this position, this would be the drop position. We from the inside top edge of the receiver tube to the ball platform.

It's going to give us a drop of 3 1/4". When installed in the rise position doing that same measurement, it's going to us a maximum rise of 2 5/8". The distance from the center of the hitch pin hole to the back of this portion here is going to measure about 6". The distance from the center of the hitch pin hole to the back of the shank is going to measure 1 1/2". The distance from the center of the hitch pin hole to the center of our ball hole is going to measure 9 3/8". This mount is going to provide us with a tongue-weight capacity of 200 pounds and a gross trailer weight capacity of 2,000 pounds.

Because of the weight rating, it is classified as a Class-I draw bar. Here at the front, our draw bar thickness is going to be 3/4". Actually, it's just going to measure right over 1/2" at about 5/8" and about 2" in width. That's going to complete today's review of part number C45026. This is the Curt Class-I Draw Bar rated at 2,000 pounds. .


Customer Reviews

Curt Class I Drawbar - 2-5/8" Rise, 3-1/4" Drop - 9-3/8" Long - 2,000 lbs - C45026

Average Customer Rating:  4.7 out of 5 stars   (13 Customer Reviews)

Corrosion-resistant ball mount is 9-3/8" long and fits 1-1/4" x 1-1/4" trailer hitch receivers.

- C45026

by:


While visiting family in Brooklyn, N.Y. my trailer hitch was stolen. What can you expect it was Crookland, oops I mean Brooklyn. This was an exact replacement. Fast service, nothing bad to say all is good except my feelings for Brooklyn. 517159



- C45026

by:


My go-to trailer hitch stuff place! Always good prices and easy ordering. "Chelsey" was a great help in selecting the best ball receiver. 485966



- C45026

by:


Works great. 443571



- C45026

by:


Job well done. Thank you 370414



- C45026

by:


parts good , shipping box was all but destroyed. Fits my chev. cavalier just great 323802



- C45026

by:


Arrived on time. Just what I ordered 255211



- C45026

by:


Simple, solid, effective. I needed a longer bar for our hitch in order to clear the back bumper of our 2000 Subaru Outback. This is perfect. 239500



- C45026

by:


Fit and finish are good. 160755



- C45026

by:


That was what i was looking for and it arived on time Thanks 148290



- C45026

by:


Excellent- I bought it to get More length from the vehicle without using a extender(which lowers by 50% your weight limits). It fits the bill perfectly and will tow a 400 Pound Sea Doo Spark with my Chevy Spark which has the E trailer hitch . Great service and speedy delivery!! 115714



- C45026

by:


Solid product, meets all specs. Hollow shank made it easy to install anti-rattle device. 101092



- C45026

by:


You guys did everything you should have. The mount works great. It was the strangest UPS delivery ever-- thank God for thePost Office. I will happily buy from you again 69144



- C45026

by:


I would have rated this product as very good, but it would not fit into my 1.25 inch receiver. It was necessary to grind it down a bit and then repaint it. My other ball mount fit in the same receiver with no modification. 45722


13
13

Ask the Experts about this Curt Ball Mounts
Do you have a question about this Ball Mount?


  • Drawbar Will Not Fit Trailer Hitch On 2004 John Deere Buck ATV
  • The problem you probably are facing is that you have to use a Class l ball mount in the hitch receiver on your John Deere ATV. The shank on a Class ll ball mount is inserted in the receiver more than on a 1-1/4 inch receiver and the holes will not line up. I went to the warehouse and measured the Curt Class l Drawbar, part # C45021. The distance from the end of the shank that goes in the receiver to the center of the hitch pin hole is 1-1/2 inches. This drawbar has a 4-inch rise and...
    view full answer...

  • Is there a 1-1/4 Inch Ball Mount with 4 to 5 Inches of Drop
  • Ball mount # 36078 has a drop of 4-3/4 inches. This ball mount is designed for Class II hitches with a 1-1/4 inch receiver. If you have a Class I hitch this ball mount may not fit depending on the brand of the hitch. For a Class I hitch we have several ball mounts that offer a 3-1/4 inch drop: # C45022, # C45026, and # C45027. Also keep in mind that the tongue weight of the trailer will pull down on the back of the vehicle some so that can help in keeping the trailer level.
    view full answer...

  • Recommended Ball Mount and Trailer Wiring Harness for 2015 Toyota RAV4 AWD Limited
  • Starting with the trailer wiring harness, I recommend the Tekonsha T-One Vehicle Wiring Harness # 118578 for your 2015 Toyota RAV4 AWD Limited. This harness is custom-fit for your vehicle and will install by connecting directly to existing ports located behind the trim panels in the cargo area on the driver and passenger side. I have attached an installation video on your 2015 RAV4 that you can use for reference. Then for the ball mount, the closest option we have available to the...
    view full answer...
