Curt Class I Drawbar - 3-3/4" Rise - 11-1/2" Long - 2,000 lbs

Curt Class I Drawbar - 3-3/4" Rise - 11-1/2" Long - 2,000 lbs

Item # C45023

lowest price pledge

Retail:$34.77

Our Price: $13.97

You Save: 60%
Ball Mounts

Orders above $50 qualify for Free Shipping

Shipping Weight: 7 lbs

Arrives before Christmas with Ground or Free Shipping.
Quantity:
In Stock, Ships Today
Curt Drop - None,Rise - 4 Inch Ball Mounts - C45023
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos

Corrosion-resistant ball mount is 11-1/2" long and fits 1-1/4" x 1-1/4" trailer hitch receivers. Ball mount can be used in the rise position only. Call 800-298-8924 to order Curt ball mounts part number C45023 or order online at etrailer.com. Free expert support on all Curt products. Guaranteed Lowest Price and Fastest Shipping for Curt Class I Drawbar - 3-3/4" Rise - 11-1/2" Long - 2,000 lbs. Ball Mounts reviews from real customers.
  • All Info
  • Reviews (12)
  • Q & A (3)
  • Videos (1)
  • Photos
  • Why etrailer?

Curt Ball Mounts - C45023

  • Fixed Ball Mount
  • Fits 1-1/4 Inch Hitch
  • Class I
  • 2000 lbs GTW
  • Drop - None
  • Rise - 4 Inch
  • Curt
  • No Ball
  • Steel Shank

Corrosion-resistant ball mount is 11-1/2" long and fits 1-1/4" x 1-1/4" trailer hitch receivers. Ball mount can be used in the rise position only.


Features:

  • Sturdy, steel construction
  • Corrosion-resistant, black gloss powder coat finish
  • High-quality manufacturing process
    • CNC machined for strong, consistent cuts and welds
    • 7-Stage washing method delivers smooth, clean surface
  • Drawbar can be used in rise position only
  • Hitch pin and clip or hitch lock sold separately
  • Assembled in USA


Specs:

  • Application: 1-1/4" x 1-1/4" trailer hitch receivers
  • Gross towing weight: 2,000 lbs
  • Tongue weight: 200 lbs
  • Ball hole diameter: 3/4"
  • Length: 11-1/2" from center of hitch pin hole to center of ball hole
  • Rise: 3-3/4" from top of inside of hitch opening


D-231 45023 Curt Ball Mount - 1-1/4" - Class I







Video of Curt Class I Drawbar - 3-3/4" Rise - 11-1/2" Long - 2,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

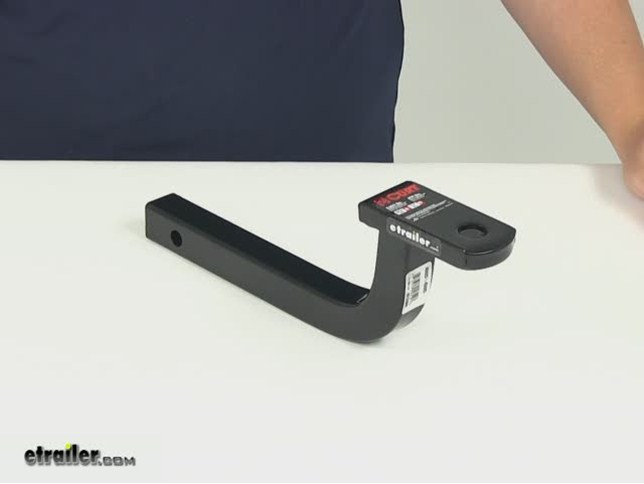

Video Transcript for Curt Ball Mounts - Fixed Ball Mount - C45023 Review

Today, we'll be reviewing part number C45023. This is the Curt Class 1 Drawbar. It's made from a sturdy steel construction with a corrosion resistance and black gloss powder coated finish. It's going to stand up really well against rust and corrosion. This drawbar goes through a high quality manufacturing process. It's CNC machined for strong, consistent cuts and welds. It goes through a 7 stage washing method. It's going to help deliver a nice, clean, smooth surface. The drawbar can be used in the rise position only, which is the position shown. It's going to offer a 3 and 3 quarter inch rise. From the inside top edge of the receiver tube of your hitch, to the top of the ball platform. This portion here is going to be the portion that slides into your hitch.

You're going to push it in until your pinholes are lined up with one another and then you'll need to install a hitch pin and clip or a hitch pin and lock. Those items are going to be sold separately. You're going to refer to our website to see your options. A great option would be part number PC2, that's going to be the half inch pin that comes with a clip. You can see here it's a solid piece. Nice solid shank. This is designed for inch and a quarter by inch a quarter trailer hitch receivers.

It's going to offer a gross towing weight of 2,000 pounds with a maximum tongue weight of 200 pounds. When choosing a hitch ball, you want to make sure that the shank does not exceed the ball hole diameter. Which for this particular mount, it's going to measure 3 quarters of an inch. The distance that we have from the center of hitch pinhole to the center of the ball hole, it's going to give us a measurement of 11 and a half inches. From the center of the hitch pinhole to the back of the upright portion here, it's going to measure about 7 and a half inches to the base of the curve. Then from the back of the shank to the center of the hitch pinhole is going to measure an inch and a half. Again, you're going to have a 3 and 3 quarter inch rise. The overall length, measuring from end to end, it's going to give us a measurement of about 14and one quarter of an inch. That's going to do it for our review of part number C45023.

This is the Curt Class 1 Drawbar. .


Customer Reviews

Curt Class I Drawbar - 3-3/4" Rise - 11-1/2" Long - 2,000 lbs - C45023

Average Customer Rating:  4.8 out of 5 stars   (12 Customer Reviews)

Corrosion-resistant ball mount is 11-1/2" long and fits 1-1/4" x 1-1/4" trailer hitch receivers. Ball mount can be used in the rise position only.

- C45023
by:

E-Trailer fits like a glove and is so easy to install. Thanks 577183



- C45023
by:

Excellent fit 713671



- C45023
by:

This was such an awesome experience!!! My husband and I stumbled across etrailer.com when we searched onlline on how to install a hitch. We then purchased all the materials needed directly from the website. Neither of us know a whole lot about cars but were able to easily install the hitch and wiring by watching the video and the paper instructions sent with the products. The part of this experience I am MOST impressed by is when I got a call shortly after placing my online order to let me know that what I had originally purchased was not compatible with each other. She then continued to efficiently and successfully modify my order to all the right products needed and I didn’t have to do a thing! If that’s not great customer service then I don’t know what is!!! Without that phone call, I would have received incompatible products and been in a real pickle due to time constraints. THANK YOU SO MUCH ETRAILER! You guys rock! Because of you, I now have so much more confidence in doing self-maintenance on my car. 629385



- C45023
by:

Great fit and good rise. It puts my trailer at the right height. It looks to be well made and has a good finish. 574052



- C45023
by:

Recieved ahead of schedule, installed as the video showed. Just as I expected. Thank you JW 568977



- C45023
by:

Fast shipping item was just what it said it was 493861



- C45023
by:

Great fit. Perfect height. Thanks 470991


Comments

Products all are great. Use o tow MIX trailers

Ken - 01/30/2019

49066

- C45023
by:

Everything I've ever ordered from ETrailer been of the highest quality, the highest in customer service and shipping etc. keep up the good work! 345862


Comments

Excellent, it’s just what I needed.

Bill F - 02/25/2018

35119

- C45023
by:

Just what i expected 210489



- C45023
by:

It fit, was the right length and worked as advertised. 129643



- C45023
by:

Very impressive. I needed just this drawbar's length and rise, and it seems to me to be a Class II instead of Class I. My old (too short) drawbar (also from Curt) had a tubular body and I was impressed that this one is of solid barstock. My gross trailer weight is less than 400 lbs, so this drawbar might be considered overkill--if indeed there is such a thing in trailer-world. My receiver is also made by Curt. Overall, I'm very happy with Curt's stuff. For what it's worth, I also slammed on a Hitch-Vise from Hitch Rider to keep the rattle of such a long drawbar down. It was worth the $$. I think eTrailer should add the Hitch-Vise to their line of already neat stuff. 75590



- C45023
by:

VERY SATIFIED 48799


15
15

Ask the Experts about this Curt Ball Mounts

Do you have a question about this Ball Mount?


  • How to Determine the Rise/Drop of Class I Ball Mounts
  • There's some specific measurements to take to determine the rise/drop of ball mount you need. Measure from the inside top of the receiver tube to the ground. Then, with the trailer jacked so that it's level, measure the distance from the underside of the coupler to the ground. The difference between the two measurements is the rise/drop needed. If the coupler height is taller than that of the receiver, you'll need a ball mount with a rise. If the coupler height is smaller than that of the...
    view full answer...

  • Determining Which Drop/Rise Ball Mount will be Needed to Transport my Coleman Popup Camper
  • I can help you figure out what which ball mount you will need for your Mazda and Coleman popup camper. There's some specific measurements to take to determine the rise/drop of ball mount you need. Measure from the inside top of the receiver tube to the ground. Then, with the trailer jacked so that it's level, measure the distance from the underside of the coupler to the ground. The difference between the two measurements is the rise/drop needed. If the coupler height is taller than that...
    view full answer...

  • Trailer Hitch and Wiring for a 2008 Kia Rondo
  • Yes, you can tow a trailer with your 2008 Kia Rondo. I found a copy of the owner's manual online and found the following towing capacities. First, if the trailer does NOT have brakes models with the 2.4 or 2.7 liter motor can tow 1,000 pounds. If the trailer does have brakes then the 2.4 can tow 1,500 pounds and the 2.7 can tow 2,000 pounds. The tongue weight capacity for the 2.4 liter is 150 pounds regardless of whether or not the trailer has brakes. And for the 2.7 liter it is 200...
    view full answer...
