Curt Class II Drawbar - 5" Rise - 9-5/8" Long - 3,500 lbs

Curt Class II Drawbar - 5" Rise - 9-5/8" Long - 3,500 lbs

Item # C45014

lowest price pledge

Retail:$25.65

Our Price: $18.82

You Save: 27%
Ball Mounts

Orders above $99 qualify for Free Shipping

Shipping Weight: 7 lbs

Quantity:
In Stock, Ships Today
C45014 - No Ball Curt Ball Mounts
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos


  • Fixed Ball Mount
  • Fits 1-1/4 Inch Hitch
  • Class II
  • 3500 lbs GTW
  • Drop - None
  • Rise - 5 Inch
  • Curt
  • No Ball
  • Steel Shank
Corrosion-resistant ball mount is 9-5/8" long from the center of the hitch pin hole to the center of the ball mount hole and fits Class II 1-1/4" x 1-1/4" trailer hitch receivers. Ball mount can be used in the rise position only. Call 800-298-8924 to order Curt ball mounts part number C45014 or order online at etrailer.com. Free expert support on all Curt products. Guaranteed Lowest Price and Fastest Shipping for Curt Class II Drawbar - 5" Rise - 9-5/8" Long - 3,500 lbs. Ball Mounts reviews from real customers.


  • All Info
  • Reviews (196)
  • Q & A (30)
  • Videos (1)
  • Photos
  • Why etrailer?

Curt Ball Mounts - C45014

Corrosion-resistant ball mount is 9-5/8" long from the center of the hitch pin hole to the center of the ball mount hole and fits Class II 1-1/4" x 1-1/4" trailer hitch receivers. Ball mount can be used in the rise position only.


Features:

  • Sturdy, solid steel construction
  • Corrosion-resistant, black gloss powder coat finish
  • High-quality manufacturing process
    • CNC machined for strong, consistent cuts and welds
    • 7-Stage washing method delivers smooth, clean surface
  • Drawbar can be used in rise position only
  • Hitch pin and clip or hitch lock sold separately
  • Made in the USA


Specs:

  • Application: 1-1/4" x 1-1/4" trailer hitch receivers
    • Compatible with Class II hitches
  • Gross towing weight: 3,500 lbs
  • Tongue weight: 350 lbs
  • Ball hole diameter: 3/4"
  • Length: 9-5/8" from center of hitch pin hole to center of ball hole
  • Distance from center of hitch pin to closest edge of ball platform: 6-1/2"
  • Ball platform length: 3-1/2"
  • Rise: 5" from top of inside of hitch opening
  • Drop: 3-1/4" from top of inside of hitch opening


D-222 45014 Curt Ball Mount - 1-1/4" - Class II

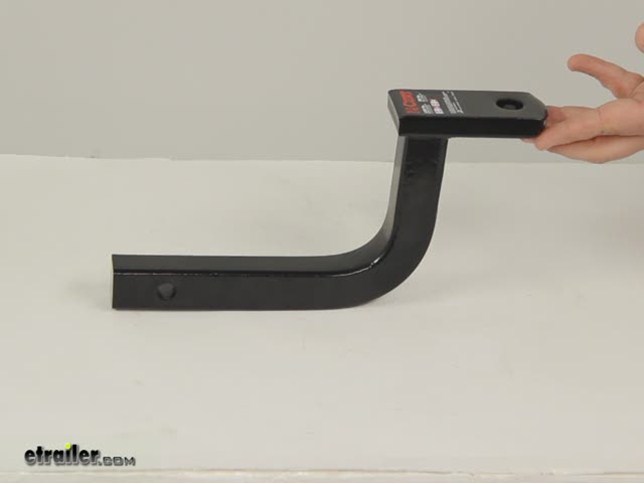

Video of Curt Class II Drawbar - 5" Rise - 9-5/8" Long - 3,500 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Curt Ball Mounts - Fixed Ball Mount - C45014 Review

Today, we'll be reviewing part number C45014. This is the Curt Class II Drawbar, rated at 3500 pounds. This is made from a sturdy solid steel construction. You can see here on the back side of our shank we have a nice solid shank. It's not a hollow point, has a really nice corrosion resistant black gloss, powder coat finish, so it's going to stand up well against rust and corrosion. This ball mount goes through a high quality manufacturing process.

It is CNC Machine for strong, consistent cuts and welds and it goes through a seven stage washing method. It's going to help deliver a smooth clean surface. Please keep in mind when using this drawbar, it can only be used in the rise position. It is designed to fit 1 1/4 inch by 1 1/4 inch trailer hitch receiver and it's going to be compatible with class II only, has a gross towing weight of 3500 pounds and a maximum tow weight capacity of 350 pounds. This portion here is the portion that's going to slide into the shank of the hitch on your vehicle. You would than line up your pinholes and install a half inch pin and clip or you could do a pin and lock.

Those items are sold separately and you can refer to our website to view those products. When choosing a hitch ball or an accessory with a shank you want to make sure that it does not exceed a 3/4 inch measurement. That's the diameter of our ball hole, so that's how much room we have to work with. Another measurement to go over real quick. I want to measure from the center of our ball hole to the center of our hitch pinhole.

That's going to measure about 9 5/8 of an inch. When we have this installed, if we do the measurement from the inside top edge of our receiver tube to the top of our ball platform, we're going to have about 5 inches between those 2 points. That's where we get our rise measurement from. That's going to complete today's review of part number C45014. That's the Curt Class II Drawbar, rated at 3500 pounds.

.
