Price: $18.44

Curt Ball Mount for 2" Hitches - 2-1/2" Rise, 3-3/4" Drop - Angled Shank - 7,500 lbs

Item # C45067

lowest price pledge

Retail:$20.75

Our Price: $18.44

1 used item available

Orders above $99 qualify for Free Shipping

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
curt ball mounts no class iii 7500 lbs gtw c45067
curt ball mounts fixed mount drop - 4 inch rise 2 for hitches 2-1/2 3-3/4 angled shank 7 500 lbs
curt ball mounts fixed mount no for 2 inch hitches - 2-1/2 rise 3-3/4 drop angled shank 7 500 lbs
curt ball mounts fixed mount drop - 4 inch rise 2 for hitches 2-1/2 3-3/4 angled shank 7 500 lbs
curt ball mounts no drop - 4 inch rise 2
curt ball mounts fixed mount class iii 7500 lbs gtw for 2 inch hitches - 2-1/2 rise 3-3/4 drop angled shank 7 500
curt ball mounts no drop - 4 inch rise 2 c45067
curt ball mounts fixed mount drop - 4 inch rise 2 c45067
curt ball mounts drop - 4 inch rise 2 class iii 7500 lbs gtw c45067

Customer Photos

curt ball mounts fixed mount drop - 4 inch rise 2 c45067
curt ball mounts fixed mount drop - 4 inch rise 2 c45067

  • Fits 2 Inch Hitch
  • Fixed Ball Mount
  • Class III
  • 7500 lbs GTW
  • Drop - 4 Inch
  • Rise - 2 Inch
  • Curt
  • No Ball
  • Steel Shank
The best technical support and full ball mounts installation instructions. Lowest price Sienna ball mounts guarantee and expert service. Toyota Sienna, 2012 ball mounts by Curt are available from etrailer.com. For expert service call 800-298-8924 to order your Curt Ball Mount for 2" Hitches - 2-1/2" Rise, 3-3/4" Drop - Angled Shank - 7,500 lbs part number C45067, or order online at etrailer.com.



2012 Toyota Sienna - Curt Ball Mount for 2" Hitches - 2-1/2" Rise, 3-3/4" Drop - Angled Shank - 7,500 lbs

Corrosion-resistant, black powder coated ball mount measures 10-1/4" from center of hitch pin hole to center of ball hole. Angled shank is easy to insert into the receiver. For use in drop or rise position. Hitch pin and clip sold separately.


Features:

  • Ball mount lets you hook up your trailer to your tow Toyota Sienna
    • Shank slides into your Toyota Sienna's hitch receiver
    • Ball platform provides mounting point for hitch ball (sold separately)
  • Both drop and rise positions available to ensure level towing
  • Angled shank makes it easy to insert ball mount into hitch receiver
  • Sturdy steel construction
  • Corrosion-resistant, high-gloss black powder coat finish
  • Hitch pin and clip or hitch lock sold separately
  • Made in the USA


Specs:

  • Application: 2" x 2" trailer hitch receivers
  • Gross towing weight: 7,500 lbs
  • Tongue weight: 750 lbs
  • Length: 9-3/4" from center of hitch pin hole to center of ball hole
  • Rise: 2-1/2" from top of inside of hitch opening
  • Drop: 3-3/4" from top of inside of hitch opening
  • Ball hole diameter: 1"
  • Pin hole diameter: 5/8"
  • Limited lifetime warranty


45067 Curt Class 3 Ball Mount - Standard Duty 2" Right-Angle Ball Mount - 2" Rise, 4" Drop





Economy - This item

Curt Ball Mount for 2" Hitches - 2-1/2" Rise, 3-3/4" Drop - Angled Shank - 7,500 lbs


Curt Ball Mount for 2" Hitches - 2-1/2" Rise, 3-3/4" Drop - Angled Shank - 7,500 lbs
Curt Ball Mounts

103 reviews

Code: C45067

In Stock

Retail:$20.75

Our Price: $18.44


  • Ball Mounts
  • Fixed Ball Mount
  • No Ball
  • Steel Shank
  • Drop - 4 Inch
  • Rise - 2 Inch
  • Fits 2 Inch Hitch
  • Class III
  • 7500 lbs GTW
  • Curt


Corrosion-resistant, black powder coated ball mount measures 10-1/4" from center of hitch pin hole to center of ball hole. Angled shank is easy to insert into the receiver. For use in drop or rise position. Hitch pin and clip sold separately.

more information →
Compare Similar Products
Economy
Price: $14.14
$4.30 Less

Draw-Tite Ball Mount for 2" Hitches - 2-3/4" Rise, 4" Drop - 9" Long - 7.5K


Draw-Tite Ball Mount for 2" Hitches - 2-3/4" Rise, 4" Drop - 9" Long - 7.5K
Draw-Tite Ball Mounts

247 reviews

Code: 2753

In Stock

Our Price: $14.14


  • Rise - 3 Inch
  • Draw-Tite


Sturdy steel ball mount with hollow shank measures 9" from center of hitch pin hole to center of ball hole. Angle-cut shank slides easily into your hitch. Powder coat finish over a-coat base provides excellent rust protection.

more information →
Value
Price: $27.71
$9.27 More

Curt Class III Drawbar - 2" Rise - 4" Drop - 13" Long - 7,500 lbs


Curt Class III Drawbar - 2" Rise - 4" Drop - 13" Long - 7,500 lbs
Curt Ball Mounts

38 reviews

Code: C45270

In Stock

Retail:$30.59

Our Price: $27.71


  • Long Shank


Corrosion-resistant ball mount is 13" long and fits 2" x 2" trailer hitch receivers.

more information →
Premium
Price: $73.83
$55.39 More

etrailer.com 2-3/4" Rise or 4" Drop Ball Mount Kit - 7,500 lbs


etrailer.com 2-3/4" Rise or 4" Drop Ball Mount Kit - 7,500 lbs
etrailer Ball Mounts

100 reviews

Code: EBMK4

In Stock

Our Price: $73.83


  • Two Balls
  • Steel Ball
  • Rise - 3 Inch
  • 6000 lbs GTW
  • Ball Mount Kit
  • etrailer

Related Products



2012 Sienna by Toyota Owners Who Purchased this Ball Mounts Also Bought...

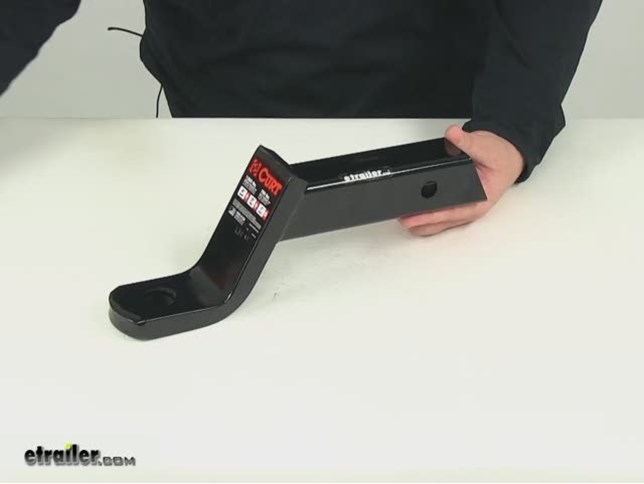

Video of Curt Ball Mount for 2" Hitches - 2-1/2" Rise, 3-3/4" Drop - Angled Shank - 7,500 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Curt Ball Mounts C45067 Review

Today, we're going to be taking a look at part number C45067. This is a Curt ball mount. It's going to offer both drop and rise positions. It's going to be rated at 7500 pounds. The ball mount is going to let you hook up your trailer to your tow vehicle. The shank portion here is going to slide into the receiver tube of your hitch. Then the ball platform is going to provide a good mounting point for a hitch ball.

Hitch balls are going to be sold separately. Now, again, both the drop and rise positions are available to help insure a level tow. One of the things I want to point out is here at the back, you can see that it's going to have a hollow shank. It's also going to have an angled shank. The angled shank is going to make it a lot easier to insert the ball mount into the receiver tube of your hitch. It's made from a sturdy steel construction. It's going to have a corrosion resistant, high gloss, black, powder coat finish.

Once you have this installed on your hitch, you're going to need to secure it with a hitch pin and clip or a hitch lock. Those items are sold separately. You can find those here on our website, using part numbers C21500 for a 5/8 inch pin and clip, or part number 7583 for a hitch pin and lock. This ball mount is going to be made in the USA. It's designed for 2 inch x 2 inch trailer hitch receivers. It's going to offer a gross towing weight of 7500 pounds with a maximum tongue weight of 750 pounds. There are a few measurements I want to go over with you real quick. If we take a measurement from the center of the hitch pin hole to the center of the hitch ball hole, that's going to give us a measurement of 9-3/4 of an inch. Here on the sticker of the Curt ball mount, you're going to see that it says a "4 inch drop and a 2 inch rise." These are rounded or approximate measurements.

I'm going to go ahead and give you the exact measurements real quick. When we take a measurement from the top of the ball platform to the top of the shank, we're going to get an exact measurement of 3-3/4 of an inch. That's going to be the amount of drop that this ball mount offers. You can use it in the rise position. If we do that same measurement, top of the shank to the top of the ball platform, that's going to give us a rise of 2-1/2 inches. It's going to have a drawbar thickness of about 3/4 of an inch. The ball hole diameter is going to measure 1 inch. When choosing the hitch ball, you want to make sure that the shank of that hitch ball matches up with the ball hole diameter. Really simple installation.

All you have to do is place it through the receiver tube of your hitch, line up your pin holes, and then insert a 5/8 inch pin and clip, or a hitch pin and lock. Once you have that set, you're going to be ready to go. I do have a hitch ball with a 1 inch shank diameter, just to show you what it looks like. Again, these are sold separately. You can see there how it fits, how it looks. Then all you'd have to do is install your lock-washer and the nutrition, and get it torqued to specifications. That's going to do it for our review of part number C45067. This is the Curt ball mount for 2 inch hitches. .
