Replacement Remote Mounted SD Control Module for BrakeRite II

Replacement Remote Mounted SD Control Module for BrakeRite II

Item # T4834200

lowest price pledge

Retail:$377.95

Our Price: $321.56

You Save: $56.39
Accessories and Parts

This item qualifies for Free Shipping

Shipping Weight: 1.36 lbs

Quantity:
In Stock, Ships Today
Replacement  Remote Mounted SD Control Module for BrakeRite II Remote Control T4834200
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Videos


  • Brake Controller
  • Remote Control
  • Titan
Call 800-298-8924 to order Titan accessories and parts part number T4834200 or order online at etrailer.com. Free expert support on all Titan products. Guaranteed Lowest Price and Fastest Shipping for Replacement Remote Mounted SD Control Module for BrakeRite II. Accessories and Parts reviews from real customers.


  • All Info
  • Reviews (3)
  • Q & A (9)
  • Videos (1)
  • Photos
  • Why etrailer?

Titan Accessories and Parts - T4834200


  • Replacement SD Control Module
  • Fits Titan BrakeRite II SD Electric-Hydraulic Actuator

4834200 Titan SD Control Module




Video of Replacement Remote Mounted SD Control Module for BrakeRite II


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Titan Brake Controller T4834200 Review

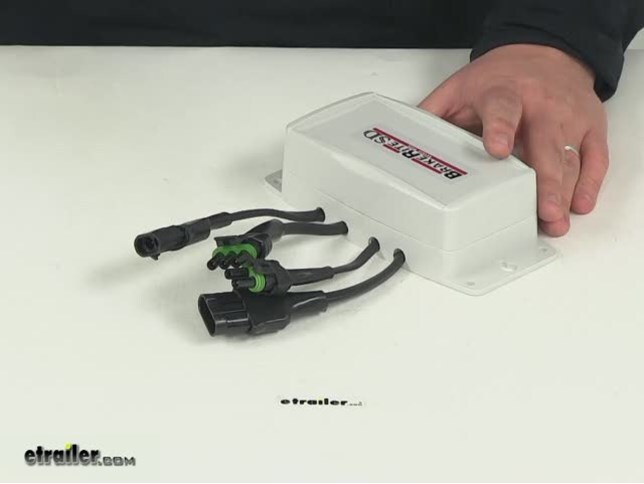

Today we're going to be taking a look at part #T4834200. This is the replacement remote mounted SD control module for the BrakeRite II electric hydraulic actuator. It's going to be a direct replacement. It's going to feature the quick connect plugs that are sealed to protect the connectors from any type of damage or corrosion. Now this system is going to work with most in-cab brake controllers to sense when and how you'll apply the brakes in the two vehicle. An electrical signal is then sent to the control module, which is what we're working with here today, and then that's going to trigger the actuator's pump and motor. Brake fluid is then going to be released and sent to the trailer brakes to activate them. Now again it is a direct replacement so it's going to have the same mounting locations.

It's going to be the exact same size and featuring the same plugs. This plug on this is is going to plug into the BrakeRite II actuator. This one is going to plug into the brakeaway switch. This plug is designed to plug into the SD wiring harness and then this plug is going to plug into the brakeaway battery harness. That's going to do it for our review of part #T4834200. This is the replacement remote mounted SD control module.

.


Customer Reviews

Replacement Remote Mounted SD Control Module for BrakeRite II - T4834200

Average Customer Rating:  3.7 out of 5 stars   (3 Customer Reviews)


- T4834200

by:


E trailer has been great to work with. I had trailer issues just prior to a trip and they were able to overnight the parts I ordered. 97484



- T4834200

by:


my trailer brakes would not engage due to faulty SD control module, so I purchased a SD control module from etrailer.com and they shipped it to me right away and it worked for my trailer. I bought it with free shipping and they saved me 1200 that the shop was trying to charge me 470473



- T4834200

by:


After buying the brake right super duty 2 electric to hydraulic brake kit with everything included for my tandom axle trailer this brake accuator failed. I oaid over 1300 dollars for this all inclusive kit and the poor craftsmanship of this plastic case cracked ooen causing the electronic components to corrode & fail. So I had no choice but to pay another 230 dollars on top of my already spent 1300 not even 1 1/2 year's later. Not pleased 189844


3
3

Ask the Experts about this Titan Accessories and Parts
Do you have a question about this Accessories and Part?


  • Troubleshooting Titan BrakeRite SD Electric-Hydraulic Actuator Kit
  • Good news, I can help you troubleshoot your Titan BrakeRite SD # T4835700 on your trailer. First thing to know is that a braking system is necessary when pulling a trailer equipped with brakes. The BrakeRite SD system is a good system for Electric over Hydraulic (EOH) brakes which it sounds like your trailer has. Since you have an EOH system on your trailer you will need to have a compatible brake controller on your 2015 GMC. If your GMC has a factory integrated brake controller...
    view full answer...

  • Availability of Replacement Control Module for Titan Brake Rite SD
  • We do have a replacement controller box for a Brake Rite SD. It is Replacement Remote Mounted SD Control Module for BrakeRite II, part # T4834200. I have included a picture of the control module for your reference and a link to helpful article on brake controllers.
    view full answer...

  • Titan Brakerite II SD Electric/Hydraulic Actuator Does Not Work w/2015 Ford F-250 OEM Brake Control
  • The BrakeRite II SD electric over hydraulic braking system and the Ford factory integrated brake controller are only compatible with each other if you use the adapter, # T4845900. Plug this adapter in line with the rest of the system and it will work properly with the Ford integrated brake controllers. Originally the adapter was needed for 2006.5 to 2010 Ford trucks, then extended to 2013, and based on the history it is going to be needed for 2014 and 2015 as well. That is unless the...
    view full answer...

  • How Tough Is The Titan Replacement Remote And How Does It Hold Up Against Weather?
  • The Titan Replacement Remote Mounted SD Control Module, Item # T4834200, seems to hold up well to the elements. It is a direct replacement with quick connect plugs that are sealed to protect the connectors from any type of damage, weather, or corrosion. I have attached a video that reviews the Titan to give you a better idea of its construction.
    view full answer...

  • Troubleshooting Titan BrakeRite ll EHB System That Stops Working
  • Since the system worked so well for a long time, it sounds like something happened to the wiring that is causing the issue. The first thing you will want to do is make sure you are getting a signal from the trailer connector on your Ram. Once that checks out you will need to troubleshoot the BrakeRite system. I have attached the field test document in a separate email you can use to test your system you can check out. Once you find the problem you can check out the attached product...
    view full answer...

  • Troubleshooting the Brakerite Titan Electric Over Hydraulic Actuator and Controller
  • For your Titan BrakeRite EHB Electric-Hydraulic Actuator for Disc Brakes # T4813100 it sounds like you have bled the lines properly, but the power is definitely an issue. It sounds like you have a lack of power from your breakaway to your actuator as well as directly to your actuator. I recommend checking your wiring for issues by checking your breakaway battery output to the controller first and then checking the output to the actuator. If you have power going in and not coming out,...
    view full answer...

  • Mounting Hole Pattern Dimensions for Control Module of Titan Brake Rite
  • I went out into our warehouse to get the mounting pattern dimensions of the module of the Brake Rite part # T4835700. From left to right they are all 6-3/4 inches apart. From the top holes to the bottom holes they measure 2-3/8 inches apart. From the top holes to the middle holes measures 1-1/4 inches.
    view full answer...

  • Titan Brakerite II Break Away Battery Charging
  • The Replacement Remote Mounted SD Control Module for BrakeRite II # T4834200 is intended to be installed as shown in the attached diagram. The 12V charge from the 7-way will only help to charge the trailer batteries and breakaway batteries at a maintenance charge amperage. The batteries need to be initially charged on a separate charger like # CTEK56158. The 7-way maintenance charge will not be able to charge a dead battery but only slowly charge a mostly charged battery to maintain...
    view full answer...

  • Is Adapter Needed to Use Titan Brakerite Electric Over Hydraulic Actuators
  • If the brake controller of your 2012 Ford F-350 has an electric over hydraulic mode then you would not need to use an adapter with the Brakerite actuator part # T4813102. You'd just need to set the controller in EOH (electric over hydraulic) mode and you'd be set.
    view full answer...
